SpeedyBee TX800 Video Transmitter FPV VTX 48CH PitMode 25/200/400/800mW with Lollipop 5.8G Antenna For RC FPV Racing Drone
Features:
1. Power Setup(Lock & Unlock): The factory default setting is in LOCK mode with red LED
blinking and only25mWis available. You can switch to UNLOCK mode by long pressing the buttonfor 10 seconds, and the red LED will be constant ON or OFF, but not blinking.

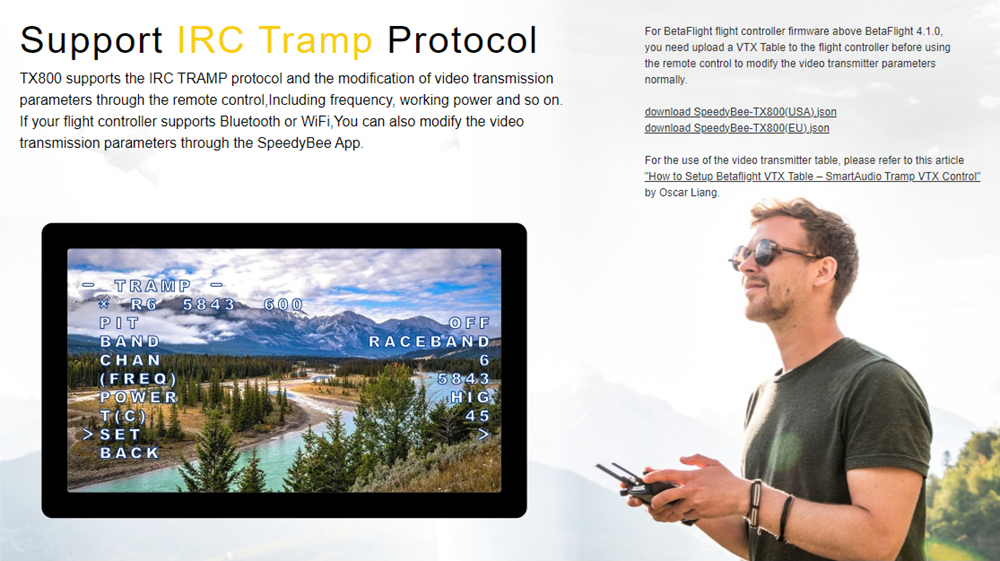

2. Support lRC Tramp Protocol: TX800 supports the IRC TRAMP protocol and the modification of video transmission parameters through the remote control,including frequency, working power and so on.If your flight controller supports Bluetooth or WiFi,You can also modify the videotransmission parameters through the SpeedyBee App.

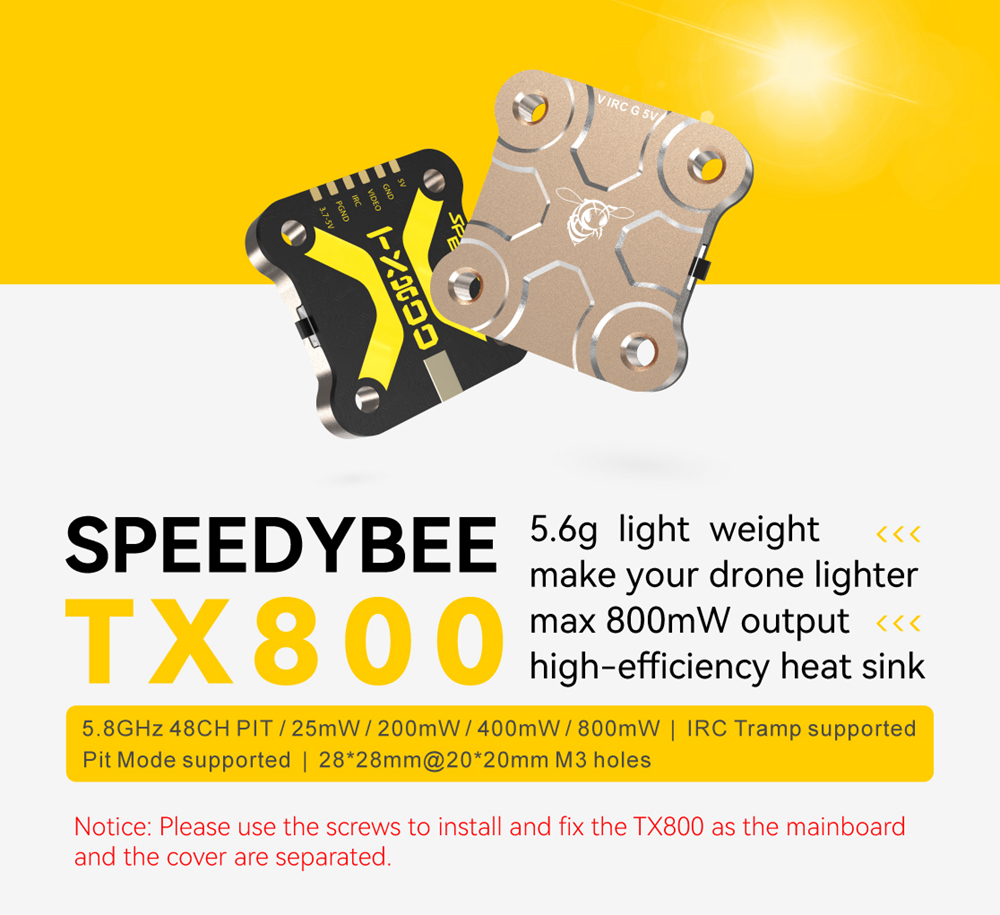

3. Adjustable Power Output and High-efficiency Heat Sink: 5.8GHz 48CH PIT / 25mW / 200mW / 400mW / 800Mw switchable video transmitter.

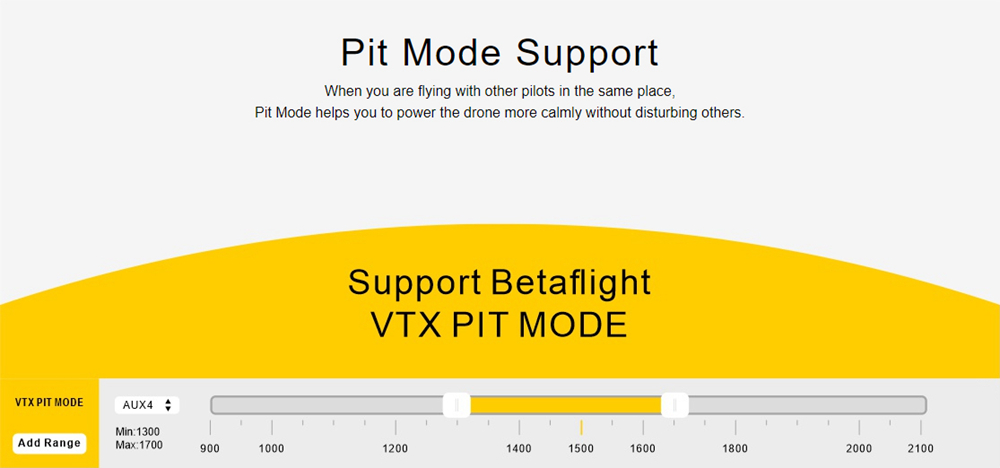

4. Pit Mode Support: When you are flying in the same field with other players ,PitMode can make you more calm to power up the aircraft for parameter adjustment.

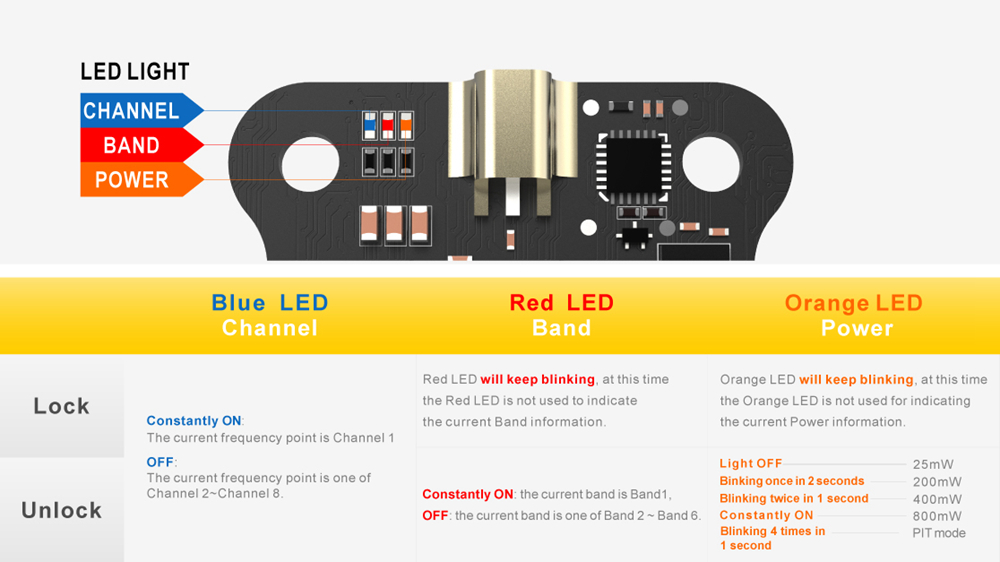

5. Side LED Indicators: 3 kind of color LED indicators help you know the intuitive status of the channel, band and the power.
6.Simple Installation: Mounting hole distance of 20 * 20 mm.
7. New Version: New Foxeer Antenna Lollipop 4+ 5.8G 2.6dBi RHCP LHCP FPV Antenna, best in class range and signal quality.
8. Low feeder loss,easy to install, can be bent at any angle and maintain.
9. Imported PC+ABS Material: FOXEER antenna for 5.8GHz FPV racing,can withstand high strength impact,support you better range and performance in any orientation.
10. Omnidirectional radiation, perfect axial ratio - wide signal coverage.
11. Reasonably small and impact-resistant, ideal for long range drones.
Description:
SpeedyBee TX800 48CH video transmitter is committed to pilots having a better flying experience. This VTX Cooperate with 5.8G 2.6dBi Omni Mini Antenna,can with stand high strength impact,wide signal coverage,stable transmission and has strong anti-interference ability, with easy to use.

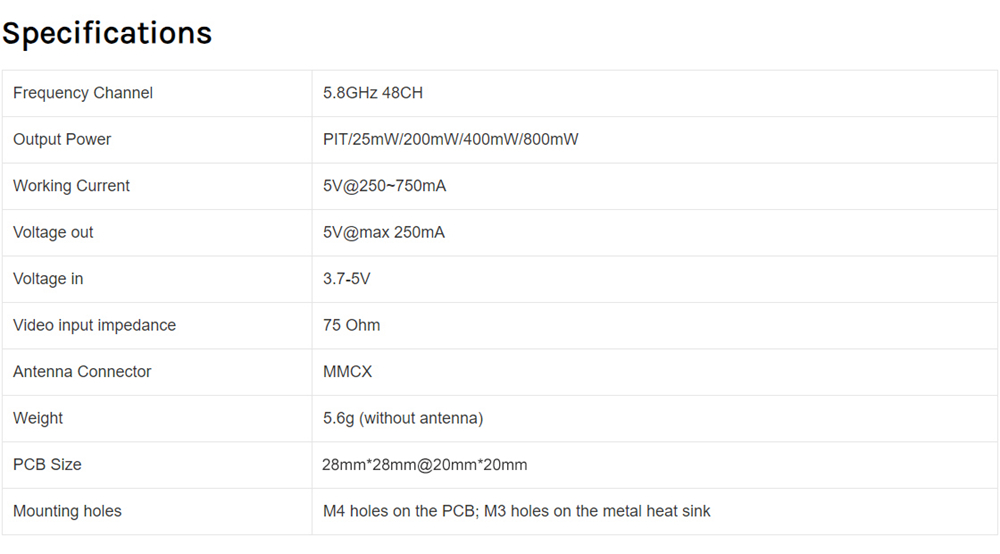

TX800 Specifications:
Brand: SpeedyBee
Frequency Channel: 5.8GHz 48CH
Output Power: PIT/25mW/200mW/400mW/800mW
Working Current: 5V@250~750mA
Voltage out: 5V@max 250mA
Voltage in: 3.7-5V
Video input impedance: 75 Ohm
Antenna Connector: MMCX

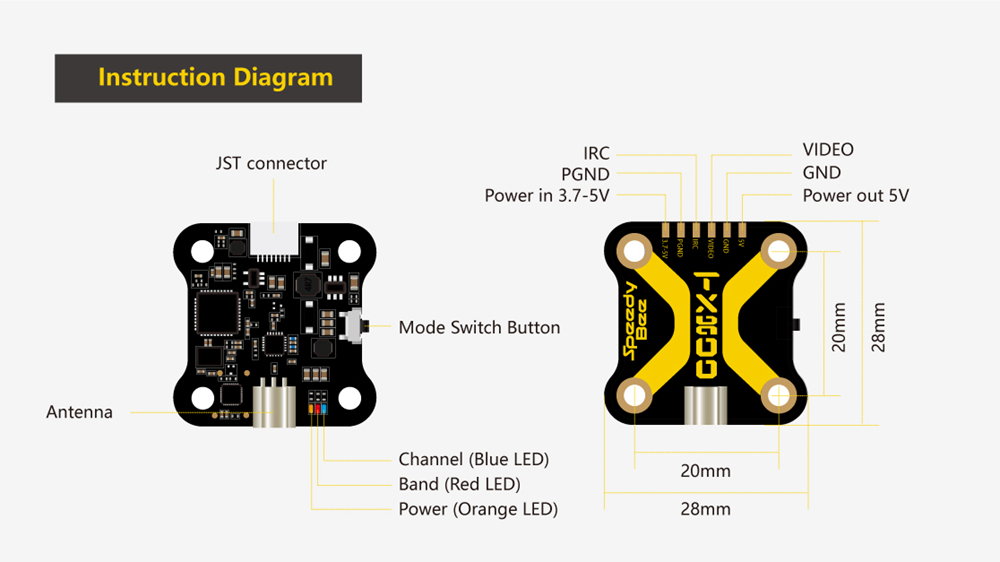

PCB Size: 28mm X 28mm@20 X 20
Mounting holes: M4 holes on the PCB,M3 holes on the metal heat sink
5.8G Antenna Specicications:
Brand: FOXEER
Center Frequency: 5.75GHz
Gain: 2.6dBi
Axial ratio: Close to 1
Bandwidth: 5.5G-6G
Radiation Efficiency: 98%
V.SWR: 1.07 in center frequency
Connectors: Angle MMCX/Angle MMCX Tube
Cable Lengh: Angle MMCX Tube 95mm/Angle MMCX 60mm
Polarization: RHCP Shell
Material: PC+ABS

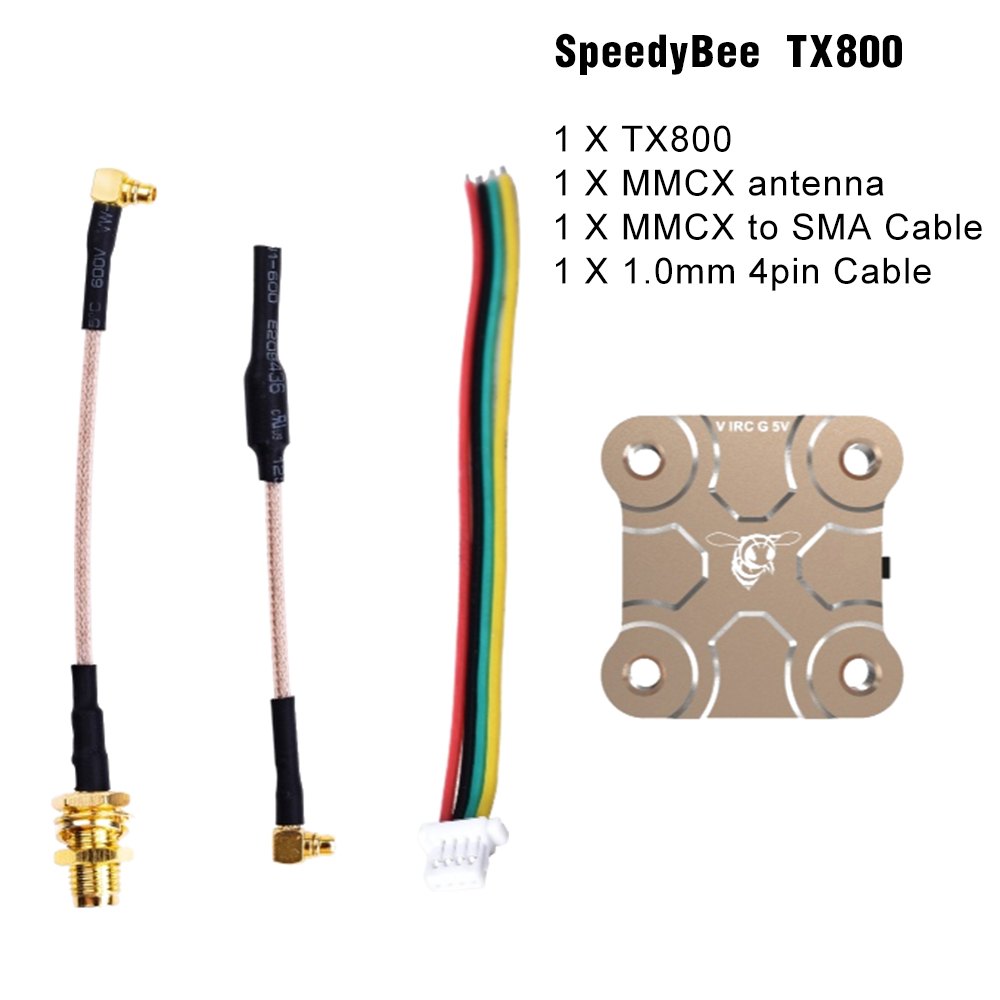

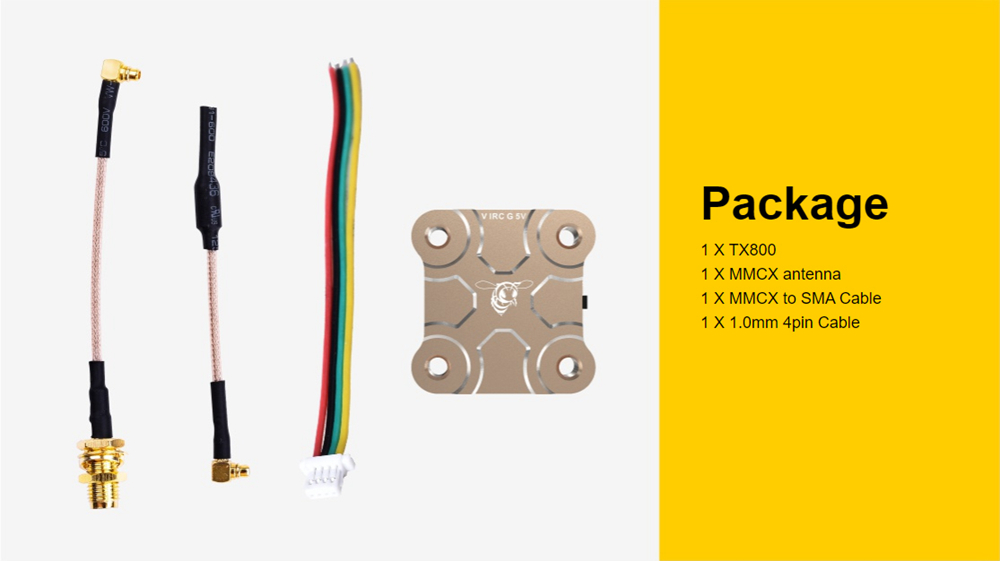

Package contents:
1* 5.8G FPV Antenna
1* TX800 VTX
1 x MMCX antenna
1 x MMCX to SMA Cable
1 x 1.0mm 6pin Cable
