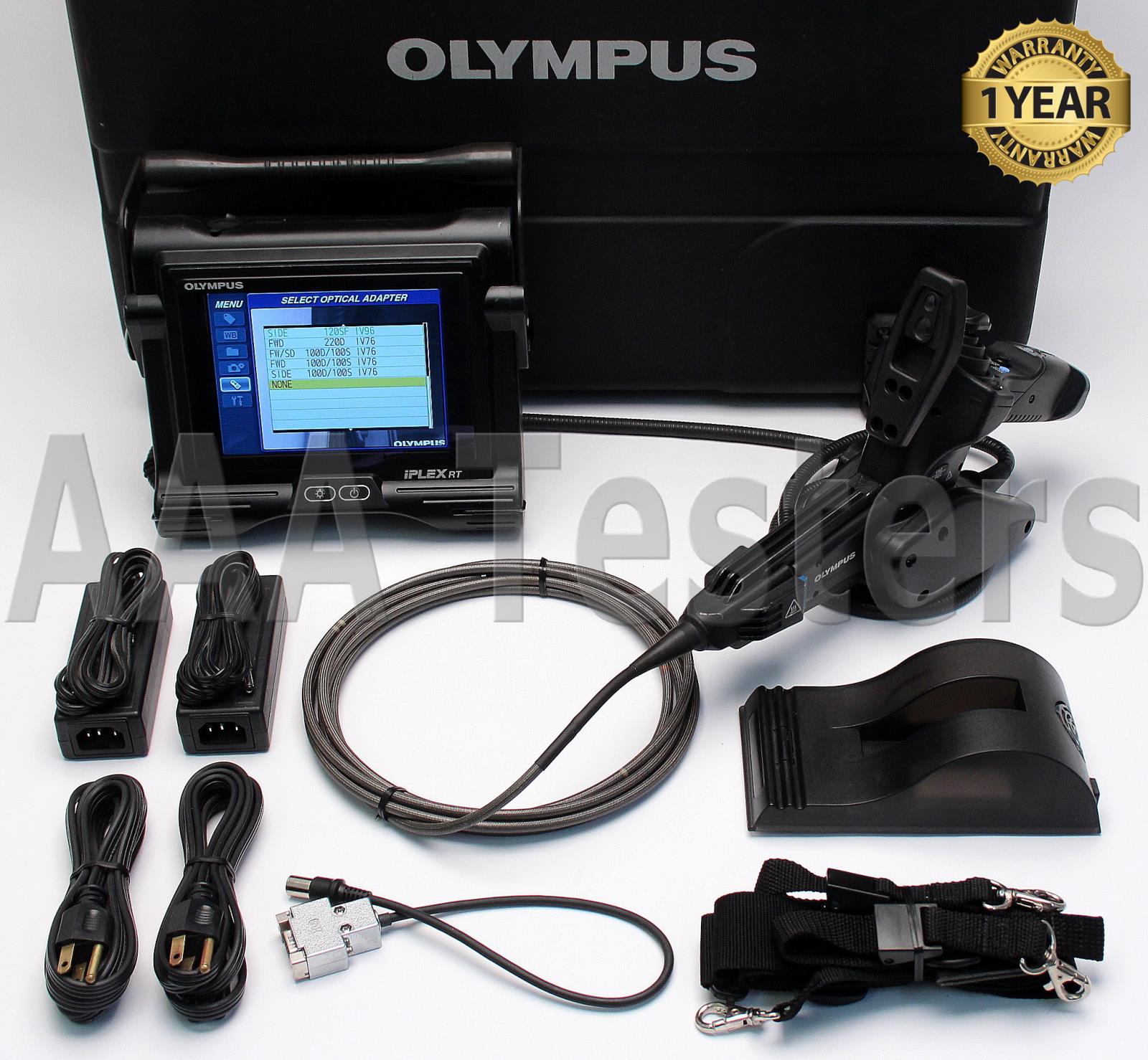

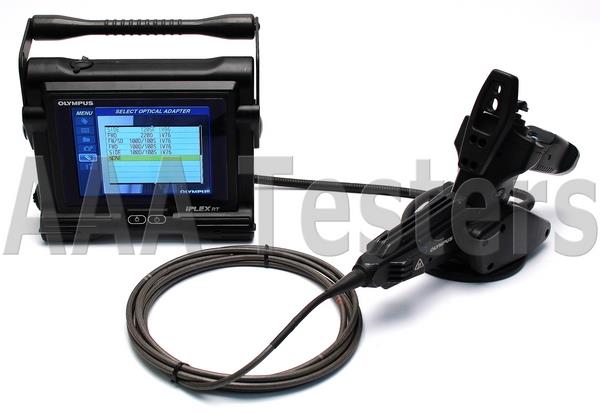

Olympus iPLEX RT IV9420 Industrial Videoscope
A lightweight industrial videoscope that features the unique PulsarPic image processor to produce high-resolution and bright images.

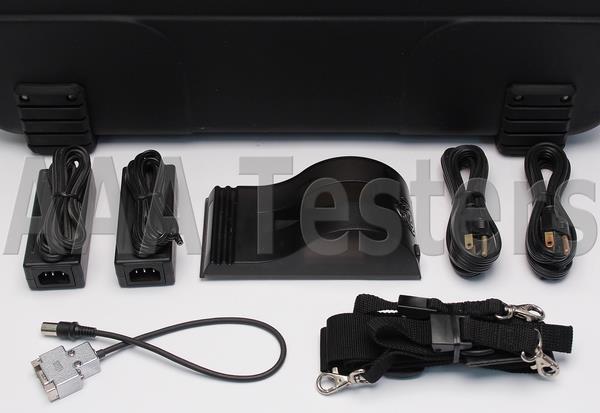

Includes Accessories As Listed Above!
Working Condition: Excellent
Condition: Refurbished
Warranty: 1 YEAR WARRANTY
Olympus iPLEX RT IV9420RT Industrial Videoscope
The IPLEX RX/ IPLEX RT are lightweight industrial videoscopes that feature the unique PulsarPic image processor to produce high-resolution and bright images. They have 6.5-inch screen with an anti-reflective daylight-view monitor.
Good image quality
The IPLEX RX and RT feature good image quality of our videoscopes. Our unique PulsarPic image processor reduces noise and sharpens images, resulting in the exceptionally high resolution image.
The IPLEX RX and RT faithfully and brightly reproduce very small defects, and the sharp and clear images enable accurate and reliable inspections.
Brighter Illumination System
The IPLEX RX and RT feature a new LED illumination system that is approximately twice as bright as conventional videoscopes, while dynamically adjusting light output to reduce halation when metal or reflective surfaces are inspected.
The PulsarPic image processor interacts intelligently with our illumination system to deliver an optimized amount of light and gain enhancement to provide images that are very clear and sharply defined.
Comparison of image sizes
The IPLEX RX and RT can record inspected images to a removable USB flash drive as JPEG still images and MPEG–4 movies. The improved image quality of recorded images and movies enables accurate image diagnosis not only in the field but also at the office with the use of our free image management software, InHelp viewer.
Optimized Image Gradation
The IPLEX RX features our unique image processing capability, WiDER, which brings out the darkest areas of an image without washing out the details of the brighter regions. The innovative technology provides optimum inspections of large areas or even highly reflective areas.
In addition, the IPLEX RX is equipped with sharpness and color adjustment functions to create optimal images depending on objects and applications.
Compact and Portable Design
The IPLEX RX and RT weigh just 2.9 kg/ 6.4 lb including the two‐hour operating Li‐ion battery. The compact and portable design allows you not only to easily ship or transport the IPLEX RX and RT to inspection sites but to smoothly carry them to difficult-to-access locations.
Comfortable Inspections in Optimal Styles
The versatile design of the IPLEX RX and RT offers comfortable use to almost anyone. The pivoting handle of the monitor can change into a stand during inspections, and allows you to place the videoscope wherever you want to optimize viewing distance and angles. The video output capability of the IPLEX RX and RT enables inspections in a group or from remote locations by connecting the external monitor. Furthermore, the IPLEX RX and RT can be used while being carried with a shoulder belt or connected onto a tripod.
Smooth and Accurate Approach to a Target
TrueFeel articulation providing a precise and controlled bend at the distal end The innovative articulation technologies equipped on the IPLEX RX and RT allow for smooth and accurate approaches to the most demanding inspection paths. The improved TrueFeel articulation controller features precise and quick scope tip articulation by just light-touch operation, achieving smooth navigation through intricate paths. The insertion tube is designed with the unique Tapered Flex to optimize both the scope stiffness and flexibility for excellent scope maneuverability.
Quick and Easy Operation
The handheld controller boasting Quick Access keys capable of over 14 actions in a single touch The most common operations such as scope articulation, image adjustment and recording can be easily activated by pressing dedicated Quick Access keys on the lightweight handset. The menu setting of the IPLEX RX and RT is simplified for easy and quick operation.
Robust Body
The IPLEX RX and RT pass the impact tests including vibration and drop from a height of 1.2 m/ 3.9 ft. The tough system compliant with Military Standards withstands rough treatment and ensures reliable operation in difficult environments.
Operable in All Weather
The IPLEX RX and RT comply with internationally recognized Military Standards (MIL‐STD‐810F and MIL-STD‐461F)* as well as IP55, passing a range of severe environmental tests, such as blowing rain/dust, high humidity, and icing rain. In addition, the daylight view monitor featuring low-reflection displays clear images even under bright sunlight.
High durability Insertion Tube
Special processed tungsten braid Operators are often required to inspect objects inside narrow paths with rough or sharp surfaces. The insertion tube of the IPLEX RX and RT has a crush and abrasion-proof design and is covered with a tough, special processed tungsten braid. In addition, the IPLEX RX insertion tube features high temperature resistant up to 100 °C/ 212 °F. A high temperature sensor beeps and display visual warning to prevent overheating.
Specifications:
| IPLEX RT Model No. |
IV9420RT |
| Scope diameter |
φ4.0 mm (0.157 in.) |
| Scope length |
2.0 m (6.6 ft) |
| Exterior |
High durability tungsten braid |
| Tube flexibility |
Uniformed stiffness |
| Articulation angle UP/DOWN/RIGHT/LEFT |
130° |
| Approx. System weight (with battery) |
2.9 kg (6.4 lb) |
| INSERTION TUBE |
| Articulation mechanics |
Improved TrueFeel™ scope tip articulation with electronic power-assisted, manual articulation |
| Temperature sensor |
2-stage indicator for high temperature warning. |
| Illumination |
Ultra-high intensity LED illumination |
| Optical tip adaptor locking mechanism |
Double Threaded Attachment, with O-ring seal |
| HANDHELD CONTROL UNIT |
| Dimensions (W x D x H) |
365 x 93 x 192 mm (14.4 x 3.7 x 7.6 in.) |
| Weight |
Approx. 1.0 kg |
| Quick access button: |
The following features have dedicated quick access buttons, levers or joysticks on the hand control unit: Scope articulation control, Image controls, Record still/video, Menu access |
| MAIN UNIT |
| Dimensions (W x D x H) |
227 x 64 x 189 mm (8.9 in. x 2.5 in. x 7.4 in.) Maximum Demensions: 239 x 99 x 215 mm (9.4 in. x 3.9 in. x 8.5 in.) |
| LCD monitor |
6.5 in. daylight-view LCD, anti-reflective type |
| Power supply |
Battery: 10.8 V nominal, approx. 120-minute operating time.
AC power: 100 V to 240 V, 50/60 Hz (with supplied AC adaptor) |
| Video output standard |
VGA |
| USB connector |
Type A connector, Version 2.0 standards |
| SOFTWARE MANIPULATIONS |
| Image manipulations |
5X digital zoom, 10 step digital brightness control |
| Gain control |
3 step adjustable gain control with exclusive WiDER™ brightness level balancing technology. |
| Sharpness control |
4 step adjustable sharpness control |
| Saturation control |
3 step adjustable control of color saturation |
| Display text options |
30-character title display |
| RECORDING MANAGEMENT FUNCTIONS |
| Recording media |
USB flash memory (1GB standard, compatible with recommended USB flash device) |
| Overlay |
Selectable 30 character title with date, time and system setting |
| Thumbnail image display |
Recorded images can be displayed as thumbnails |
| Still image recording |
Resolution -- H768 x V576 (Pixel)
Recording Format -- Compressed JPEG format
Size of a Single Image -- Approx. 300 KB (Approx. 3,400 images per 1 GB memory) |
| Video recording |
Resolution -- H640 x V480 (Pixel)
Recording Format -- AVI MPEG-4 format, Can be played on the Windows Media Player.
Size of a Single Image -- Approx. 500 KB per second (Approx. 30 min. per 1 GB memory) |
| OPERATING ENVIRONMENT |
| Operating Temperature |
Insertion Tube In air: –25 º to 100 ºC (–13 º to 212 ºF) IPLEX RX –25 º to 80 ºC (–13 º to 176 ºF)
IPLEX RT In water: 10 º to 30 ºC (50 º to 86 ºF)
Other parts than above In air: –10 °C to 40 ºC (14 ºF to 104 ºF) with battery 0 ºC to 40 ºC (32 ºF to 104 ºF) with AC power adaptor |
| Relative Humidity |
All parts 15 to 90 % |
| Liquid Resistance |
All parts Operable when exposed to machine oil, light oil or 5 % saline solution. |
| Waterproofing |
Insertion Tube Water pressure resistance: IV94 series -- Up to an equivalent to 3.5 m (11.5 ft) in depth IV96 series -- Up to an equivalent to 7.5 m (24.6 ft) in depth IV98 series -- Up to an equivalent to 20.0 m (65.6 ft) in depth
Other parts than above Operable in blowing rain conditions (Battery compartment must be closed). Not operable underwater. |
| MIL-STD COMPLIANCE |
| The operating environment performance is confirmed by the following MIL-STD-810G and MIL-STD-461F (excluding IV96100RX and IV96100RT). No warranty is given as to damage-free under any conditions. Please ask Olympus sales representative for details. |
| Vibration |
MIL-STD-810G, Method 514.6, Procedure I (General vibration test) |
| Shock |
MIL-STD-810G, Method 516.6, Procedure IV (Transit drop test) |
| Water Resistance |
MIL-STD-810G Method 506.5, Procedure I (Rain and Blowing rain test) |
| Humidity |
MIL-STD-810G, Method 507.5 |
| Salt Fog |
MIL-STD-810G, Method 509.5 |
| Sand and Dust |
MIL-STD-810G, Method 510.5, Procedure I (Blowing dust test) |
| Icing/Freezing Rain |
MIL-STD-810G, Method 521.3 |
| Electromagnetic Interference (EMI) |
MIL-STD-461F, RS103, (Radiated susceptibility test for non-metallic above deck shipboard conditions) |
| Explosive Atmosphere |
MIL-STD-810G, Method 511.5, Procedure I (Operation in an explosive atmosphere test) |
For full Olympus IPLEX RT Videoscope product specifications, please click here: Olympus IPLEX RT
|
