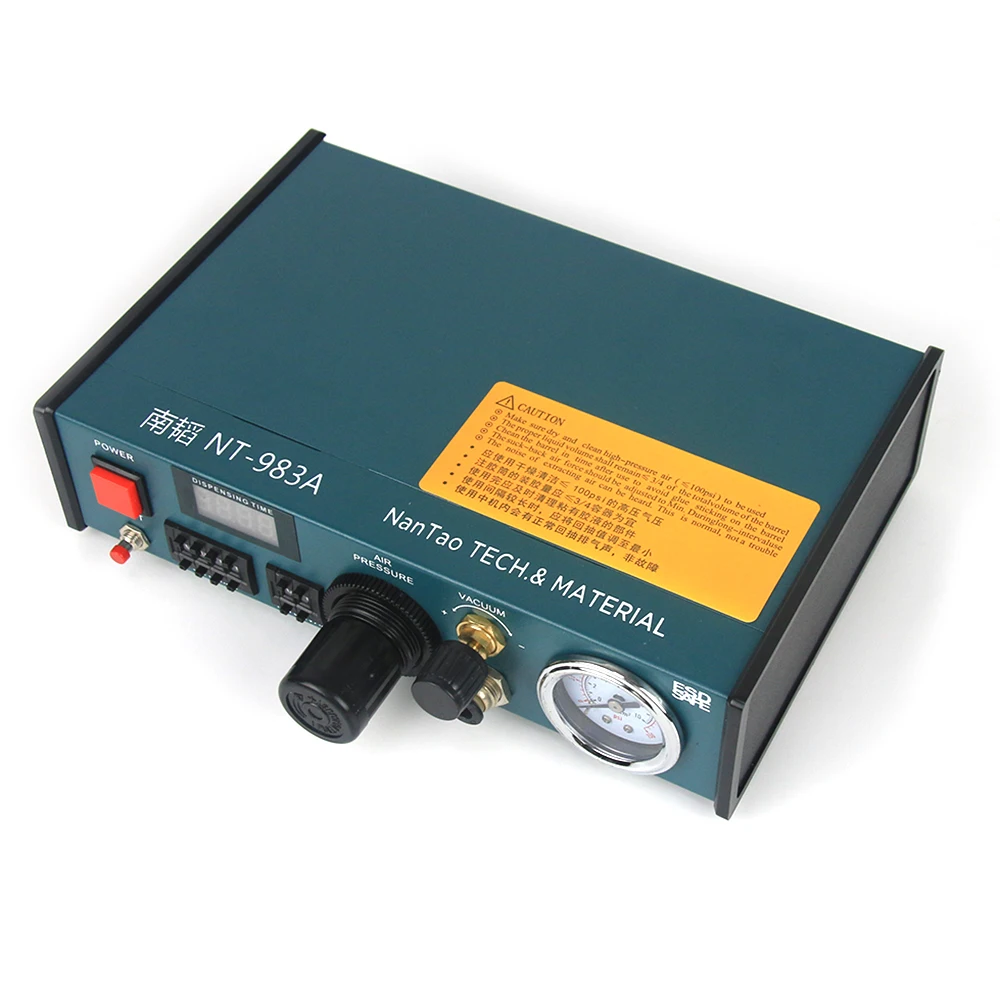

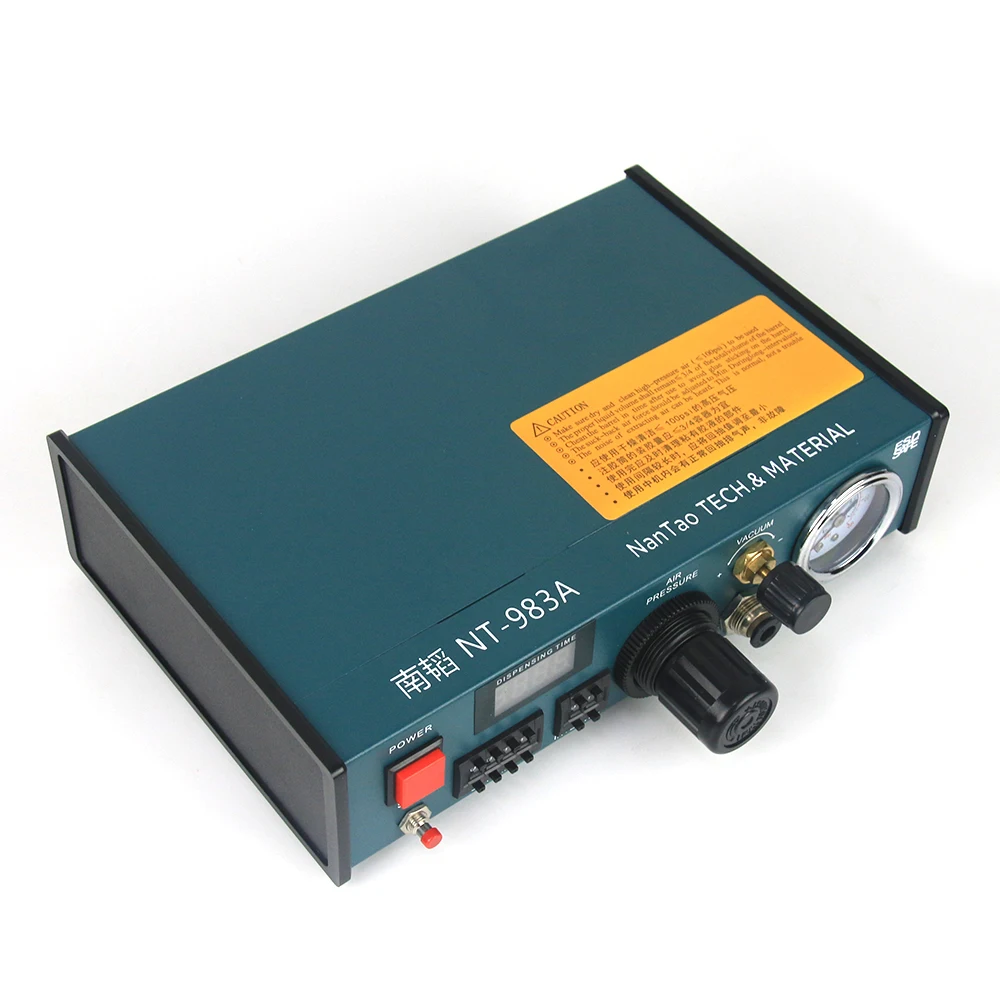

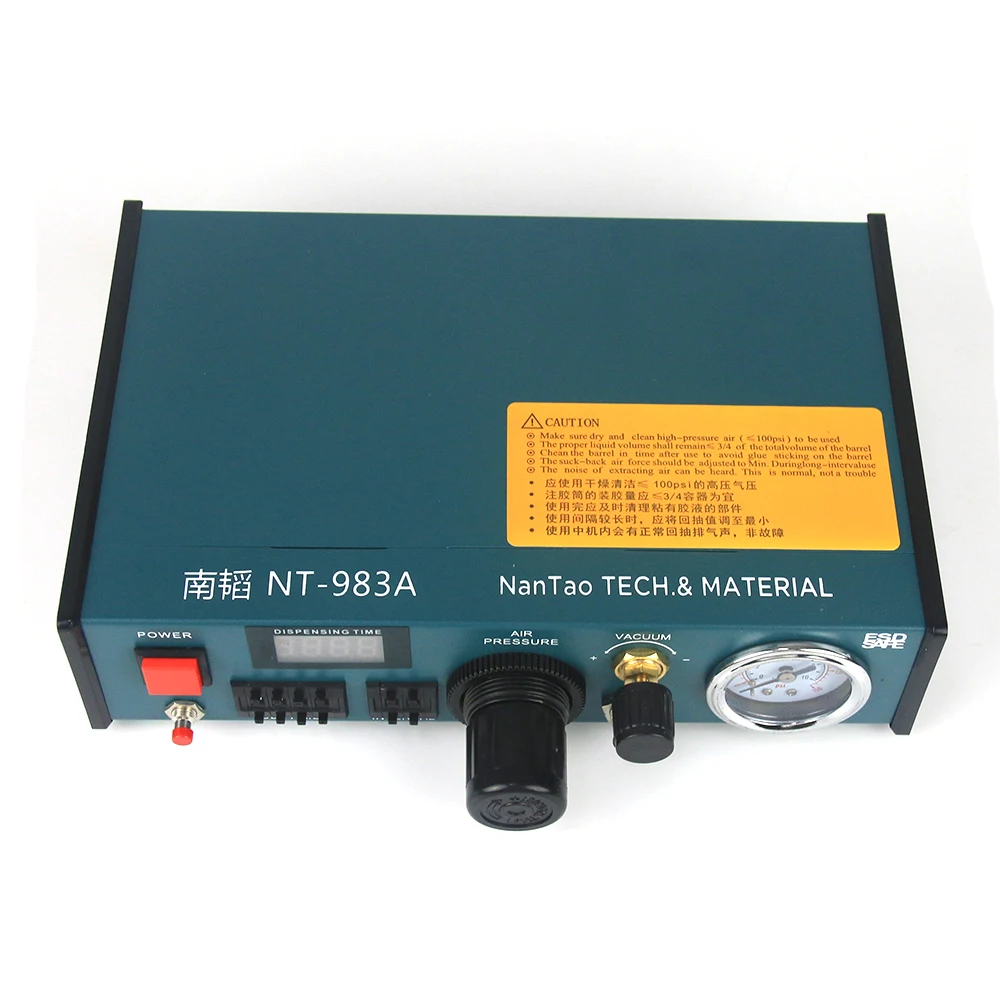

JND983A Digital Display Dispensing Machine Fully Automatic Dispensing Machine Drip Dispensing Machine Injection Dispensing M achine
Air pushes the liquid out within the set time using a foot switch or automatic operation. Dip switches control dispensing time and interval time, with digital display showing dispensing time at a glance. A high-precision digital timer controller accurately regulates each dispensing cycle down to the millisecond, precisely controlling liquid flow to eliminate waste. Simply adjust the air pressure, timing, and select the appropriate nozzle to easily modify the dispensing volume and duration per cycle. This system resolves numerous dispensing challenges, offering straightforward operation and rapid usability. Equipped with a vacuum suction function, it handles liquids of varying viscosities, prevents dripping, ensures high efficiency, and delivers consistent dispensing. Fatigue-free operation, zero waste, and versatile applications. Complete product accessories include syringes and nozzles of various sizes to meet user needs, making it the ideal partner for users.
Power Supply: AC 220V±10%/50Hz
Power Consumption: <12W
Air Source: Max 0.99MPa (clean, dry, non-lubricated air)
Dispensing Pressure Range: 0.05MPa–0.99MPa
Operating Modes: Manual mode and 16 customizable settings
Discharge Time Adjustment: Automatic timed discharge with two sets: 0.01S-99.99S / 0.001S-9.999S
Discharge Time Display: Four-digit LED display, allowing fine-tuning of discharge volume
Dispensing Interval Adjustment: 0.1–9.9 seconds
Vacuum Suction Function: Adjustable negative pressure control up to 600 mmHg
Repeatability and Dispensing Frequency: Accuracy: ±0.01% Frequency: >800 times/min
Minimum dispensing volume: 0.0001 ml
Dimensions: 235 mm × 225 mm × 63 mm
Weight: <3kg
Features:

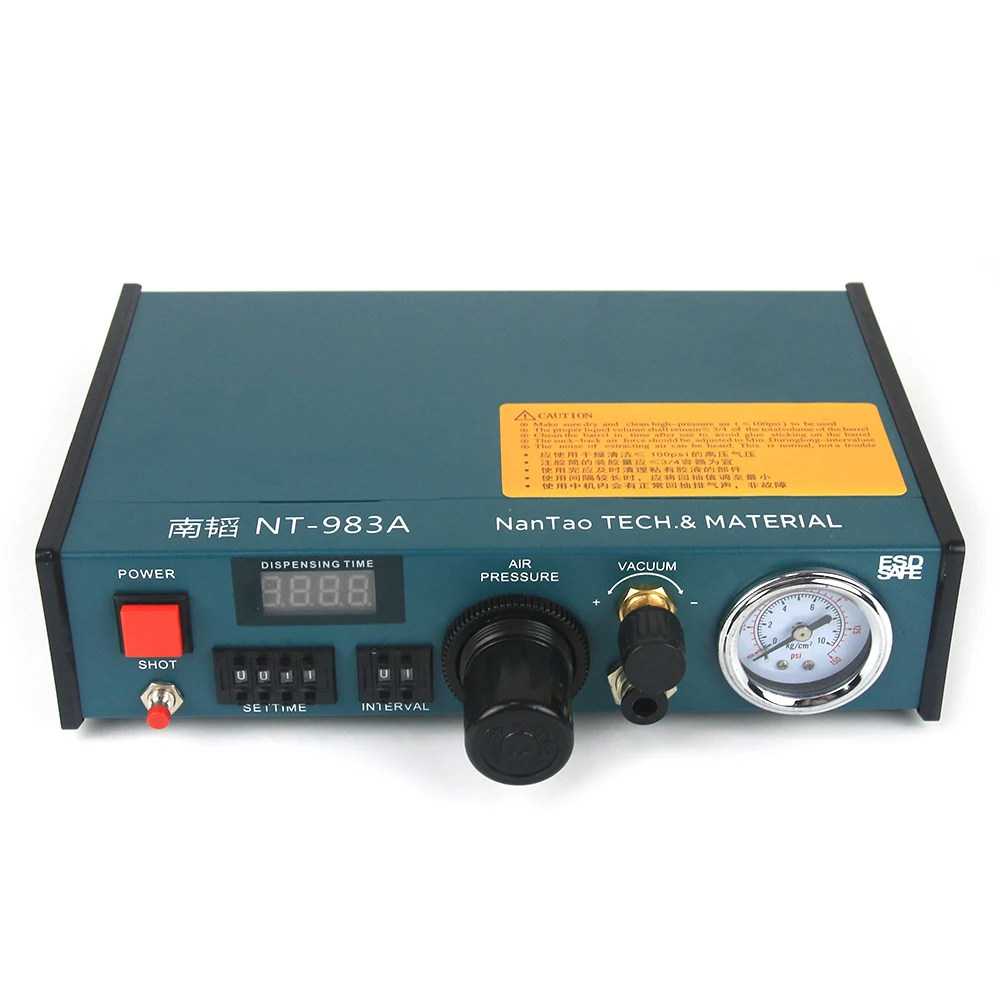

- Dip switches control dispensing volume and interval time; digital display shows dispensing volume for clear visibility.
- Utilizes 0.18CV constant flow solenoid control valve
- Indicator light switch
- Adjustable vacuum suction up to 15 inches of mercury (Hg)

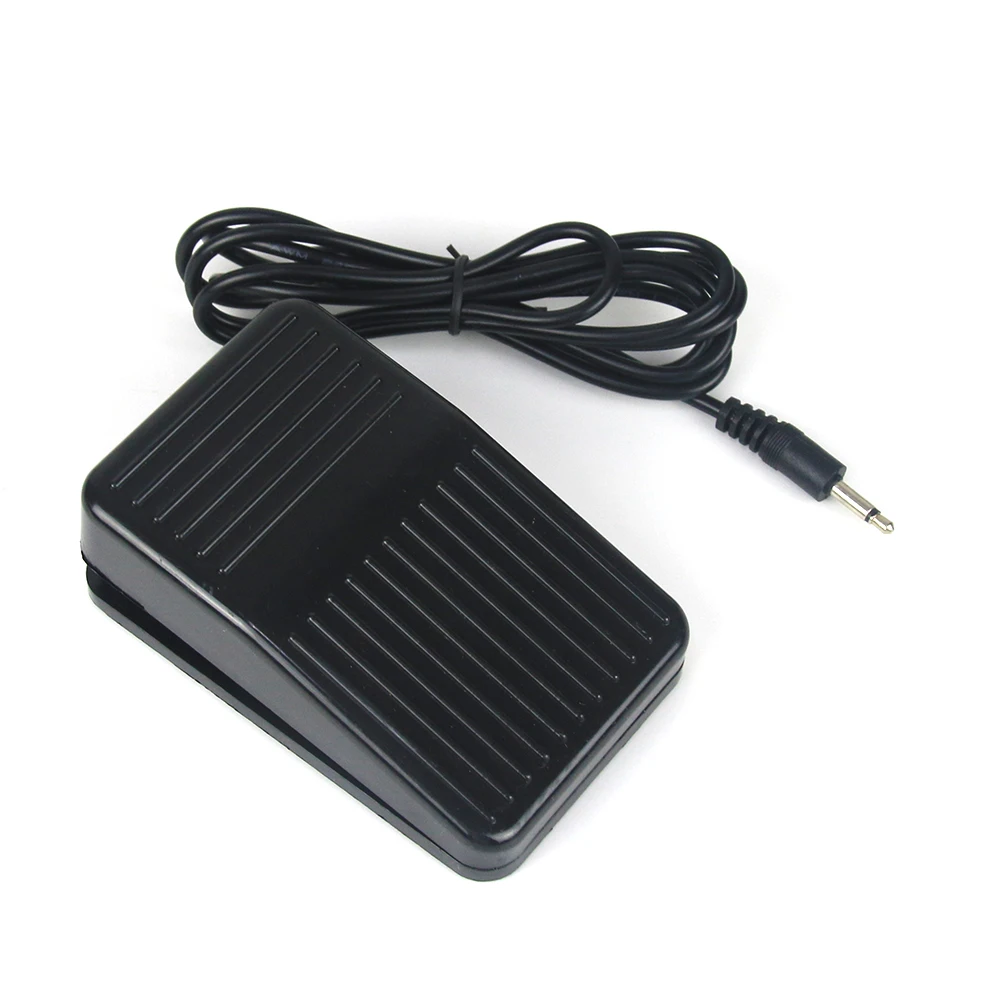

- Compact foot switch
It has two operating modes:
(1) Automatic Operation (Auto) (Suitable for fixed-volume, timed dispensing)
Set the switch to the Auto position.
Adjust the air pressure, dispense volume, interval time, and select an appropriate nozzle to control the correct flow rate of the liquid material.
Without needing a foot switch, the liquid material will automatically drip from the nozzle tip according to the set dispense volume and interval time.
(2) Manual Operation (manual) (suitable for non-quantitative, non-timed dispensing)
Set the switch to the manual position.
Adjust the air pressure and dispense volume, and select an appropriate nozzle.
Pressing the foot switch once dispenses material from the nozzle tip. Releasing the foot switch stops dispensing. Dispense volume and interval time are fully manually controlled.
Suitable Materials:
Adhesives Damping oils Epoxy additives Anaerobic adhesives Chemical reagents Fluxes Brazing fluxes Silicone adhesives Conductive silicones Greases Curing coatings Solder masks Inks Paints Solder pastes Fiber coatings Dispersants Solvents
Suitable Applications:
Automotive electronics Packaging Home appliances Bearings Printed circuit boards Electronic components Cameras Pharmaceuticals Electrical assemblies Capacitors Processing equipment Instruments Jewelry Relays Quartz crystals

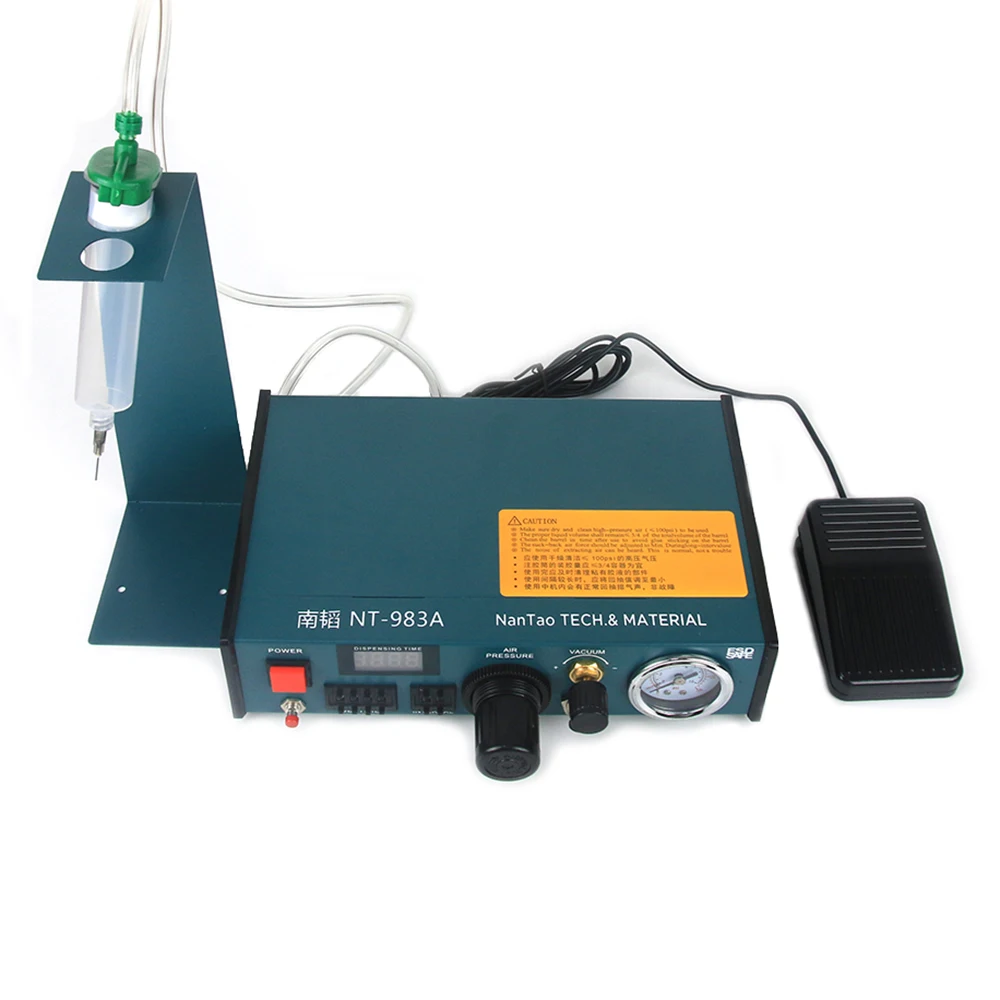

Accessories: 1 x Dispensing Machine Main Unit 1 x Manual Switch 1 x Foot Switch 1 x Air Hose 1 x Power Cord 3 x 30CC Syringes 1 x 30CC Connector 10 x Nozzles (Various Sizes)
