20L Lab Rotary Evaporator Set with 30L -30℃ Chiller and SHZ-C Vacuum Pump 220V

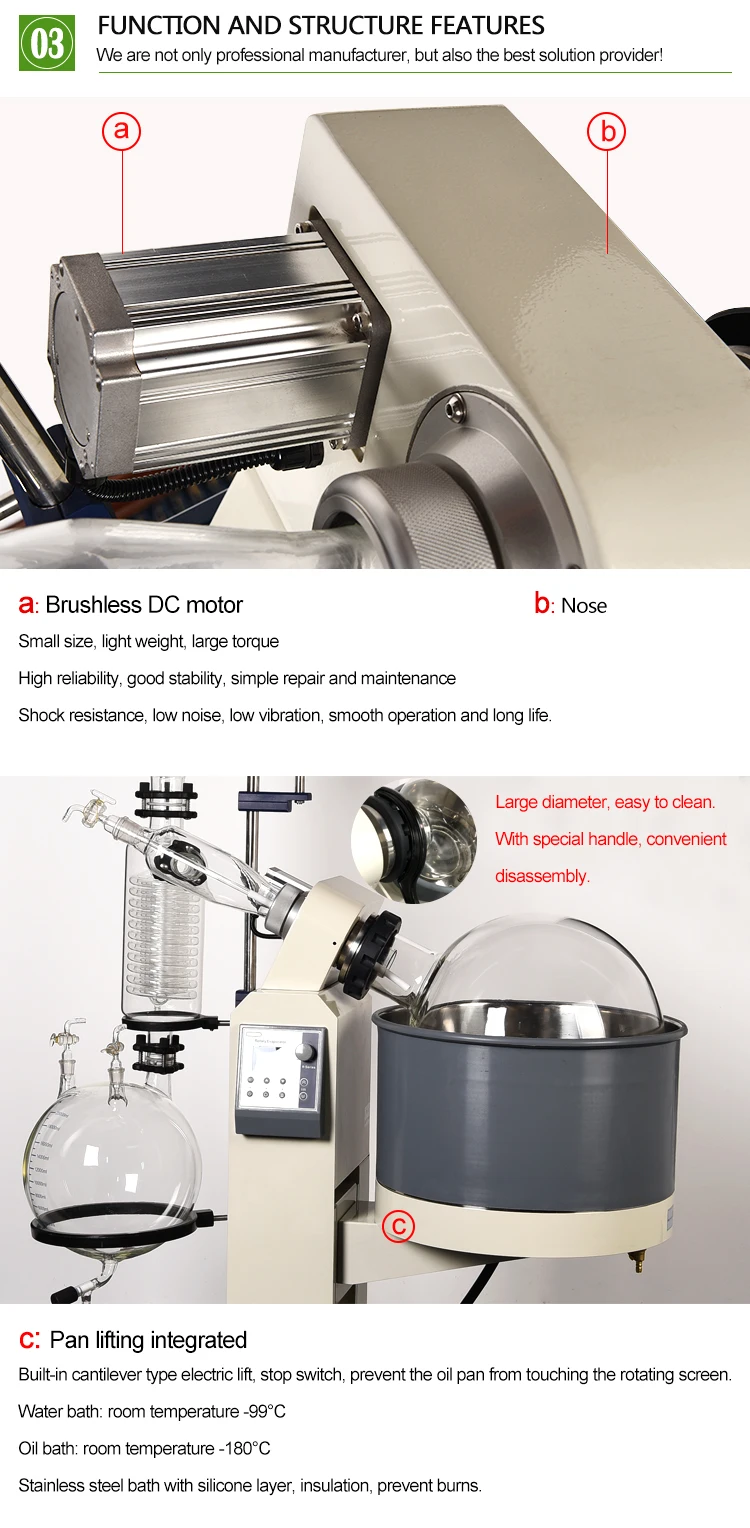

Rotary Evaporator R Series Electric Lifting principle is the most common method, as it is an efficient, fast and gentle way, to separate liquids. The rotating flask generates an effective heat transfer for fast evaporation preventing a local overheating whilst leading to a smooth mixing of the content. It’s the easy to operate rotary evaporator model with motor lift for all standard applications: reliable, easy to maintain. This is an ideal evaporation instrument for your laboratories.
Features:
- Teflon ( PTFE ) and fluorine rubber double rotating seal, patent technology to ensure high vacuum.
- The temperature control system, accurate and reliable.
- In does not affect the system and solution under the condition of vacuum distillation. continuous collection.
- The PTFE discharge valve, corrosion resistance, no pollution.
- We have two kinds of conventional and explosion-proof type, can be select according to the experimental environment.
- Temperature range: room temperature to 99°C.
- 1-year complimentary warranty included.
- Upgraded automatization automatically adjusting the height of the bath by motor lift.
- High quality borosilicate glass 3.3 with excellent physical and chemical properties.

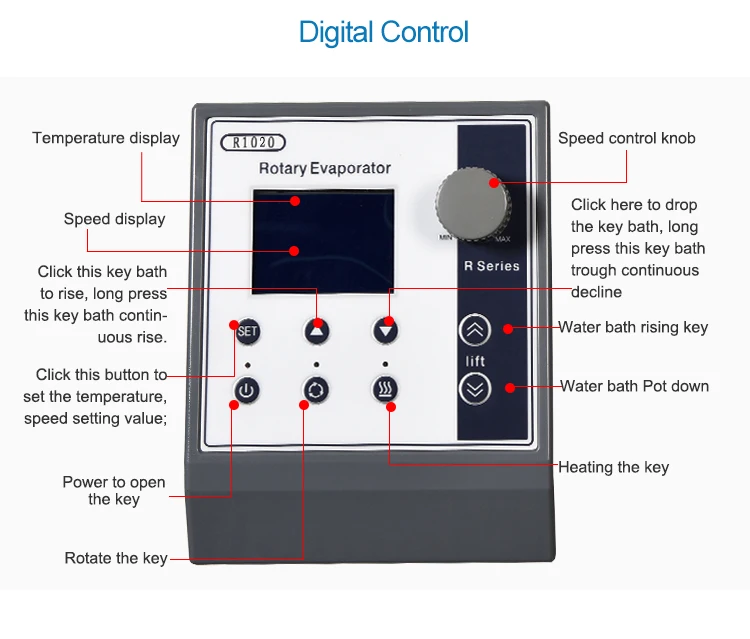

- Excellent handling by large and easy readable LCD display of temperature of bath and rotation speed of rotary flask.
NOTE:
- Free phone and email customer support/consultation from our application engineers.
- High precision vacuum seal and vapor tube design leads to ultimate vacuum performance (1 mbar end vacuum, < 1 mbar/min vacuum leakage.
- Various options and accessories are available (vacuum pump, chiller, vacuum controller, cold trap, etc)
Model: DLSB-30L -30℃ Chiller
Product: Recirculating Chiller
Temperature Control: Refrigerated
Volume: 30L
No load minimum temperature: -30℃
Refrigerant Capacity: 363~2722W
Flow: 20 L/min
Lift: 6m
Temperature Precision: ± 2 °C
Total Power: 1950W
Total Current: 9.2A
Power Supply: 220V 60HZ single-phase
Environment Humidity: ≤70%
Temperature range: -30℃
Model: SHZ-C Vacuump
Power (W): 370
Quantity of tap (Pcs): 5
Flow(L/min): 80
Body Material: Polypropylene
Lift (m): 12
Sucking rate for single tap (L/min): 10
Tank capacity(L): 50
Featured Refinements: Vacuum Pump
| Mode | R1020 | R1050 |
| Optimum ambient temperature | 5~35 | |
| Working power supply(V/Hz) | 110V/220V | |
| Main engine speed control | Digital direct current stepless speed | |
| Main engine speed(RPM) | 20~130 | 20~110 |
| A rotary electric machine(W) | Brushless 250 | |
| Temperature control(℃) | Digital display temperature control, room temperature -99 | |
| Maximum vacuum(Pa) | 399.9(Below 3mmHg) | |
| Rotating bottle(L) | 20L | 50L |
| Recovery bottle(L) | 10 | 20 |
| Condenser tube | Vertical main cold+cold side, high-efficiency reflux condenser | |
| Evaporation capacity(L/h) | The water is more than 5 The alcohol is more than 11 | The water is more than 9 The alcohol is more than 19 |
| Water bath pot material | Stainless steel | |
| Water bath pot size(mm) | Φ450×260 | Φ550×320 |
| Lifting function | Electric Lift | Electric + hand lift |
| Lift stick(mm) | 0~190 | 0~180 |
| Whole power(KW) | 4 | 6.0(220-240V) |
| Outline dimension(mm) | 1250×600×2100 | 1320×770×2340 |
