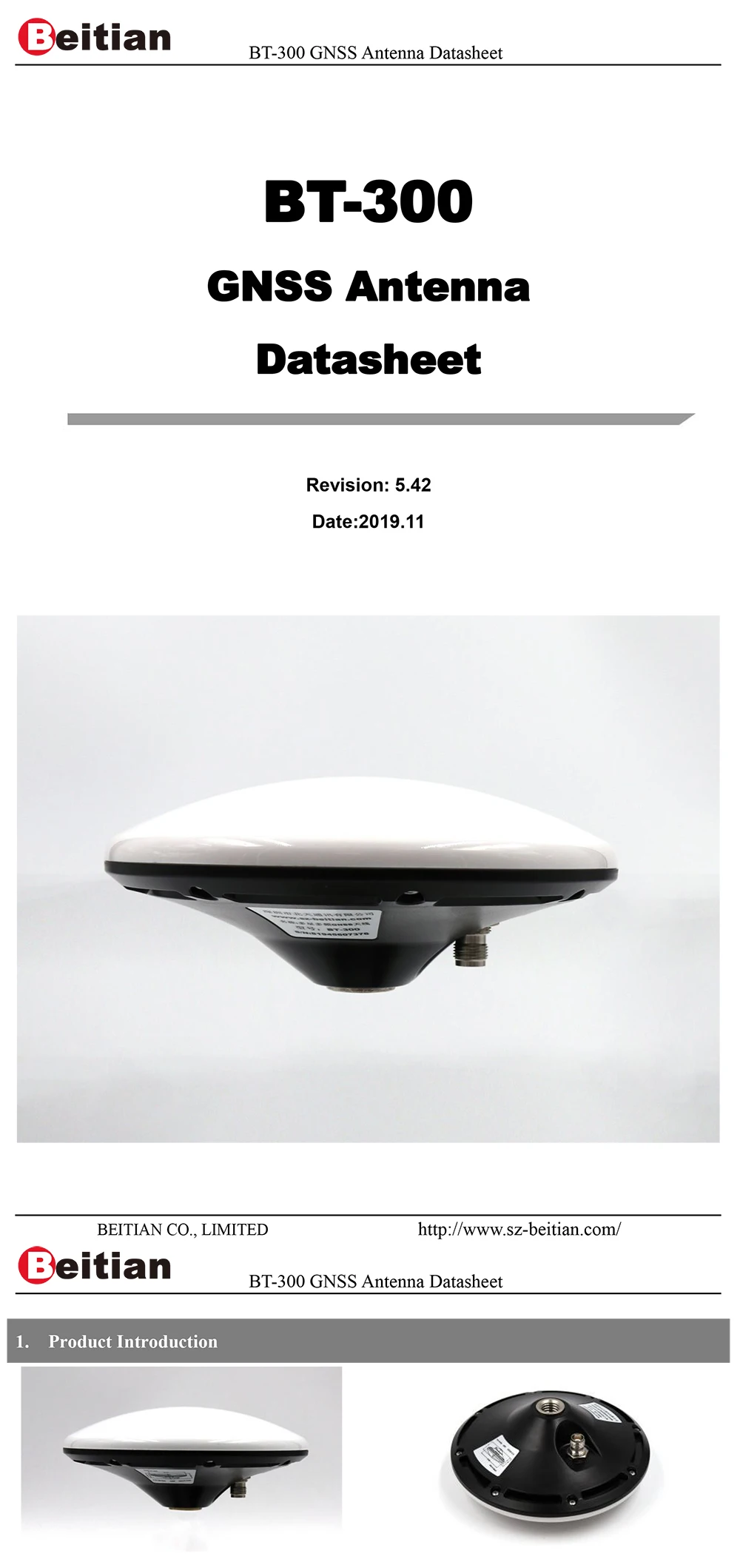

high quality GNSS antenna GPS GLONASS BDS GALILEO antenna High-Precision survey CORS RTK receiver antenna, BT-300

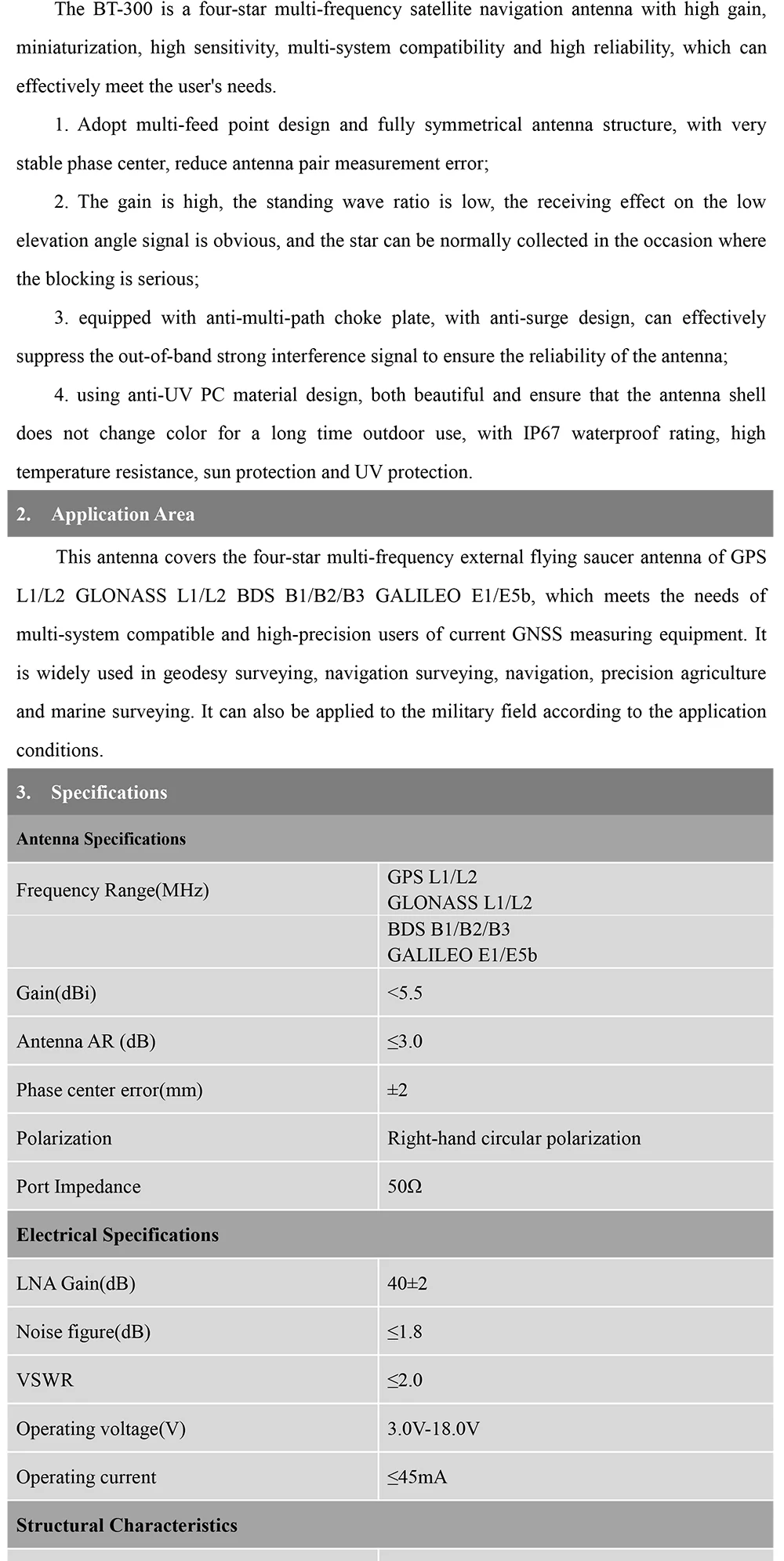

The BT-300 is a four-star multi-frequency satellite navigation antenna with high gain, miniaturization, high sensitivity, multi-system compatibility and high reliability, which can effectively meet the user's needs.
1. Adopt multi-feed point design and fully symmetrical antenna structure, with very stable phase center, reduce antenna pair measurement error;
2. The gain is high, the standing wave ratio is low, the receiving effect on the low elevation angle signal is obvious, and the star can be normally collected in the occasion where the blocking is serious;
3. equipped with anti-multi-path choke plate, with anti-surge design, can effectively suppress the out-of-band strong interference signal to ensure the reliability of the antenna;
4. using anti-UV PC material design, both beautiful and ensure that the antenna shell does not change color for a long time outdoor use, with IP67 waterproof rating, high temperature resistance, sun protection and UV protection.
Application Area
This antenna covers the four-star multi-frequency external flying saucer antenna of GPS L1/L2 GLONASS L1/L2 BDS B1/B2/B3 GALILEO E1/E5b, which meets the needs of multi-system compatible and high-precision users of current GNSS measuring equipment. It is widely used in geodesy surveying, navigation surveying, navigation, precision agriculture and marine surveying. It can also be applied to the military field according to the application conditions.
Specifications
Antenna Specifications:
Frequency Range(MHz) GPS L1/L2
GLONASS L1/L2
BDS B1/B2/B3
GALILEO E1/E5b
Gain(dBi) <5.5
Antenna AR (dB) ≤3.0
Phase center error(mm) ±2
Polarization Right-hand circular polarization
Port Impedance 50Ω
Electrical Specifications:
LNA Gain(dB) 40±2
Noise figure(dB) ≤1.8
VSWR ≤2.0
Operating voltage(V) 3.0V-18.0V
Operating current ≤45mA

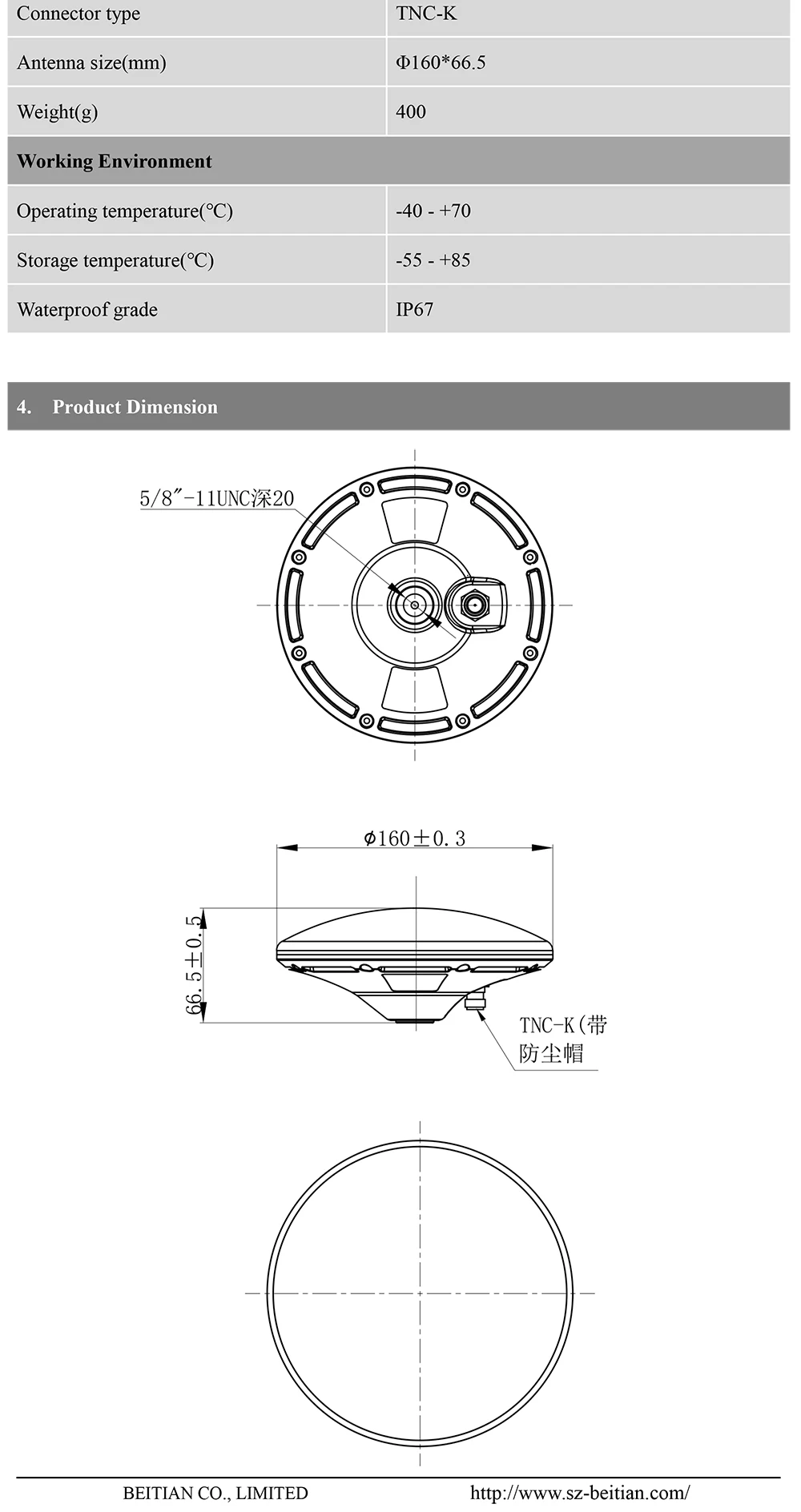

Structural Characteristics:
Connector type TNC-K
Antenna size(mm) Φ160*66.5
Weight(g) 400
Working Environment:
Operating temperature(℃) -40 - +70
Storage temperature(℃) -55 - +85
Waterproof grade IP67
