Power Supply:

• The power supply converts standard 120VAC wall outlet electricity to 12V DC power.
• The power supply is capable of powering a maximum of two Linear Actuators. For other applications, the maximum continuous current draw is 5 amps (60 Watts).

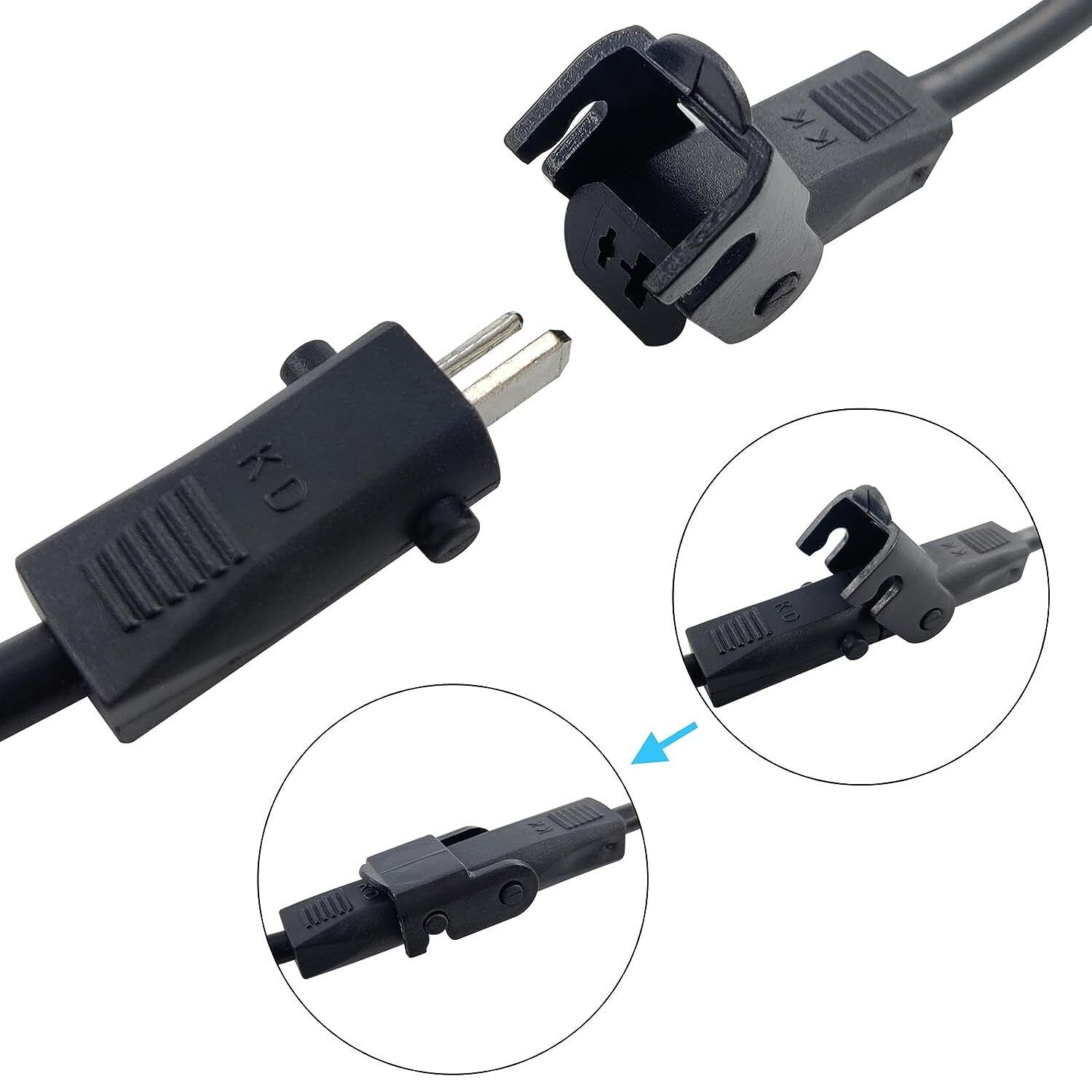

• Quick snap locking cable connectors are also included.
• AC Input Range:100-240 VAC
• DC Output: 12VDC

• The up/down remote control consists of a receiver and the wireless remote control.
• The receiver is wired in between the DC power supply and the linear actuators, allowing the remote control to control the movement of the linear actuators.
• Quick snap locking cable connectors are also included.
• DC Input Range: 10-30VDC
• Power Rating:  60 Watts (5 amps at 12 VDC)
• Remote Control Range:  90 feet maximum (range is reduced by physical obstructions)
• Operating Frequency:  433.92 Mhz
• Operating Current:  15mA
• Switch Type:  DPDT ON-OFF-ON  (For a linear actuator this is UP-Stop-Down. For a DC motor this is Clockwise - Stop - Counterclockwise)

Dual Adapter Cabel:

• Support 1 Remote Controller control 2 Linear Actuator
• 2pcs Linear Actuators can be connected with 1 Cable
• 4pcs Linear Actuators can be connected with 3 Cables
