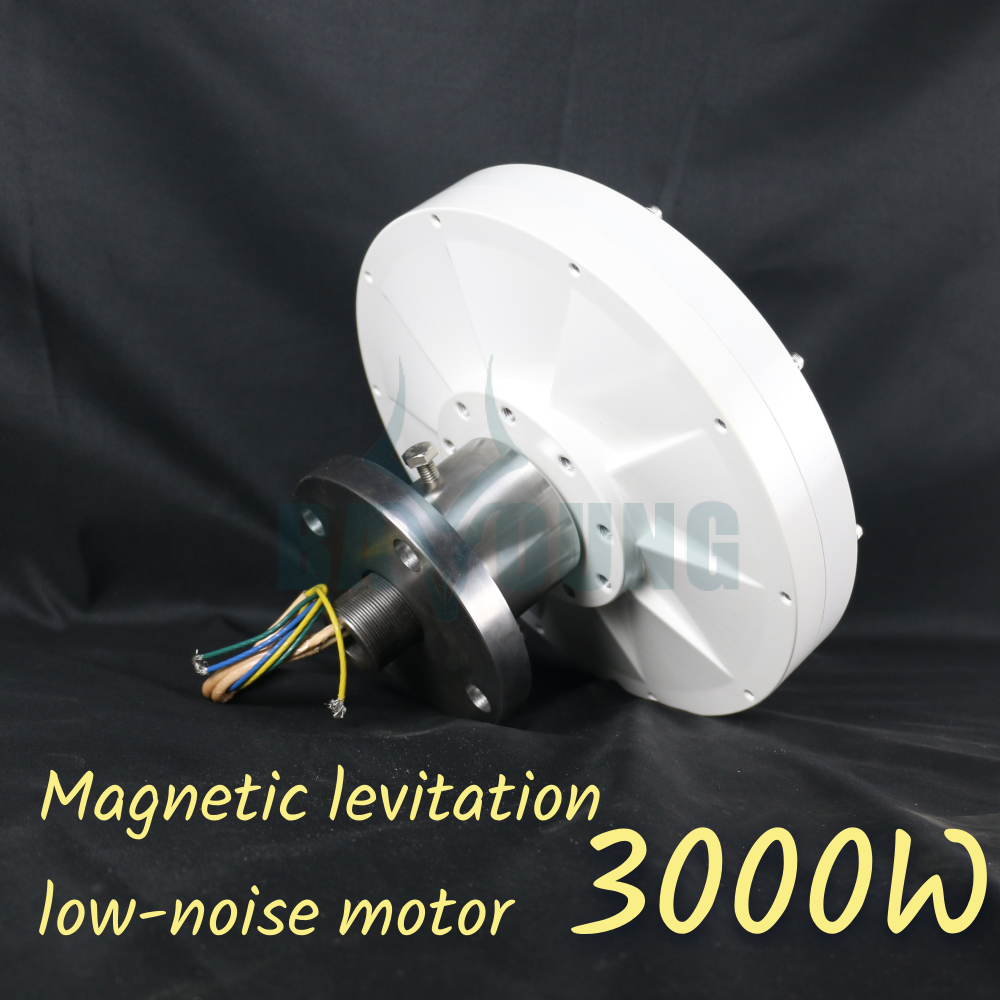

Product Description
Feture：
Our disc coreless PMG have advantage in low Rated speed, Low starting wind speed, Small volume, Energy Small, Light weight, Compact structure,High efficiency etc. 1) Coreless, anhysteresis, slotless, have low starting torque. 2) No iron loss, have high efficiency 3) Adopt unique coreless precision winding technology design precision coil 4) Adopt the rare earth permanent magnet, which is multipole, high power density and high output power. 5) Low speed direct driving, no torque fluctuations 6) Compact structure, high ratio of power to volume 7) No iron loss, low calorific value,small temperature rise 8) Simple structure, easy to install 9) The brushless structure, free maintenance
Specifications
Rated power:3000W
Rated speed:300rpm
Rated voltage:48V 96V 120V 220V
Rated current:40A/30A/20A/10A
Efficiency:>85%
Resistance (Line-Line):<1.60Ω
Winding type:Y
Insulation Resistance:10OMohm Min(500v DC)
Leakage level:<5 ma
Start torque:<0.1
Phase:3 phase
Structure:outer Rotor
Stator:Coreless
Rotor:Permenent Magnet Generator (Outer Rotor)
Gen. Diameter:320mm
Gen. Length:232mm
Gen. Weight:28kg
Shaft. Diameter:45mm
Housing Material:Aluminum(Alloy)
shaft Material:stainless Steel
Packing List：
1) 1 PC Generator （Excludes wind turbine blades and other accessories）
Suitable for DIY vertical axis wind turbine
