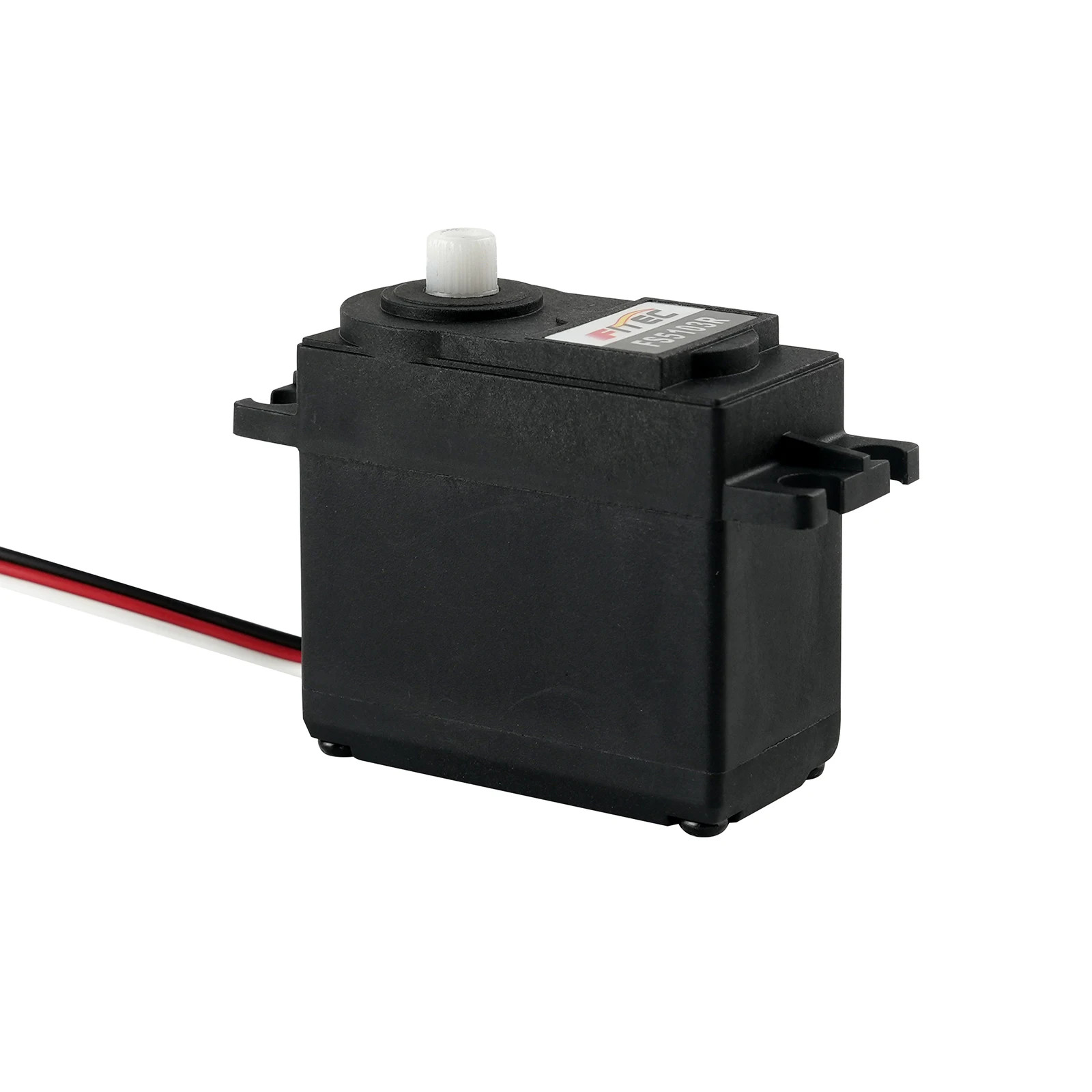

Feetech FS5103R 3kg.cm Analog Servo 360° Continuous Rotation Forward & Backward

Specifications:

Dimensions: 40.8mm × 20.1mm × 38mm
Operating Voltage: 4.8~6V
Operating Temperature: -15°C ~ +70°C
Standby Current: 6mA @6V
No-Load Current: 180mA @6V
Stall Current: 850mA @6V
Stall Torque: 3.2kg·cm @6V
Rotation Angle: Continuous Rotation

Gear Type: Plastic Gear (Nylon & POM)
Mechanical Limit Angle: Unlimited
Output Shaft: 25T
Horn Arm: Plastic, POM
Case Material: Nylon & Fiberglass
No-Load Speed: 60RPM @6V
Rated Torque: 1.1kg·cm @6V
Servo Wire: 300mm ±5mm

Control Signal: Pulse Width Modulation
Amplifier Type: Analog Comparator
Pulse Width Range: 700~2300 μsec
Neutral Position: 1500 μsec
Rotation Angle: Continuous Rotation
Dead Band Width: 10 μsec
Rotation Direction:

  • CW (when 1500→700 μsec)

  • CCW (when 1500→2300 μsec)

Package includes:
1 x Servo
Please kindly make payment asap, so that we can arrange your order promtly.

If you have any problem with payment, please feel free to contact us.


We provide tracking number for ALL orders. You can track your parcels.

Normally it arrives in 10-15 business days to US and European countries.
DHL /Fedex/UPS arrives in 7-8 business days.




1.All products are eligible for 30-days money back guarantee.

2.All returns should be guided by us.  Please contact us for details before you return anything.

  1. Please don't hasitate to contact us BEFORE you give us neutral or negative feedback, so that we can satisfactorily address your concerns.
  2. We accept dropshipping, bulk orders and customized products.
  3. We are selling forArduino module, sensors,  Nextion display and other oled or lcd screens. lidar range finder sensors, servo motors, various electronic components  and for legoled, ect.




Brand Namewishiot
Operating Voltage4.8V~6V
Remote Control Peripherals/DevicesServos
ApplicationFor Arduino Raspberry Pi
RC Parts & AccsServo Accessories
Connector Wire Length30 cm
Size40.8*20.1*38mm
Upgrade Parts/AccessoriesGear
Product NameFS5103R Servo
Control SystemAnalog
