This Item Has A Current Calibration!
|
|
|
|
JDSU T-BERD 2000 Modular Test Set Mainframe w/
JDSU 4146 Quad SingleMode 1310/1550nm MultiMode 850/1300nm OTDR Module
Application modules used with the T-BERD 2000 can also be used with the T-BERD 4000 and the two products are interoperable.
Dynamic Range:
1310 / 1550 nm : 37 / 35 dB
850 / 1300 nm : 27 / 25 dB
Power Meter:
- 850nm
- 1300nm
- 1310nm
- 1490nm
- 1550nm
- 1625nm
- 1650nm
Includes Carrying Case & Accessories As Listed Above!
Working Condition: Excellent
Condition: Refurbished
Calibrated: Yes
Warranty: 1 YEAR WARRANTY

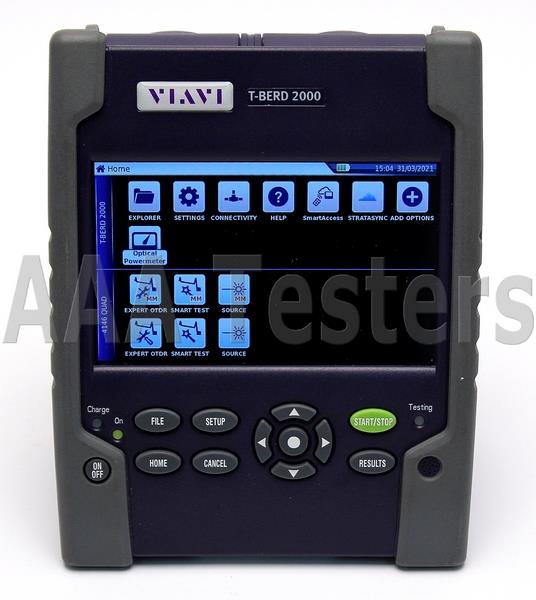

JDSU T-BERD 2000 Modular Test Set
Costs, workflow, quality, network performance, and customer experience are critical for the success of today’s fiber optic networks. Selecting the right test tools has become key toward meeting these needs.
The JDSU T-BERD 2000 is a handheld multi-test platform that provides field technicians with a single handheld unit to install, turn-up and maintain these networks to the highest standards.
Its innovative design ensures that all essential fiber test tools are close at hand, whatever the job or location. A large color screen with graphical user interface drives simple operation and optimal workflow in the field.
Test capabilities include a range of OTDR modules for multimode and single-mode testing, as well as a range of FiberCompleteTM modules for automated Insertion Loss/Optical Return Loss (IL/ORL), and fault finding. Both OTDR and FiberComplete modules are passive optical network (PON) optimized. The unit is also ready for conector end face pass/fail analysis to IEC standards with a digital analysis microscope.
Widest Range of Applications for Maximum Flexibility
The T-BERD 2000 provides the largest range of test capabilities offered in one handheld unit. The modular design allows service providers the maximum flexibility to scale their investment and evolve with the growth of their network.
The instrument supports the whole range of essential fiber analysis tools including connection inspection, connection check, source, ORL, OTDR, a power meter, a PON selective power meter, and CWDM optical spectrum analyzer.
Application modules used with the T-BERD 2000 can also be used with the T-BERD 4000 and the two products are interoperable.
Boosted Productivity with Seamless Data Workflow

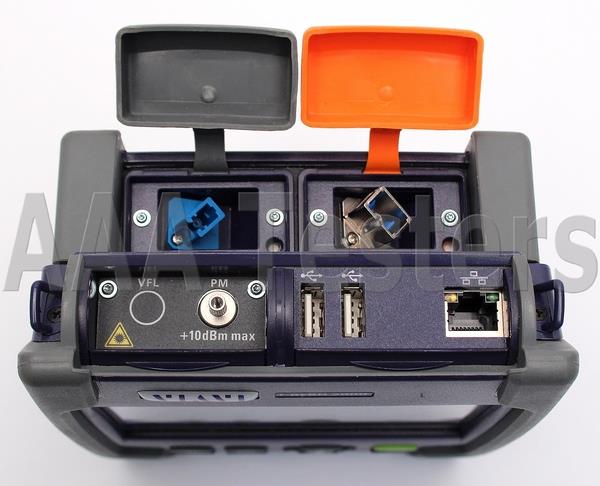

The T-BERD 2000 integrates various communication capabilities allowing remote control, data and setup uploads/downloads, and report transfer. The unit has one high-speed 1G Ethernet port and three USB ports.
Features:
- Large 5-inch touch-screen display
- Field-installable modules
- Wide range of OTDR modules including Quad and PON
- FiberComplete automated IL/ORL, PON power meter, and CWDM analyzer
- Automated fiber inspection and IEC pass/fail analysis
- New-generation lithium polymer (LiPo) battery for 8-hour operation
- Cross-compatible with T-BERD 4000
Specifications:
| General (typical at 25°C) |
Display
|
5-inch TFT color touch screen (12.5 cm)
Resolution 800 x 480 WVGA
|
Interfaces
|
Two USB 2.0 ports
One mini-USB 2.0 port
RJ-45 LAN 10/100/1000 Mbps
|
Internal memory
|
1 GB (128 MB for storage)
|
| Battery |
Rechargeable lithium-polymer battery
8-hour operation as per Telcordia GR-196-CORE |
| Power supply |
AC/DC adapter, input 100-250 VAC,
50-60 Hz; 2.5A max, output 12 VDC, 25W
Electrical safety: EN60950-compliant
|
Size with module (H x W x D)
|
175 x 138 x 80mm
(6.9 x 5.4 x 3.2 in) |
Weight
with battery
with battery and LM OTDR
|
0.864 kg (1.89 lbs)
1.21 kg (2.67 lbs)
|
| Temperature |
Operating: -20 to +50°C (-4 to 122°F)
Storage: -20 to +60°C (-4 to 140°F) |
| Relative humidity |
0% to 95% non-condensing |

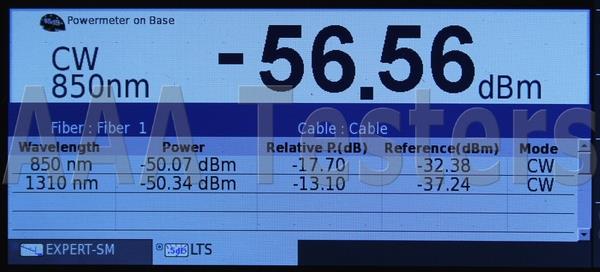

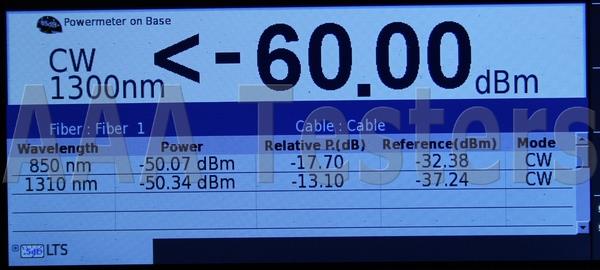

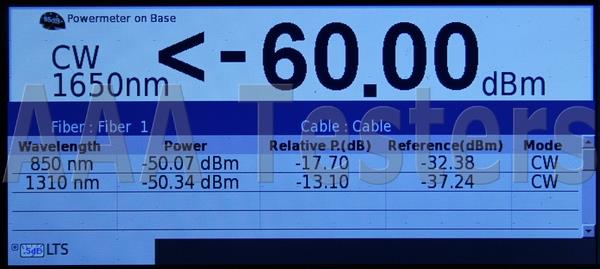

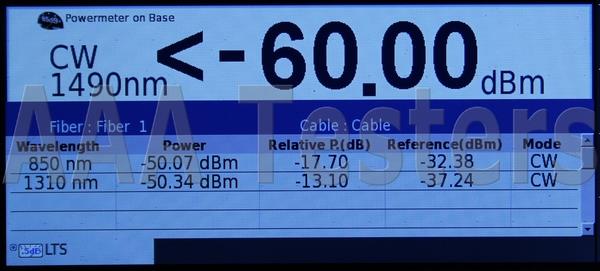

| Built-In Power Meter Specifications |
Calibrated wavelengths
|
850/1310/1490/1550/ 1625/1650 |
| Wavelength range |
800 to 1650 nm in 1 nm steps |
| Accuracy |
±0.2 dB |
| Measurement range |
+5 to −50 dBm |
| Maximum resolution |
0.01 dB/0.01nW |
| Connector type |
Universal push pull (UPP) |

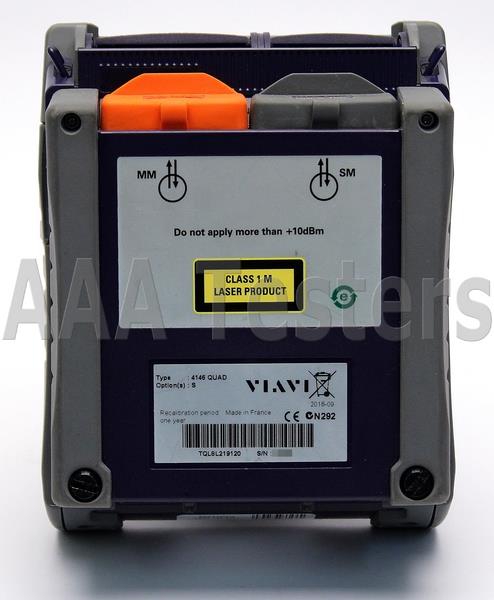

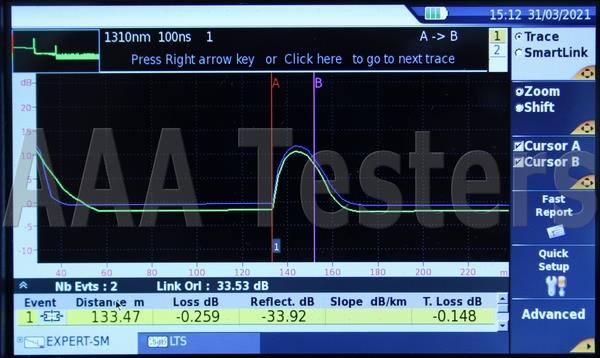

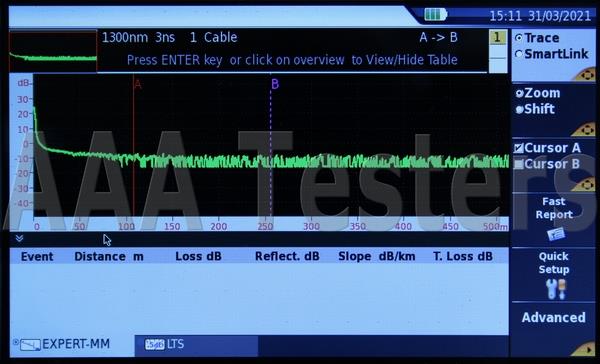

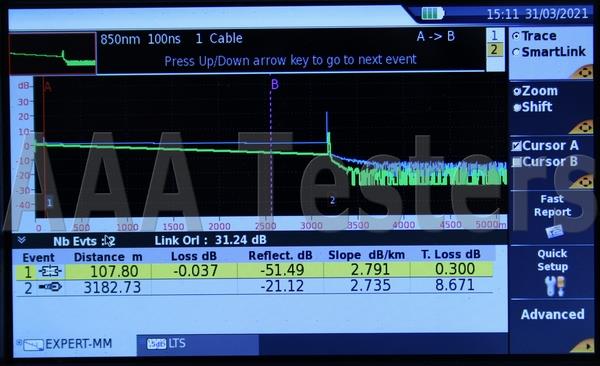

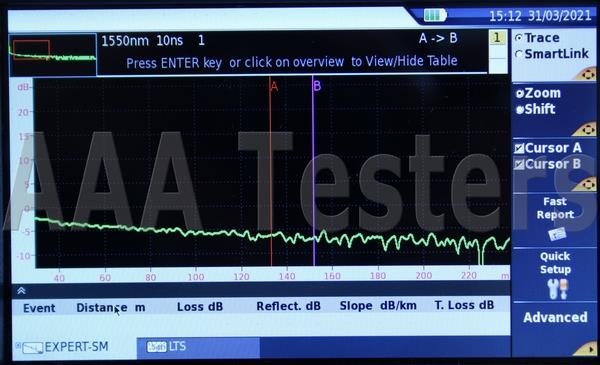

4146 Quad OTDR Module
Singlemode
|
1310/1550nm
|
RMS Dynamic Range
|
37/35 dB
|
Dead Zones
|
0.9/4 m
|
Multimode
|
850/1300nm
|
RMS Dynamic Range
|
27/25 dB
|
Dead Zones
|
0.8/4 m
|
For full JDSU T-BERD 2000 4146 Quad product specifications, please click here: JDSU T-BERD 2000 4146 Quad
|
|
|
|
