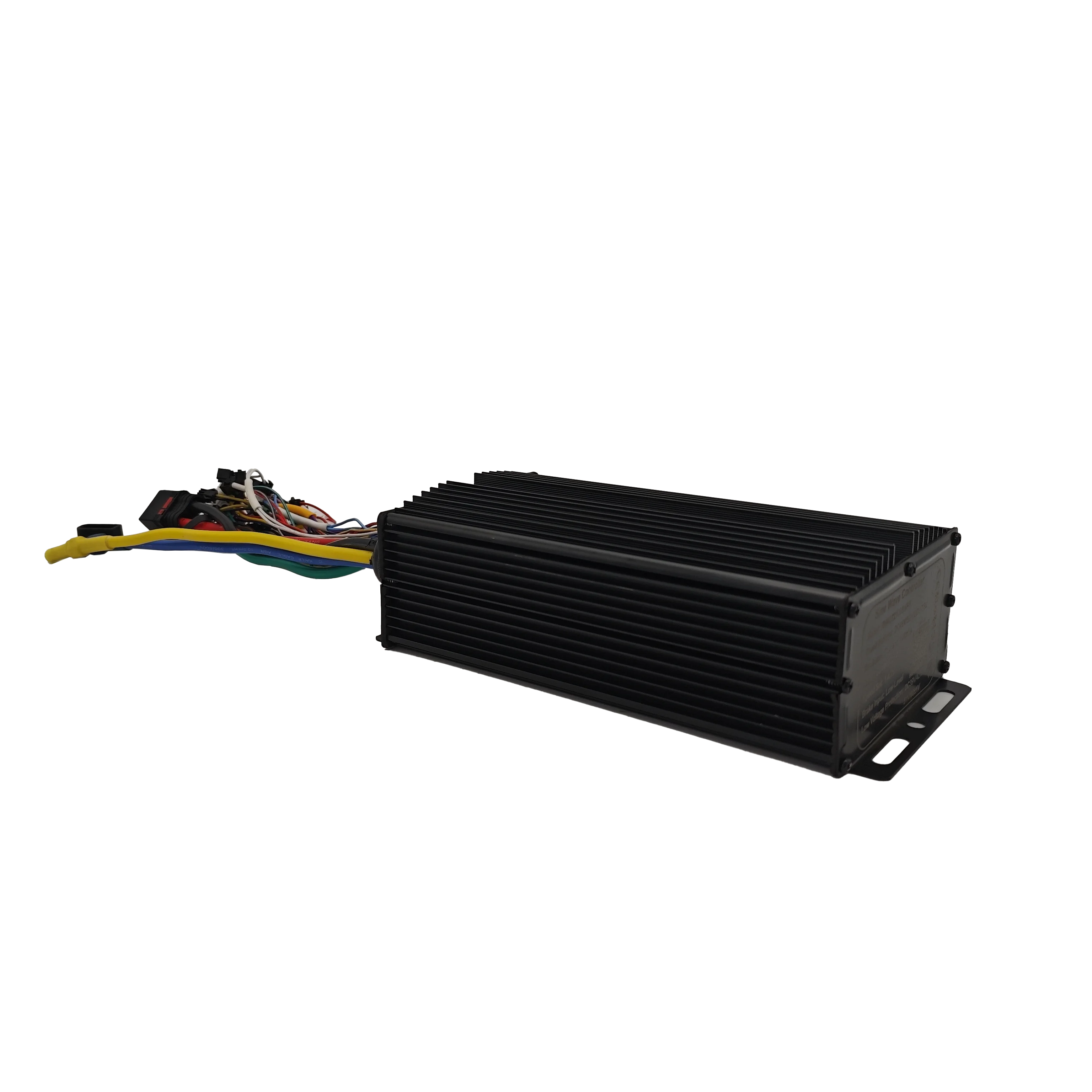

Ebike 48V/52V/60V/72V 3000W-5000W 100A Sine Wave ebike 24 MOSFET Controller with LCD Display with Regenerative function
important Notice:
This controller can work without display or ONLY with our Display, please never use it with your own display (because program is different)

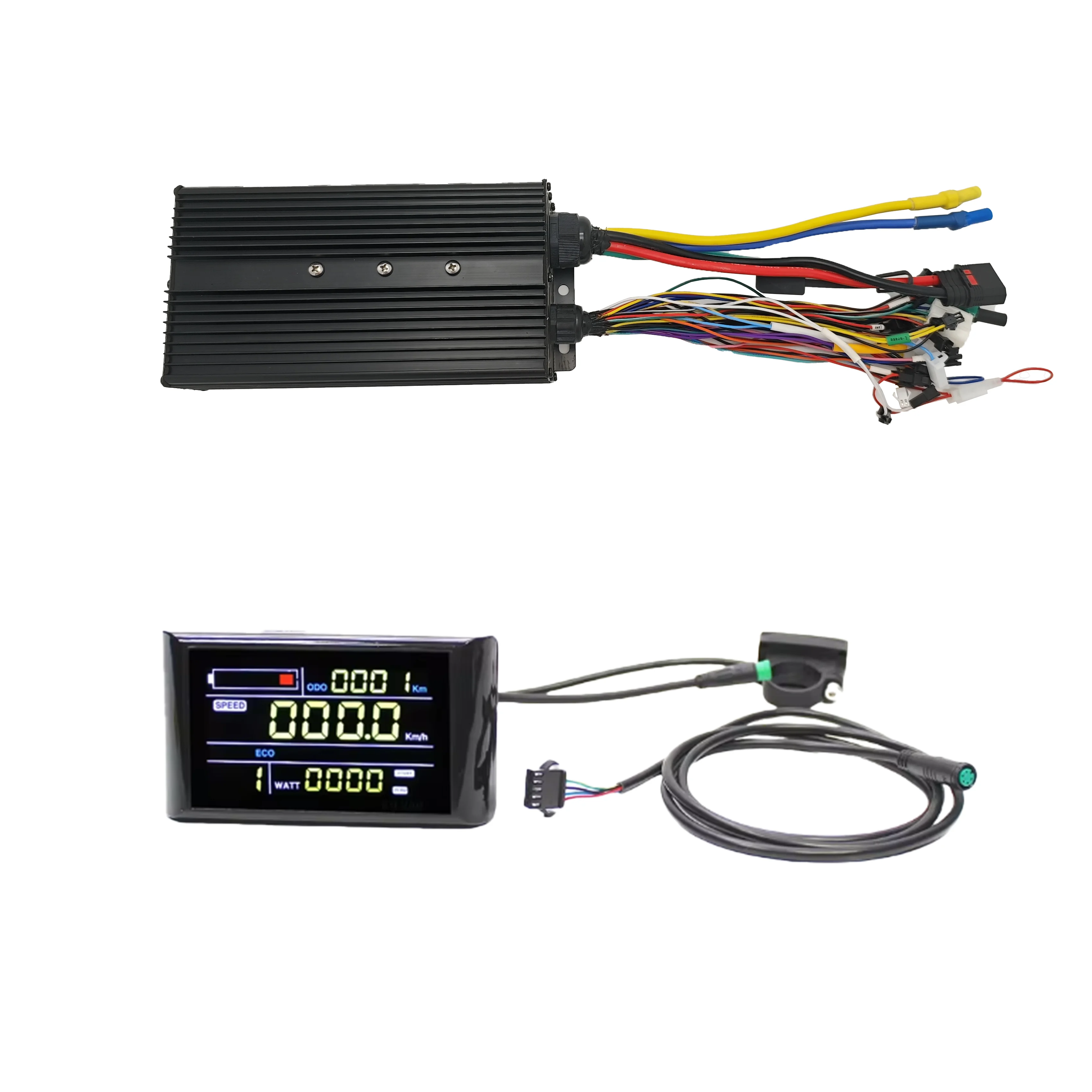

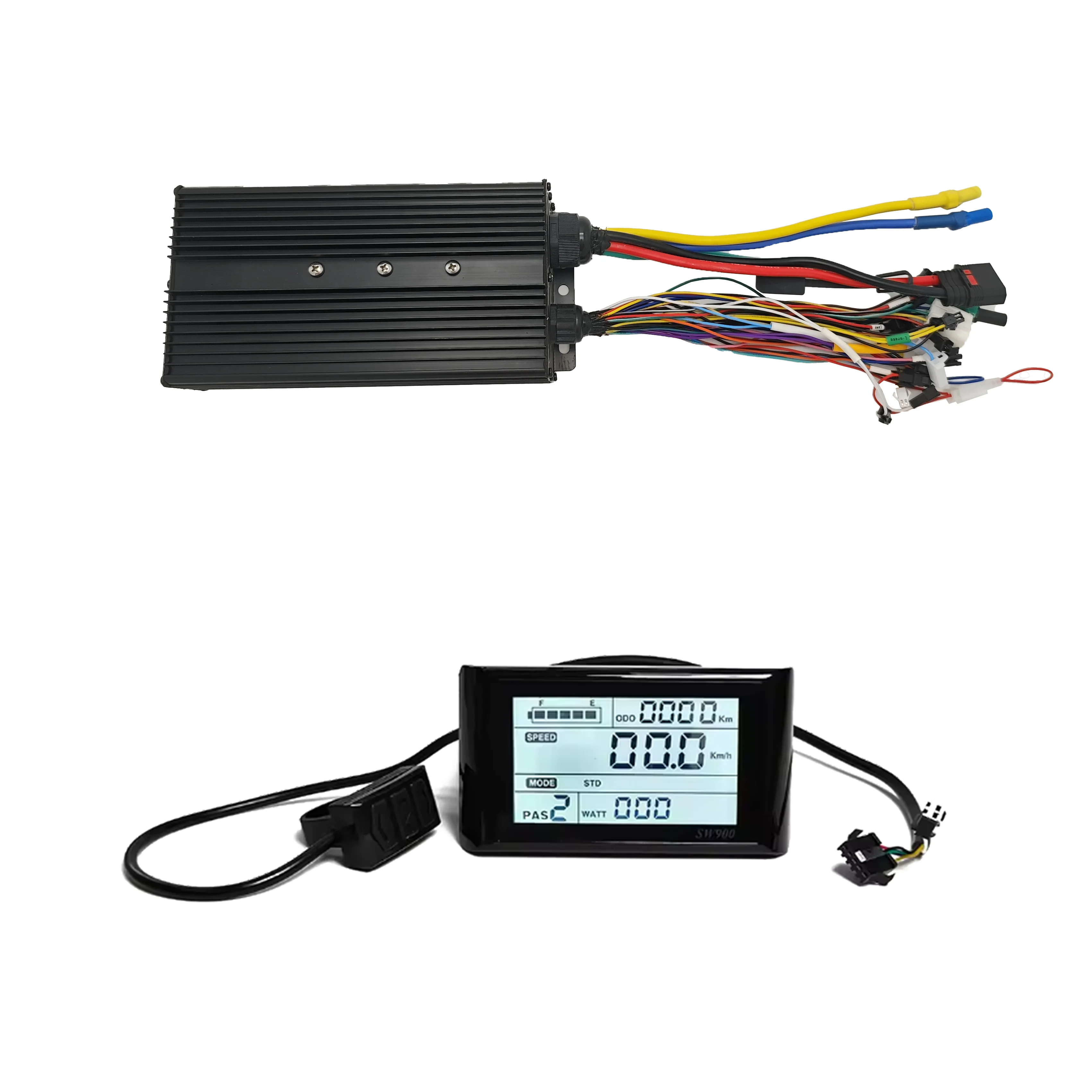

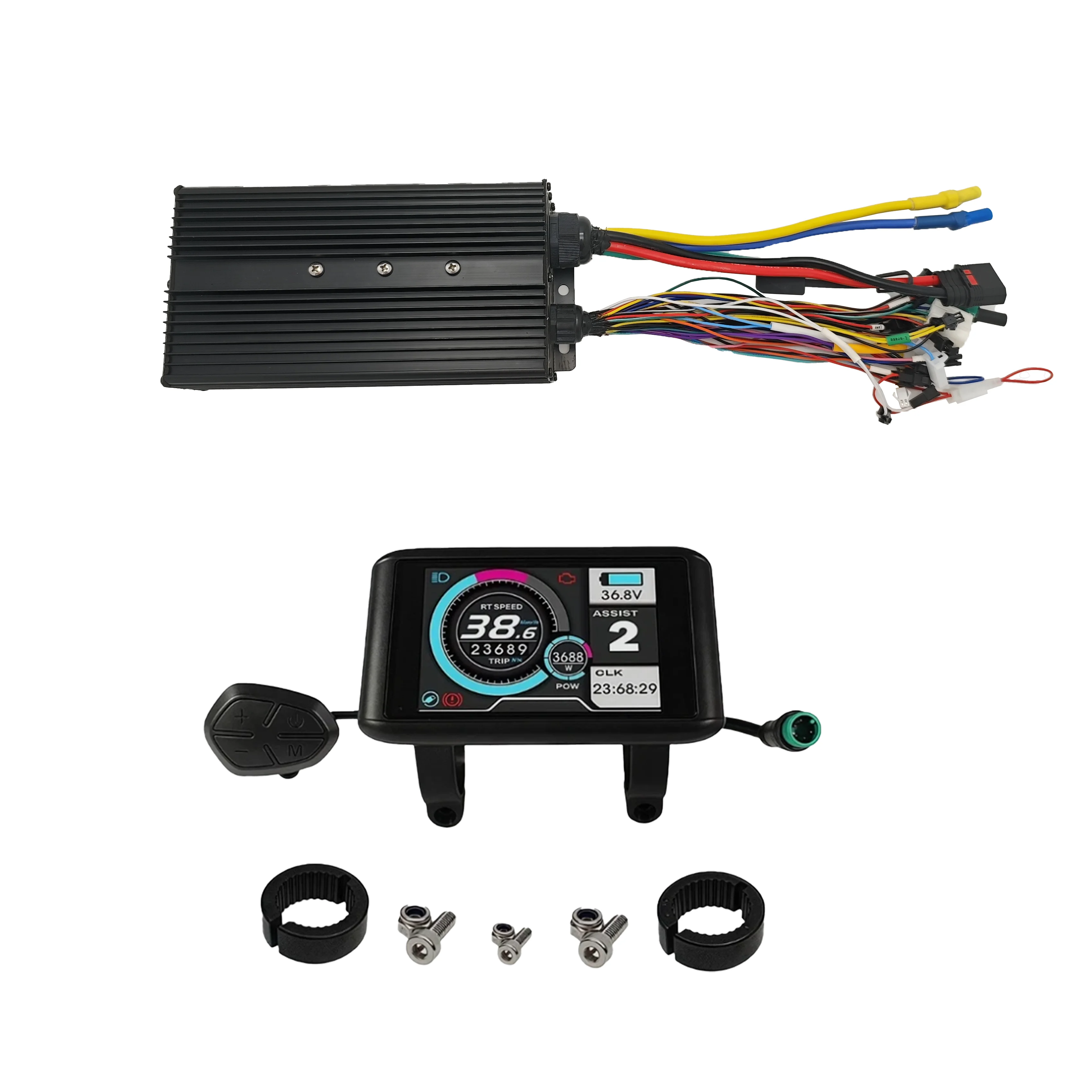

Parts Including:

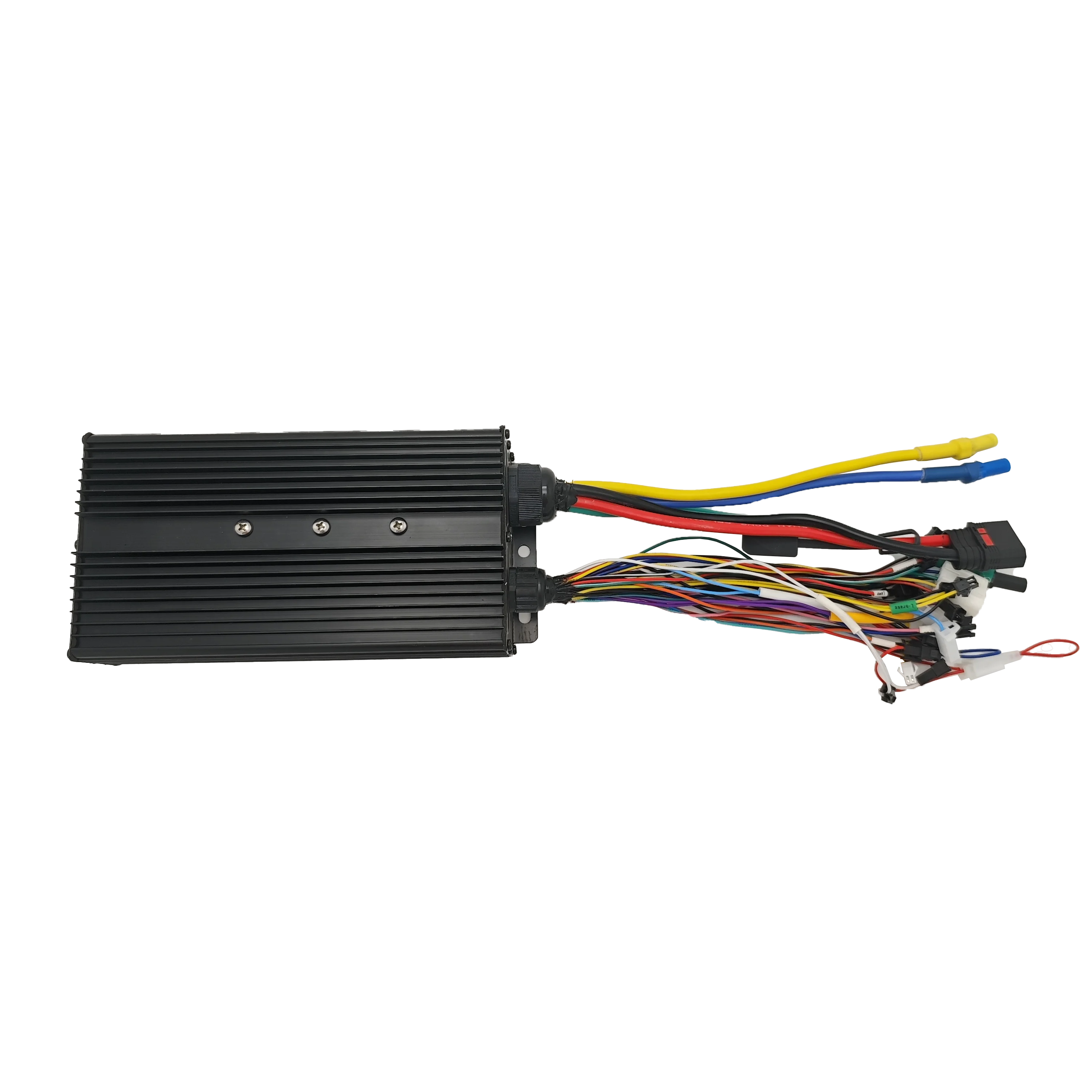

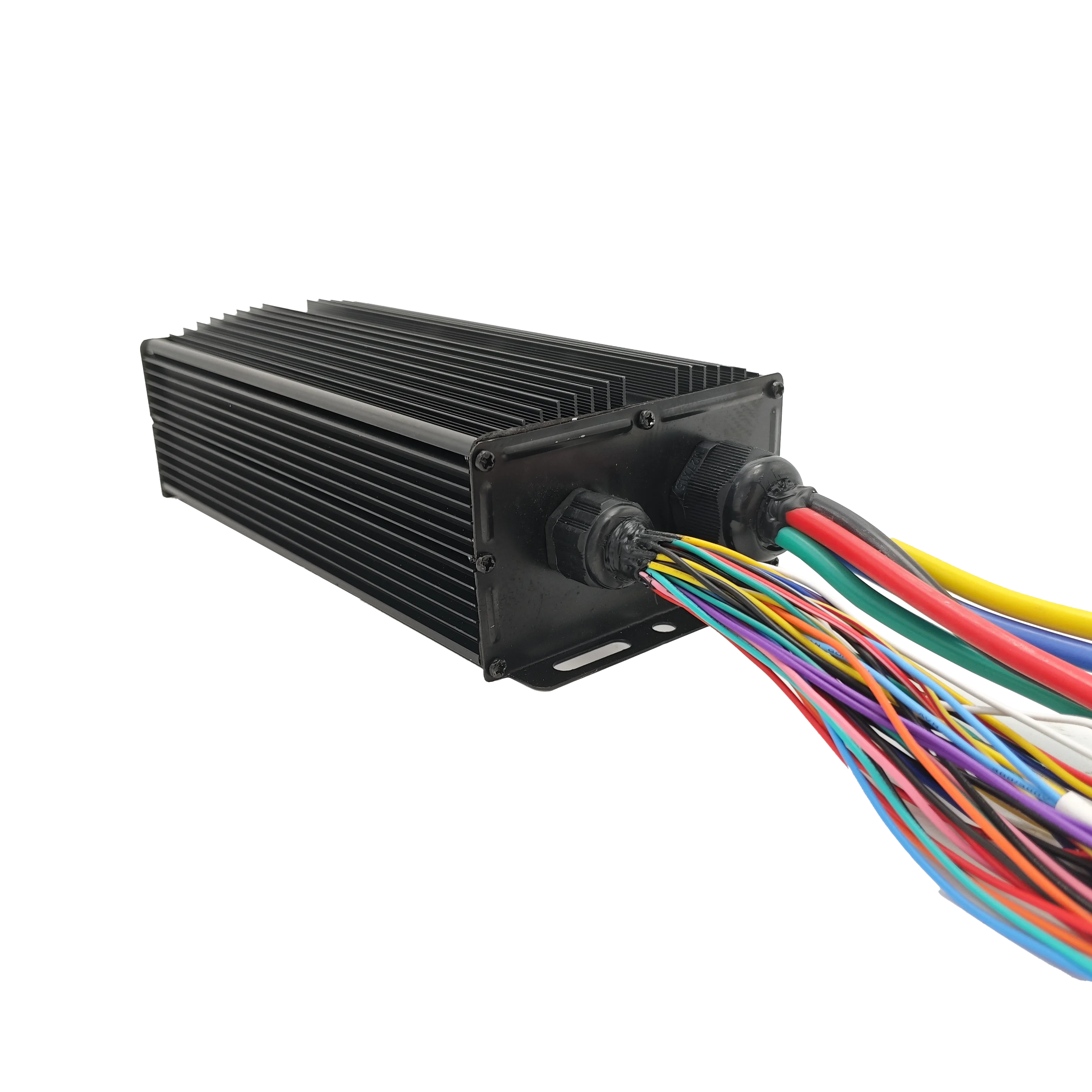

1. 24 MOSFET 48V 52V 60V 72V Universal Voltage 3000W-5000W Intelligent Sine Wave Controller

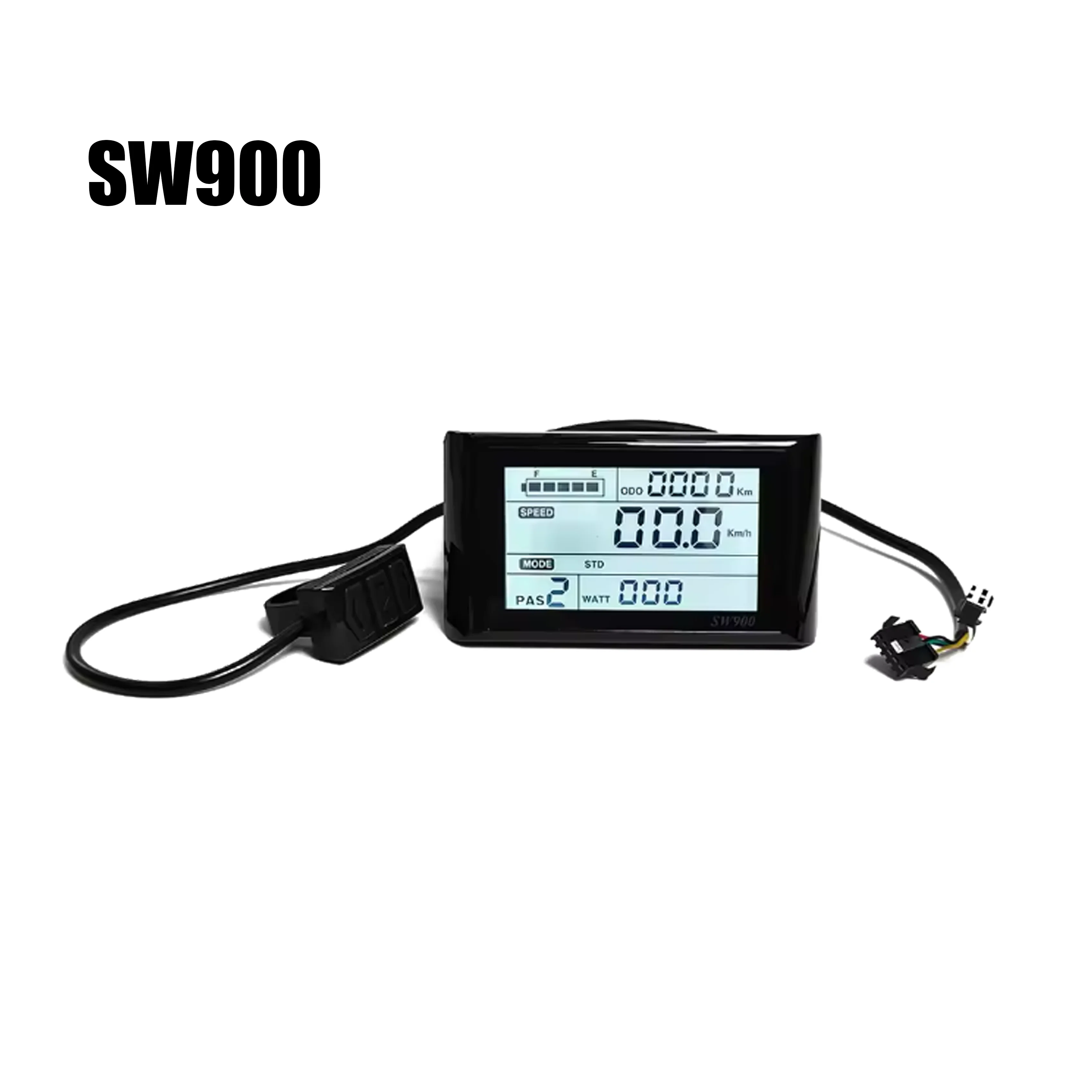

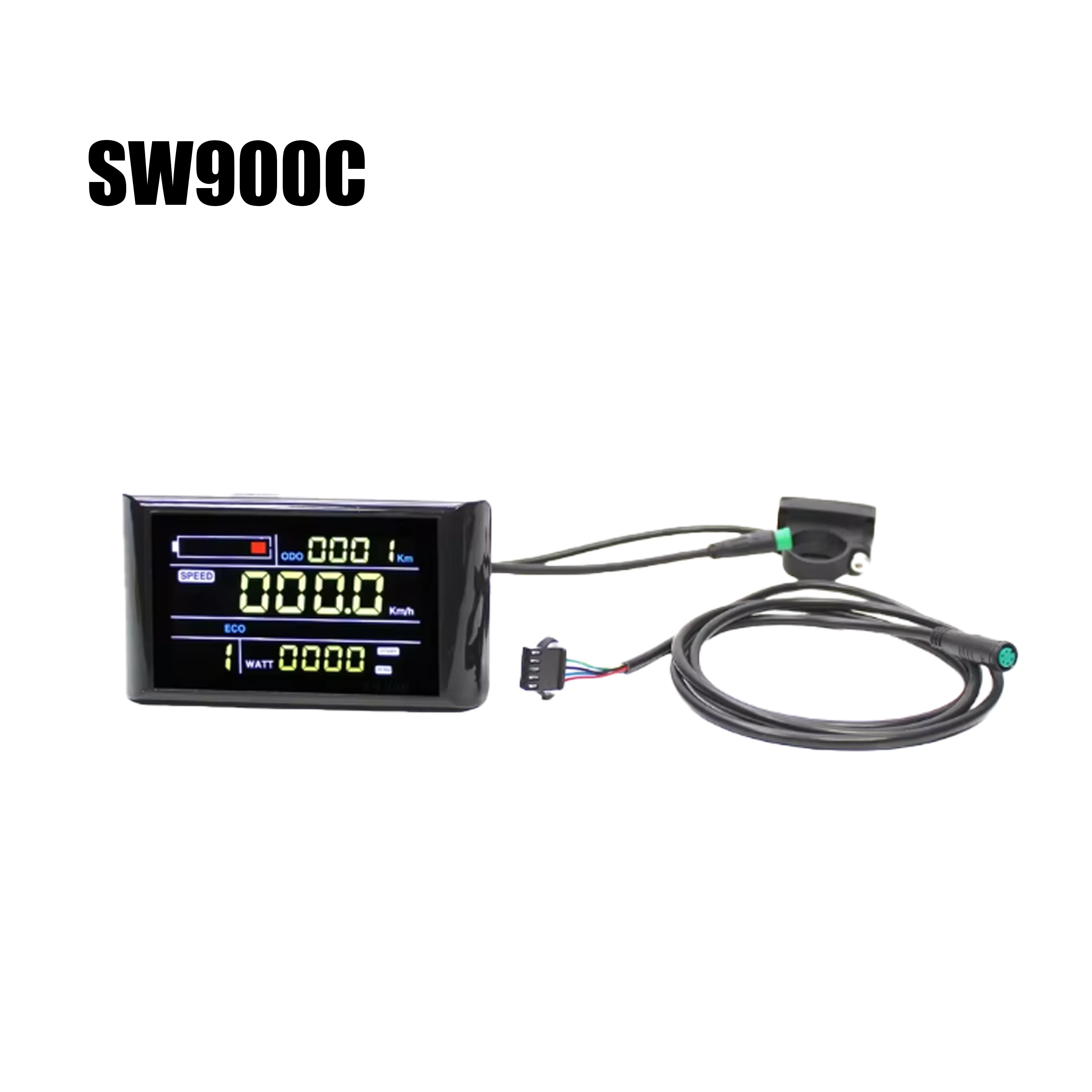

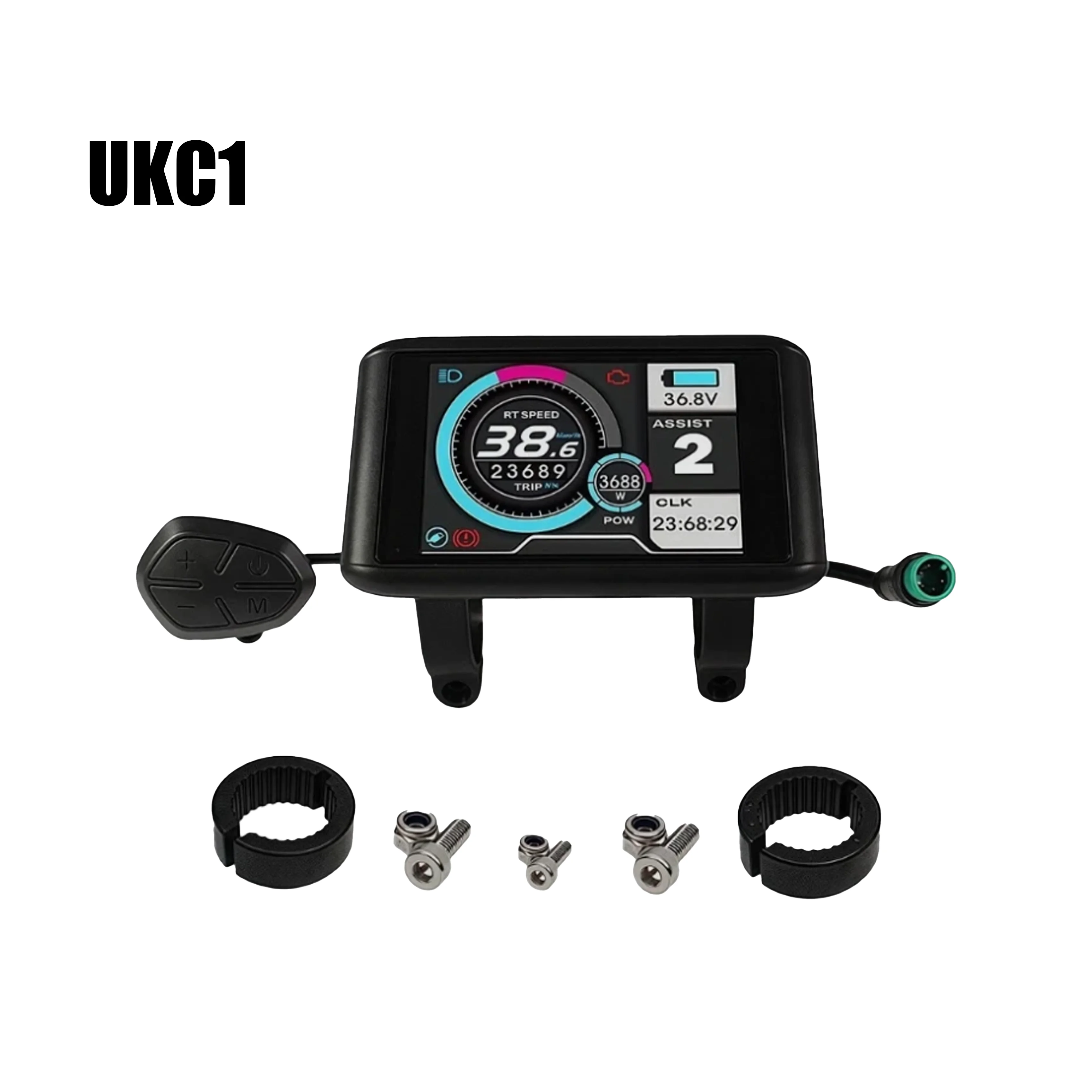

2. UKC1 Colorful Display, SW900 Colorful Display or SW900 Display(Optional)
Self-learning Function:
(1). Wrong color wires combination of 5-hall sensor wires (But please ensure hall sensor is good, red and black hall sensor wires must be connected correctly) between motor and controller, doesn't matter, self-learning process can correct it!
(2). Wrong color wires combination of 3-phase wires between motor and controller, doesn't matter, self-learning process can correct it!
Advantage:
1. Sine Wave Controller which support self-learning and smart match with each motor through self-learning, works with high efficiency, less noise, and lower energy consumption, which makes your electric vehicles or electric motorcycles more comfortable and easier to control, give you best pedal experience
2. Universal Input Voltage Range: 48V/52V/60V/72V
3. Work with or without display
4. Parameter setting via display
5. All protection make it long life and safe: over/under voltage, over current, over load, over heating, anti-runaway, locked-motor protection
6. Multi functions: Work with hall sensor mode or non-hall mode, smart match with different motor, 3/5/9-speed level for throttle and PAS, Current limit, Speed limit, Reverse, Push Assistant, Anti-thief, Regenerative Braking (Can set different level: Off, Standard, Weak, Strong), Speed detecting (Magnet quantity simulated or internal speed sensor) and etc.
7. Best heat sinking with Aluminium Case
8. Black anodized Aluminium Controller Case against scratch

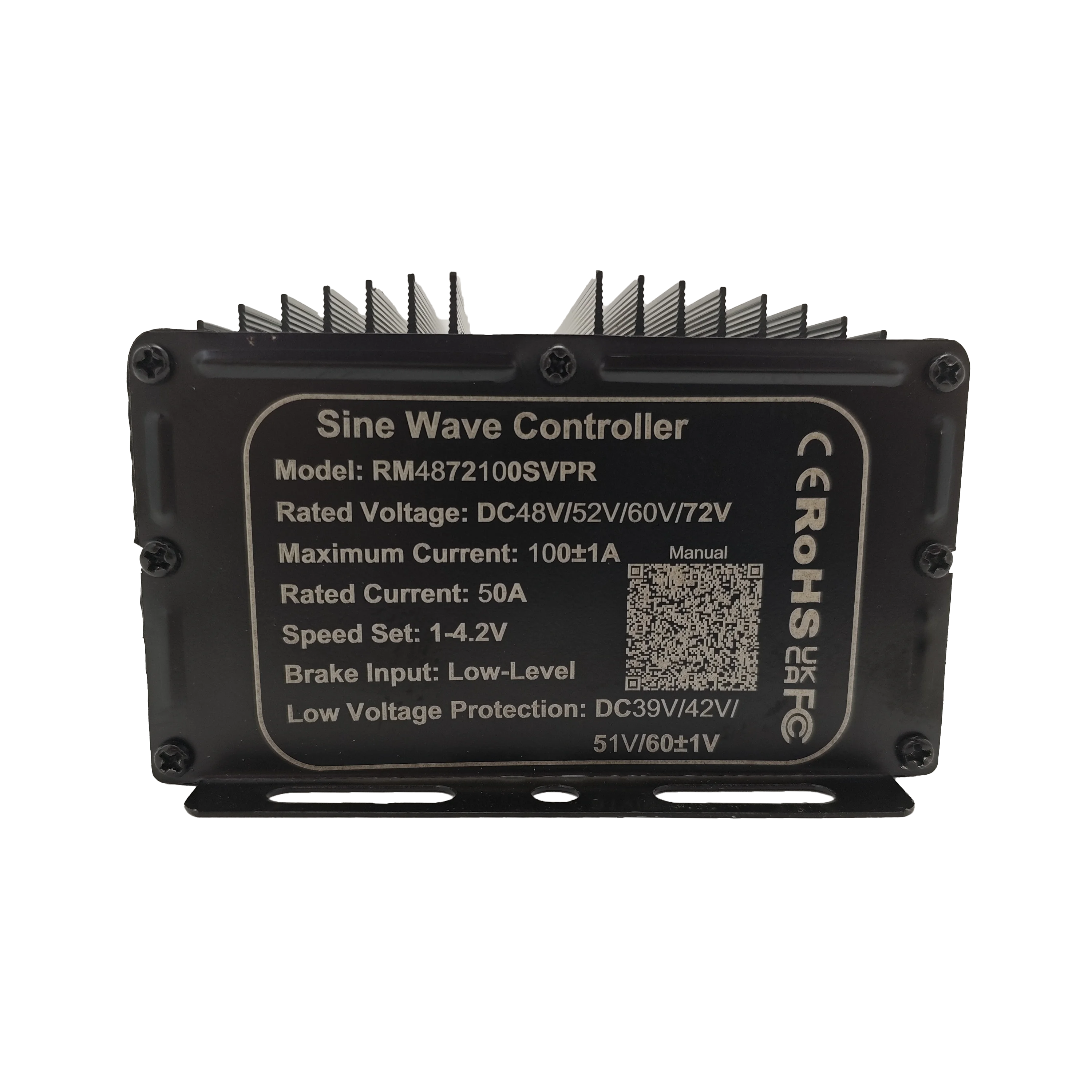

General Specification:
1. Rated Power: 48V 3300W/ 60V 4200W/ 72V 5000W
2. Peak Power: 48V 4800W/ 60V 6000W/ 72V 7200W
3. Brake: Low Voltage Brake
4. Alarm: Low Voltage Alarm
5. Rotor Position Detecting Method: Hall sensor
6. 3-Phase Connectors: XT150 Female Plugs or O-ring
7. Power Input Connector: QS8 Male Plug
8. 3-Phase and Power Input Cable Size: 7AWG (10mm2)
9. Size: 220x125x65mm
10. Net Weight: 1900g
11. Waterproof Grade: IP65
