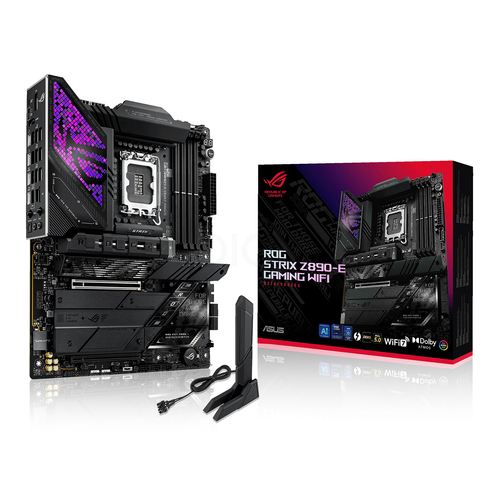

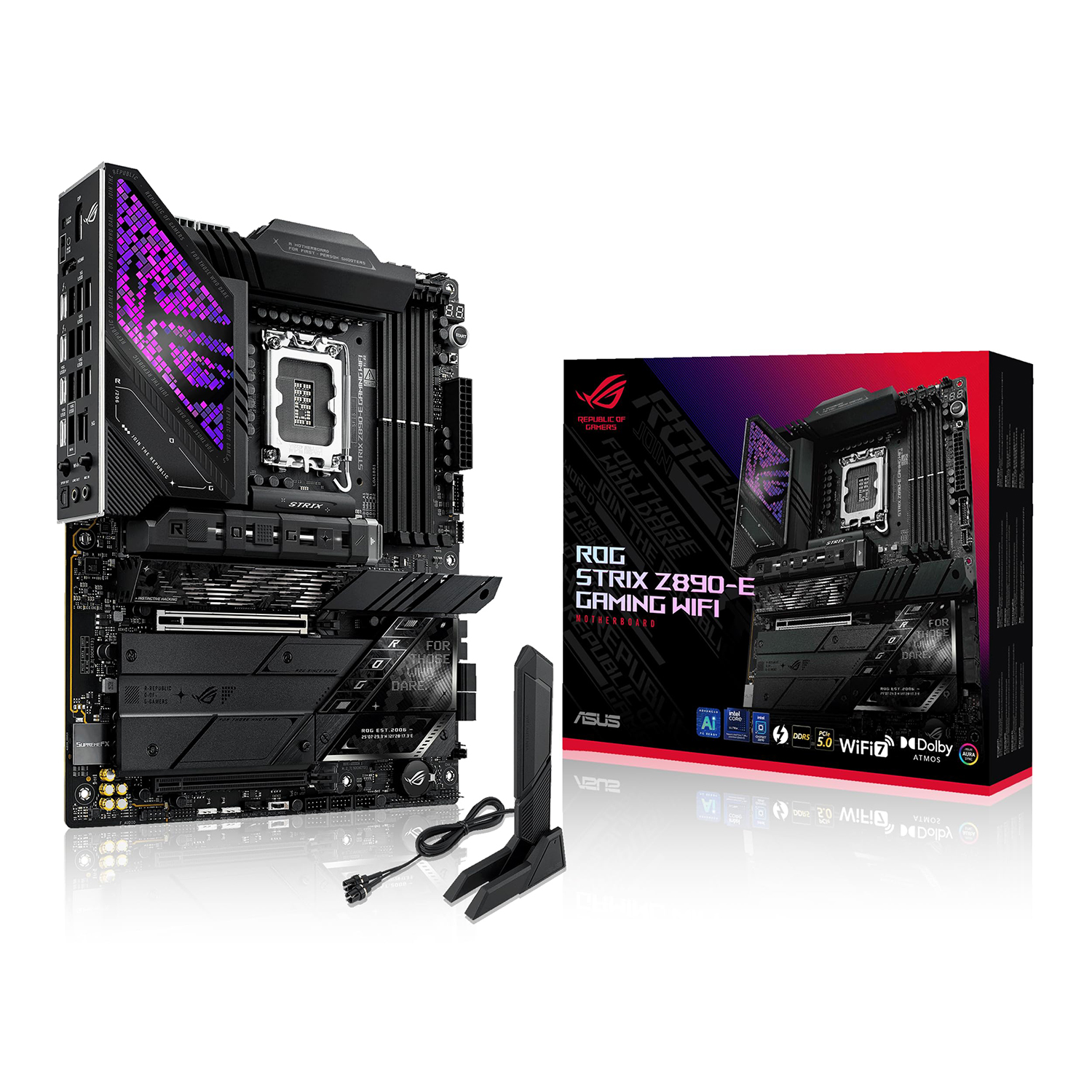

ASUS ROG Strix Z890-E Gaming WiFi Intel Z890 ATX Motherboard with AI, 7X M.2

Catalog #: ASUROGSTXZ890EWF
MFG Part #: ROGSTXZ890EWF
Condition: Brand new, USA Warranty

  • Future-ready AI computing
  • Intel LGA1851 for Core Ultra CPUs
  • NPU Boost & AI Advisor
  • DIMM Fit, Flex & AEMP III memory
  • 18+2+1+2 power stages & ProCool II
  • 3PCIe 5.0 & 4PCIe 4.0 M.2 slots
  • ASUS 3 Year Limited Warranty

    ASUS ROG STRIX Z890-E GAMING WIFI

    Product Feature:

    Ready for Advanced AI PCs: Designed for the future of AI computing, with the power and connectivity needed for demanding AI applications

    Intel® LGA 1851 Socket: Ready for Intel® Core™ Ultra processors (Series 2)

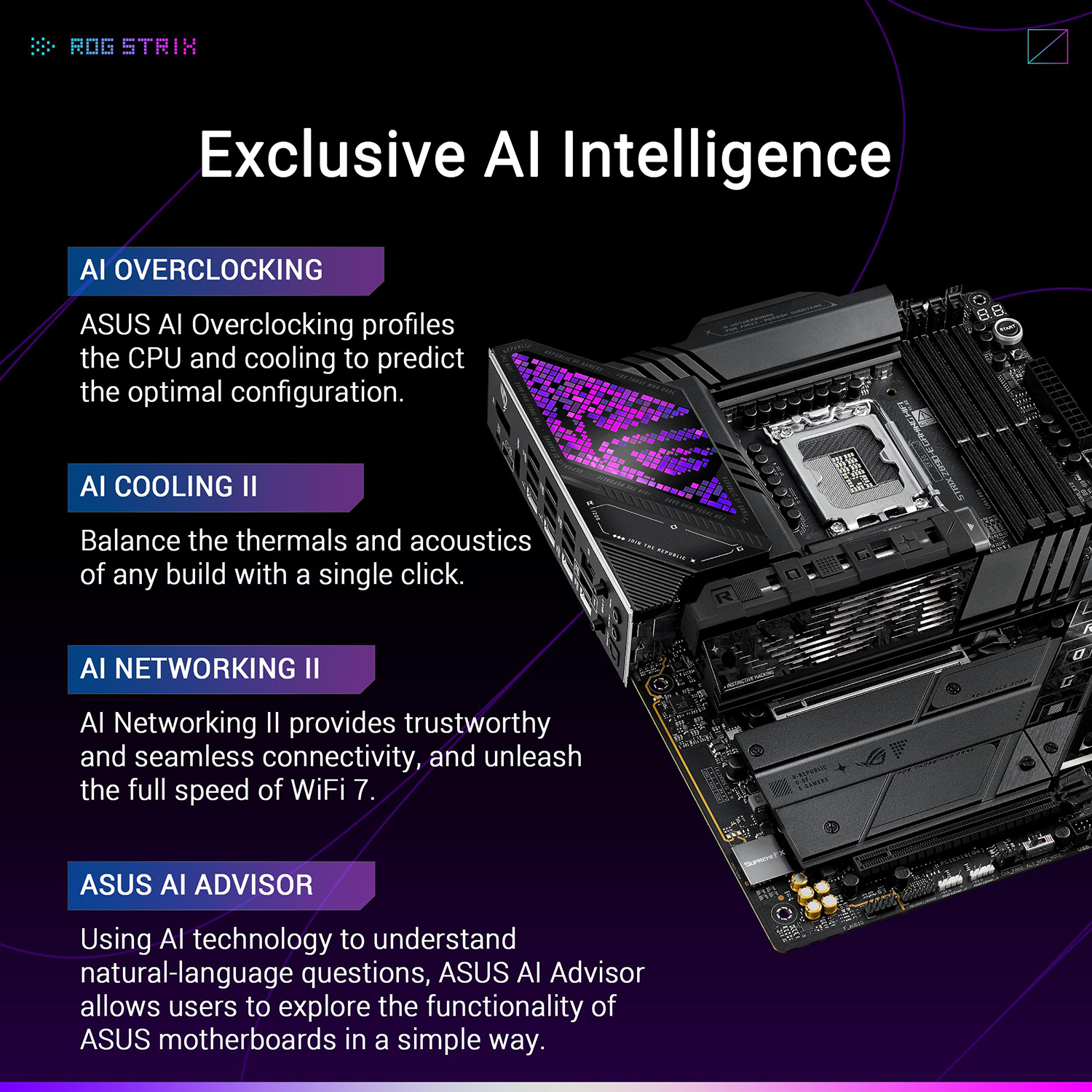

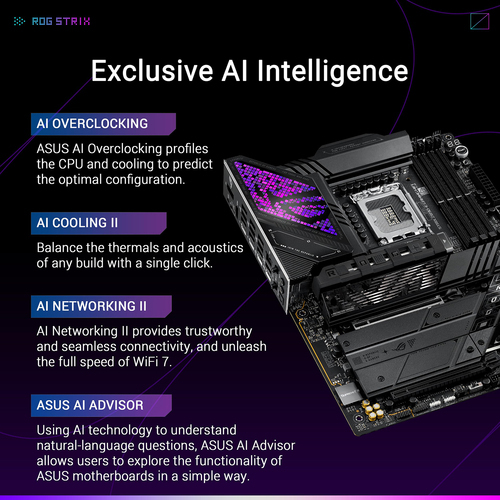

    Exclusive AI Technologies: NPU Boost, ASUS AI Advisor, ASUS-exclusive AI Overclocking, AI Cooling II, AI Networking II

    Exclusive Memory Technologies: DIMM Fit, DIMM Flex and AEMP III to simplify setup and improve performance

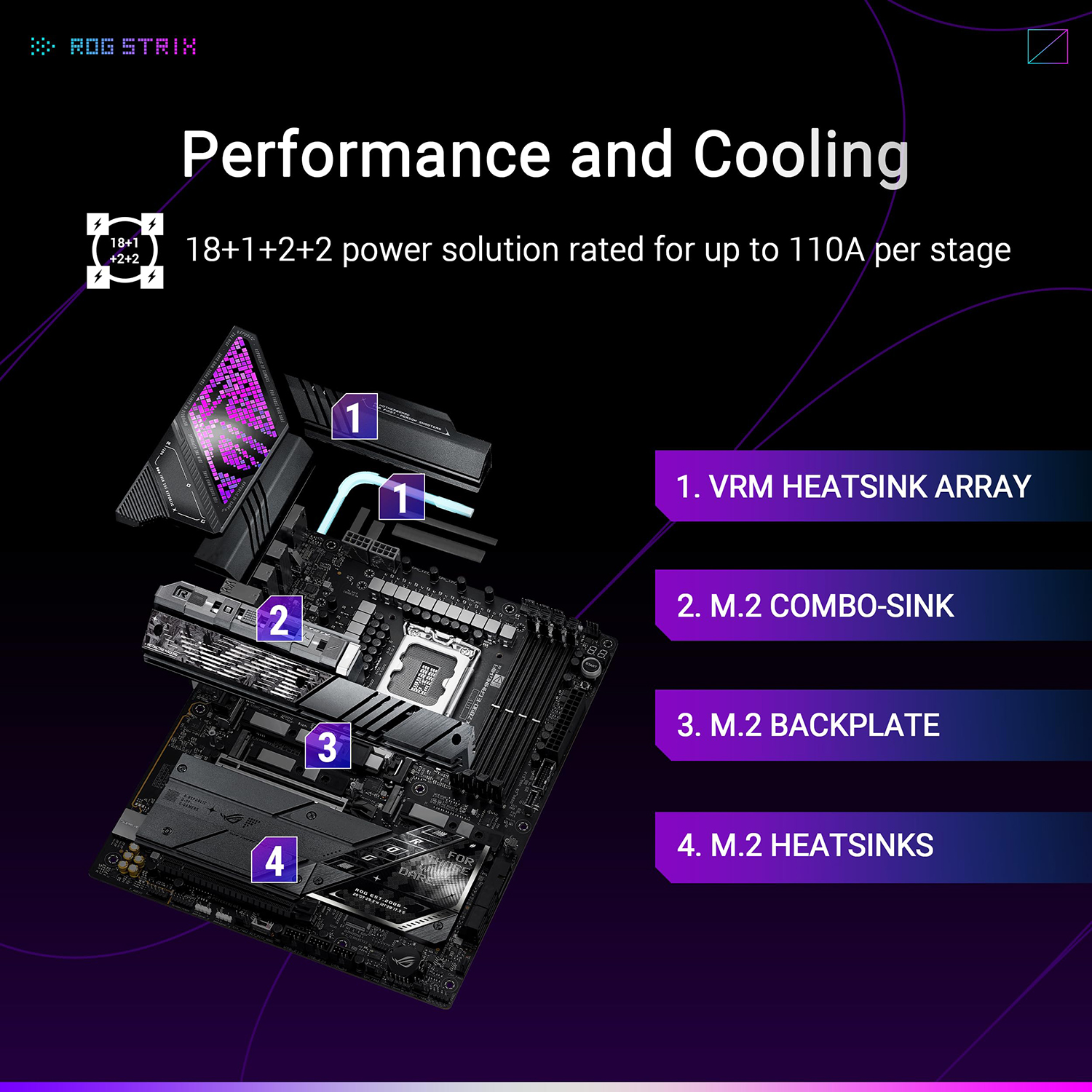

    Robust Power Solution: 18(110A)+1(90A)+2(90A)+2(80A) power stages with ProCool II power connectors, MicroFine alloy chokes and premium metallic capacitors

    Optimized Thermal Design: Massive heatsinks with integrated I/O cover, high-conductivity thermal pads, and connected with an C-shaped heatpipe

    Latest M.2 Support: Three PCIe® 5.0 M.2 slots and four PCIe 4.0 M.2 slots, all with substantial cooling solutions

    Abundant Connectivity: Dual Thunderbolt™ 4 USB Type-C® ports, USB 10Gbps Type-C rear I/O port with up to 30-watt Power Delivery fast charging plus USB Wattage Watcher, ten USB 10Gbps ports, PCIe 5.0 x16 SafeSlot with full support for next-gen graphics card, HDMI™ 2.1 and DisplayPort™ 1.4

    High-Performance Networking: On-board Intel Wi-Fi 7 (802.11be) with ASUS WiFi Q-Antenna, Realtek 5 Gb Ethernet

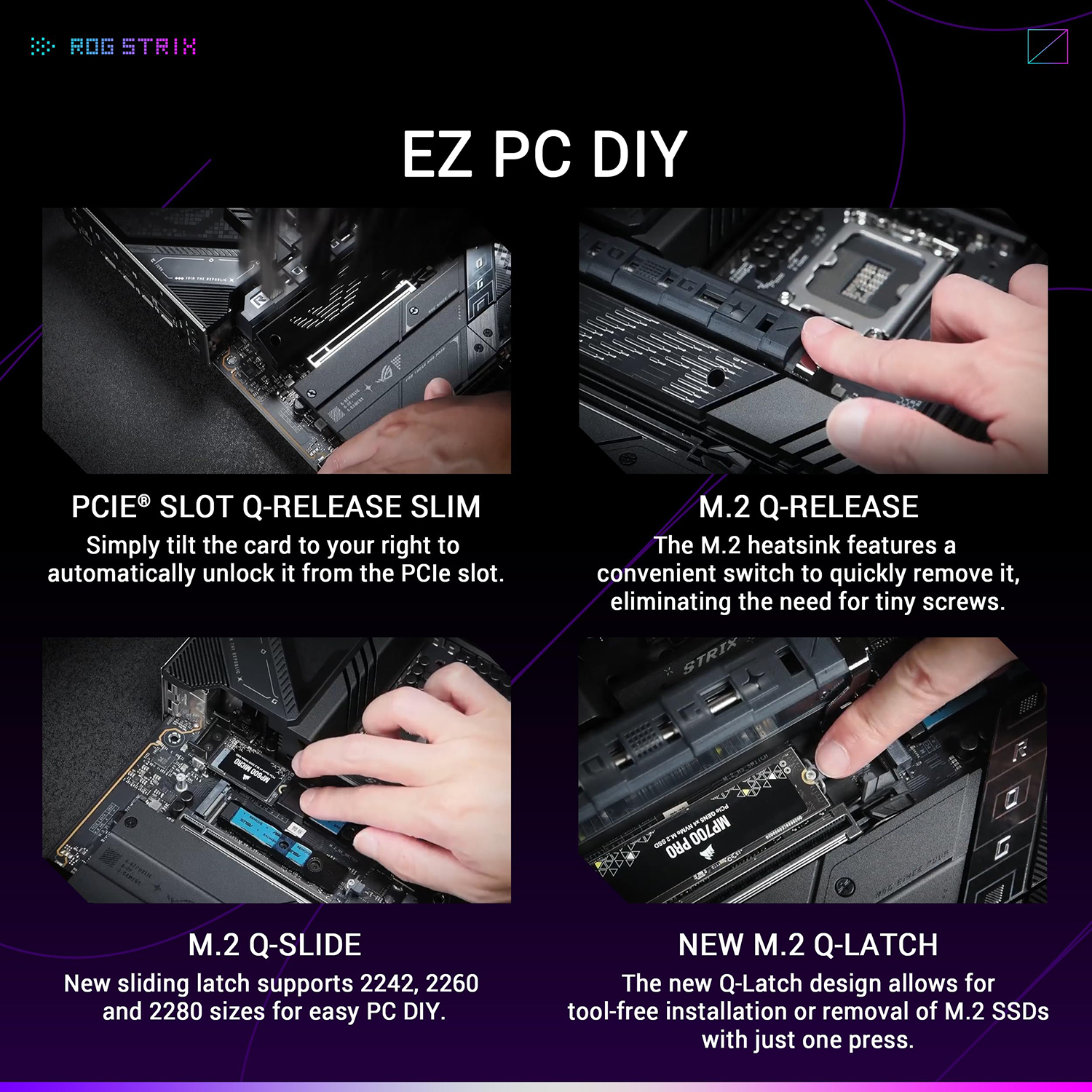

    DIY-Friendly Design: PCIe Slot Q-Release Slim, new M.2 Q-Latch, M.2 Q-Release, M.2 Q-Slide, Q-Antenna, BIOS Q-Dashboard, Q-Code, Q-LED, FlexKey button, Start button, BIOS FlashBack™ button, Clear CMOS button and pre-mounted I/O shield

    Immersive Audio: ROG SupremeFX ALC4080 codec with Savitech SV3H712 amplifier, along with Dolby Atmos®?

    Unmatched Personalization: I/O cover with Polymo Lighting, three Gen 2 ARGB headers, all configurable with ASUS-exclusive Aura Sync RGB lighting

    Renowned Software: ASUS DriverHub, Dolby Atmos®, TurboV Core, GlideX, HWiNFO, bundled 60-days AIDA64 Extreme subscription

    Product Specification:



    CPU

    Intel® Socket LGA1851 for Intel® Core™ Ultra Processors(Series 2)
    Supports Intel® Turbo Boost Technology 2.0 and Intel® Turbo Boost Max Technology 3.0
    Refer to https://www.asus.com/support/download-center/ for CPU support list.
    Intel® Turbo Boost Max Technology 3.0 support depends on the CPU types.

    Chipset

    Intel® Z890 Chipset

    Memory

    4 x DIMM slots, max. 256GB, DDR5
    Support up to 9200+MT/s (OC), Non-ECC, Clocked Unbuffered DIMM (CUDIMM)
    Dual Channel Memory Architecture
    Supports Intel® Extreme Memory Profile (XMP) memory module
    Supports DIMM Flex
    NitroPath DRAM Technology
    DIMM Fit
    ASUS Enhanced Memory Profile III (AEMP III)
    Adjustments will be made based on the specifications of mass-produced memory products available on the market.
    Supported memory types, data rate (speed), and number of DRAM modules vary depending on the CPU and memory configuration, for more information please refer to CPU/Memory Support list under the Support tab of product information site or visit https://www.asus.com/support/download-center/.
    Non-ECC, Un-buffered DDR5 Memory supports On-Die ECC function

    Graphics

    1 x DisplayPort
    1 x HDMI® port
    2 x Intel® Thunderbolt™ 4 support DisplayPort and Thunderbolt™ video outputs
    Graphics specifications may vary between CPU types. Please refer to www.intel.com for any updates.
    Supports max. 8K 60Hz as specified in DisplayPort 1.4.
    Supports max. 8K 60Hz as specified in HDMI 2.1.
    In ThunderboltTM   4 mode, supports up to 8K 60Hz x1 with DSC or 4K 60Hz x 2, maximum total bandwidth up to 23.8Gbps or 16Gbps/16Gbps, for resolution support please check DisplayPort 2.1 specs.
    In DP alt mode, Only one USB Type-C® port supports up to UHBR20 at a time.
    VGA resolution support depends on processors' or graphic cards' resolution.
    While installing the operating system, please ensure that your monitor is connected to the HDMI port on the back I/O panel or to a discrete graphics card.

    Expansion Slots

    Intel® Core™ Ultra Processors(Series 2)
    1 x PCIe 5.0 x16 slot (supports x16 or x8/x4/x4 modes)
    Intel® Z890 Chipset
    1 x PCIe 4.0 x16 slot (supports x4 mode)
    Please check PCIe bifurcation table in support site (https://www.asus.com/support/FAQ/1037507/).
    - To ensure compatibility of the device installed, please refer to https://www.asus.com/support/ for the list of supported peripherals.

    Multi-GPU Support



    Storage

    Total supports 7 x M.2 slots and 4 x SATA 6Gb/s ports
    Intel® Core™ Ultra Processors(Series 2)
    M.2_1 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 5.0 x4 mode)
    M.2_2 slot (Key M), type 2280 (supports PCIe 4.0 x4 mode)
    M.2_3 slot (Key M), type 2242/2260/2280 (supports PCIe 5.0 x4 mode)
    M.2_4 slot (Key M), type 2242/2260/2280 (supports PCIe 5.0 x4 mode)
    Intel® Z890 Chipset
    M.2_5 slot (Key M), type 2280 (supports PCIe 4.0 x4 mode)
    M.2_6 slot (Key M), type 2280 (supports PCIe 4.0 x4 mode)
    M.2_7 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 & SATA modes)
    4 x SATA 6Gb/s ports
    Intel® Rapid Storage Technology supports PCIe RAID 0/1/5/10, SATA RAID 0/1/5/10, M.2 slot from CPU only supports RAID 0/1/5.
    M.2_3 & M.2_4 slots share bandwidth with PCIEX16(G5). When M.2_3 & M.2_4 are occupied with SSD devices, PCIEX16(G5) will run x8 only.

    Ethernet

    1 x Realtek 5Gb Ethernet
    ASUS LANGuard

    Wireless & Bluetooth

    Wi-Fi 7
    2x2 Wi-Fi 7 (802.11be)
    Supports 2.4/5/6GHz frequency band
    Support Wi-Fi 7 320MHz bandwidth, up to 5.8Gbps transfer rate.
    Bluetooth® v5.4

    Wi-Fi features may vary depending on the operating system
     For Windows 11, Wi-Fi 7 will require 24H2 or later version for full functions, Windows 11 21H2/22H2/23H2 only supports Wi-Fi 6E.
     For Windows 10, only Wi-Fi 6 is supported.
    Wi-Fi 6GHz frequency band and bandwidth regulatory may vary between countries.
    The Bluetooth® version may vary, please refer to the Wi-Fi module manufacturer's website for the latest specifications.

    USB

    Rear USB (Total 14 ports)
    2 x Thunderbolt™ 4 (2 x USB Type-C®)
    9 x USB 10Gbps ports (7 x Type-A + 1 x USB Type-C® + 1 x USB Type-C® with up to 30W PD Fast-charge)
    3 x USB 5Gbps ports (3 x Type-A)
    Front USB (Total 11 ports)
    1 x USB 20Gbps connector (supports USB Type-C®)
    2 x USB 5Gbps headers support additional 4 USB 5Gbps ports
    3 x USB 2.0 headers support additional 6 USB 2.0 ports
    USB Type-C® power delivery output: 5V/3A
    USB Type-C® power delivery output: 5V/9V max. 3A, 12V max 2.5A, 15V max. 2A.

    Audio

    ROG SupremeFX 7.1 Surround Sound High Definition Audio CODEC ALC4080
    - Impedance sense for front and rear headphone outputs
    - Supports: Jack-detection, Multi-streaming, Front Panel MIC Jack-retasking
    - High quality 120 dB SNR stereo playback output and 110 dB SNR recording input
    - Supports up to 32-Bit/384 kHz playback on front panel

    Audio Features
    - Audio Shielding
    - Savitech SV3H712 AMP
    - Gold-plated audio jacks
    - Rear optical S/PDIF out port
    - Premium audio capacitors
    - Audio cover

    A chassis with an HD audio module in the front panel is required to support 7.1 Surround Sound audio output.
    The LINE OUT port on the rear panel does not support spatial audio. If you wish to use spatial audio, make sure to connect your audio output device to the audio jack on the front panel of your chassis or use a USB interface audio device.

    Back Panel I/O Ports

    2 x Thunderbolt™ 4 (2 x USB Type-C®)
    9 x USB 10Gbps ports (7 x Type-A + 1 x USB Type-C® + 1 x USB Type-C® with up to 30W PD Fast-charge)
    3 x USB 5Gbps ports (3 x Type-A)
    1 x DisplayPort
    1 x HDMI® port
    1 x Wi-Fi Module
    1 x Realtek 5Gb Ethernet
    2 x Gold-plated audio jacks
    1 x Optical S/PDIF out port
    1 x BIOS FlashBack™  button
    1 x Clear CMOS button

    Internal I/O Connectors

    Fan and Cooling related
    1 x 4-pin CPU Fan header
    1 x 4-pin CPU OPT Fan header
    1 x 4-pin AIO Pump header
    5 x 4-pin Chassis Fan headers
    Power related
    1 x 24-pin Main Power connector
    2 x 8-pin +12V CPU Power connectors
    Storage related
    7 x M.2 slots (Key M)
    4 x SATA 6Gb/s ports
    USB
    1 x USB 20Gbps connector (supports USB Type-C®)
    2 x USB 5Gbps headers support additional 4 USB 5Gbps ports
    3 x USB 2.0 headers support additional 6 USB 2.0 ports
    Miscellaneous
    3 x Addressable Gen2 headers
    1 x Chassis Intrusion header
    1 x CPU Over Voltage jumper
    1 x FlexKey button
    1 x Front Panel Audio header (F_AUDIO)
    1 x Start button
    1 x 10-1 pin System Panel header
    1 x Alteration PCIe mode switch
    1 x Thermal Sensor header
    1 x Thunderbolt™ (USB4®) header

    Special Features

    Extreme Engine Digi+
    - 5K Black Metallic Capacitors
    ASUS Q-Design
    - M.2 Q-Latch
    - M.2 Q-Release
    - M.2 Q-Slide
    - PCIe Slot Q-Release Slim (with PCIe SafeSlot)
    - Q-Antenna
    - Q-Code
    - Q-Dashboard
    - Q-LED (CPU [red], DRAM [yellow], VGA [white], Boot Device [yellow green])
    - Q-Slot
    ASUS Thermal Solution
    - M.2 heatsinks
    - M.2 heatsink backplate
    - VRM heatsink design
    ASUS EZ DIY
    - BIOS FlashBack™ button
    - BIOS FlashBack™ LED
    - Clear CMOS button
    - ProCool II
    - Pre-mounted I/O shield
    - SafeSlot
    - SafeDIMM
    Aura Sync
    - Addressable Gen2 headers

    Software Features

    ROG Exclusive Software
    - ROG CPU-Z
    - Dolby Atmos
    ASUS Exclusive Software
    Armoury Crate
    - AIDA64 Extreme (60 days free trial)
    - Aura Creator
    - Aura Sync
    - Fan Xpert 4 (with AI Cooling II)
    - GameFirst
    - HWiNFO
    - Power Saving
    ASUS Driver Hub
    ASUS GlideX
    TurboV Core
    USB Wattage Watcher
    Adobe Creative Cloud (Free Trial)
    Norton 360 for Gamers (60 Days Free Trial)
    WinRAR (40 Days Free Trial)
    UEFI BIOS
    AI Overclocking Guide
    ASUS EZ DIY
    - ASUS CrashFree BIOS 3
    - ASUS EZ Flash
    - ASUS UEFI BIOS EZ Mode
    - ASUS MyHotkey
    NPU Boost
    FlexKey

    BIOS

    256 Mb  Flash ROM, UEFI AMI BIOS

    Manageability

    WOL by PME, PXE

    Accessories

    Cables
    2 x SATA 6Gb/s cables
    Additional Cooling Kit
    1 x Thermal pad for M.2 22110
    Miscellaneous
    1 x ASUS Wi-Fi Q-Antenna
    1 x Cable ties pack
    1 x M.2 Q-Latch package
    2 x M.2 Q-Slides
    1 x ROG key chain
    1 x ROG Strix stickers
    7 x M.2 Rubbers
    Documentation
    1 x Quick start guide

    Operating System

    Windows® 11 (22H2 & later)

    Form Factor

    ATX Form Factor
    12 inch x 9.6 inch ( 30.5 cm x 24.4 cm )















































































































































































    • ASUS ROG Strix Z890-E Gaming WiFi 2 x SATA 6Gb/s cables 1 x Thermal pad for M.2 221101 x ASUS Wi-Fi Q-Antenna1 x Cable ties pack1 x M.2 Q-Latch package2 x M.2 Q-Slides1 x ROG key chain1 x ROG Strix stickers7 x M.2 Rubbers1 x Quick start guideASUS 3 Year Limited Warranty
    Terms & Conditions

    Please note that - depending on your geographic location - not all methods are available. Make sure to select the appropriate method referring to the table below which indicates the cheapest available shipping method for your location.

    Your address Cheapest shipping method
    Continental US Physical Addresses Standard Flat Rate Shipping Service

    Note: Usually ships free* via Fedex thus this option is not available to PO Box addresses

    Continental US PO Box Expedited Flat Rate Shipping Service

    Note: Will ship out via USPS Parcel Post

    APO / FPO Military Addresses Overnight Flat Rate Shipping Service
    Note: Will ship out via USPS Parcel Post, shipping time is not guaranteed
    Alaska, Hawaii, Puerto Rico Overnight Flat Rate Shipping Service
    Note: Usually ships via Fedex Express, shipping time is not guaranteed

    *NOTE: Free shipping is only available to any physical address (not a PO Box) that is located in the lower 48 states. Shipping charges will apply if your address does not meet this criteria.

    Failure to select the appropriate method will result in order processing delays as we await the payment of the additional shipping charge due. Our billing department will attempt to contact you to process the payment and ship your order. If payment is not made within 5 days after your order was placed, we will cancel and refund the transaction.

    * Sellers are not responsible for service transit time. This information is provided by the carrier and excludes weekends and holidays. Note that transit times may vary, particularly during peak periods.

    International customers - Please note that we are not the party collecting the shipping & handling nor the import charges (duties and taxes)

  • How Long Does It Generally Take To Process An Order?
    It takes one to two business days for us to process an order (prior to shipping it). Once the order has shipped, your estimated time of arrival will be determined by your selected shipping method and your local FedEx guidelines for delivery.
  • What Should I Do If An Item Is Missing From My Order?
    First, verify that you've received a box for each tracking number associated with your order. If all boxes have been delivered but you're still missing an item, check the packing material for small items.
  • Do All Of The Products You Sell Carry A Warranty?
    All merchandise is brand new, factory fresh and includes the manufacturer's USA warranty unless clearly stated otherwise. Items in Certified Refurbished condition include a 2-year extended warranty backed by All-state. Items in seller refurbished condition are backed at minimum by a 90 day warranty. Items in Used or Open-box condition sold at closeout prices are sold as-is and do not always include a warranty.
  • Can The Signature On My Package Be Waived?
    We apologize, but for security purposes, we cannot waive the signature on a package. You can make arrangements to pick up a package from the shipping terminal.
    • Return Policy
      You may return merchandise purchased from Buydig for a refund or a replacement, provided that the procedures and requirements referred to in our return policy are followed. All product returns require a return authorization number (RA). A RA number must be issued within 30 calendar days after the date of purchase; it will be valid for 14 calendar days after it is issued.

      Removal or alteration of a product's upc number, serial number or upc/serial number sticker will automatically void your Buydig Return Policy. Products that are returned to Buydig with a missing, damaged or altered serial number will be refused RMA service and returned to you.
    • Refunds
      Refunds are applied to the payment method used at the time of purchase 2-5 days after receipt of the returned merchandise.
    • Exchanges
      If you purchased a product from Buydig that you wish to exchange for an alternative, you can return the item for a refund and simply place a new order for the item you desire. We do not apply a refund credit to your new purchase
    • Defective Item
      An item that was discovered to be defective upon receipt can be replaced with the same model only. You may also return a defective item for a refund.
    • Damaged Items
      All Packages are inspected for damage before they ship from our warehouse. If your package has been damaged in transit, please contact us immediately. We must be informed of all shipping related claims within 1 business day after the date of receipt. We do not issue refunds for returns of damaged merchandise. An item that was discovered damaged upon receipt will be replaced with the same model only.
    • International Customers
      Please be advised that our products are intended for a US market. If it is to be used outside of the US, please check in advance that it will work. Returns on international orders require the customer pay the return shipping.

    • If an item you received is defective, we will certainly replace the item with a new one. We will ship the replacement product to you at our cost, and use every good measure to ensure that the replacement order is processed quickly.
    • Replacement
      We will send a product replacement after the authorized return has completed our receiving/inspection process. The replacement will ship within four business days following our receipt of your return. Please allow additional processing time after Holidays. Although it is our goal to ship a replacement as quickly as possible, we do not send replacements before we receive and inspect the returned merchandise.

      To receive a replacement more quickly, you may place a new order for the same item, and we will issue a refund for the full value of the returned product upon completion of our return process.
    • Returning Items
      If you do not have the return form, we will provide it together with your RA number. Please fill in the requested information on our product return form, and carefully follow the instructions for return.

      All returned merchandise must be in original condition, and must include the original factory box (UPC bar codes and serial numbers must be intact) and factory packaging (e.g. foam, plastic, wrappings, etc.), peripherals (e.g. battery, charger, cords, straps, etc.), included warranty cards (without markings), and all instruction booklets and paperwork. The RA number or any other inscriptions must not be written or printed on the product box or packaging. We will not process the return if any of these conditions are not followed.

      Retuned merchandise that is lost or damaged during transit is solely the shipper's responsibility. It is important save the tracking information and to properly insure all merchandise being returned to Buydig.
    • Television Returns
      Buyers Remorse for TVs in Brand New condition:
      If you are not 100% satisfied with your TV purchase, you may return it within 30 days from delivery for a full refund, less return shipping fees. Please note that a 15% restocking fee may apply. All returned TVs must be in their original box and include all packing material, manuals, and accessories.

      Damages: Were here to help!
      For Common Deliveries (FedEx, UPS):
      Please inspect the TV and report any damages (e.g. cracked screen, scratches, dents, etc.) within 2 days by contacting us at 1.800.617.4686
      For Special Handling/Freight deliveries:
      Please open and inspect the TV prior to signing for it. If the TV is cracked or damaged, please refuse delivery and contact us immediately at 1.800.617.4686.

      Please note damage claims will be denied for the following:
      TVs with over 60 minutes of recorded usage
      TVs that have been moved from the original delivery address

      All damage claims must be made within two (2) days of delivery. We will issue a refund and cover all shipping costs.

    • International Returns
      The customer is responsible for paying for return shipping should they decide to return the product.
    • Return Exception
      Every item we sell is BRAND NEW and under manufacturer's warranty, unless clearly stated otherwise. Although we have a very flexible return policy on most of the items we sell, due to manufacturer restrictions, there are certain items on which we cannot accept returns. The manufacturer will generally repair or replace the item so long as it is under warranty.

      Restricted products include:
      • A/V Furniture
      • Apple iPods
      • Consumables, including but not limited to, recordable media, film, tapes, batteries, paper, and ink
      • Drones - All defects can be handled under the manufacturer's warranty. For DJI brand drones, call DJI at 818-235-0789 and obtain a case number for the defect prior to requesting an RMA. Please note only Dead on Arrival units out of the box will be returnable to us (with a valid case number). DJI will NOT authorize any returns to us if there are any signs of use like dirt, grass stains, nicks or any signs of use. For these situations, the Return Authorization would need to be handled directly between the customer & DJI
      • Mattresses
      • Mobile Phones
      • Opened Software
      • Personal Body Massagers
      • Opened packages of Apparel, Bedding or Linens
      • Used Cookware
      • BBQ Grills
      • Shavers
      • Special order items

    • Resellers & Bulk Orders Policy
      Buydig does not ship to resellers and reserves the right to limit quantities and orders to all customers.
