48-72V 20/24/26x4.0" 2000W-3000W High Power Speed Fat Wheel EBike Conversion Kit

Without Tire and tube

Attention:

The wheel size comes with 20/24/26x4.0" Fat Wheel Motor dropout width: 175mm or 190mm rear hub motor (7-speed Gear) is required.

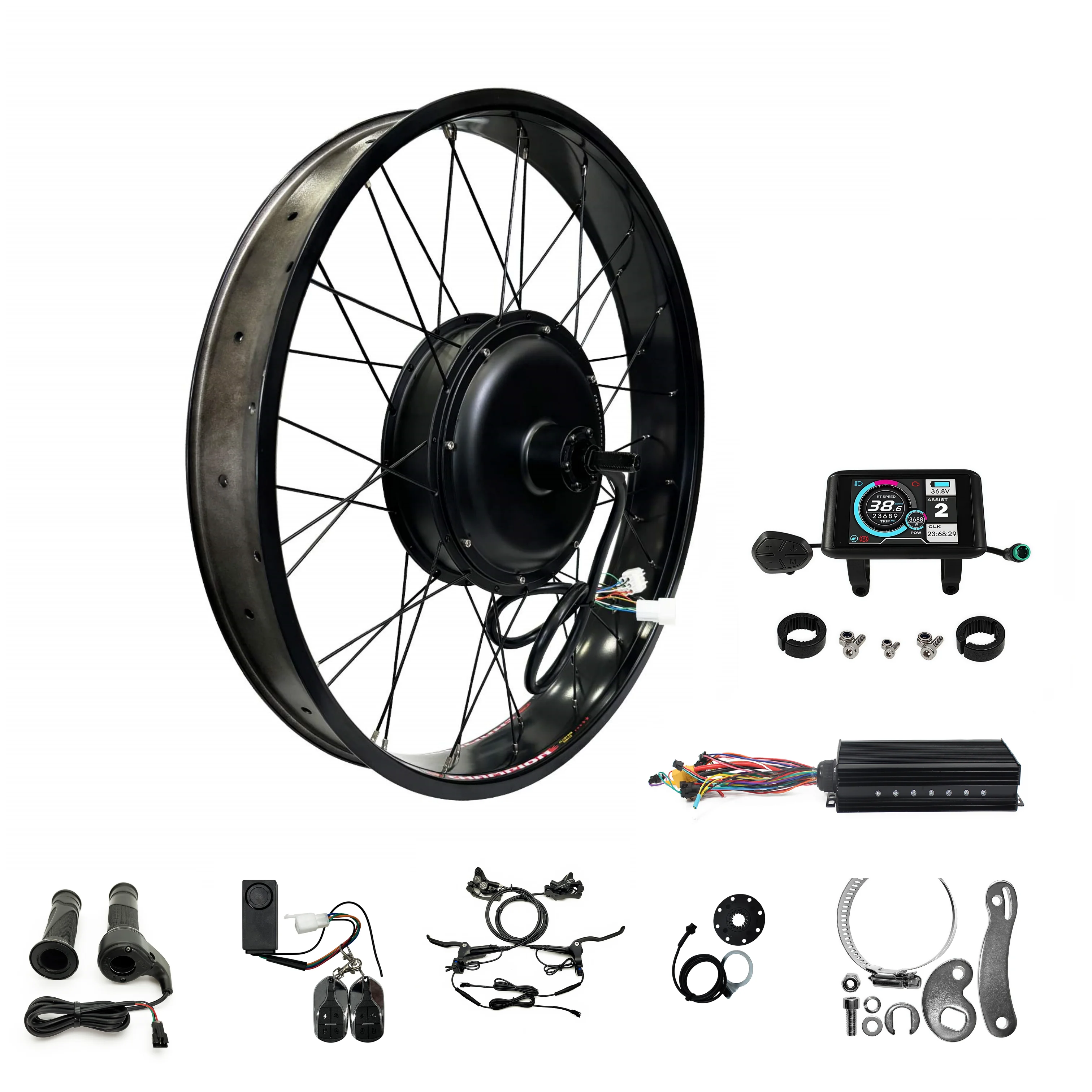

This kit include all you need to convert a bike to an E-bike, except the battery! (We also supply battery, please kindly check our battery category.)

Features of the Product:

1. 48V,60V,72V 2000W-3000W Brushless Gearless Rear Hub Motor Wheel with 7-Speed Freewheel

2. 48V/60V/72V Universal 60A Sine Wave Intelligent Programmable Controller

3. 48V, 60V, 72V Colorful TFT UKC1 Display

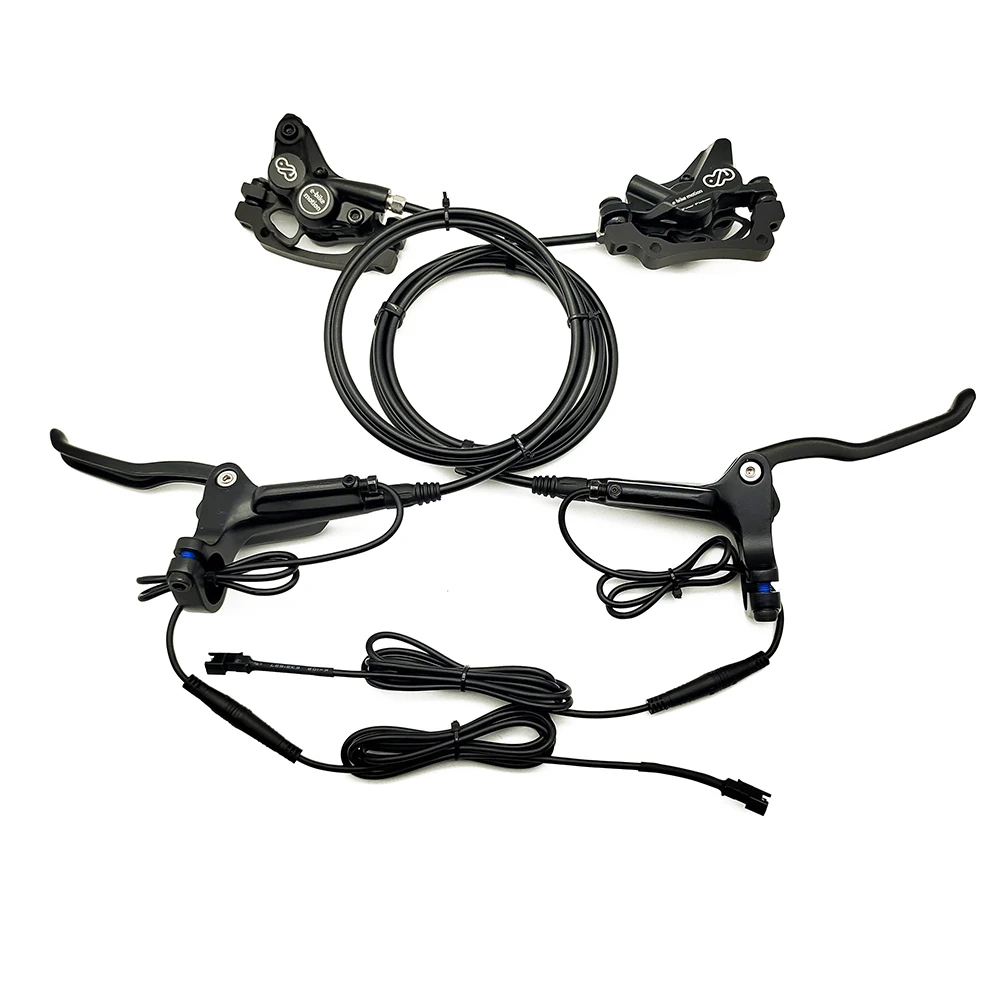

4. 4-piston Hydraulic Disc Brake (Brake Levers and Calipers)

5. Twist Throttle

6. Pedelec Assistant Sensor/8 Magnetic PAS Drive

7. Torque Arm

8. Alarm device

Specification:

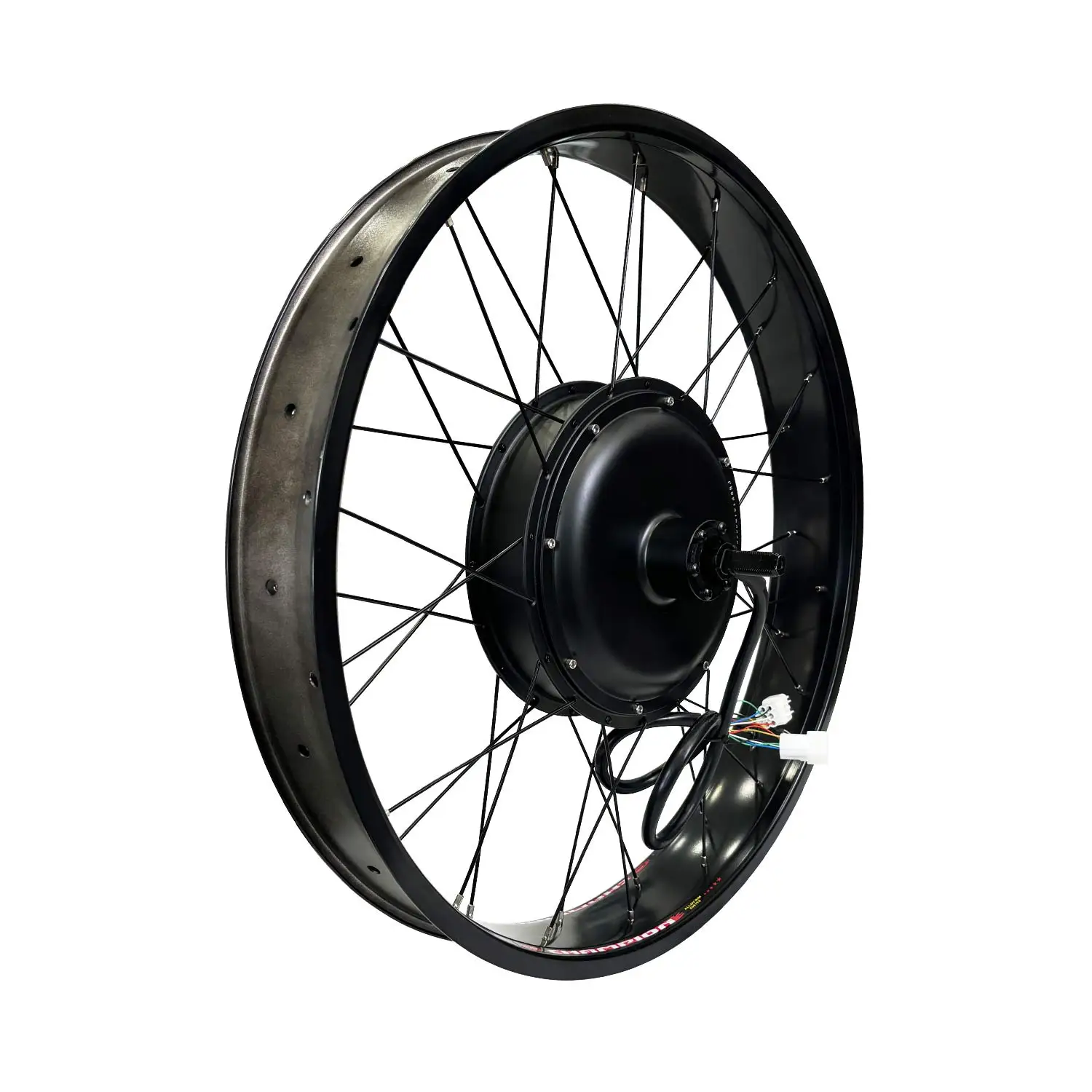

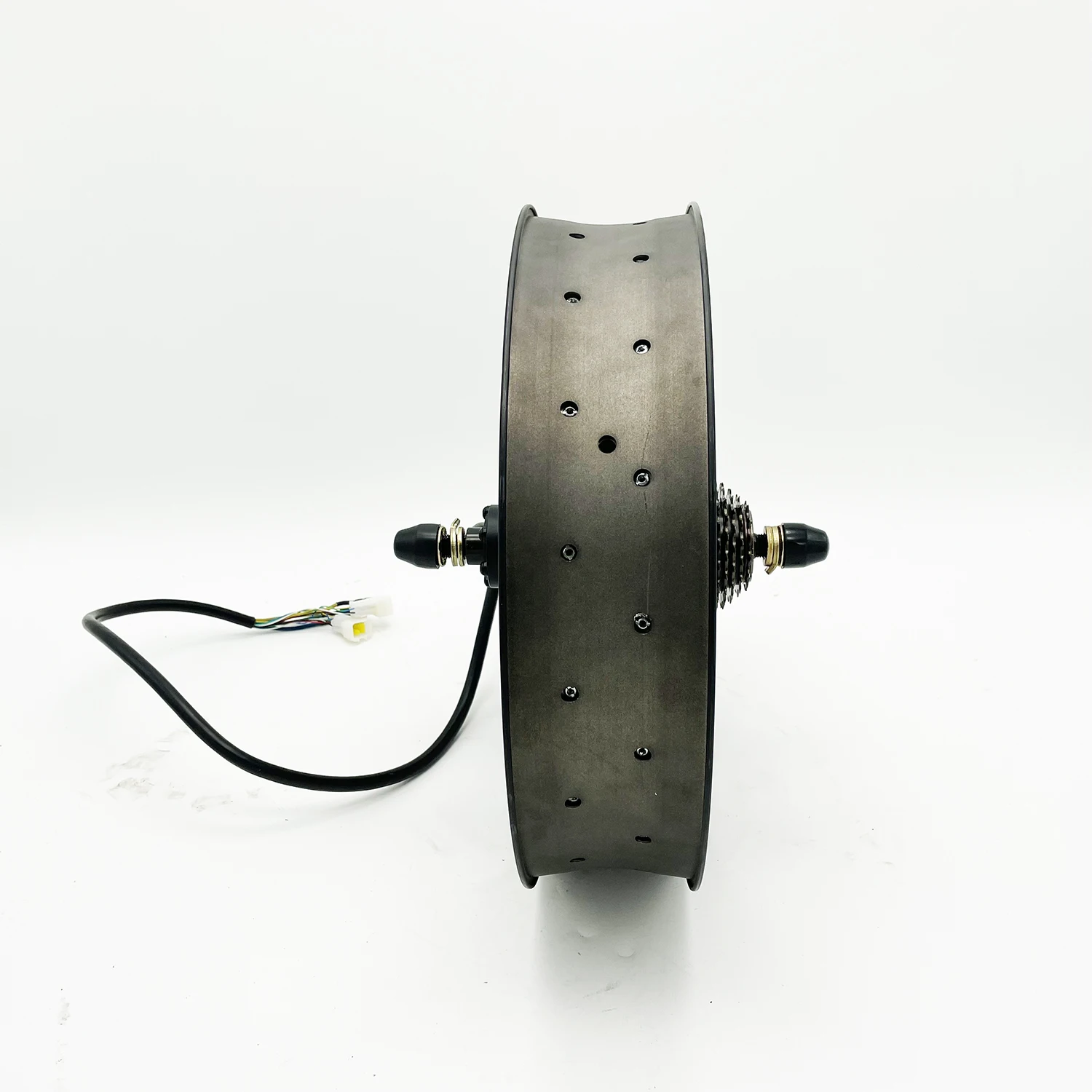

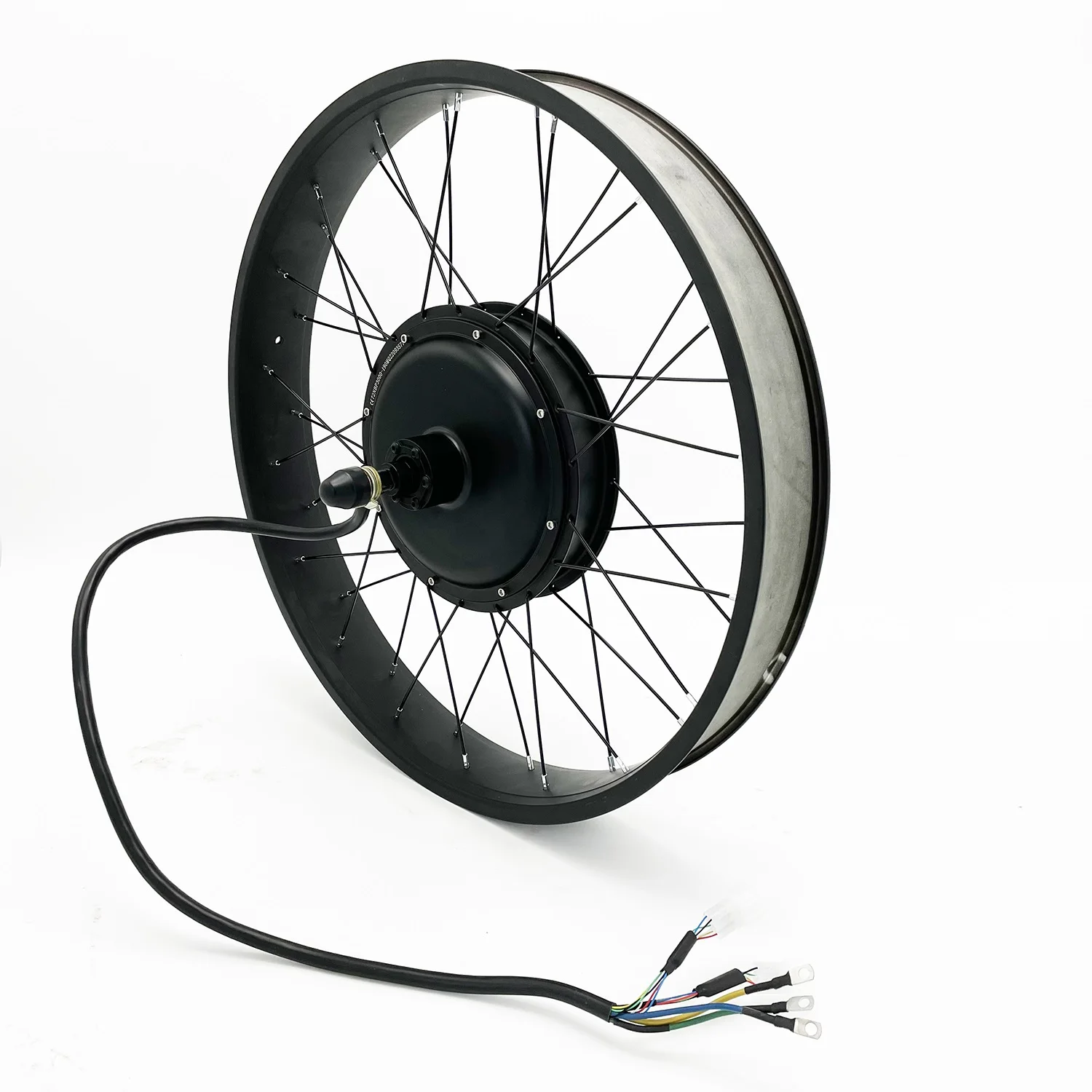

High Quality 48,60,72V 2000-3000W Brushless Gearless Hub Motor Wheel

High Quality Risunmotor 18 MOSFET 60A 2000-3000W Sine Wave Controller

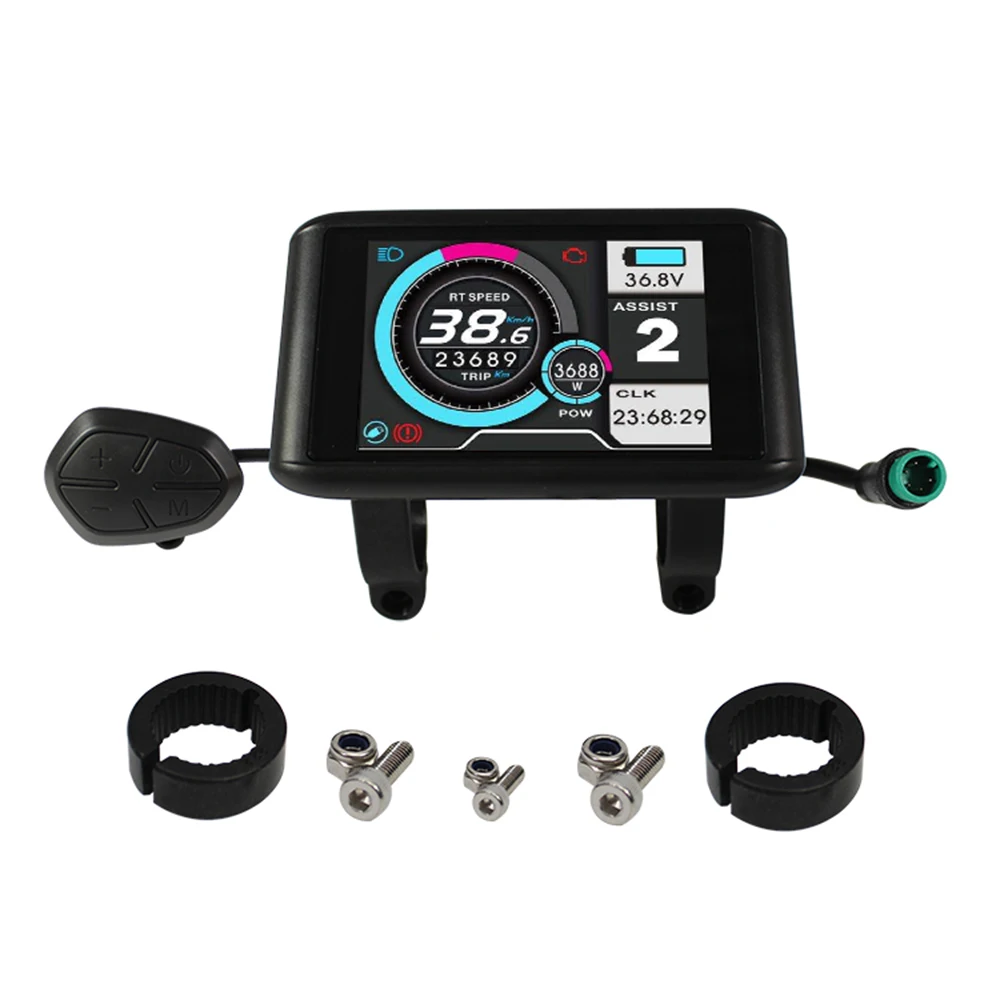

36V, 48V, 60V, 72V Full color TFT UKC1 Display (with 5-level PAS, speed limit, speed display, Regenerative Function)/TFT UKC1

7-speed Freewheel.

Applicable to Fat Wheel E-Bike, E-Motorcycle, E-Tricycle and so on

Motor Magnet Width: 50mm

Motor Magnet Quantity: 23 pairs (46 pcs)

Certificates: CE, EN60335-1:2012+A112014

High Motor Efficiency: >90%

Max Torque: >160 N.M.

Speed: About 55km/h-80km/h

Hub dropout width: 175mm or 190mm rear hub motor (7-speed Gear) is required

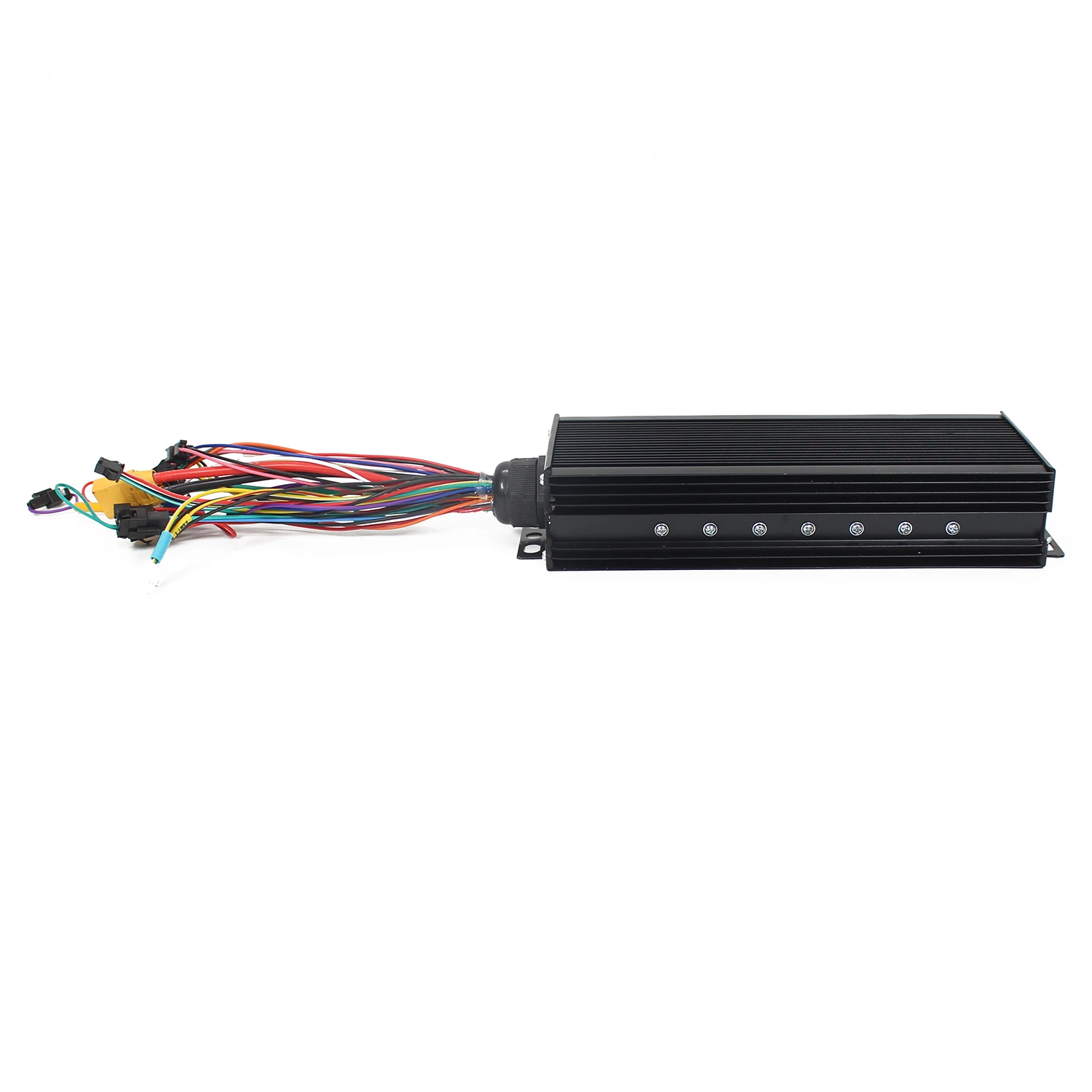

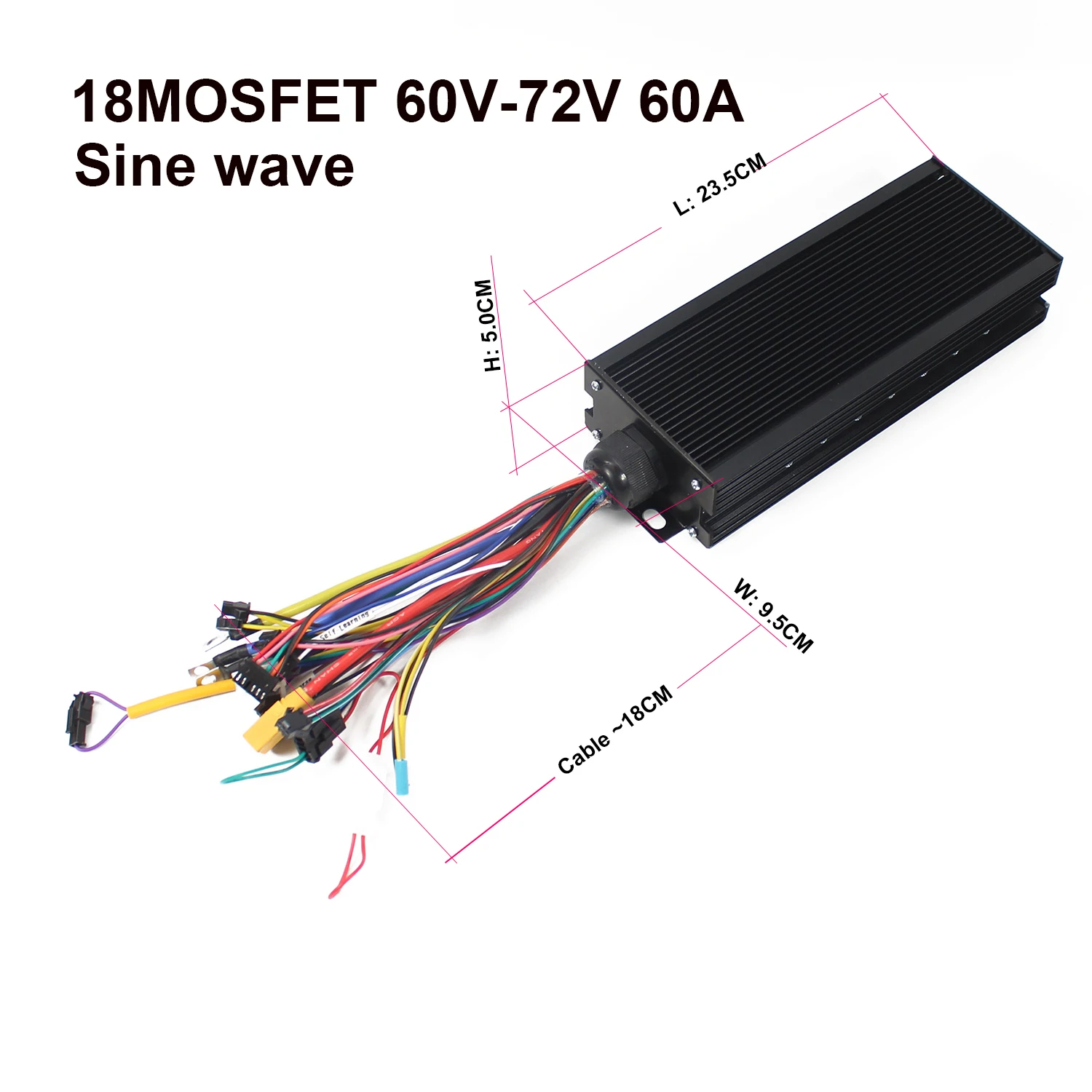

Technical Data of Controller:

1. Rated Power: 60V 1800W/ 72V 2160W

2. Peak Power: 60V 3600W/ 72V 4320W

3. Brake: Low Voltage Brake

4. Alarm: Low Voltage Alarm

5. Rotor Position Detecting Method: Hall sensor

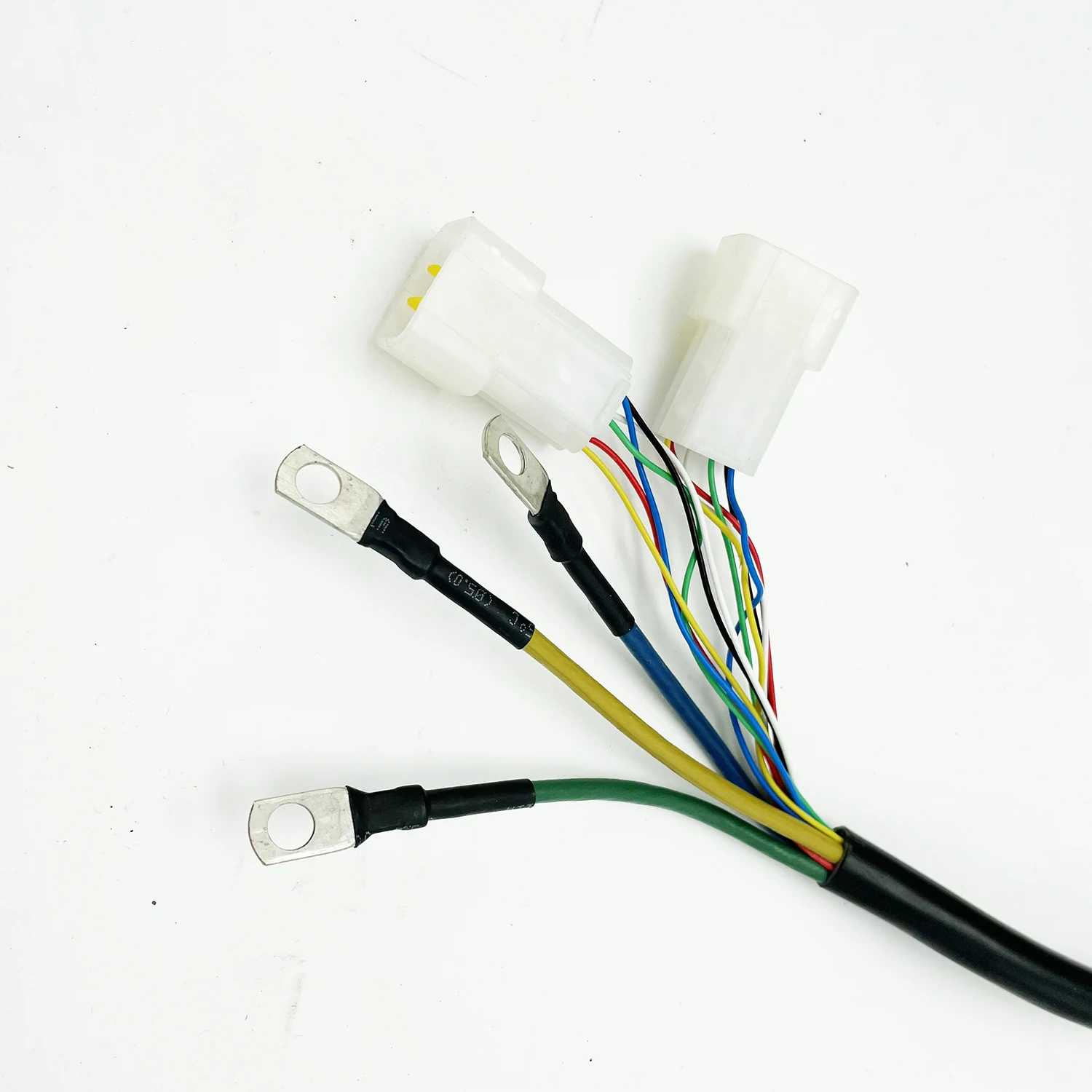

6. 3-Phase Connectors: "O" ring connectors

7. Power Input Connector: XT90 Male Plug

8. 3-Phase and Power Input Cable Size: 7AWG (6mm2)

9. Size: 265*95*50mm

10. Net Weight: 1200g

11. Waterproof Grade: IP65
