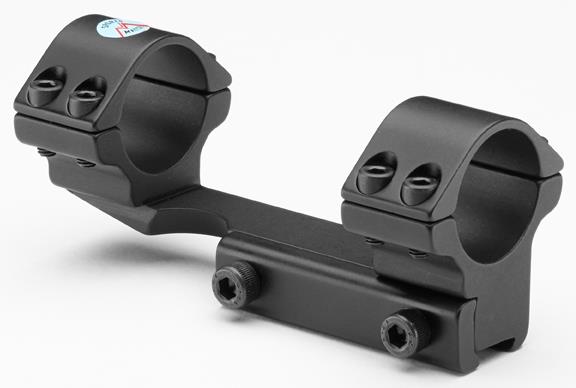

Dimensions
A = 19mm
B = 100mm
C = 5.5mm
Weight = 114g



Calculating scope to rifle body clearance

The way you calculate the clearance is by halving the overall OUTSIDE diameter of your rifle scopes objective lens and then deducting half the rifle scopes body tube diameter.

For scopes with a 1 inch diameter body tube this means deducting 12.7mm.

Note we say OUTSIDE diameter - this means NOT the lens diameter, you need to measure the whole outer casing diameter.

The result gives you the minimum "saddle" dimension required - the measure from base of mount to bottom of the ring - the 'A' dimension that is shown above (19mm)

The amount the saddle dimension is greater than the figure you have calculated is the amount of clearance your scopes objective will be clear of your rifles body.  The saddle on these mounts is 19mm

Worked Example -

1. A scope has an outer case measurement of 56mm.
2. 56 divided by 2 = 28.
3. 28 minus 12.7 = 15.3mm
4. So the mount must have a saddle measure (base of mount to bottom of the ring) greater than 15.3mm or else it will ground out on the rifle body.
5. So in this case with 19mm we have good but not too excessive room.

Keep in mind that flip up lens caps may add 2mm or so.

About Sportsmatch
Sportsmatch UK Ltd. was established some 45 years ago and has grown to be the market leader in the manufacture of quality rifle scope mounts and scope rings for all types of sporting, target and centrefire rifle shooting.

We are now known in over 40 countries for High Quality, British made scope mounts and accessories and have an excellent reputation. Our products are manufactured using the latest CNC machinery available but every component manufactured is inspected by hand prior to final assembly.

This ensures Sportsmatch Scope Mounts offer correct alignment and a rock solid dependable grip onto your rifle and scope which will Optimize your Accuracy.

The much acclaimed Sportsmatch range is available in many heights and diameters to suit virtually all rifle / scope combinations.

The Sportsmatch® difference:

• No Loss of Zero - Guaranteed
• High Tensile Construction
• Lifetime Guarantee
• Scope Rings for Centrefire, Rimfire & Air Rifle
• Proudly made in Great Britain

Users of Sportsmatch scope rings include military special forces, professional vermin controllers and competition shooters competing at the highest level. The thing they all have in common is that they all choose Sportsmatch rings and shoot more confidently knowing that their rifle and scope combination is Optimized for Accuracy.

Please Note - Some of our Sportsmatch stock rails are produced in Collaboration with WULF Optics and come in WULF Grey packaging. Otherwise, same product. No design or functional difference at all.
