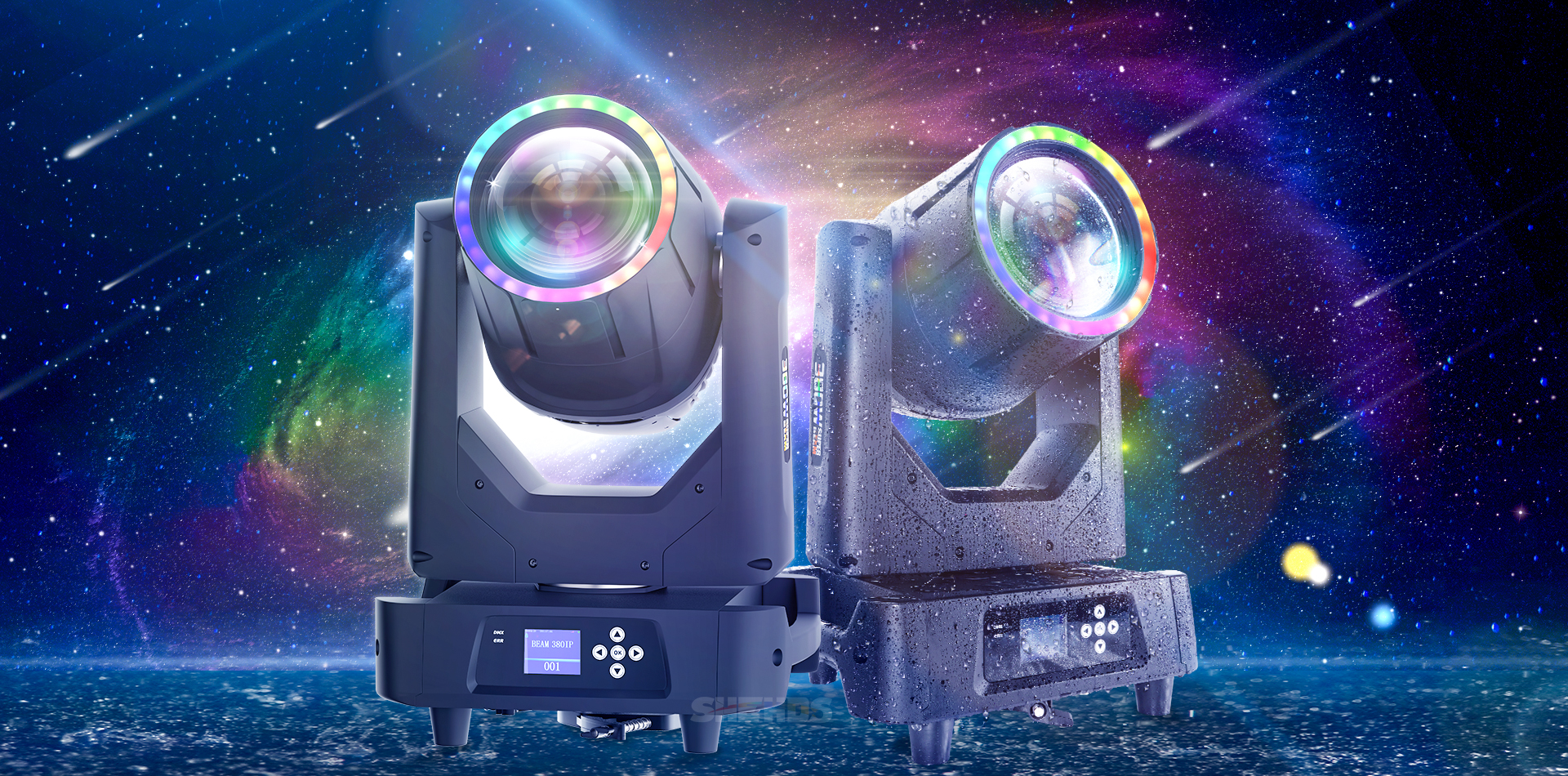

WATERPROOF 380W BEAM LIGHT

Waterproof IP65 380W beam shake head lamp, equipped with a 380W light engine,

with high output and high display switching mode,

pure color and extremely high color reproduction.

Rich color and pattern plates, excellent dynamic wheel and prism effects,

combined with various strobe speeds,

create a colorful and ever-changing visual effect.

Waterproof grade up to IP65, available for 24/7 use.

It is very suitable for outdoor cultural tourism, night sightseeing, radio theaters

and other large-scale performance venues,

and is a professional "rain dancer" born for various performance activities.

Product Features

Flexibly shaping uniform and colorful pattern effects, effortlessly showcasing exciting and colorful illusion lighting effects.

Uniform color mixing and excellent color reproduction can create a dazzling stage light and shadow visual experience,

Improve the level of stage performance in all aspects, providing high-quality choices

for various professional performance venues such as concerts, bars, evening parties, roadshows, etc.

Technical Parameter

-Electrical specification and connections
Power supply:	450W-380V+12V+36V Electronic auto-ranging
Input voltage range:	100-240 V, 50/60 Hz
Power in connector:	Neutrik powerCON
-Source
Light source type:	380W Bulb
Colour temperature output:	7500±500 K
10m/20m Beam Illuminance:	475000 lux @ 10m   /  125500 lux @20m
10m/20m frost Illuminance:	5300 lux@10m   /   1300 lux @20m
Life expectancy:	min. 1500 hours
-Optical system
Beam angle:	Beam 1.8°-  Frost 9.5°
Dimmer:	Mechanical shutter
Lens diameter:	160mm
-Dynamic Effects and Features

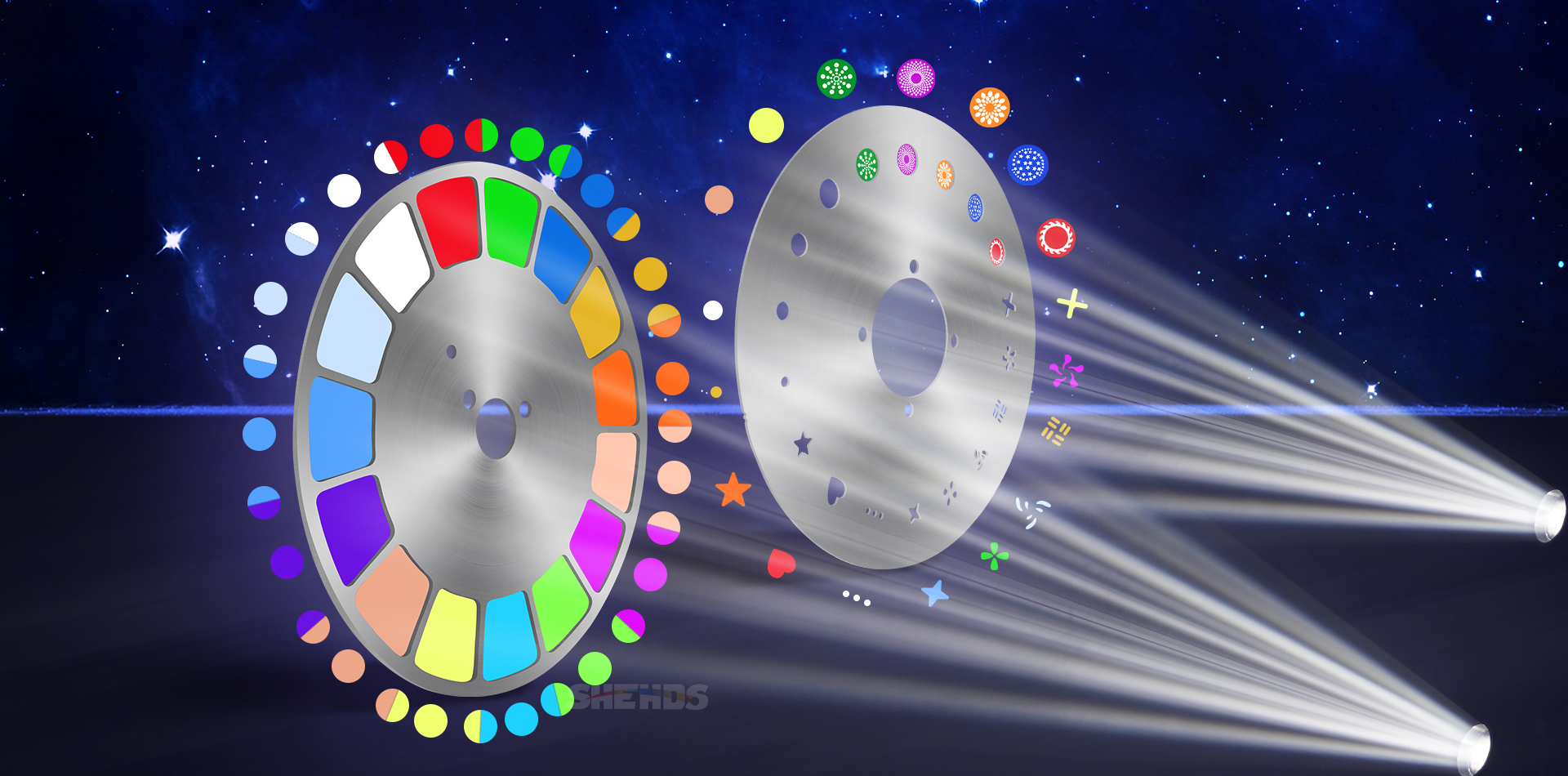

Colour wheel :	14 fixed dichroic colours + white
Static gobo wheel:	17 static gobos + open
Prism 1:	8-facet prism rotating in both directions at variable speed
Prism 2:	24-facet prism rotating in both directions at variable speed
Frosts:	Fast change frosts for instant softening of the projected gobo or framing shutters
Raimbow wheel:	6 colors
-Control and programming
Protocols:	DMX512,RDM
DMX Channel Mode：	19 CH;
Feature：	Auto mode ,Sound mode,Manual programming scenarios
-Mechanical specification
Housing :	High temperature resistant and flame retardant plastic housing

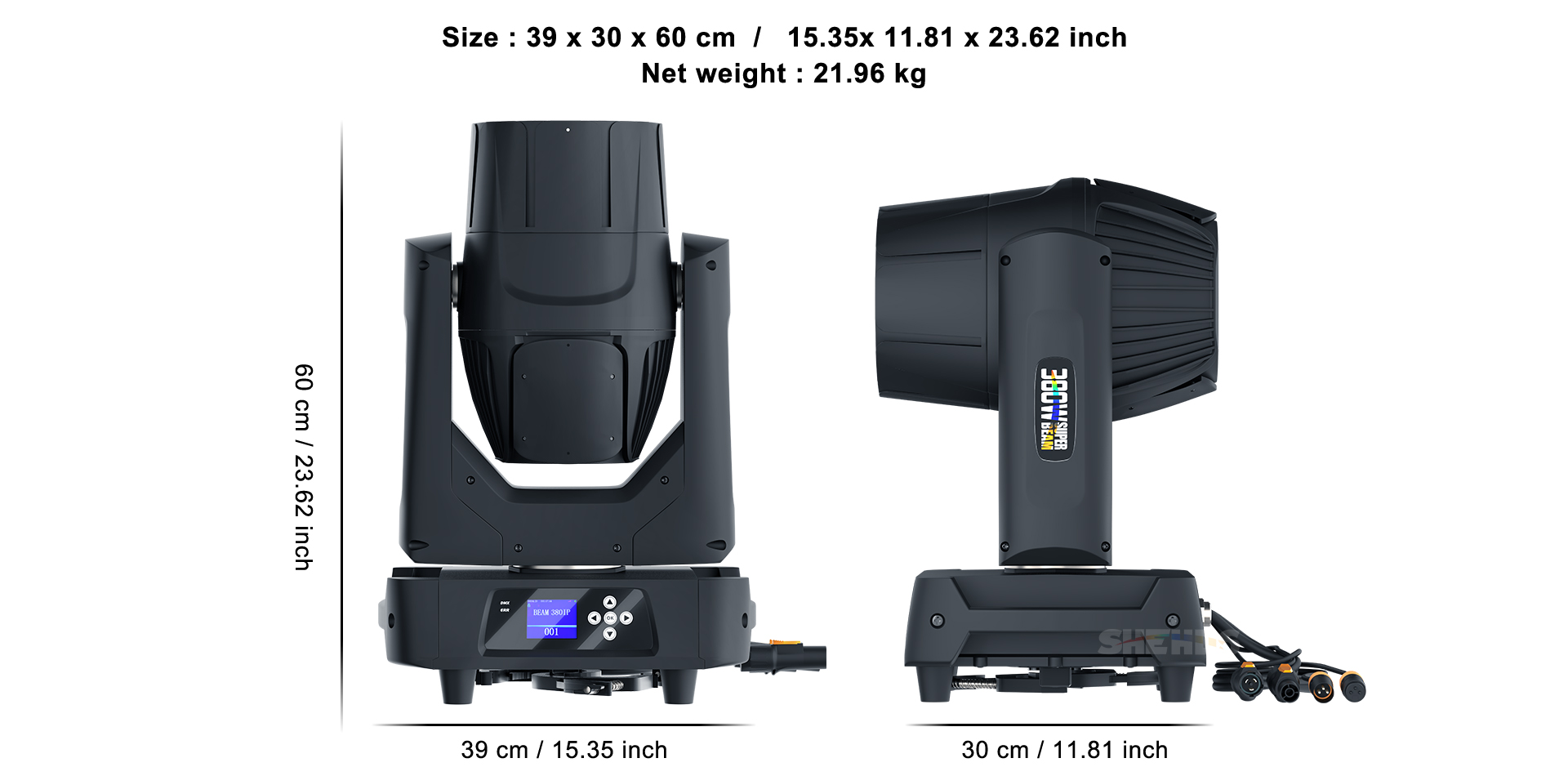

Product size：	39 x 30 x 60 cm  /   15.35x 11.81 x 23.62 inch
Product weight:	21.96 kg
Package size:	77 x 52 x 75 cm  /  30.3 x 20.4 x 29.5 inch
Package weight:	22 kg
Operating temperature:	-20~60℃
Ingress protection rating:	IP65

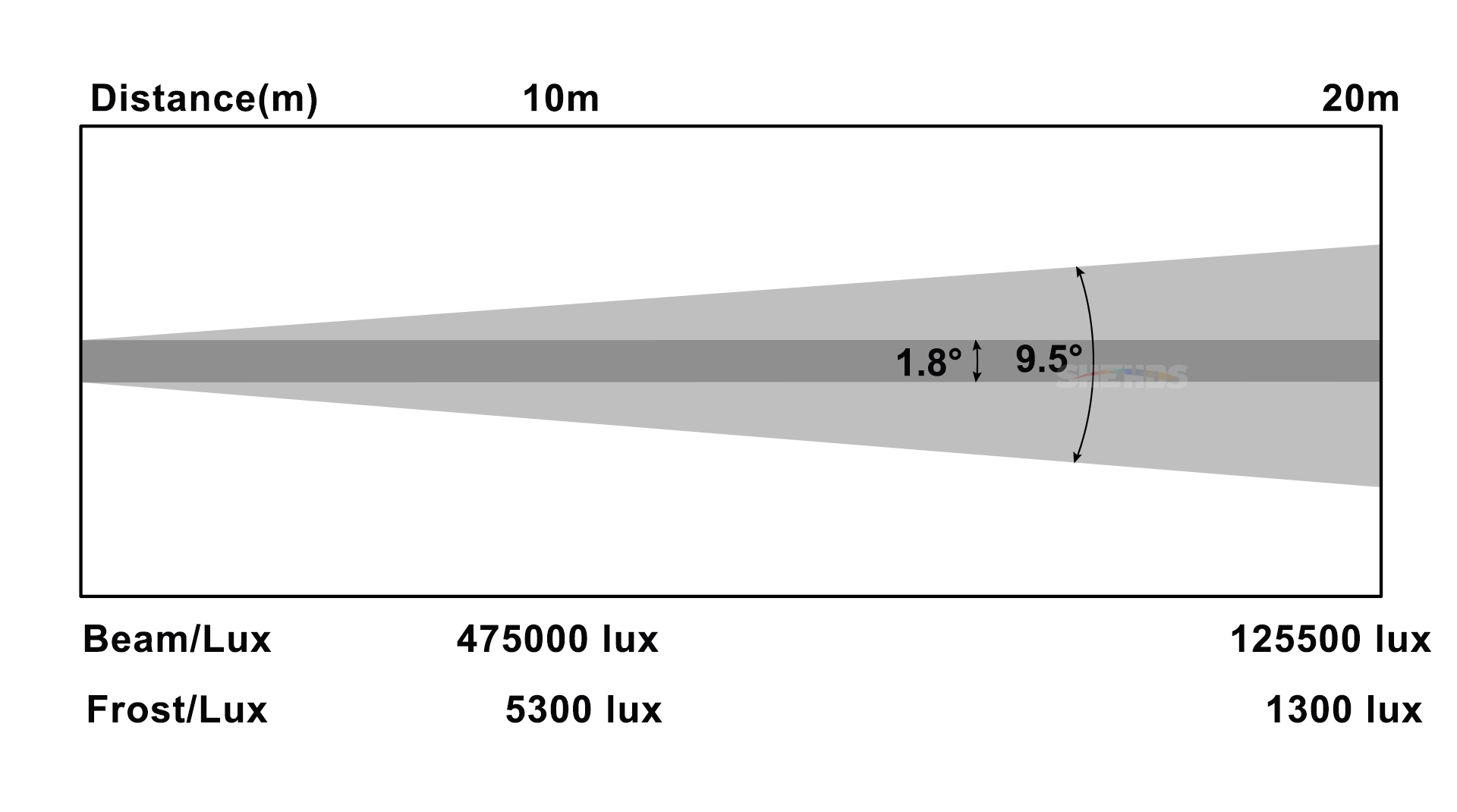

Beam angle

1.8 ° beam angle - linear focusing

Effect Show

Colors Effect

Prism Effect Display

Bright And Colorful

Frost Effect Display

Rendering the Stage Atmosphere

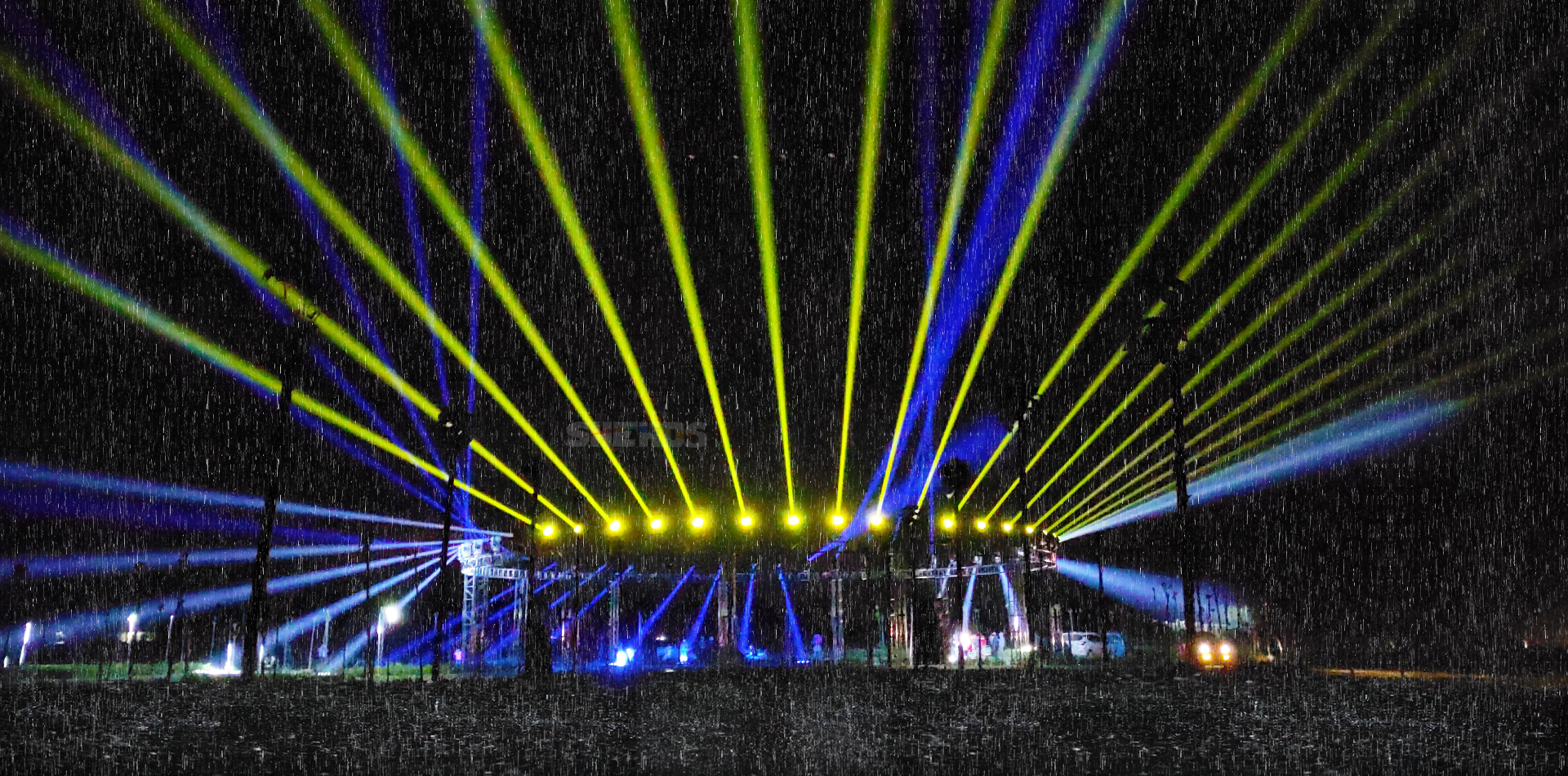

Beam Effect

Uniform and colorful pattern effects with uniform light spots

Function Introduction

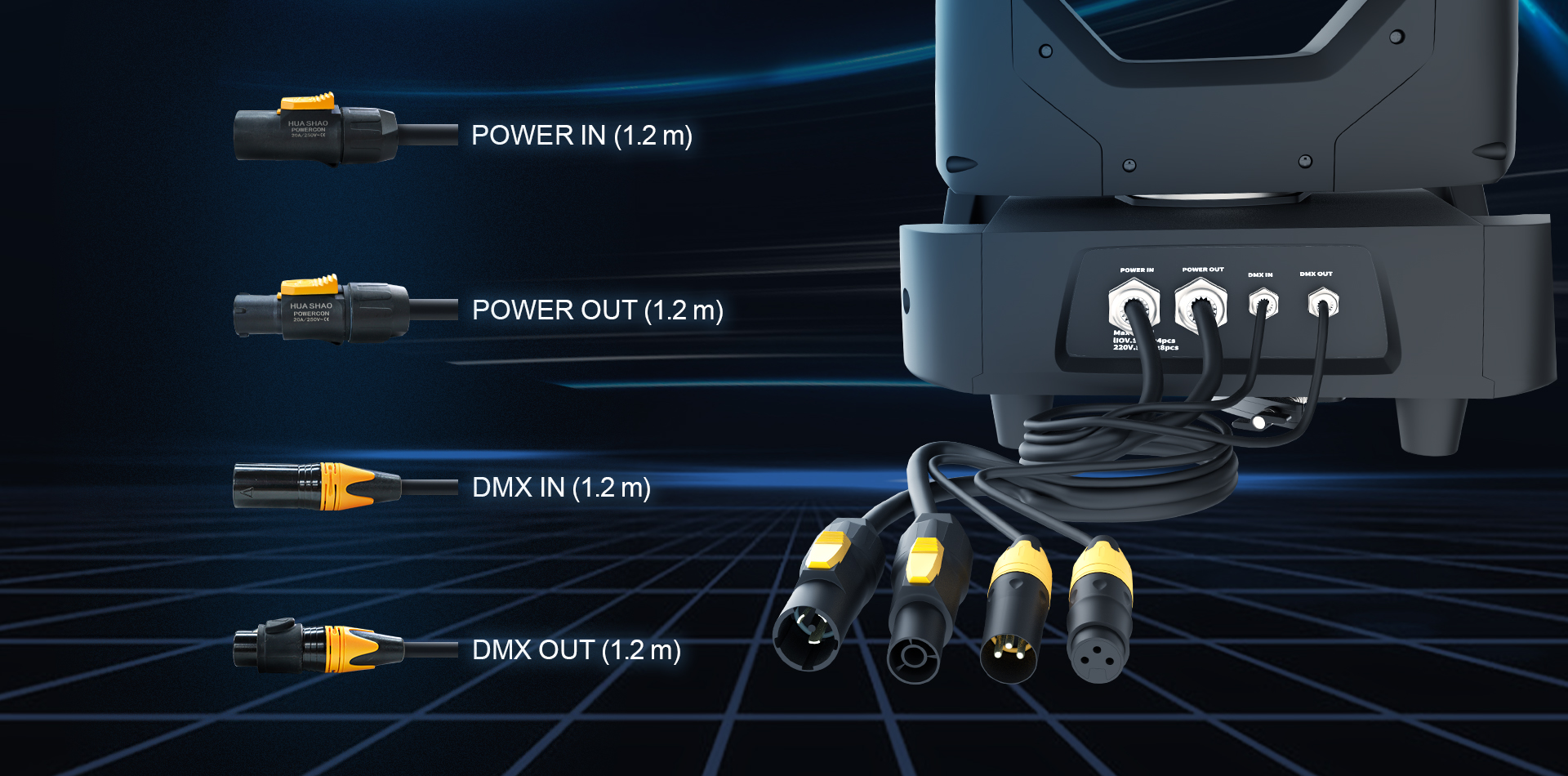

DMX512 signal/power cord interface

Exquisite Craftsmanship

Each process undergoes strict verification

Every part is carefully selected

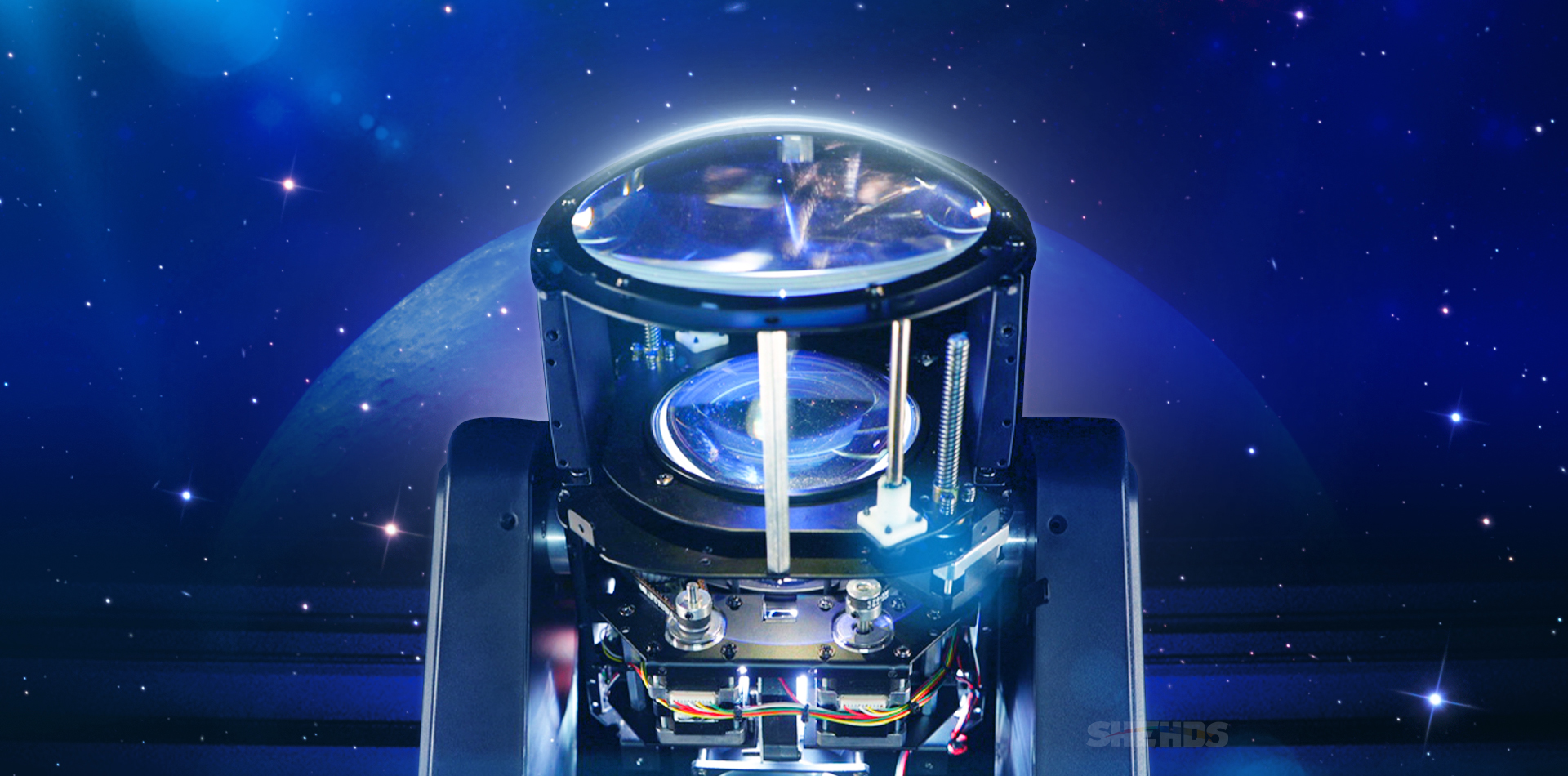

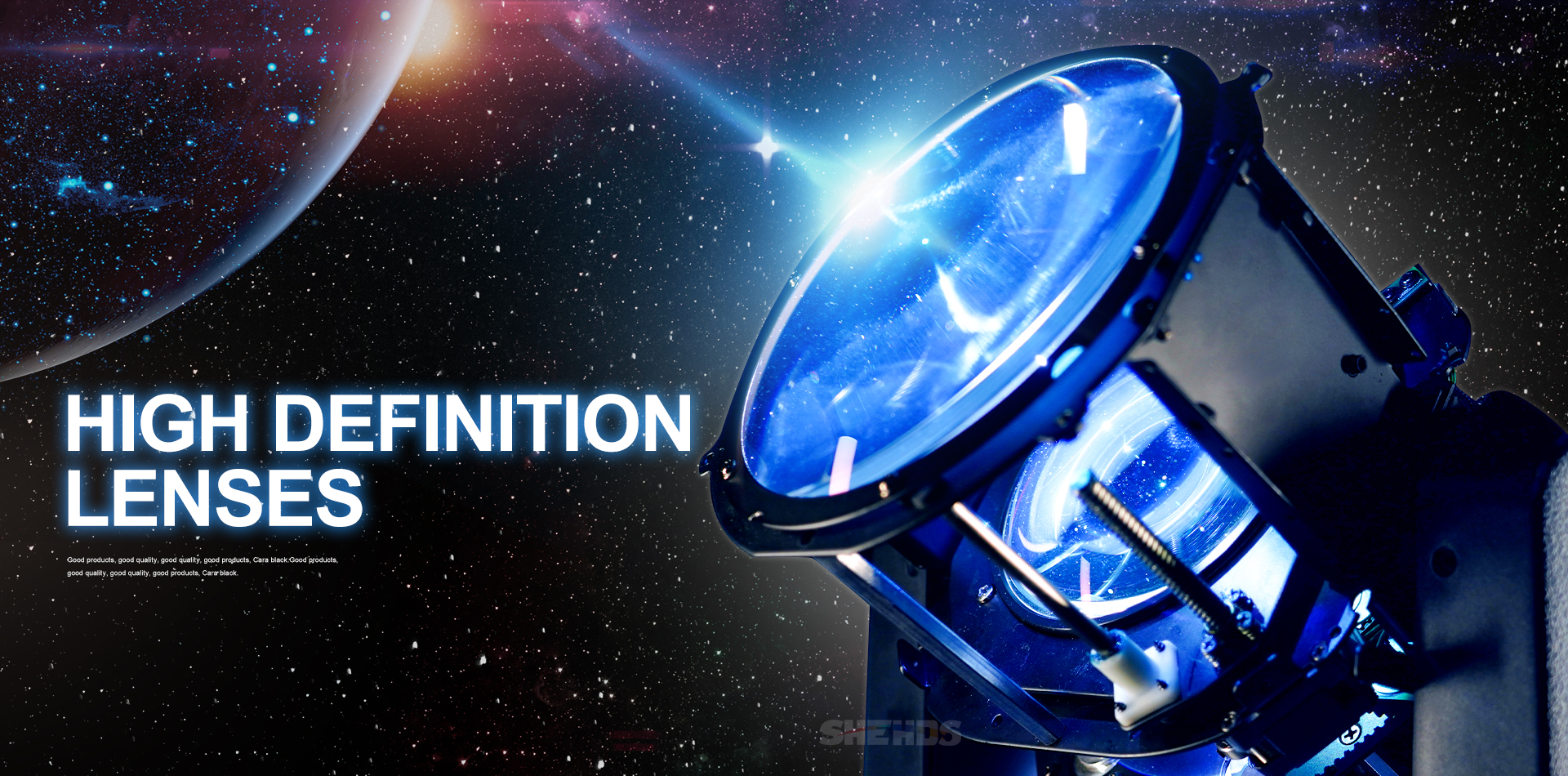

155mm Optical Coated Large Lens

More powerful and spectacular beam of light,

The pattern is clearer and more natural,New Process Technology for Colorful Coating

All Weather Protective Beam Light

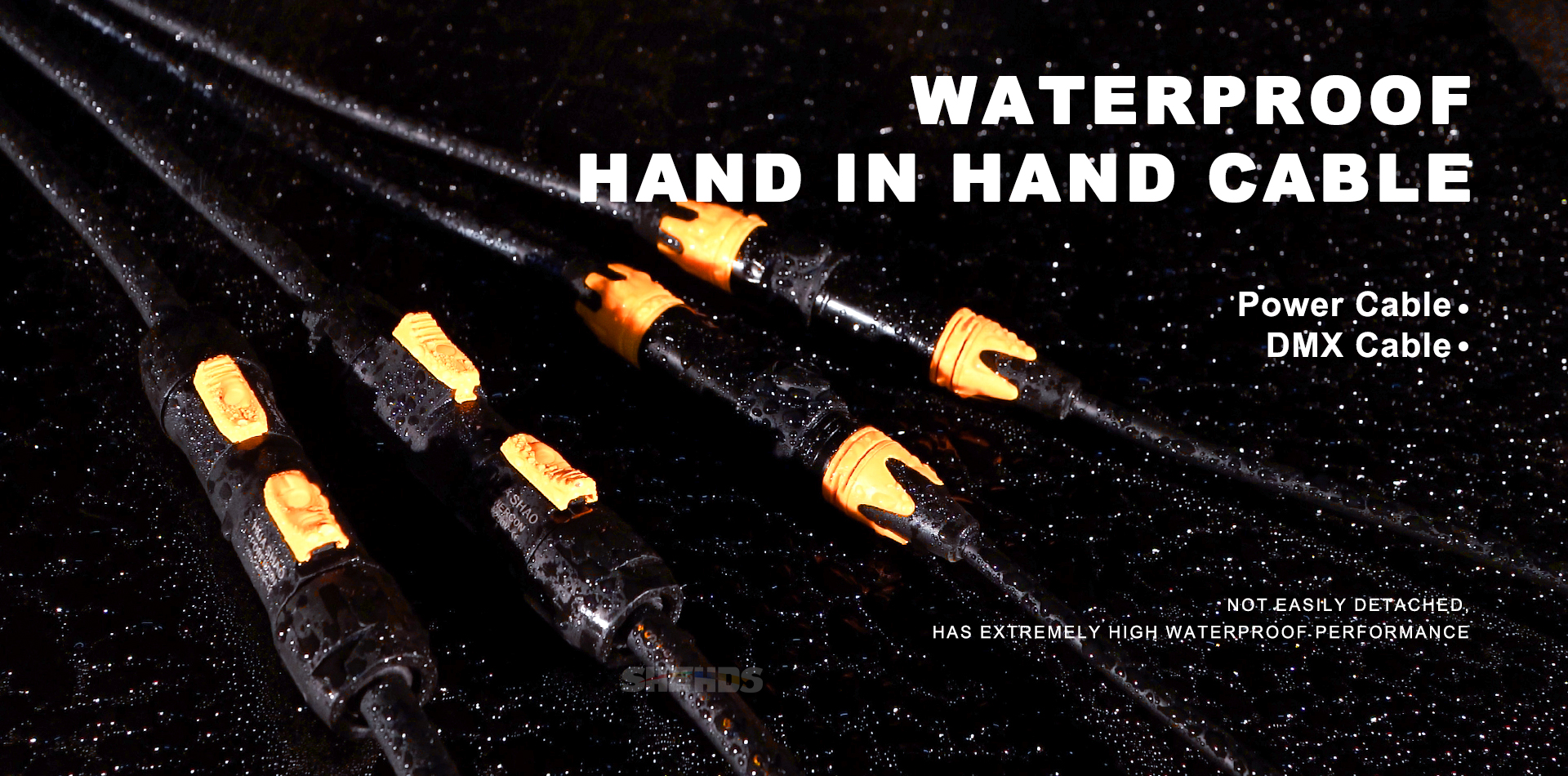

All weather protective beam light, waterproof power connector input/output, can be used outdoors all year round.

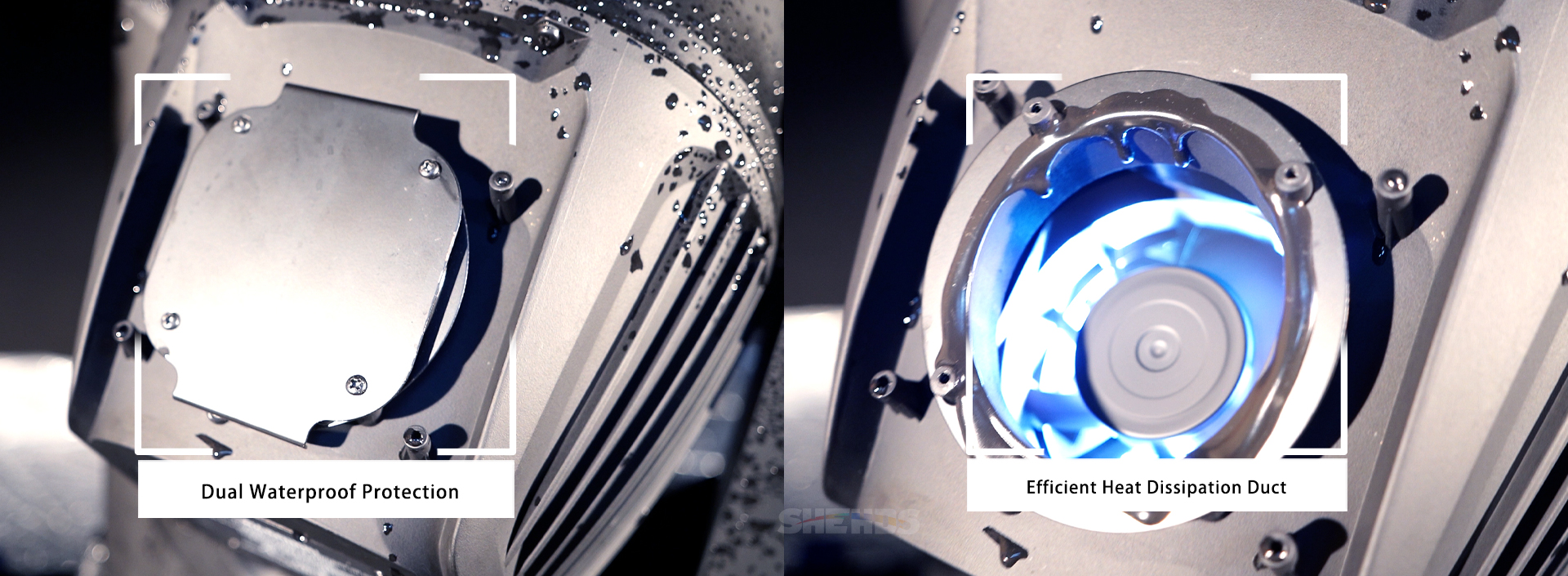

The carefully designed heat dissipation performance ensures the waterproofing and heat dissipation of high-power light bulbs,

ensuring the lifespan and smooth operation of the lamps.

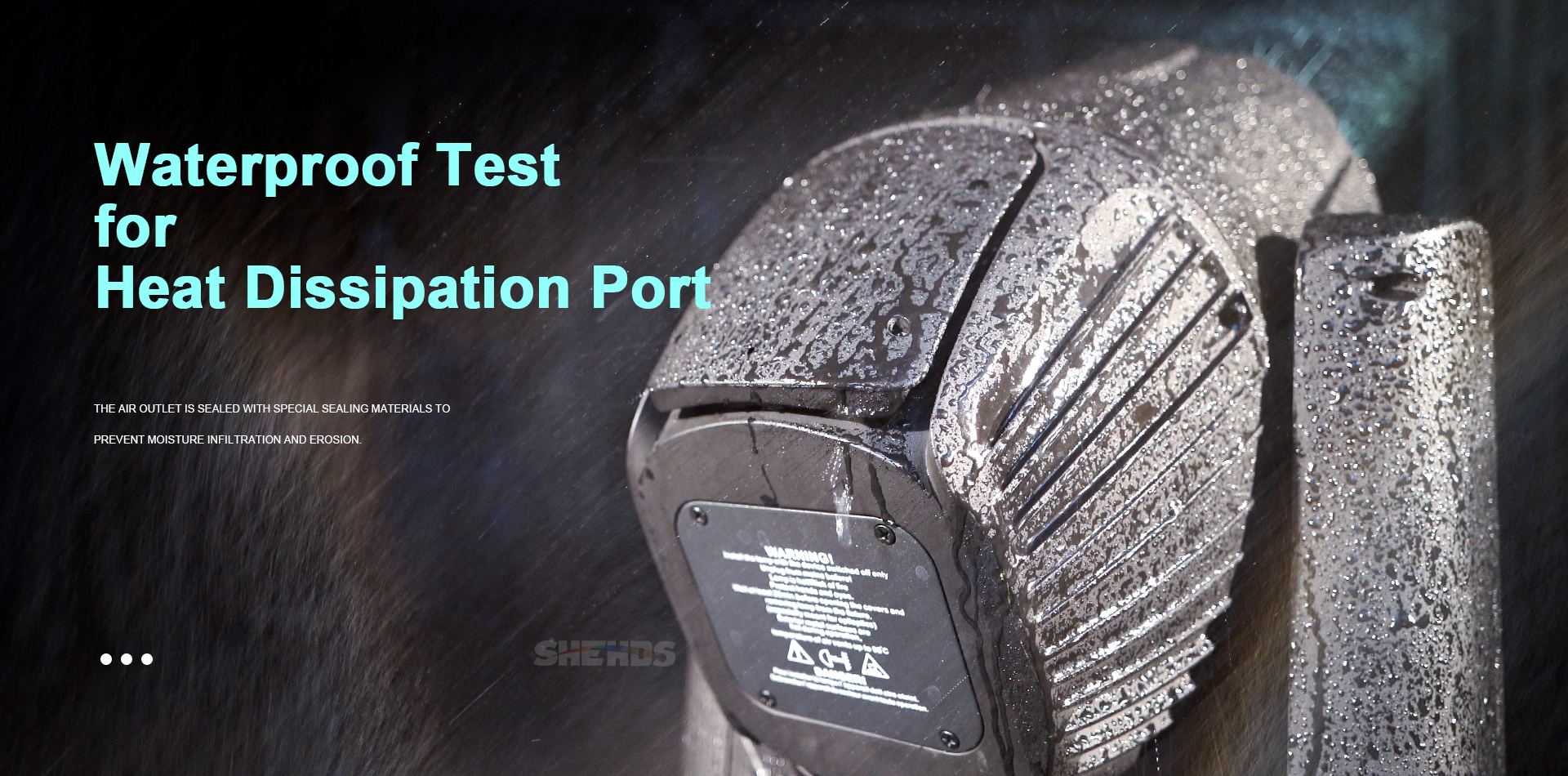

Heat Dissipation Performance

Not afraid of the erosion of scorching sun, smoke, wind and rain, standing firm 24/7,

very suitable for outdoor performances, theme parks, sports venues,

 landscape lighting and many other activity venues,

creating a colorful beam effect for the night sky!

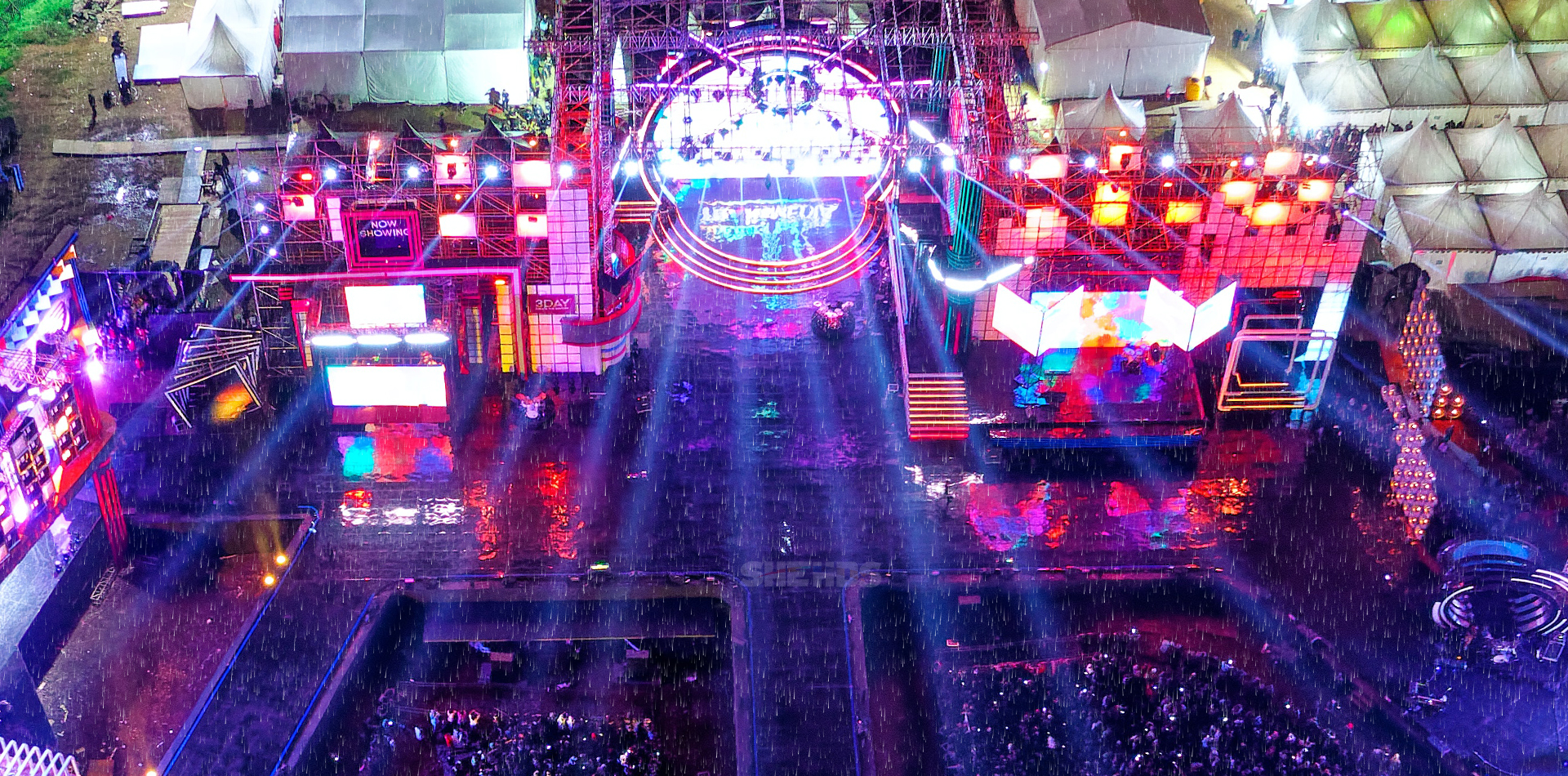

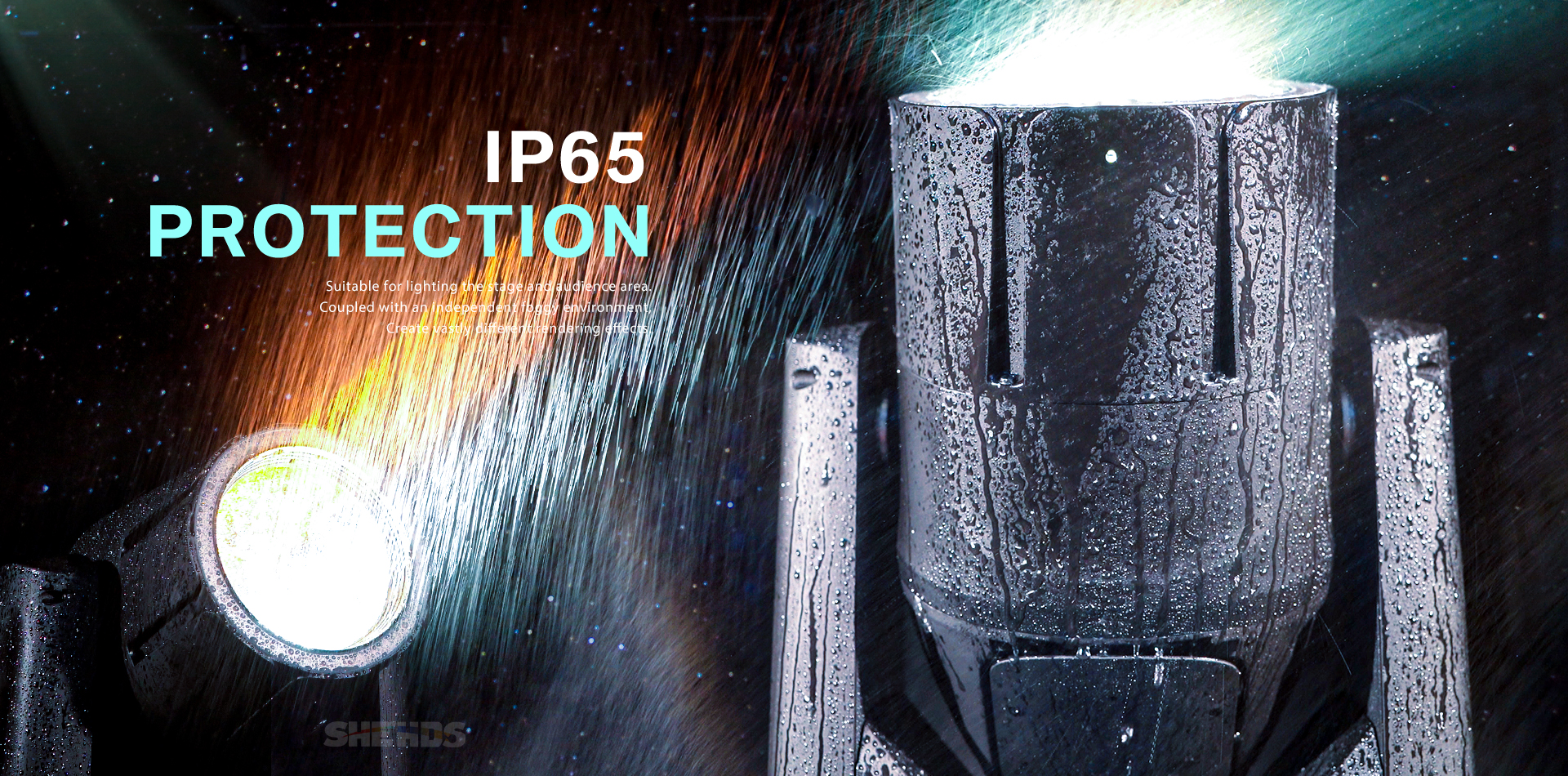

Outdoor Performance

The lighting fixtures adopt IP 65 grade waterproof design to ensure normal use during rainy performances.

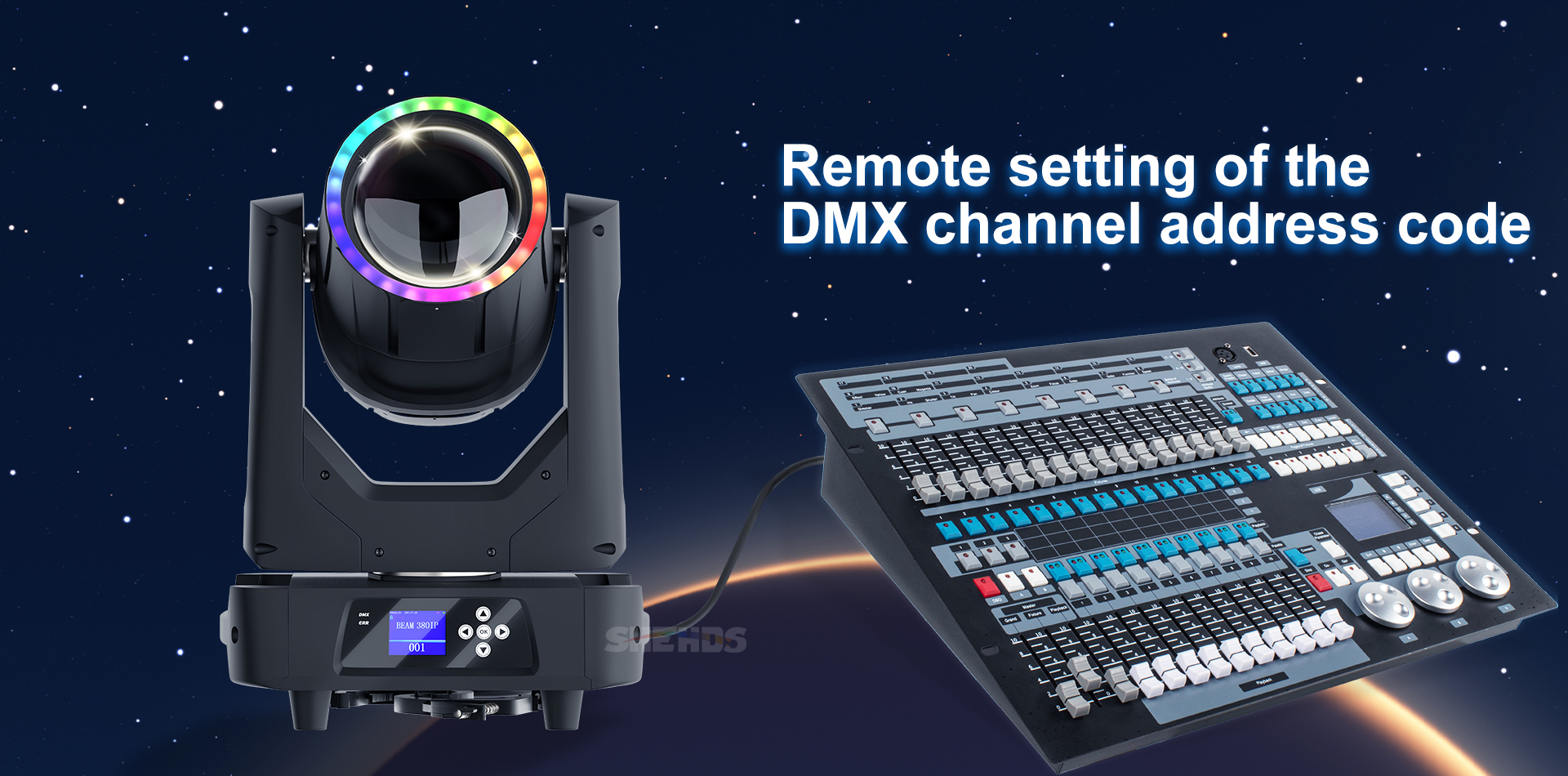

Control Program

Remote setting of the DMX channel address code

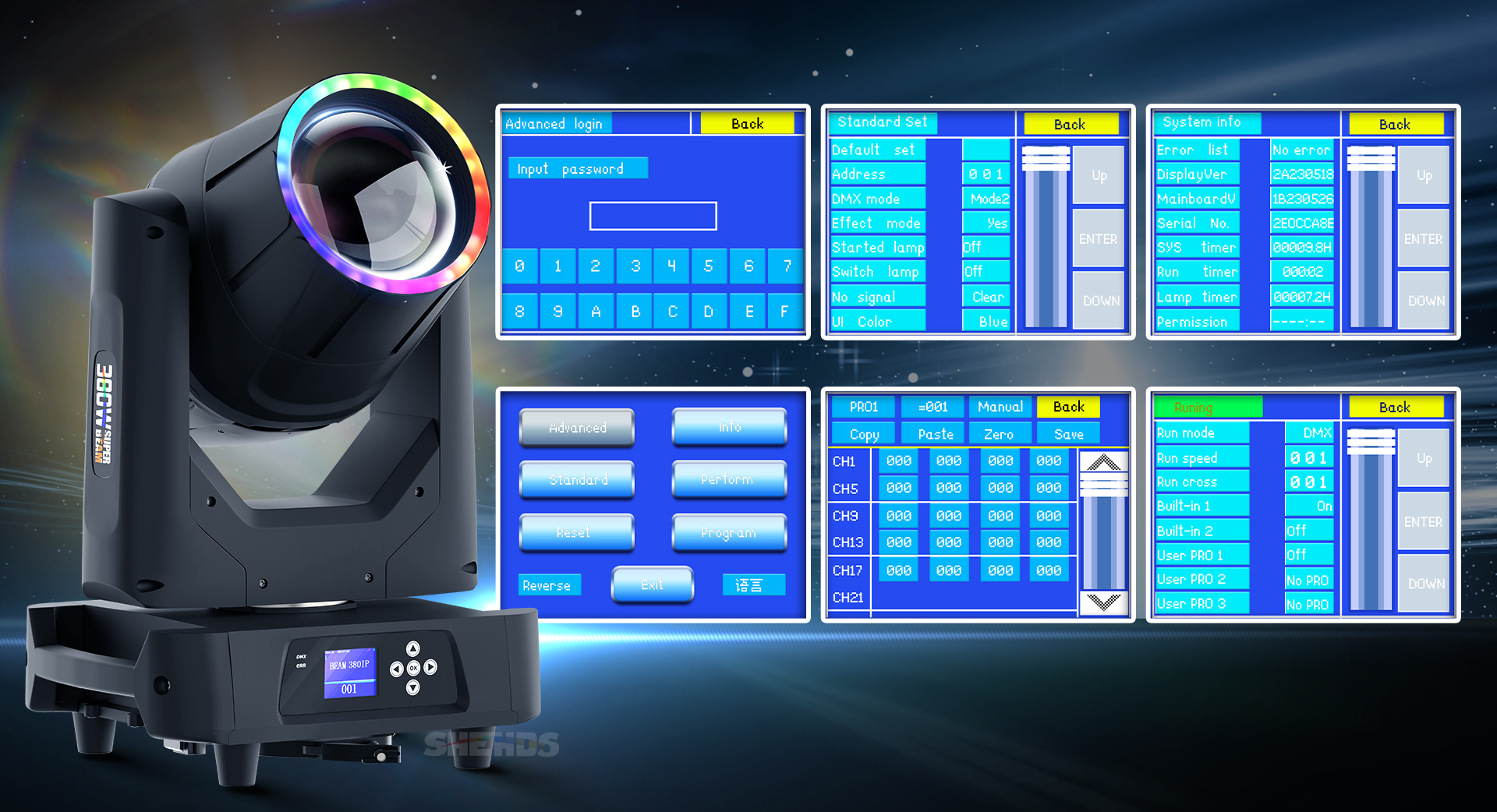

Introduction to Panel Functions

Contains multiple interactive function programs to visually display the operating status and mode of the lighting fixtures,

Built-in lamp operation status sensing and monitoring system,

 which can check the operation status of the lamp at any time for easy parameter adjustment

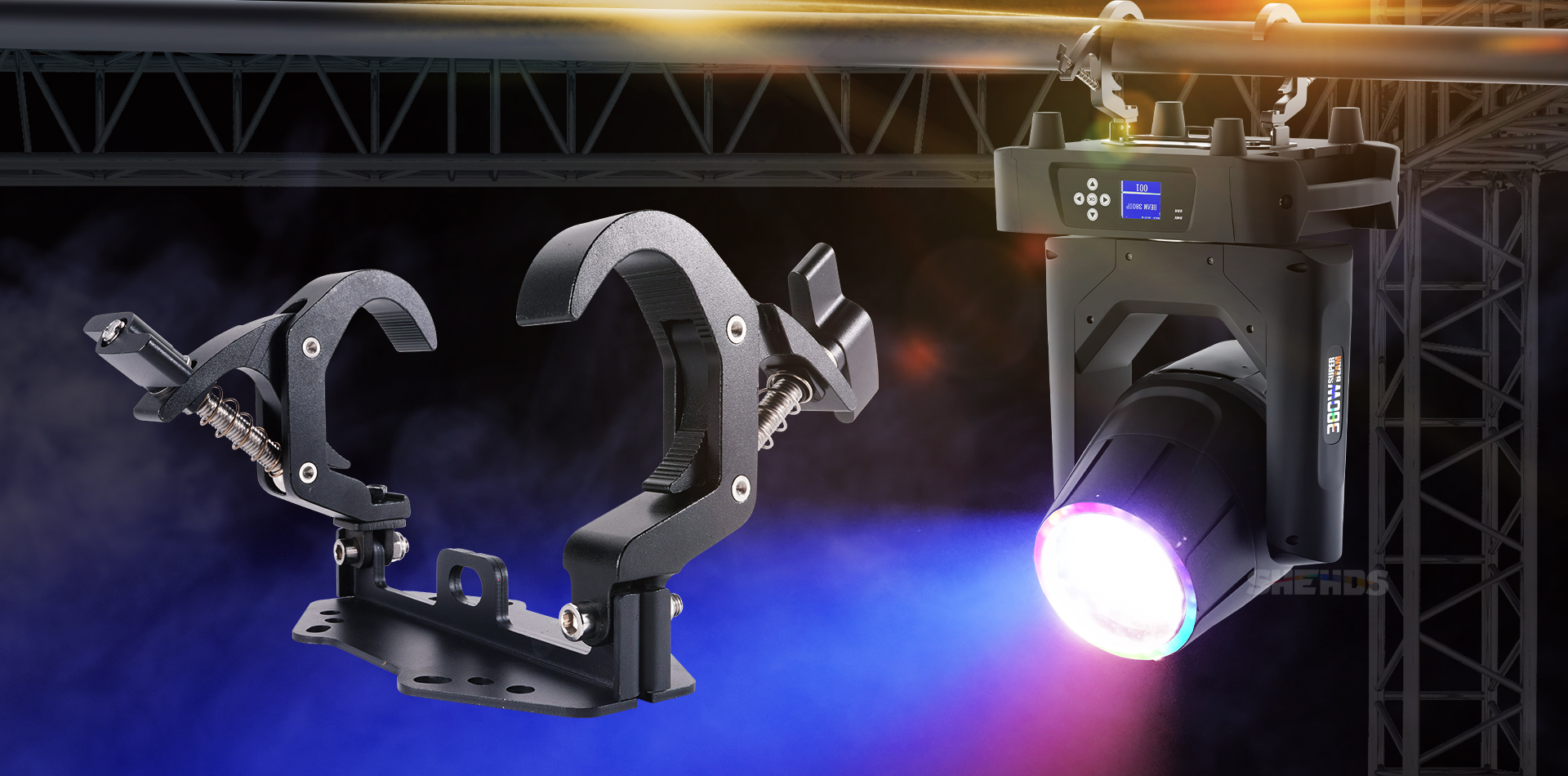

Suspension Installation Structure

Integrated folding hook with reserved safety rope position

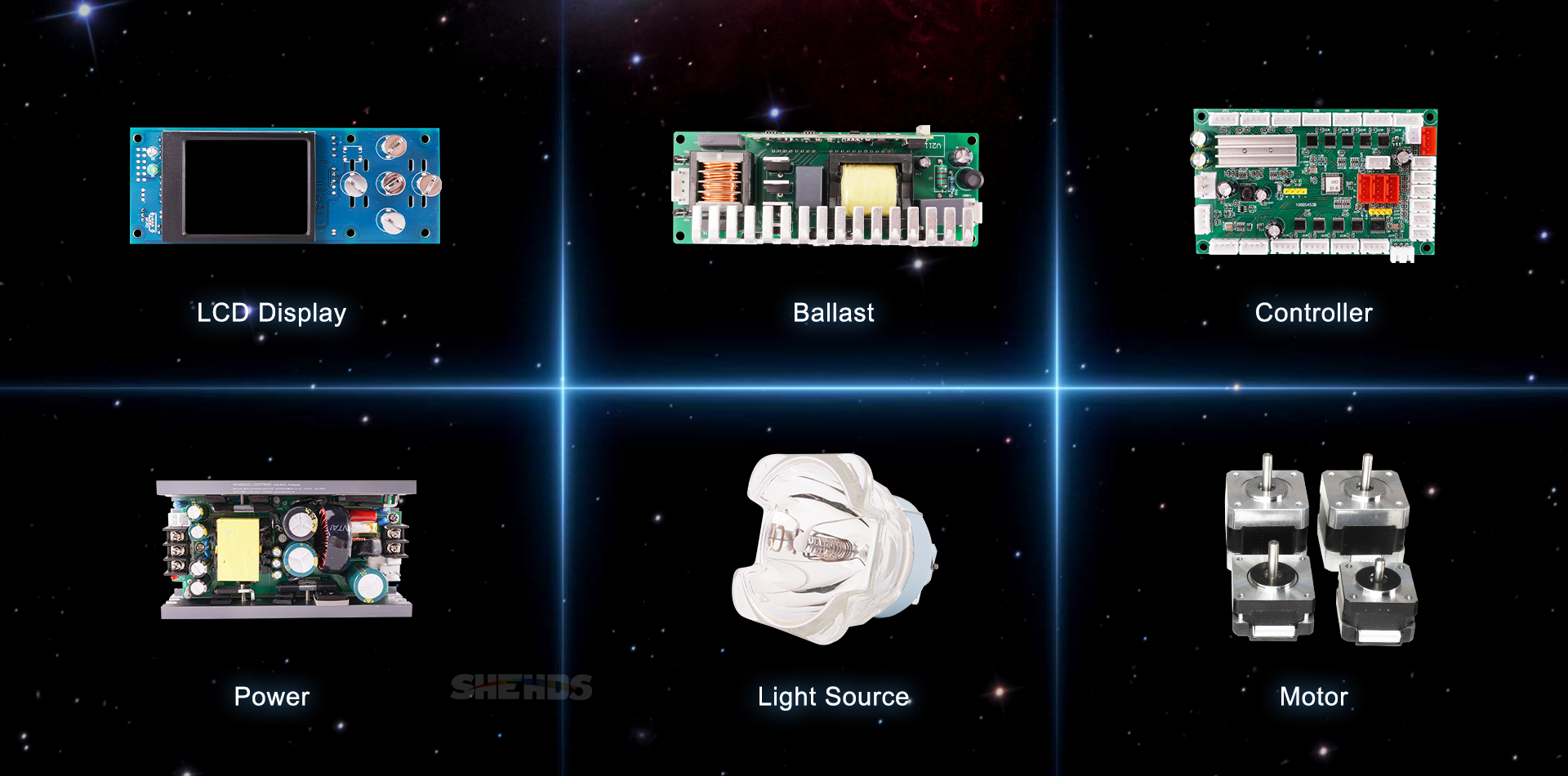

Carefully Select Excellent Accessories

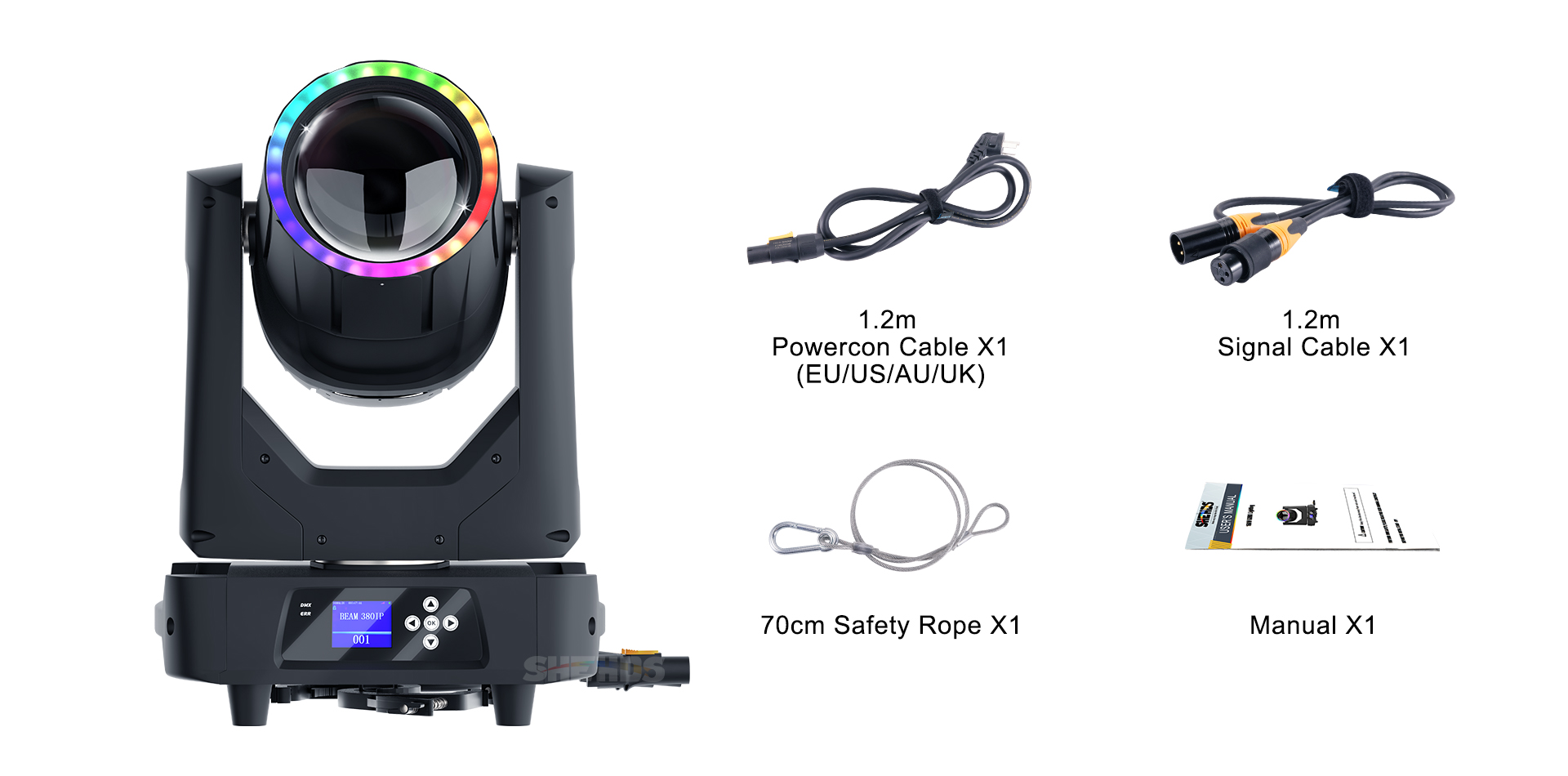

Packing List

Each process undergoes strict verification

Every part is carefully selected

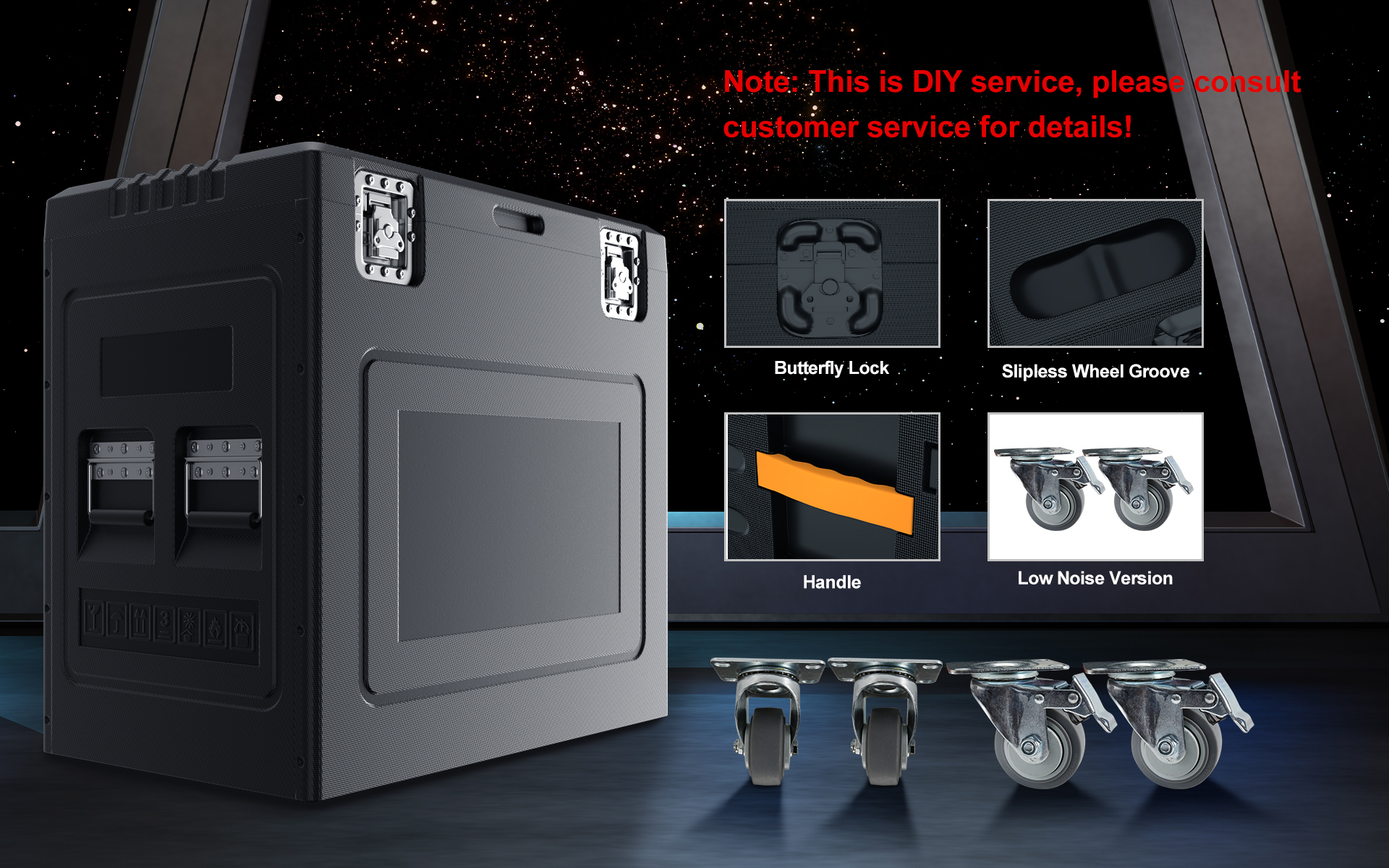

New Plastic Material Flight Case

1. Plastic boxes are more sturdy and wear-resistant;

2. Better waterproof and airtightness;

Equipped with silent 360 degree wheels + brake lockers

Note: This is DIY service, please consult customer service for details!

Qualification Certificate

International organizations Authority certification
