This is the strongest Nema 23 stepper cnc motors, it with step angle 1.8deg and size 57x57x113mm. It has 4 wires, each phase draws 4.2A, with holding torque 3.0Nm(425oz.in).
Electrical Specification
- Manufacturer Part Number: 23HS45-4204S
- Motor Type: Bipolar Stepper
- Step Angle: 1.8deg
- Holding Torque: 3.0Nm(425oz.in)
- Rated Current/phase: 4.2A
- Phase Resistance: 0.9ohms
- Inductance: 3.8mH±20%(1KHz)
- Insulation Class: B 130°C[266°F]

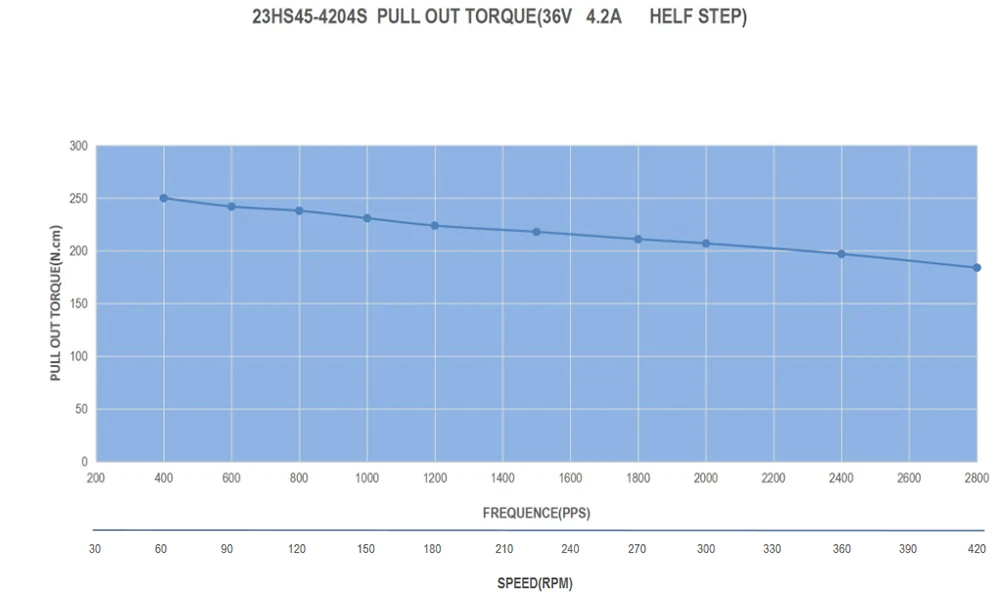

Physical Specification
- Frame Size: 57 x 57mm
- Body Length: 113mm
- Shaft Diameter: Φ10mm
- Shaft Length: 24mm
- D-cut Length: 20mm
- Number of Leads: 4
- Lead Length: 400mm
- Weight: 1.6kg
Connection
A+ | A- | B+ | B- |
Black | Green | Red | Blue |
DM542T Digital Stepper Driver 1.0-4.2A 20-50VDC for Nema 17, Nema23, Nema 24 Stepper Motor
The DM542T is a fully digital stepper driver developed with advanced DSP control algorithm based on the latest motion control technology. It has achieved a unique level of system smoothness, providing optimal torque and nulls mid-range instability. Its motor auto-identification and parameter auto-configuration feature offers quick setup to optimal modes with different motors. Compared with traditional analog drives, DM542T can drive a stepper motor at much lower noise, lower heating, and smoother movement. Its unique features make DM542T suitable for high requirement applications.
Key Features:
- Input voltage 20-50VDC
- Anti-Resonance provides optimal torque and nulls mid-range instability
- Motor auto-identification and parameter auto-configuration when power on, offer optimal responses with different motors
- Multi-Stepping allows a low resolution step input to produce a higher microstep output, thus offers smoother motor movement
- 15 selectable microstep resolutions including 400, 800, 1600, 3200, 6400, 12800, 25600, 1000, 2000, 4000, 5000, 8000, 10000, 20000, 25000
- Soft-start with no “jump” when powered on
- 8 selectable peak current including 1.00A, 1.46A, 1.91A, 2.37A, 2.84A, 3.31A, 3.76A, 4.20A
- Pulse input frequency up to 200 KHz, TTL compatible and optically isolated input
- Automatic idle-current reduction
- Suitable for 2-phase and 4-phase motors
- Support PUL/DIR mode
- Over-voltage and over-current protections
Electrical Specifications:
- Output Peak Current: 1.0~4.2A (3.0 RMS)
- Input Voltage: +20~50VDC (Typical 36VDC)
- Logic Signal Current: 7~16mA (Typical 10mA)
- Pulse Input Frequency: 0~200kHz
- Pulse Width: 2.5μS
- Isolation Resistance: 500MΩ
Operating Environment and other Specifications(Tj = 25℃/77℉):
- Cooling: Natural Cooling or Forced cooling
- Environment: Avoid dust, oil fog and corrosive gases
- Ambient Temperature: 0℃ － 65℃
- Humidity: 40%RH－90%RH
- Operating Temperature: -10℃ － 45℃
- Vibration: 10-55Hz / 0.15mm
- Storage Temperature: -20℃ － 65℃
- Weight: Approx.210g (7.4oz);
This professional 250W 36V 6.9A Switching CNC Power Supply can be widely used in Industrial Automation and CNC Stepper/Servo System.
115V and 230V can be chosen by switch. Powerful functions(eg. PWM control) and professional designs (Built-in big fan for cooling) ensure high efficiency and high reliability of the power supply. Low cost also makes it more acceptable for general usage.
Key Features
- 36V DC 6.9A output
- AC input voltage range: 90~132V/180~264VAC
- 115V/230V AC selected by switch
- High efficiency low cost
- Forced air cooling by built-in DC fan
- Low output ripple and yawp
- Over current, over voltage, short circuit and overheat protections

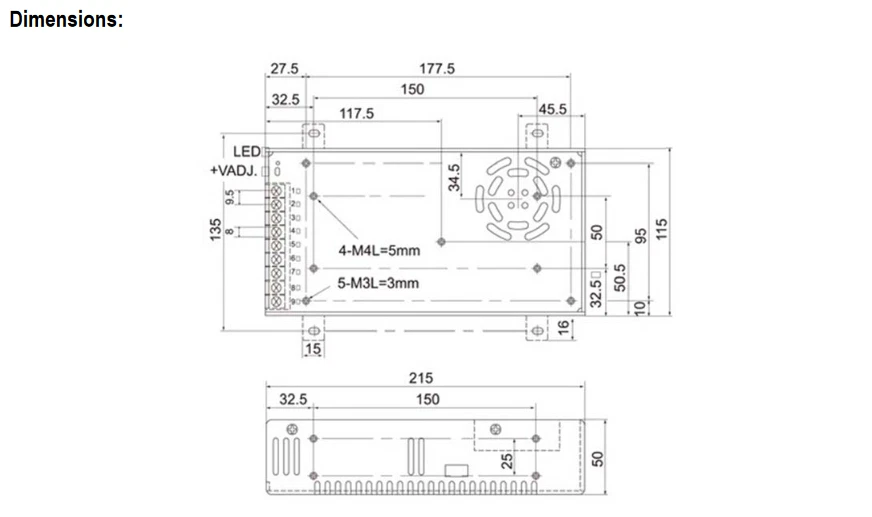

- 215*115*50mm (L*W*H);
