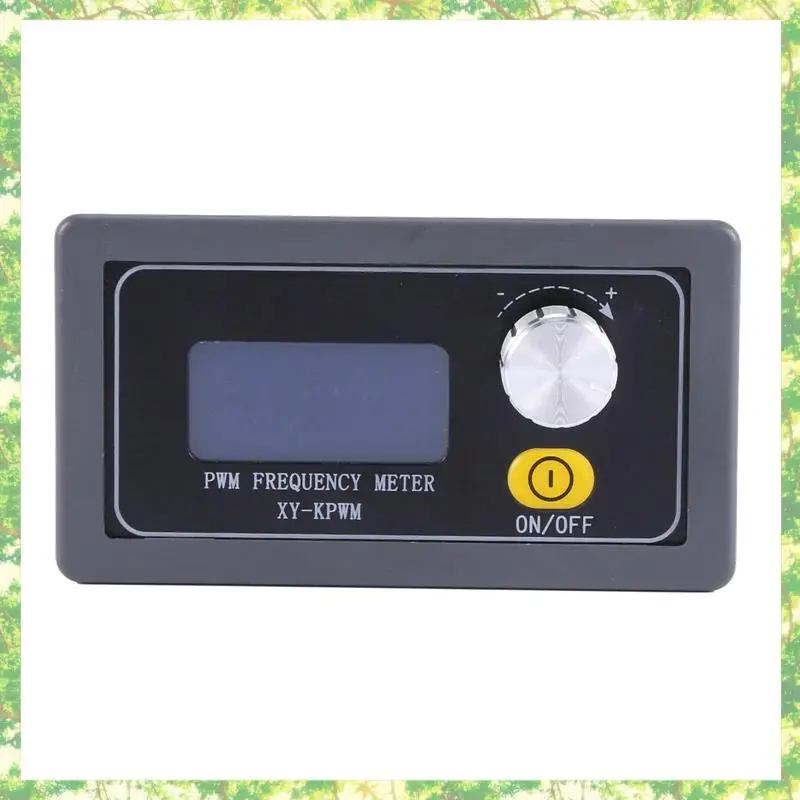

Smart-5X PWM Pulse Frequency Duty Cycle Adjustable Square Wave Signal Generator Module 1HZ-150KHZ Signal Generator LCD Display

Use steps:1.Connect to power supply;2.Press rotary switch for 10second to switch Normal mode and Precise mode;3.Short press rotary switch to set frequency and change value by rotating switch;4.Press rotary switch for 2second to set duty cycle;
5.Keep press for 5second to lock set parameters;
6.Test;7.Press button 'ON/OFF' to turn on or off PWM output;
8.Remove power and connect load to use module.
XY-KPWM signal generator is a device that provides electrical signals at a variety of frequencies, square wave, and output levels.It is used as a signal source or excitation source for testing.Widely used in production practice and technology.

1.With outer casing
2.LCD high definition display
3.Support UART
4.Support frequency adjustment
5.Support duty cycle adjustment
6.High precision detection
7.Support power-down memory function
8.1-Channel PWM output
9.Dual Work Mode
10.Knob supports lock function to avoid misoperation
11.Support enable output
Parameters:
1.Product name: XY-KPWM PWM Signal Generator;
2.Model: XY-KPWM;
3.Work Voltage: DC 3.3V-30V;
4.Frequency range(Normal mode): 1Hz~150KHz;
5.Frequency range(Precise mode): 1Hz~15KHz;
6.Frequency accuracy: 2%;
7.Duty cycle accuracy: 1% at Normal mode;
8.Duty cycle accuracy: 0.1% at Precise mode;
9.Duty cycle range: 0.00%-100%;
10.Output Current: About 5-30mA;
11.Output amplitude: Same to input voltage;
12.Work Temperature: -40 Celsius~85 Celsius
13.Work Humidity: 0%~95%RH;
Application:
1.Square wave signal generator, generating square wave signal for experimental development;
2.Used to generate a square wave signal that controls the motor driver;
3.Generate adjustable pulses for use by the MCU;
4.Dimmer;
5.Speed governor;
colour: black
Material: plastic
size: 71 x 39mm

Package Contents:
5 x Signal generator
