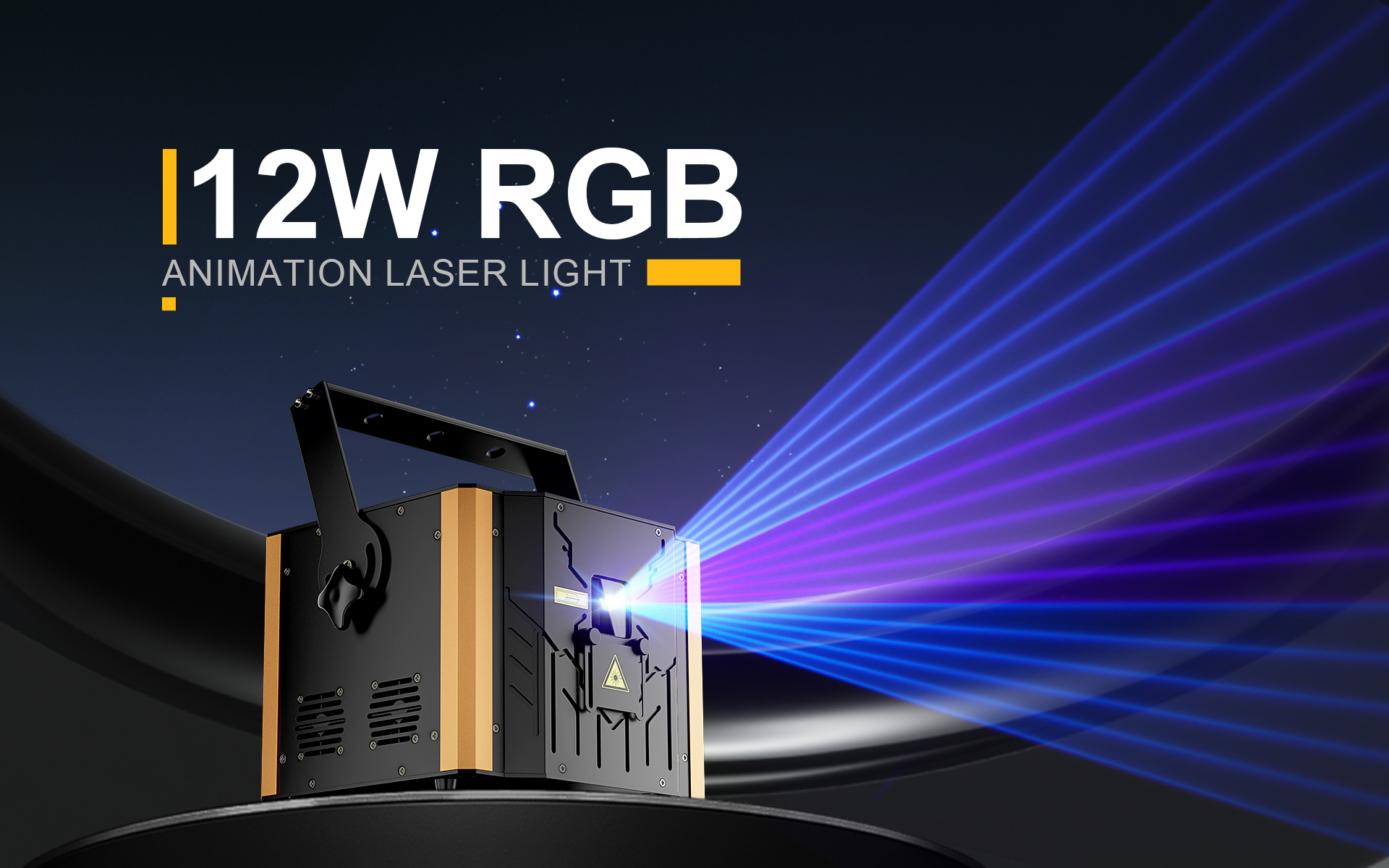

12W RGB Animation Laser Light

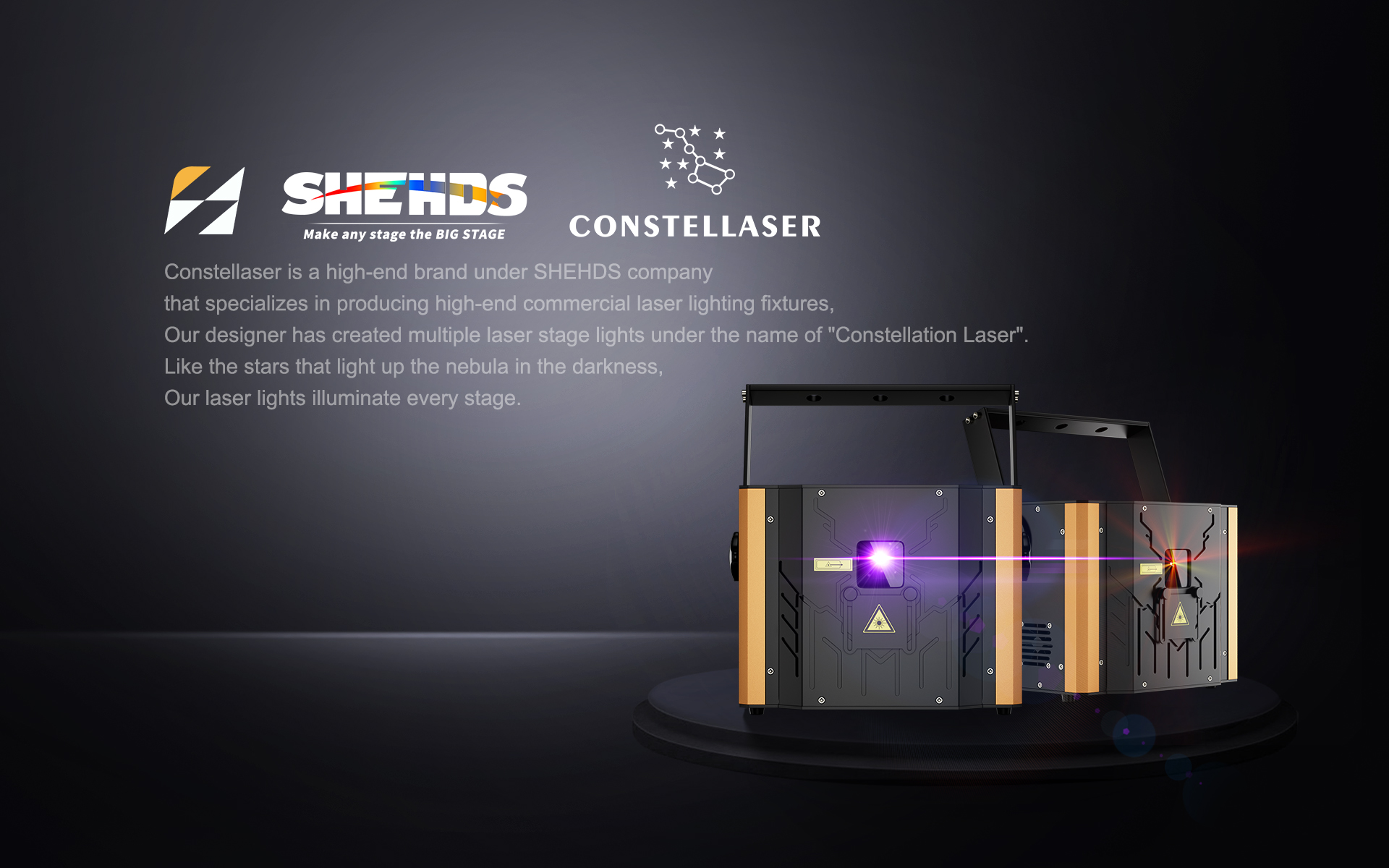

Constellation Laser Series

The origin of constellations can be traced back to prehistoric times.
People use them to tell stories about their beliefs, experiences,
creations and myths. Our designers have created a variety of laser stage lights under the name of "Constellation Laser".
Like the stars that light up the nebula in the dark, our laser lights light up every stage.

Technical Parameter

-Light source parameters
Laser wavelength:	R-638nm, G-520nm, B-450nm
Spot size (laser window spot):	5.5mm
Light source divergence angle :	＜1.2mrad
Modulation mode:	0~5V analog, up to 50khz/TTL
Laser class:	Class IV
-Imaging system
Imaging color:	Red, green, blue mixed colors
Evenness:	>98%
Lens Horizontal Offset:	-30% to +30%
Lens Vertical Offset::	-30% to +30%
Imaging mode:	3D/2D pattern and animation (with software)
Projection distance:	<200M The best distance is 20~50M
Playback rate:	25 KPPS
Playback angle:	Max60°
-Security system
Safety standard:	Follow the IEC-60825-1:2014 standard, FDA regulations and TUV Laser Safety
Safety item:	Over current and voltage protection
Degree of protection:	IP20
Operating temperature:	15℃~45℃

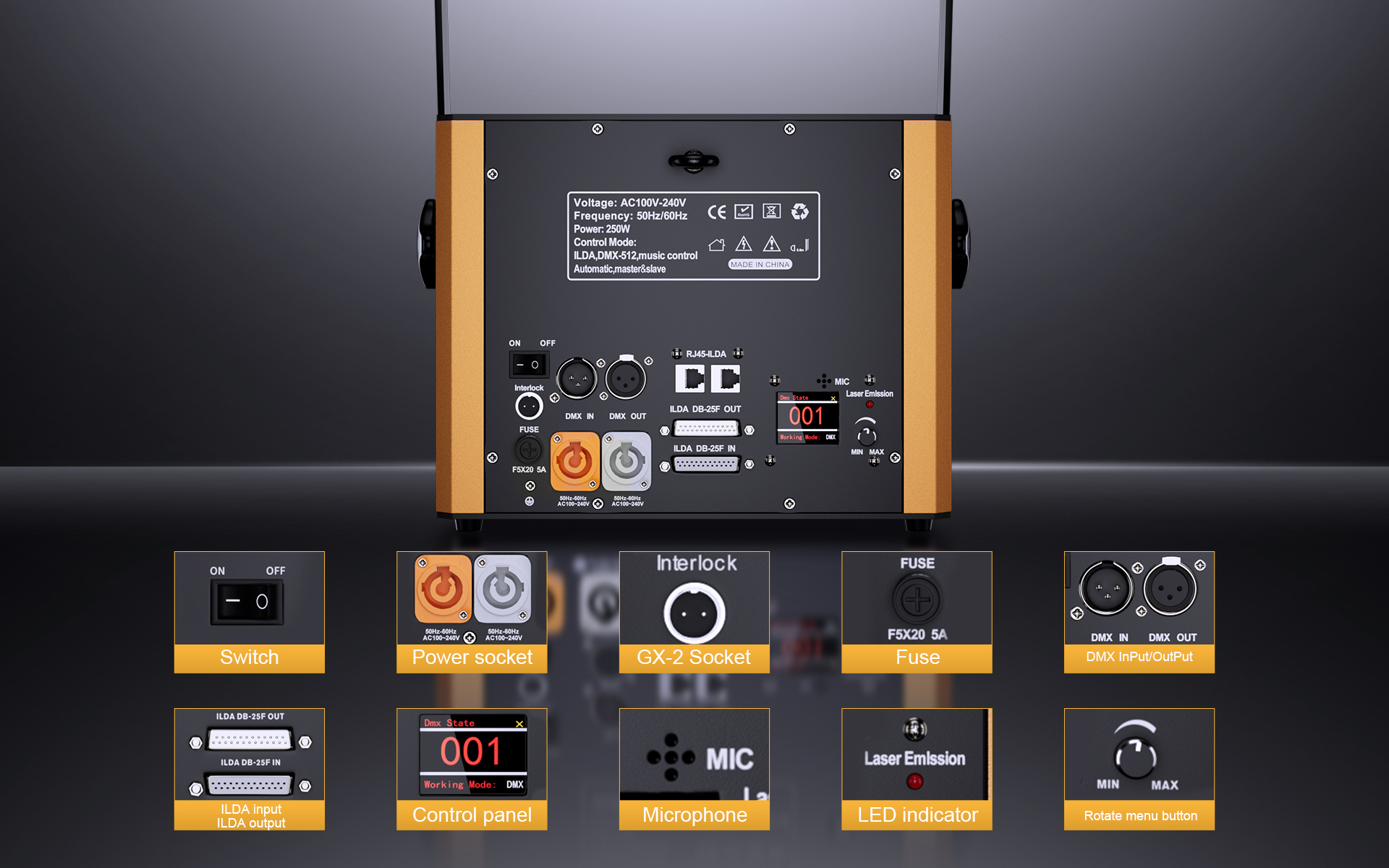

-Interface and Control System
Control interface:	ILDA In/Out , DMX In/Out ,RJ45 In/Out
DMX channel:	16/20CH
Power interface:	PowerCon
-Cooling system
Cooling method:	Air cooled
Structure:	60mm plug-in heat dissipation layer
Ventilation fan:	60mm fan in* 2 , 60mm fan out* 2
-Power consumption
Working power:	100~240V AC 50/60HZ
Power consumption:	Max 250W

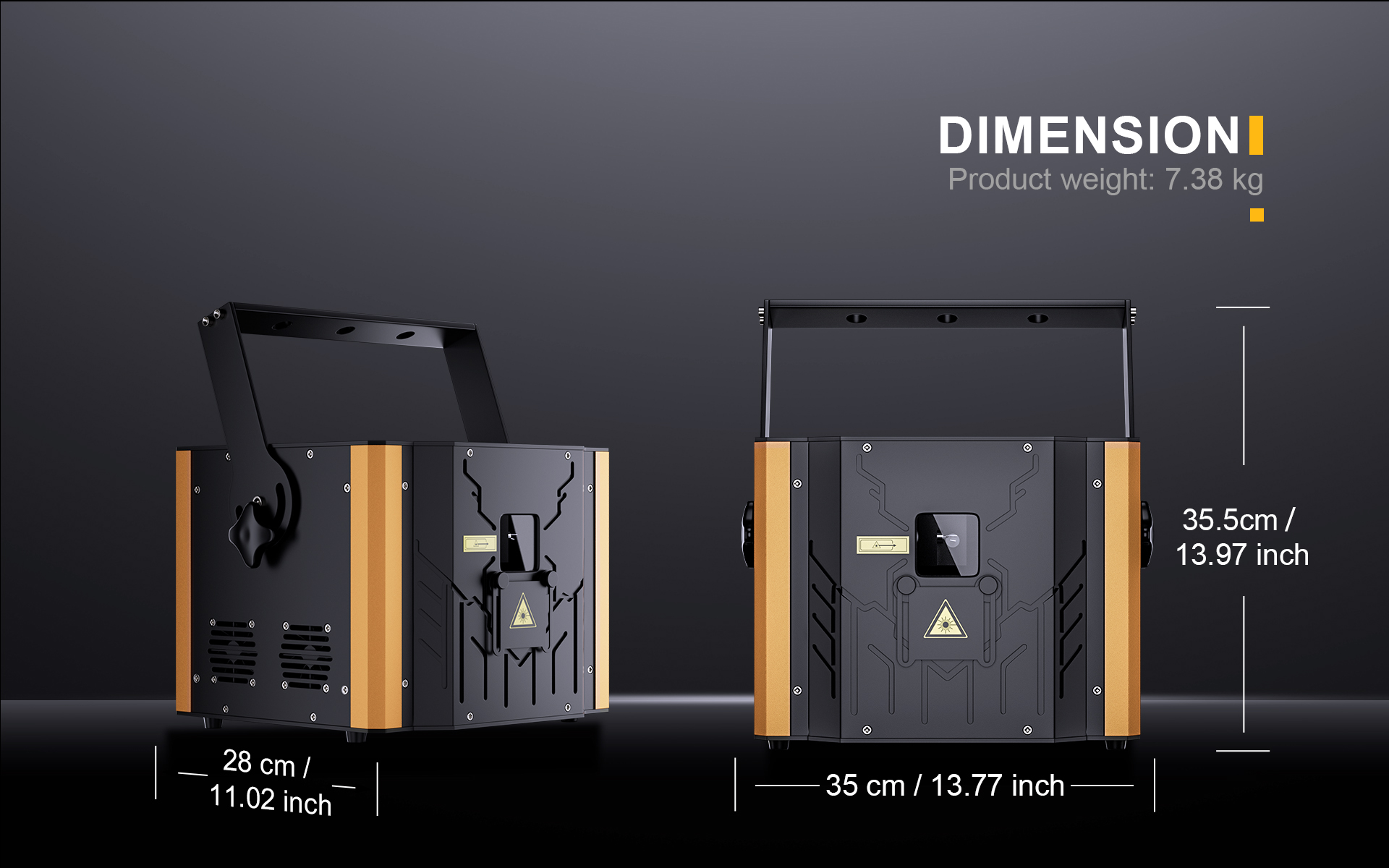

-Physical parameters
Product size :	13.97x11.02x13.77 inch / 35.5x28x35 cm
Product weight:	7.38 Kg
Pack size:	15.75x10.24x13.39 inch / 40x26x34 cm
Package weight:	9 Kg

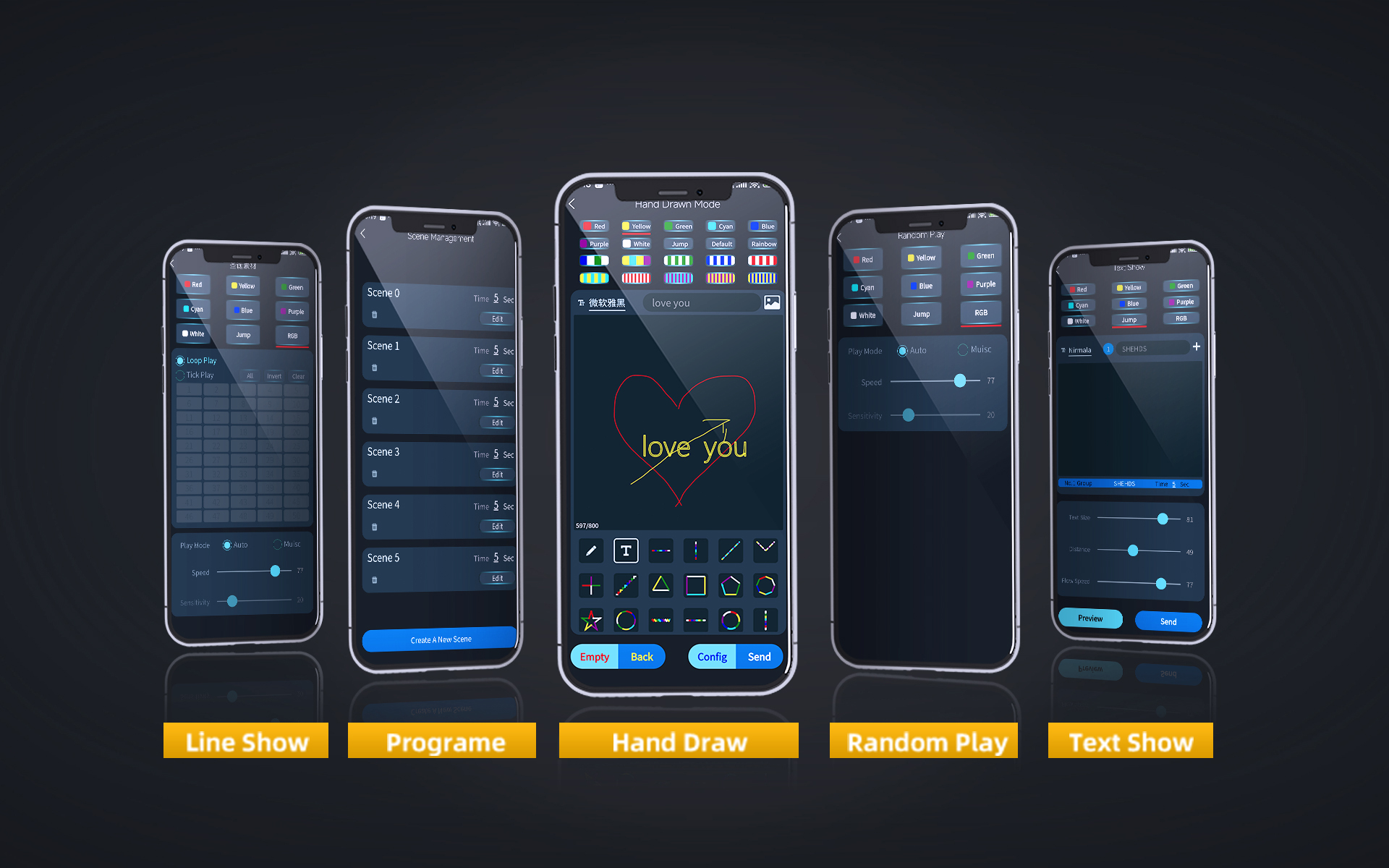

APP Conctrol

Support wireless remote control of laser
for Android and Apple system apps for laser output and setting menu options.

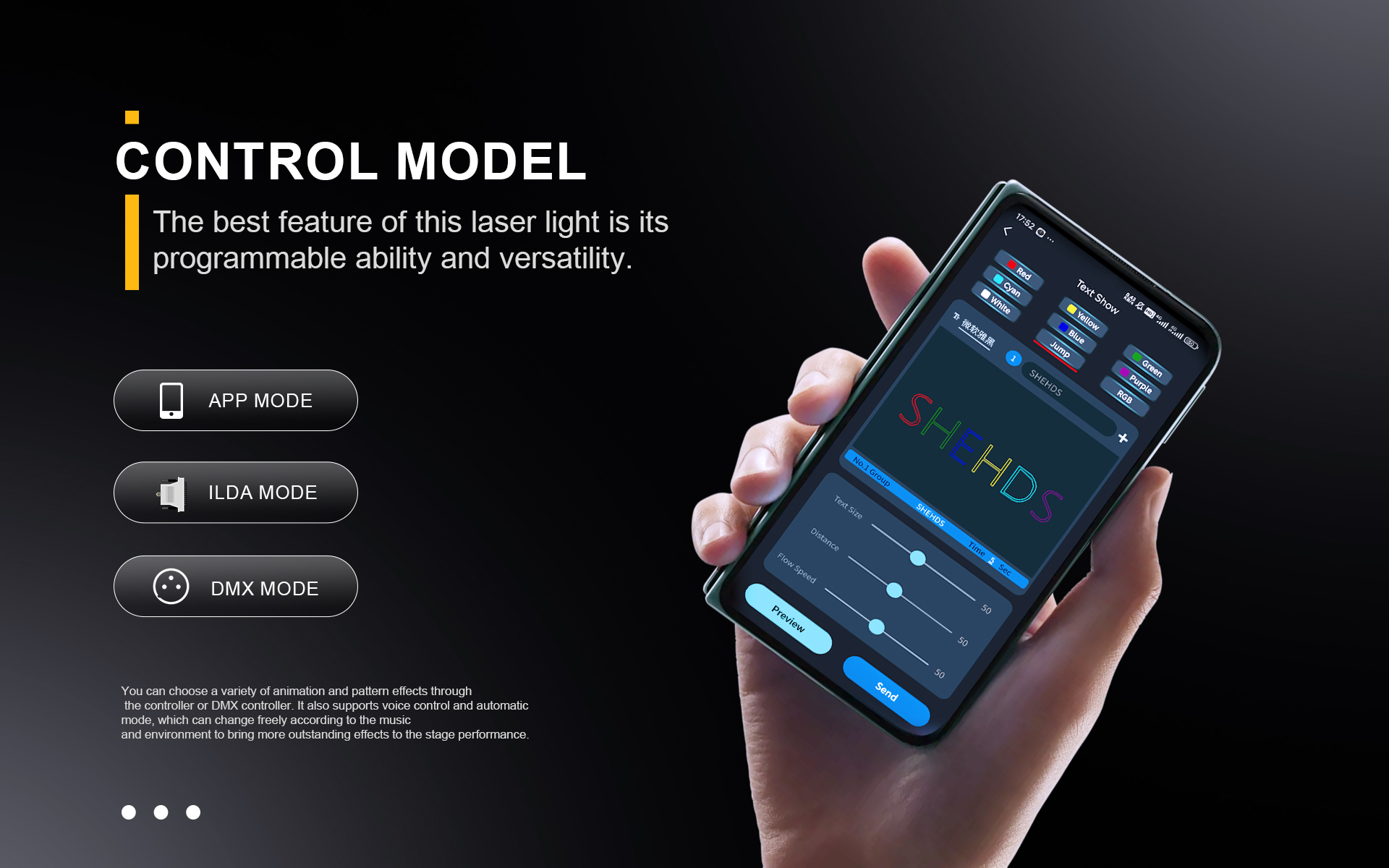

Control Model

The best feature of this laser light is its programmability and versatility.
You can choose a variety of animation and pattern effects through the controller or DMX controller.
At the same time, it also supports sound mode and auto mode,
which can change freely according to the music and environment to bring more outstanding effec ts to the stage performance.

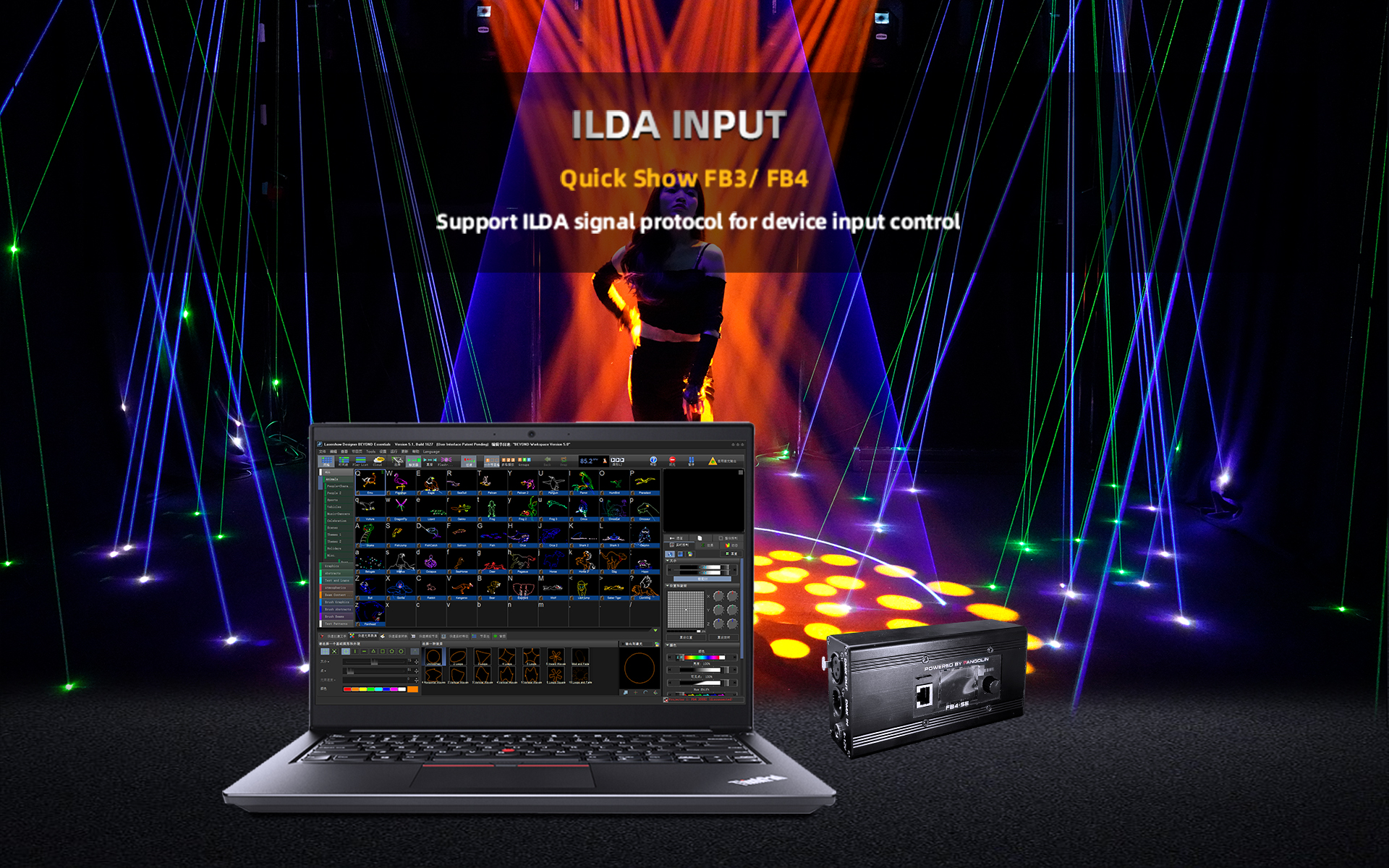

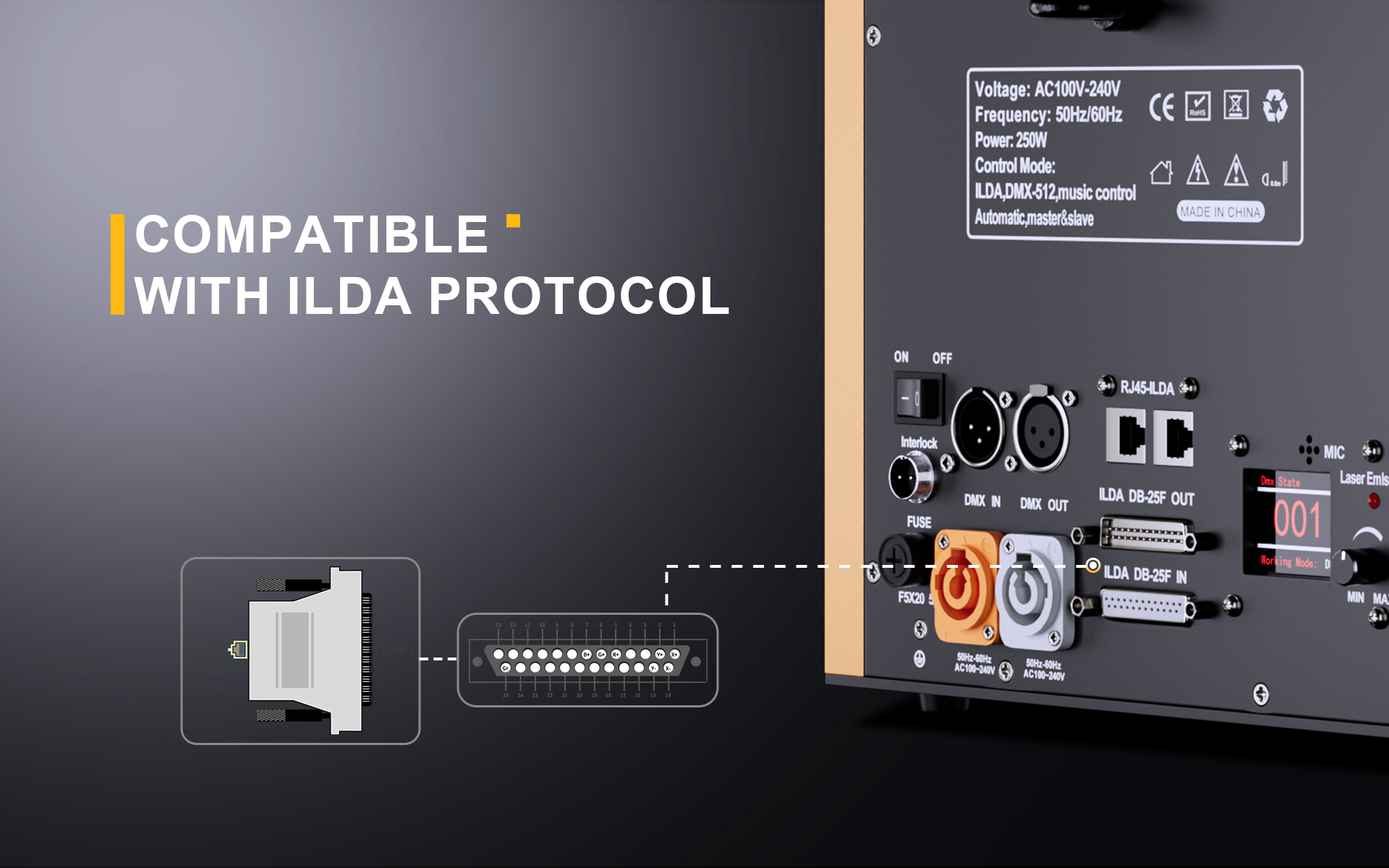

Compatible With ILDA Protocol
Support ILDA signal protocol for device input control,

such as professional laser control software compatible with Beyond QuickShow FB3/FB4!
With Beyond QuickShow FB3/FB4,

you'll have access to a vast library of pre-programmed laser effects,
as well as the ability to customize and create your own unique visuals.
From captivating beam shows to intricate graphics, the possibilities are endless with our ILDA-compatible laser lights.

Analog ModulationRGB- Analog TTL

Simulated modulation supports linear adjustment of brightness,

which can achieve gradient effects and provide richer visual effects for laser performances.

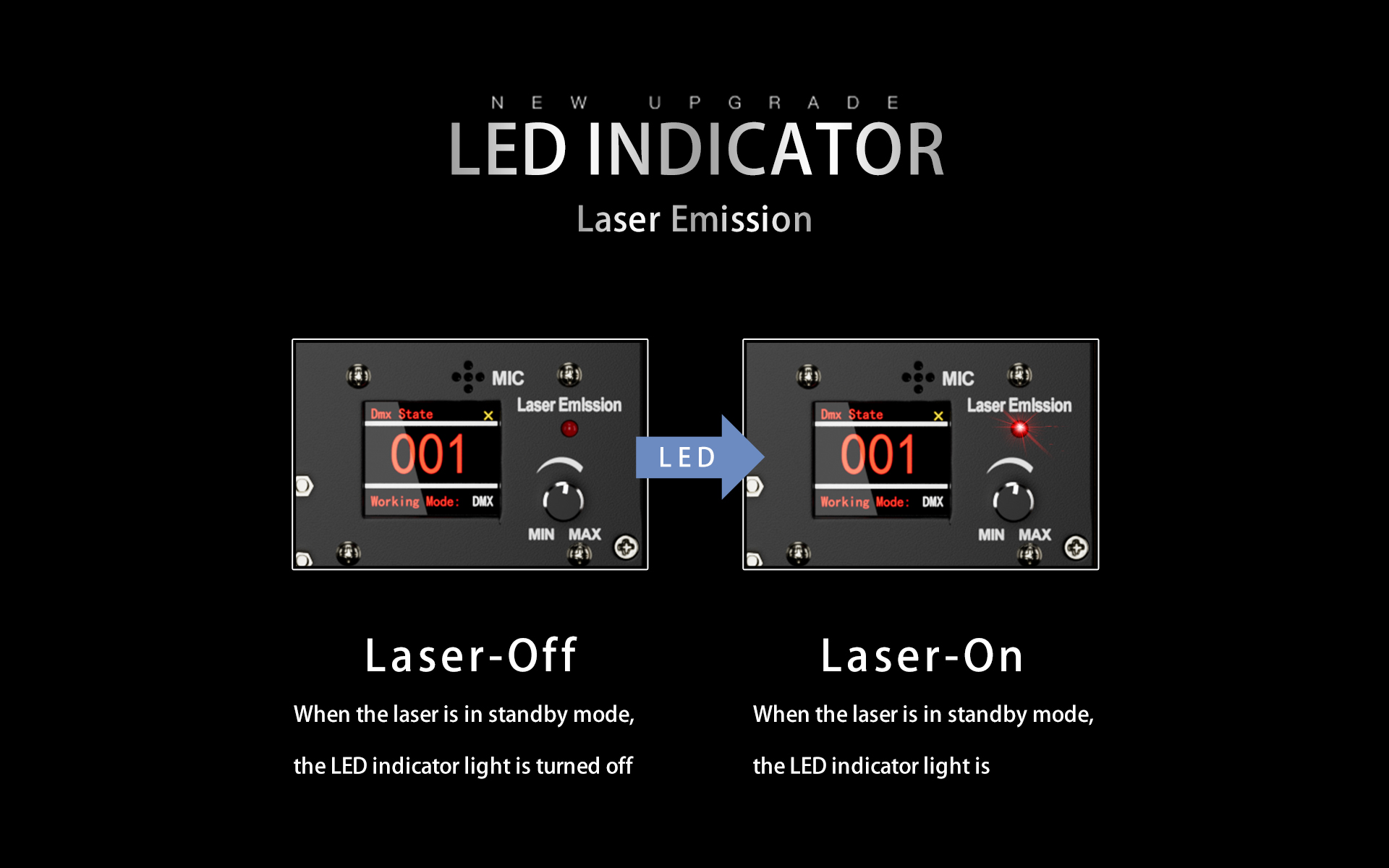

Laser operation indicator light

The laser operation indicator light continuously lights up or flashes,

reminding operators to pay attention to the presence of laser radiation and avoid direct exposure to the laser beam,

thereby protecting the safety of operators.
RGB Laser Source

Using semiconductor laser diode light source, the standard full-color analog laser uses three primary colors: red, green, and blue.
Can mix multiple brilliant colors!
For example, Magenta, Yellow，Cyan，White

Laser Effect

The laser beam exhibits bright, sharp, and pure lines, with extremely high directionality and spectral purity.
These beams can present stunning visual effects through precise beam manipulation and multi-dimensional projection

in specific stage environments, creating intoxicating interweaving effects of light and shadow.
Whether in large-scale performances,

exhibitions, or events, the application of laser technology will bring unparalleled visual impact,
enhance the overall atmosphere,

and immerse the audience in a dreamlike audio-visual enjoyment.

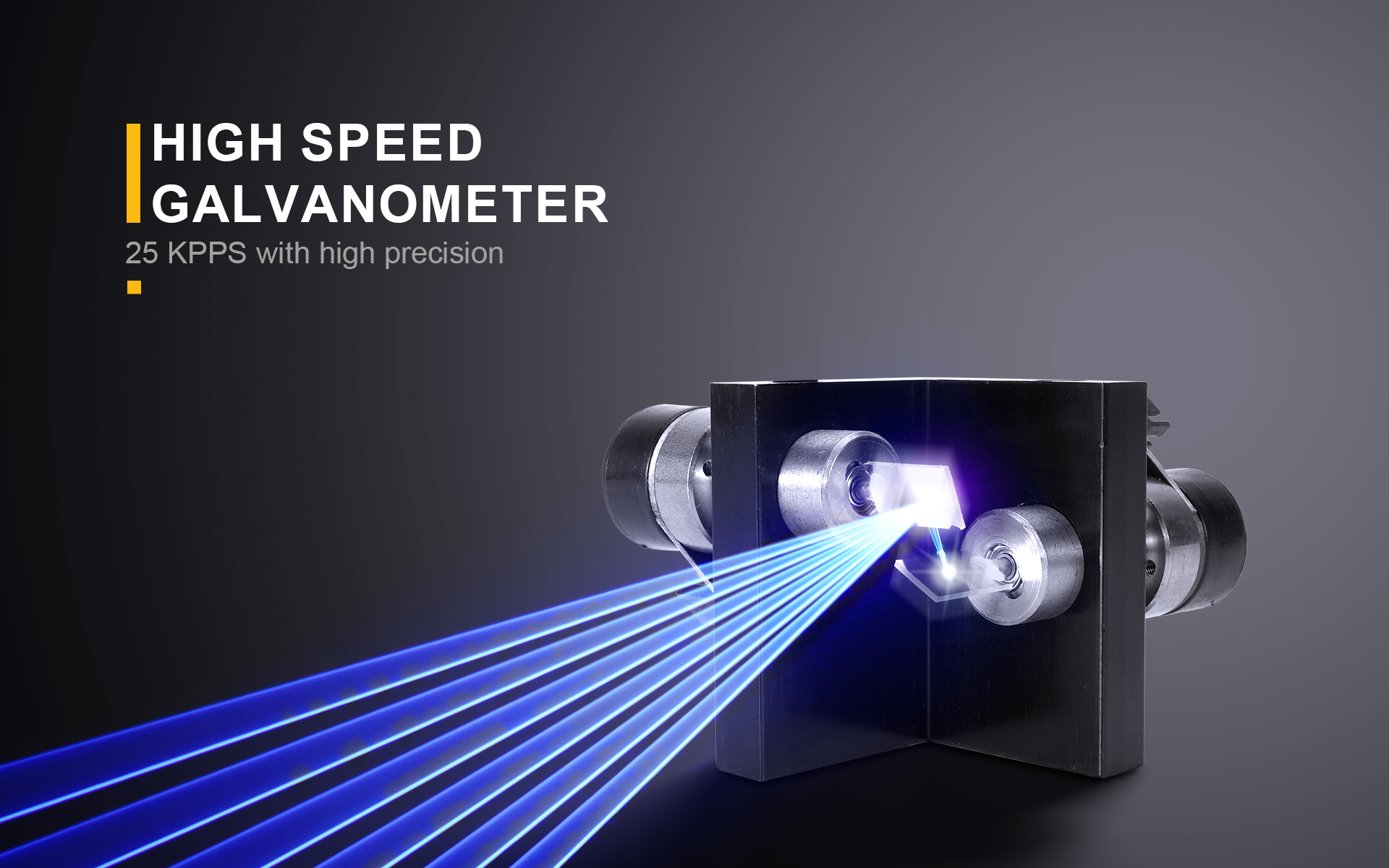

High Speed Galvanometer

25 KPPS with high precision
High frequency scanning galvanometer technology can accurately capture every detail through fast and continuous laser scanning,
achieving smooth transitions and seamless connections of patterns.

This technology not only enhances the smoothness of visual effects,
but also makes the presentation of patterns more three-dimensional and vivid,

as if taking the audience into a dreamlike world where light and shadow intertwine.
The Northern Lights Canopy Effects

Presenting a dreamy and colorful visual effect similar to the auroram,
Providing more possibilities and creative space for various performance occasions.
Compatible With ILDA Protocol

Support ILDA signal protocol for device input control, such as professional laser control software compatible with Beyond QuickShow FB3/FB4!
With Beyond QuickShow FB3/FB4,

Built in with a rich variety of patterns and animation effects, from dazzling rainbows and twinkling stars to dynamic waves and cool geometric shapes,
each effect has been carefully designed to meet the needs of different scenes and atmospheres. Whether it's a romantic proposal scene,
a passionate music festival,

or a peaceful night stroll, our laser equipment can create an unforgettable world of light and shadow.

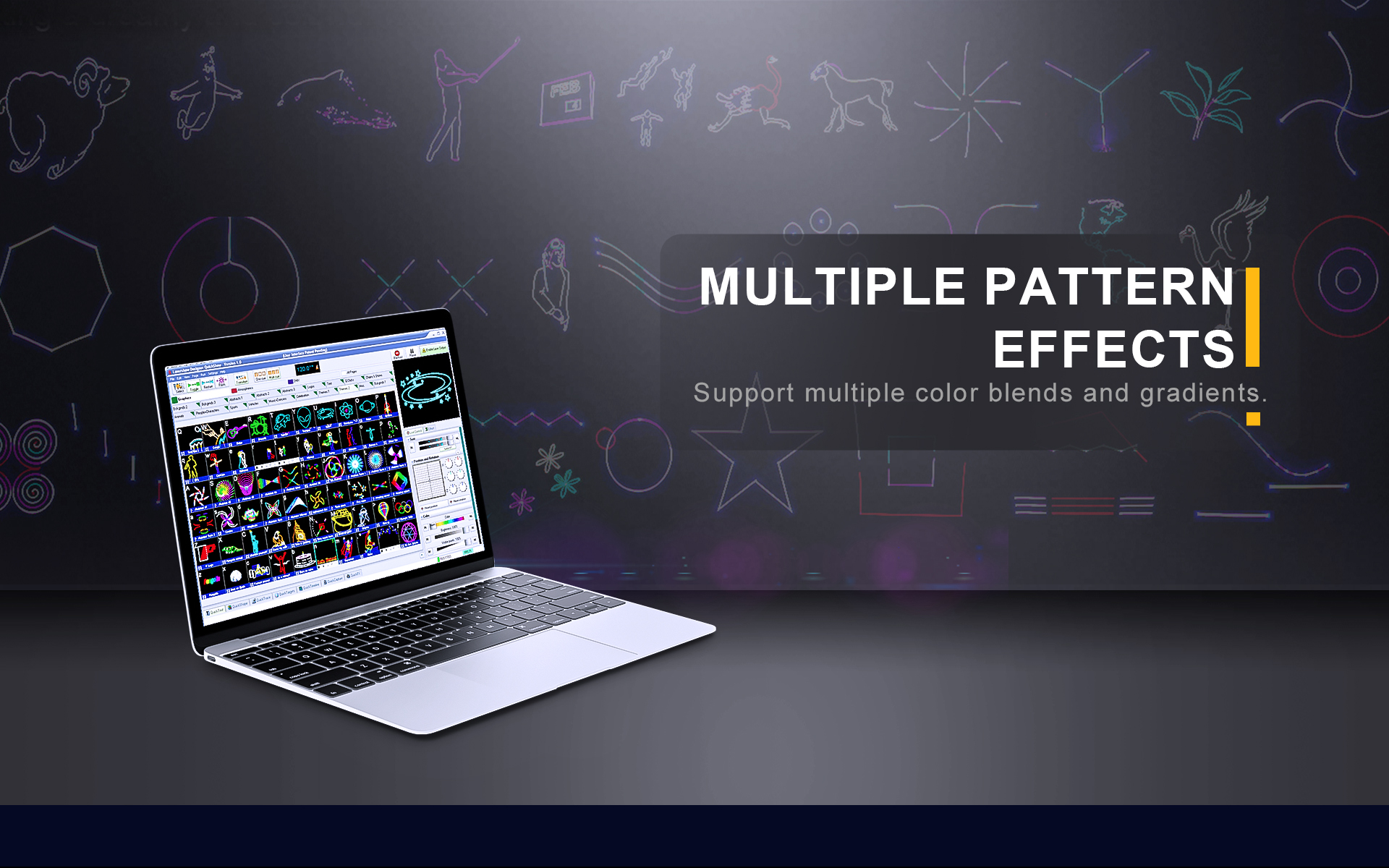

Multiple Pattern Effects

Supporting multiple color blends and gradients, making local patterns more colorful and vibrant in color.
Dynamic effects such as rapid transformation, rotation, and scaling of patterns can be achieved

according to preset programs or voice commands, bringing viewers a more vivid visual experience.

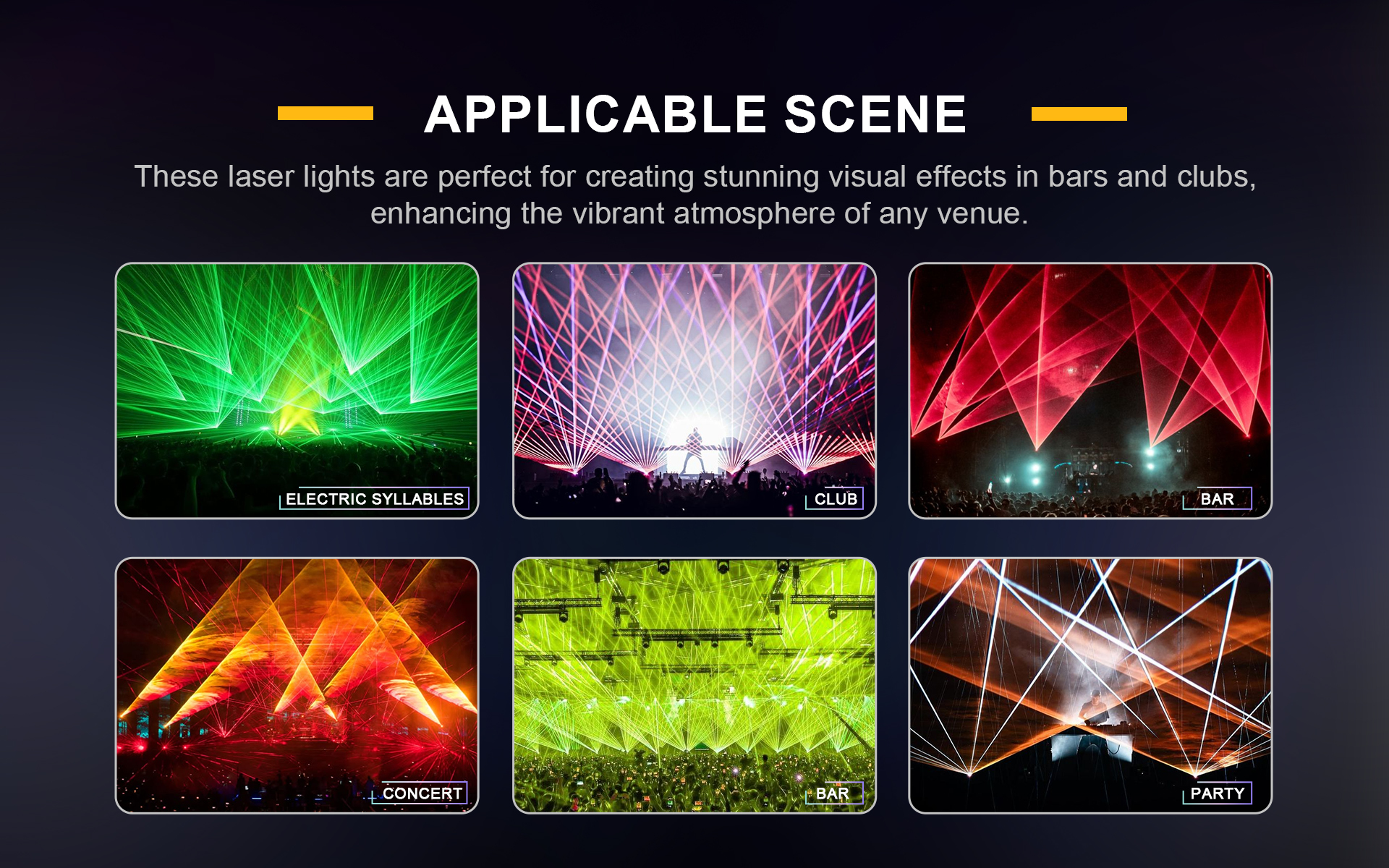

Applicable Scene

The 12W laser lights are perfect for creating stunning visual effects in bars and clubs,
enhancing the vibrant atmosphere of any venue.
SAFETY TIPS

During the use of a laser source,
Do not look directly at the light source.

The effect of stage laser lights is formed by high-speed scanning of the laser
beam through high-speed galvanometers or low-speed stepper motors.
The harm to the human body is mainly reflected in the harm to the eyes,
and prolonged exposure can lead to blindness.

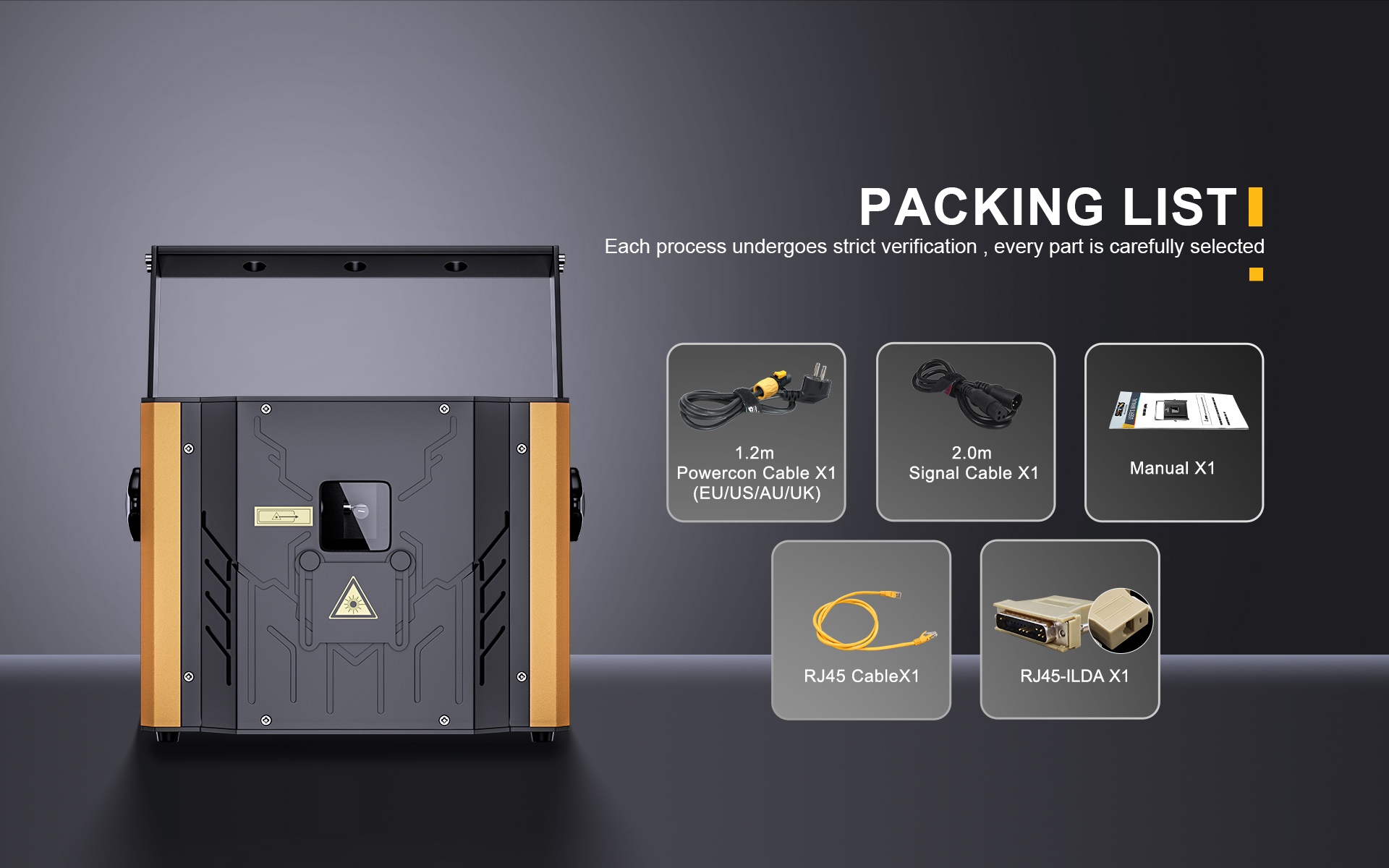

Packing List

Before leaving the factory, each of our products undergoes rigorous testing to ensure they are in perfect condition before being shipped out.

Our strict control over quality is like an artist polishing their masterpiece,

striving for perfection in every detail.

Only products that have gone through layers of scrutiny can confidently leave our factory

and arrive in your hands with unparalleled quality, bringing you an excellent user experience.

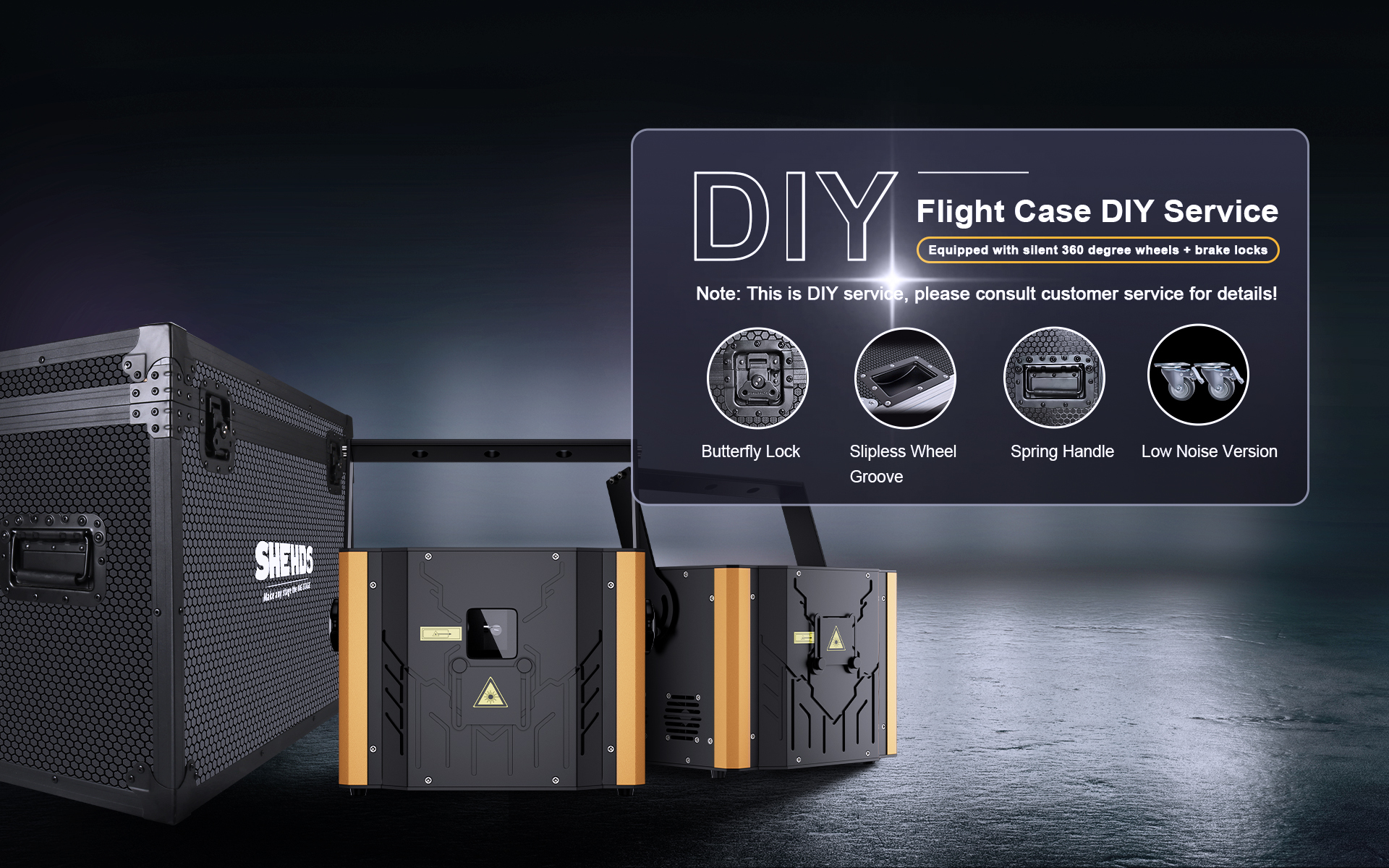

Flight Case DIY Service

Equipped with silent 360 degree wheels + brake lockers
We offer customized aviation cases that perfectly meet your product needs.

Whether it's precision equipment, fragile items, or valuable goods, our aviation box design

not only ensures safety protection, but also adapts flexibly to various specifications and shapes.

Each box is finely crafted and made of high-quality materials,

providing excellent protection and convenient transportation experience for your products.

From concept to delivery, we work closely with you to ensure that every detail meets your expectations.

Note: This is DIY service, please consult customer service for details!

Qualification Certificate

Our laser equipment has not only obtained certification from the international authoritative organization FDA,

but also passed the deviation application authorization certification

for laser special equipment, ensuring that every device meets the strictest safety standards.

This is not only a recognition of our technical strength,

but also a commitment to your peace of mind when using it.

Behind every laser beam flicker is our relentless pursuit of quality and safety,

allowing you to feel at ease and enjoy efficiency and excellence when using it.
