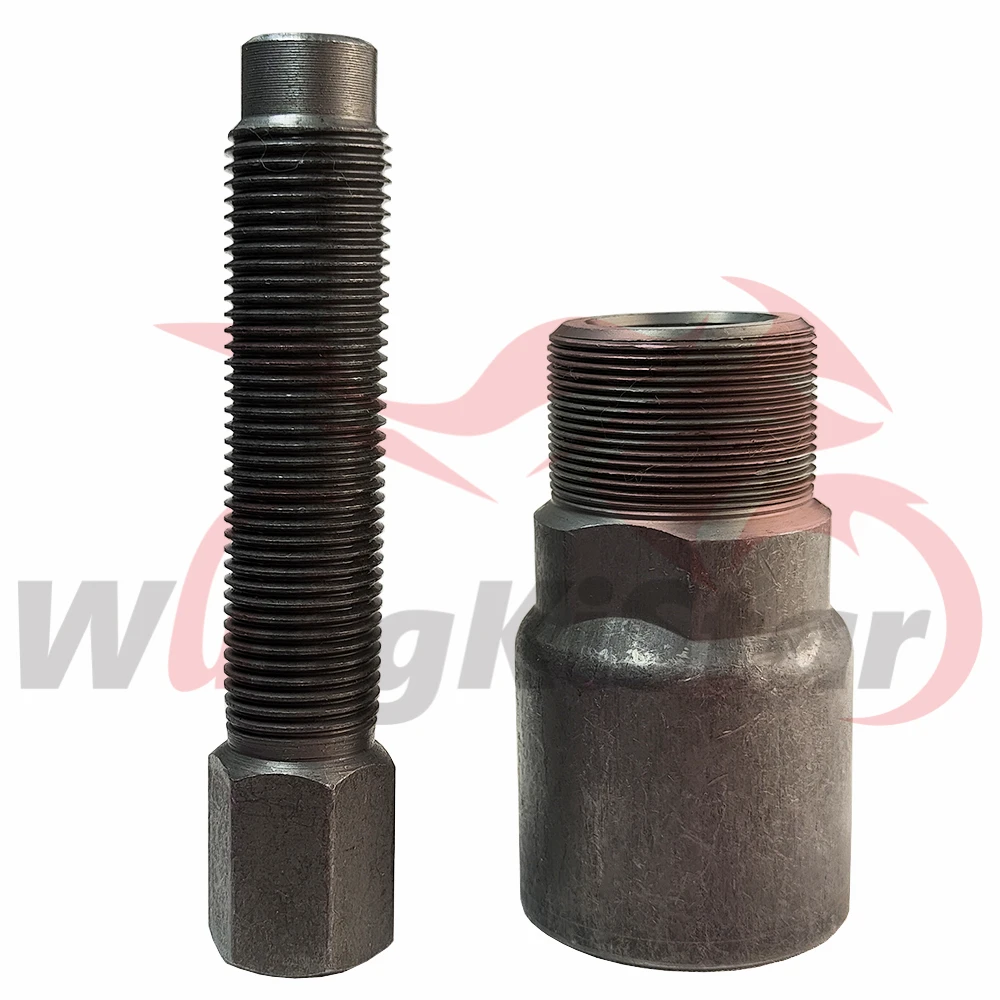

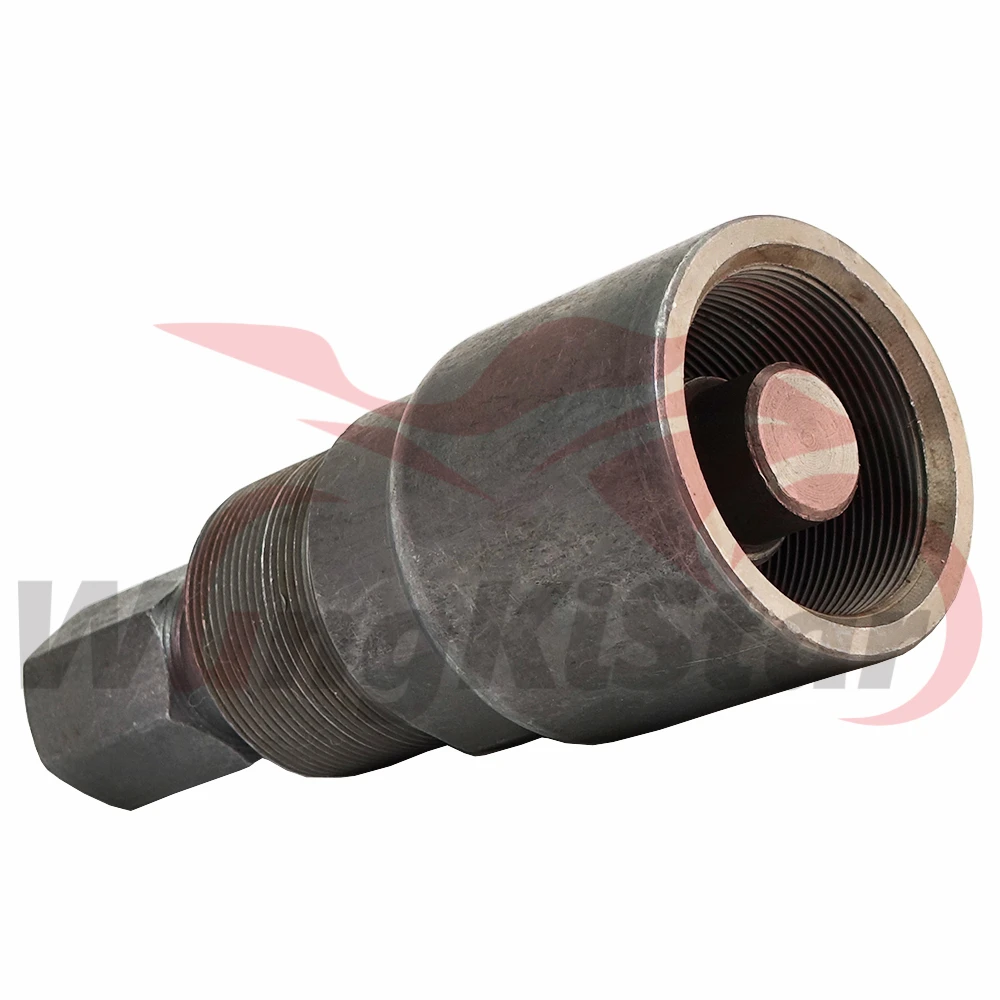

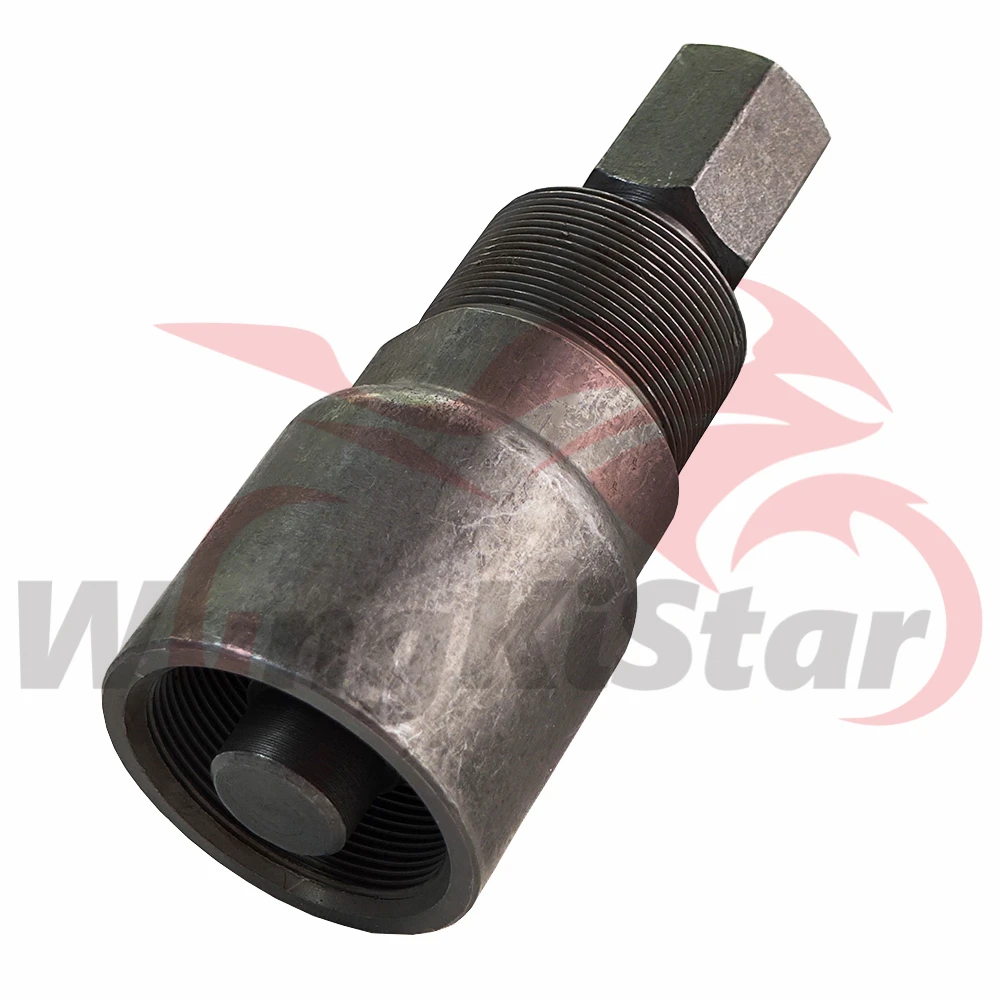

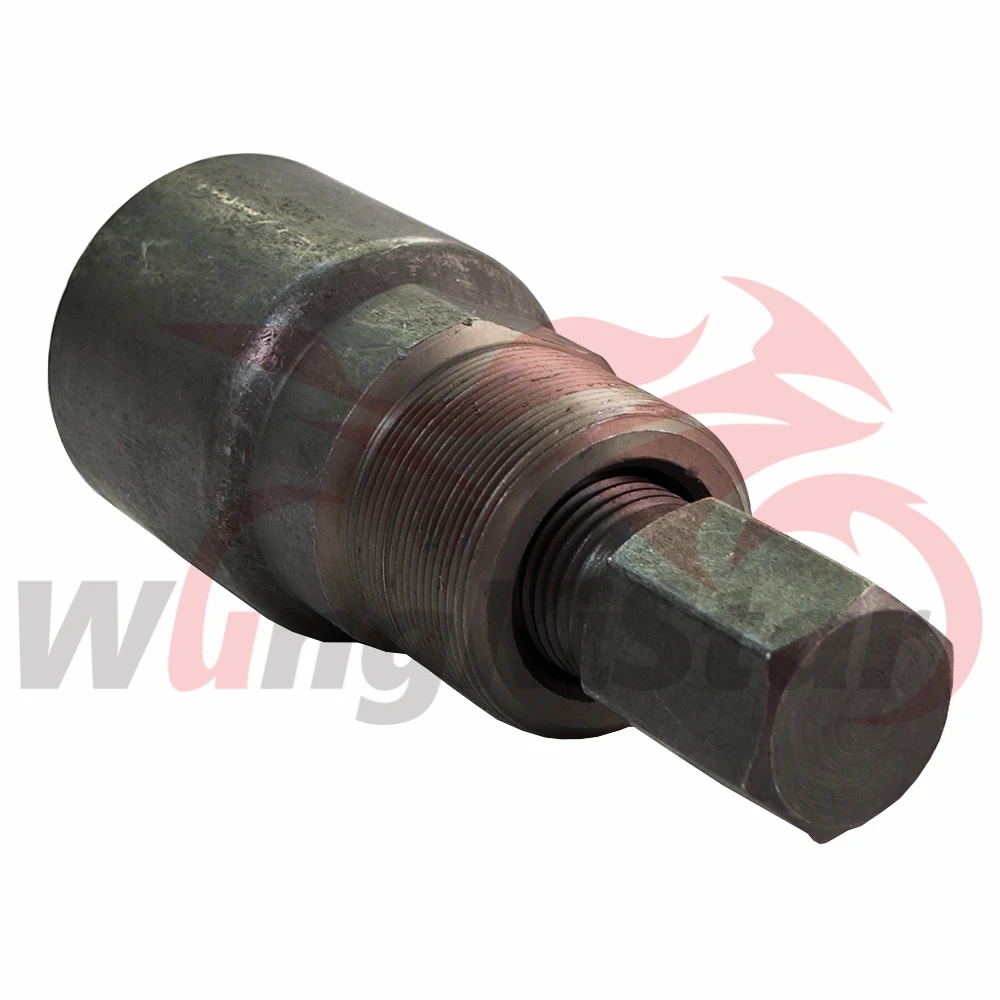

3 in one Motorcycle Flywheel Puller, 27mm x 1.0mm Left Hand Male threads, 28mm x 1.0mm Right Hand Female threads with 24mm well depth, The center bolt is 16mm x 1.5mm Right Hand Threads and can be used by itself on some applications, This puller is used on GY6 125cc & 150cc engines as well as countless Yamaha, Kawasaki, KTM, Suzuki & Honda models, PartsGalore # T4
Replaces these OEM Puller #s: Honda # 07933-KG20000, 070MC-HP1A100, 07933-2000000, 07933-0010000 & 07YMC-HN40100: Kawasaki # 57001-1471, 57001-252: KTM # 54629009044: Suzuki # 09930-30113: Yamaha # 90890-01080-00 & 2K7-85555-00-00 & YM-01189 and many others.
Condition: 100% Brand New
Color: grey
Material: metal
Item: Ignition Tool Flywheel Puller
Fit for WY125、CB125T、CG125、JH70、JH12GY6 CG25 JH70 SG50 50cc-150cc or other 50cc-150cc engine with got same sizes
Replaces For Honda tool 07933-0010000,
For Kawasaki tool 57001-252,
For KTM tool 54629009044,
For Suzuzki tool 09930-30113,
For Yamaha tool YM-01189
1 Pc Flywheel Puller with 2 Sizes of 24mm and 27mm:
- 24mm, Right Hand Thread, for most GY6 50 4 Stroke Scooter Moped ATV
- 27mm, Left Hand Thread, for most GY6 125 150cc Scooter or other 125cc Motorcycles

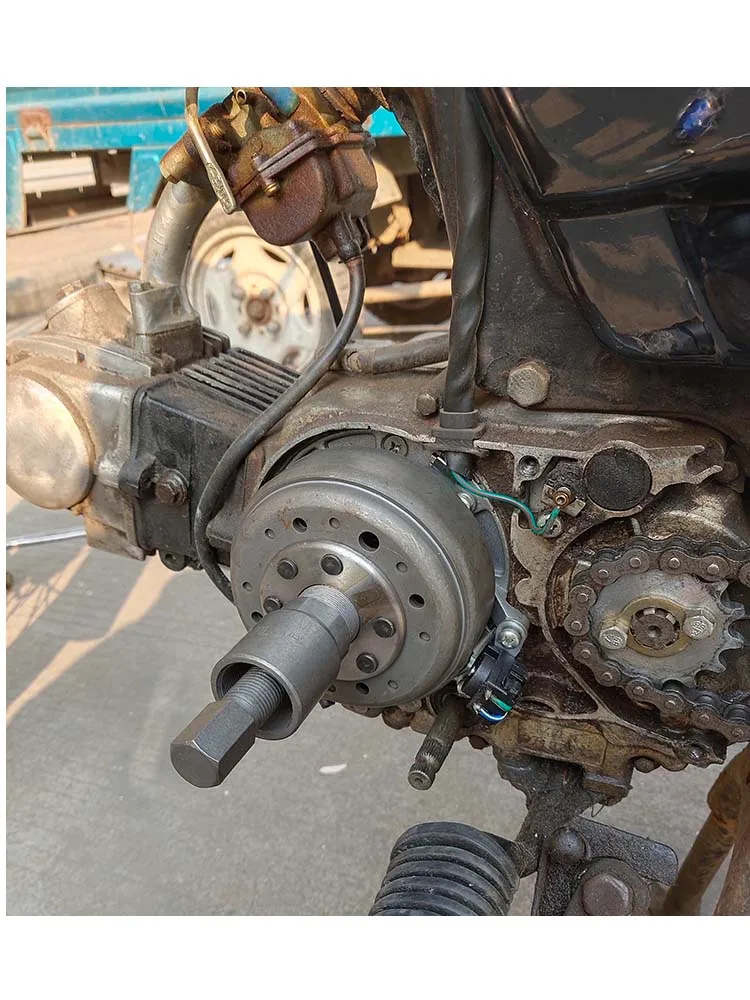

Used to remove Flywheel (magneto) from the crankshaft
Here is all for your need- Best Price and Quality for a 27/16mm Flywheel Puller for MAGNETO Stator Tool Rotor Puller for Honda CR125 CR250 for Kawasaki KX 125 250 for Suzuki RM for Yamaha YZ80
It can benefit you in purchasing options, You Should to:
You should select and acquire from reliable outlet.
Check features, color, size and other specifications of product that suit in your requirements.
The key steps are checking cost, condition of pre-order and value recommendations. The product are right and appropriate that you just demand.

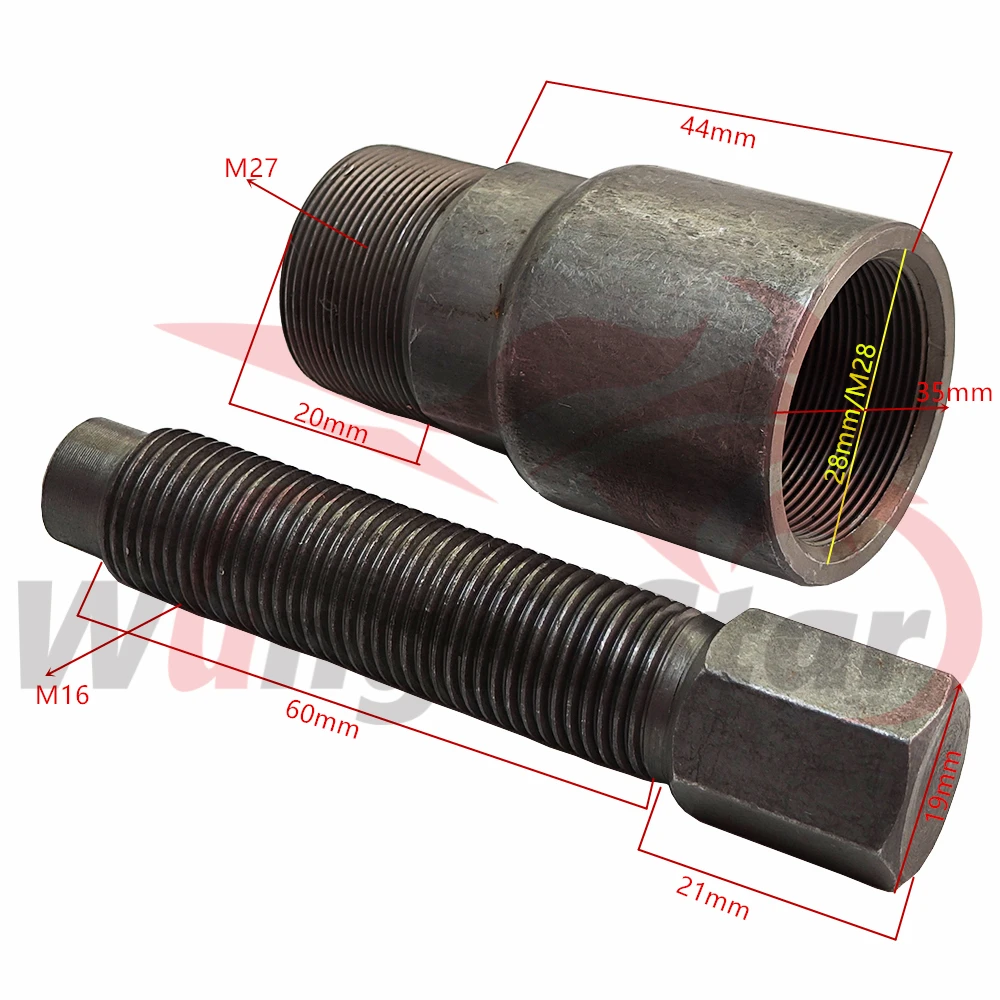

Specification
Thread Diameter: 27mm & 16mm
Type: Repair Tool
Fitment:
fits many M/X engines
for Honda CR125 CR250
for Kawasaki KX125 250
for Suzuki RM125 RM250
for Yamaha YZ80 125 250
Package Include:
1xFlywheel Puller
How to measure your thread size:
1) Male threads: Simply measure the diameter, 27mm is a 27mm thread.
2) Internal threads: Measure the diameter, fine thread add 1mm, coarse thread add 1.5mm. NOTE: This is not perfect but a good rule of thumb.
3) Pitch: As far as pullers go, fine thread is usually 1.0mm pitch and coarse thread is almost always 1.5mm pitch. The only practical way to measure pitch is with a thread pitch gauge.
