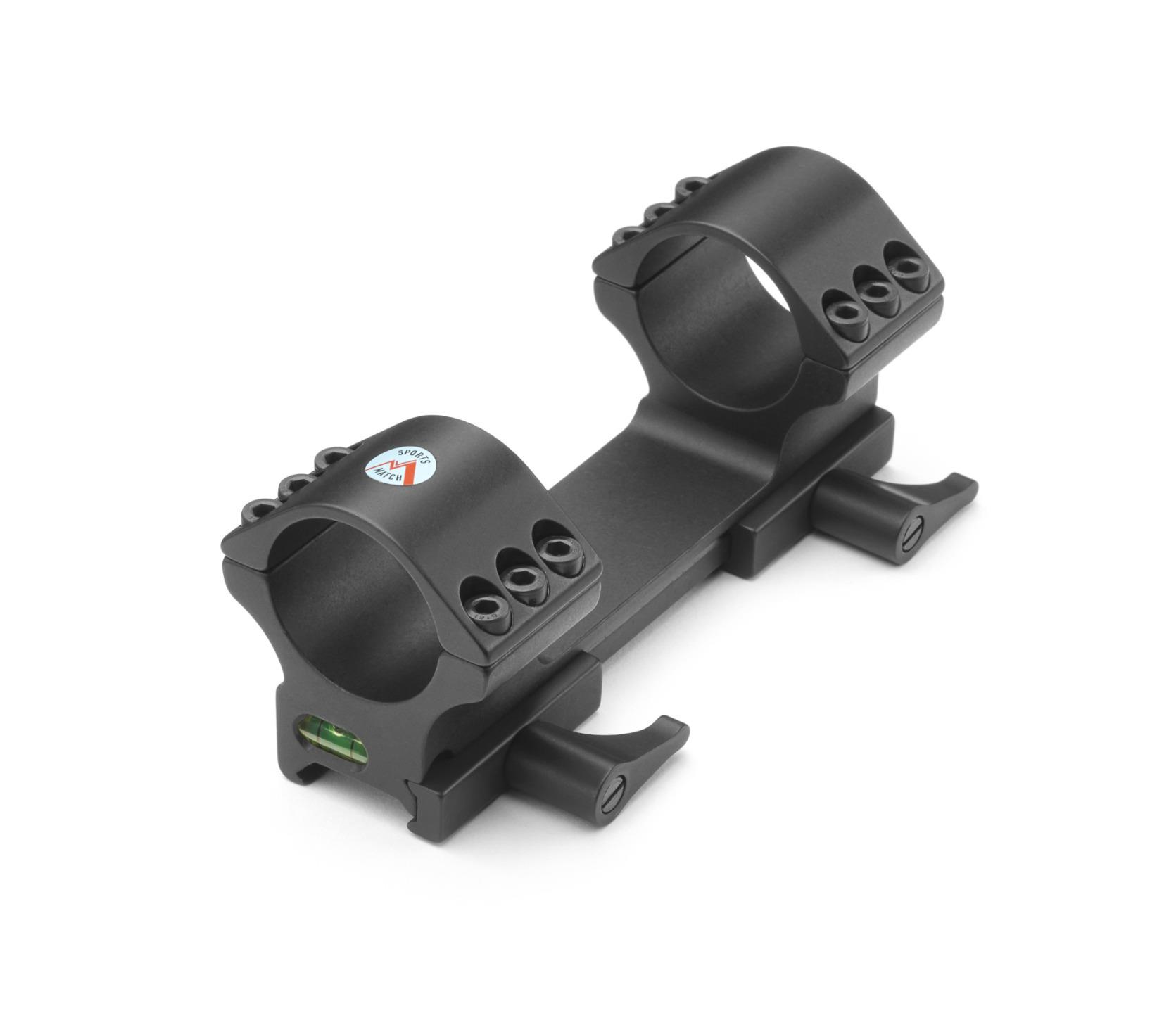

For 30mm diameter body tube scopes. For weaver/picatinny base rails

High tensile construction with a totally solid mechanism.

Quick Detach or permanent fixing to rail

Includes an integral bubble level

1 piece with triple screw tops and large screw on base. Ultra strong.

HIGH height profile - 21mm base to ring bottom height. For scopes with maximum OUTER lens case diameter 71mm

Includes square section hardened steel arrestor bolt.

Dimensions
A = 21mm
B = 120mm
C = 8mm
Weight = 202g



Calculating scope to rifle body clearance

The way you calculate the clearance is by halving the overall OUTSIDE diameter of your rifle scopes objective lens and then deducting half the rifle scopes body tube diameter.

For scopes with a 34mm diameter body tube this means deducting 15mm.

Note we say OUTSIDE diameter - this means NOT the lens diameter, you need to measure the whole outer casing diameter.

The result gives you the minimum "saddle" dimension required - the measure from base of mount to bottom of the ring - the 'A' dimension that is shown above.

The amount the saddle dimension is greater than the figure you have calculated is the amount of clearance your scopes objective will be clear of your rifles body.  The saddle on these mounts is 21mm

Worked Example -

1. A scope has an outer case measurement of 64mm.
2. 64 divided by 2 = 32
3. 32 minus 15 = 17mm
4. So the mount must have a saddle measure (base of mount to bottom of the ring) greater than 17mm or else it will ground out on the rifle body.

Keep in mind that flip up lens caps may add 2mm or so.

Calculating your rifle scopes clearance assumes that:

• Your dovetail or base is not raised above or below your rifles barrel
• Some rifles with grooved receivers such as some models of airgun and .22 rimfire will mean the scope sits lower
• A Weaver/Picatinny base often adds height to the base

Note some rifles with high or adjustable cheek pieces may require higher scope mounts or risers so that your eye is in line with the rifle scope and your head is kept in an upright comfortable position.

About Sportsmatch
Sportsmatch UK Ltd. was established some 45 years ago and has grown to be the market leader in the manufacture of quality rifle scope mounts and scope rings for all types of sporting, target and centrefire rifle shooting.

We are now known in over 40 countries for High Quality, British made scope mounts and accessories and have an excellent reputation. Our products are manufactured using the latest CNC machinery available but every component manufactured is inspected by hand prior to final assembly.

This ensures Sportsmatch Scope Mounts offer correct alignment and a rock solid dependable grip onto your rifle and scope which will Optimize your Accuracy.

The much acclaimed Sportsmatch range is available in many heights and diameters to suit virtually all rifle / scope combinations.

The Sportsmatch® difference:

• No Loss of Zero - Guaranteed
• High Tensile Construction
• Lifetime Guarantee
• Scope Rings for Centrefire, Rimfire & Air Rifle
• Proudly made in Great Britain

Users of Sportsmatch scope rings include military special forces, professional vermin controllers and competition shooters competing at the highest level. The thing they all have in common is that they all choose Sportsmatch rings and shoot more confidently knowing that their rifle and scope combination is Optimized for Accuracy.
