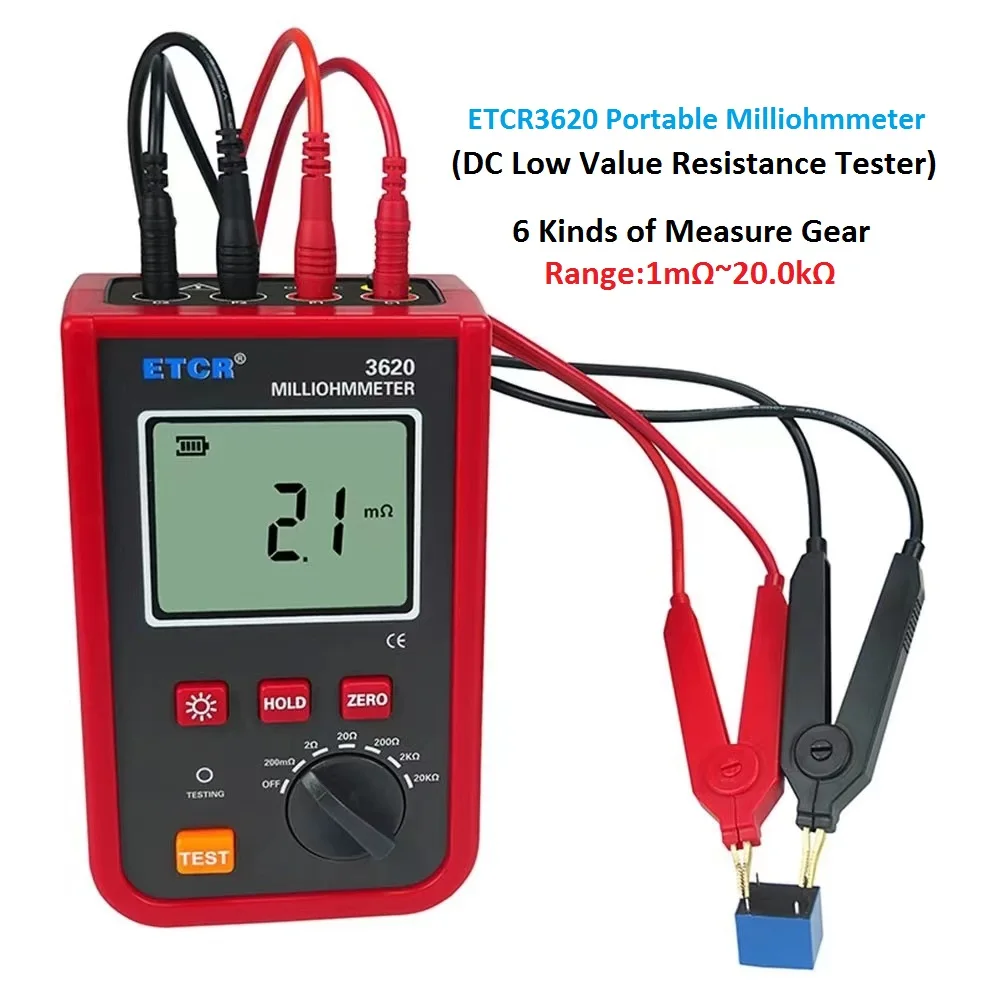

ETCR3640 Portable digital micrometer High precision lithium battery DC low resistance tester Milliohm meter ETCR3620 milliohm meter
| Gear |
Accuracy |
Resolution |
Test Current |
| 200mΩ |
±0.1%FS±15dgt |
0.1mΩ |
≤1.2A |
| 2Ω |
1mΩ |
≤510mA |
|
| 20Ω |
0.01Ω |
≤210mA |
|
| 200Ω |
0.1Ω |
≤210mA |
|
| 2kΩ |
1Ω |
≤21mA |
|
| 20kΩ |
10Ω |
≤2.1mA |
Specification:
| Function |
Description |
| Power Supply |
DC 7.4V 2000mAH rechargeable lithium battery |
| Range |
1mΩ~20.0kΩ |
| Detection Mode |
Precision 4-wire method, AC/DC 2 channel simultaneous detection |
| Data Storage |
200 groups (power down or replace the battery will not lose the data) |
| Test Wire |
2 sets: Red/Black each 1 set, length 0.8m |
| Backlight Function |
Yes, suitable to the dim place |
| Inspection Function |
Yes |
| Display Mode |
Display area: 58.5mm×46mm |
| Low Voltage Indicator |
When the low battery voltage symbol is displayed, remind to replace the battery |
| Host Size |
159mm×100mm×66mm |
| Weight |
Meter: about 460g; Total weight: about 640g( include accessories) |
| Working Temperature |
-10℃~40℃ , below 80%rh |
| Store Temperature |
-10℃~60℃ , below 70%rh |
| Withstand Voltage |
AC 3700V/rms(between housing and screws) |

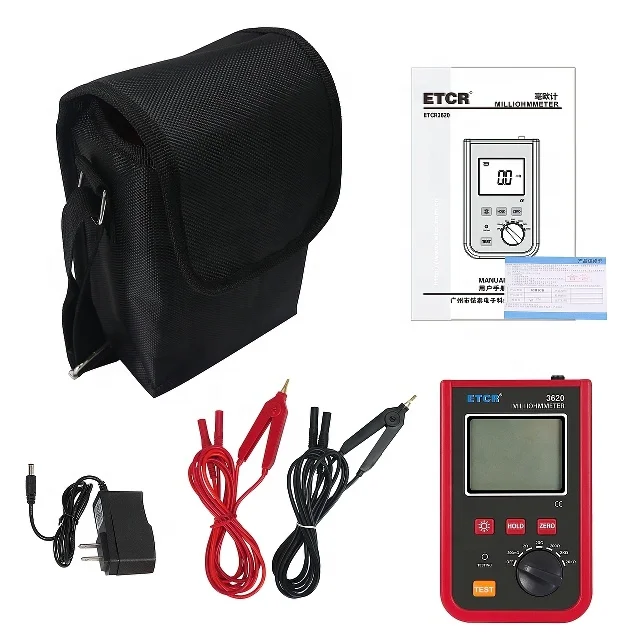

| Accessories |
Meter: 1PCS; Test wires: 1 set; Cloth Bag: 1PCS; Charger :1PCS |

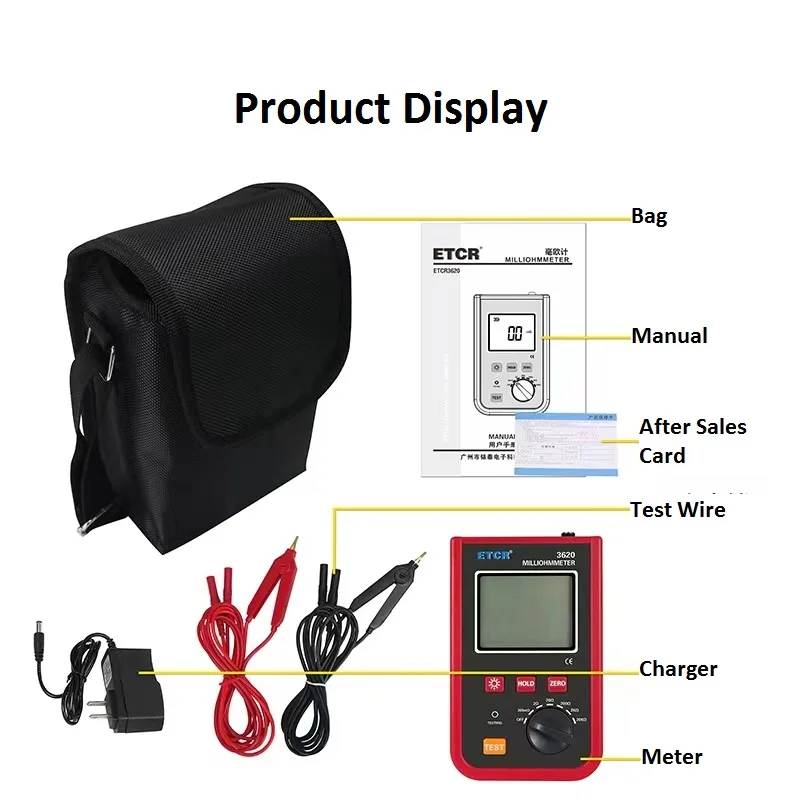

Product Display:
