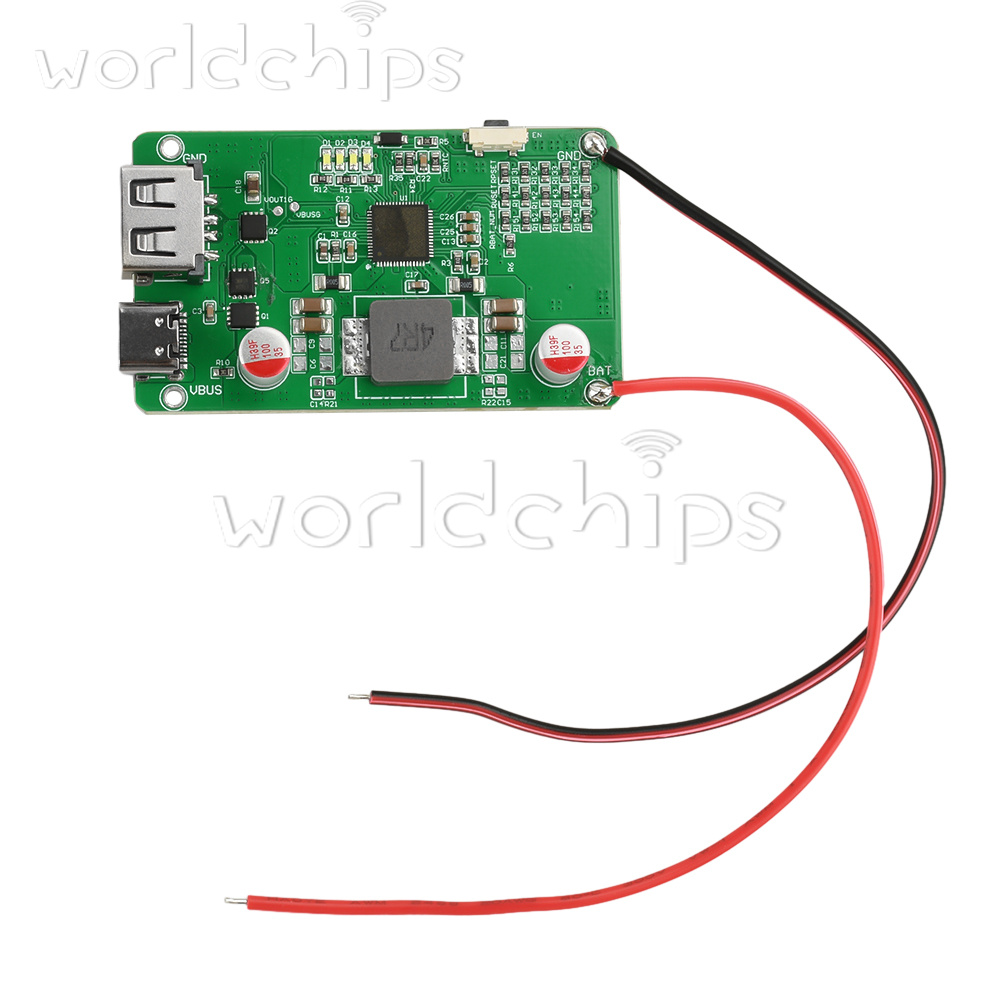

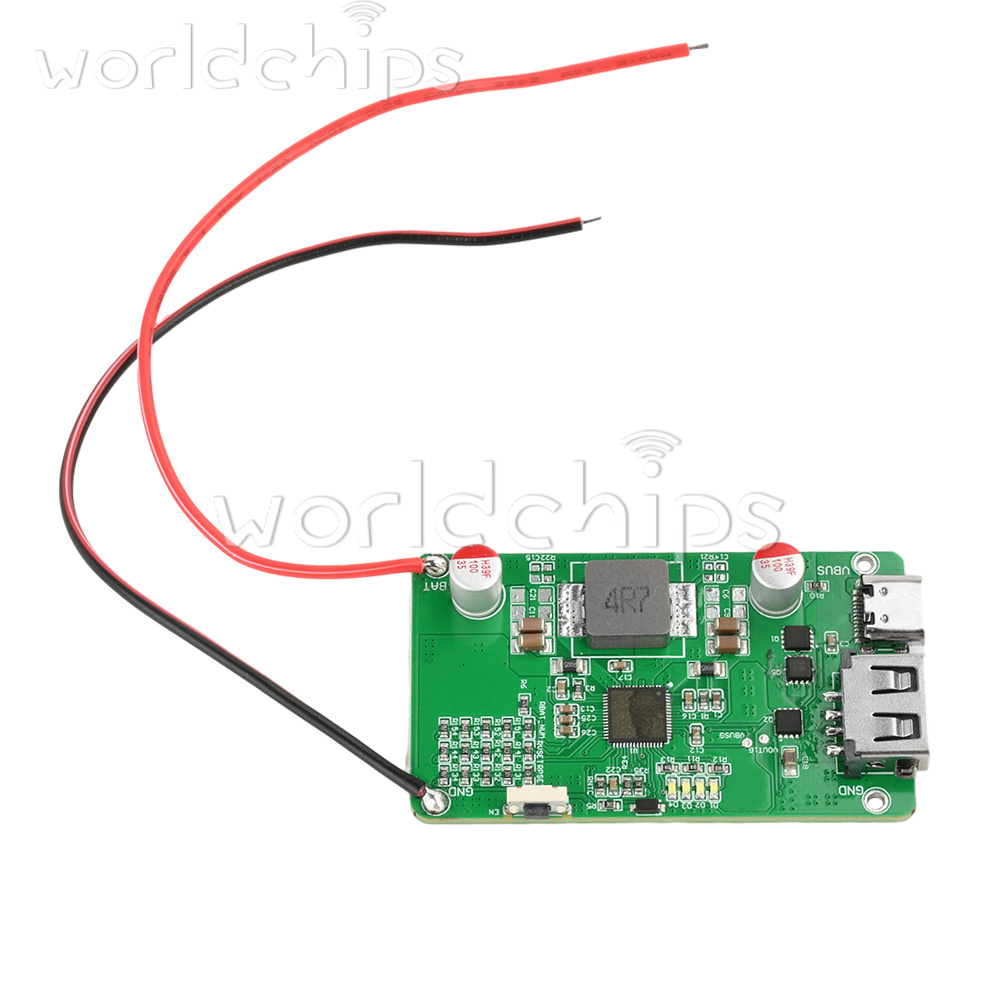

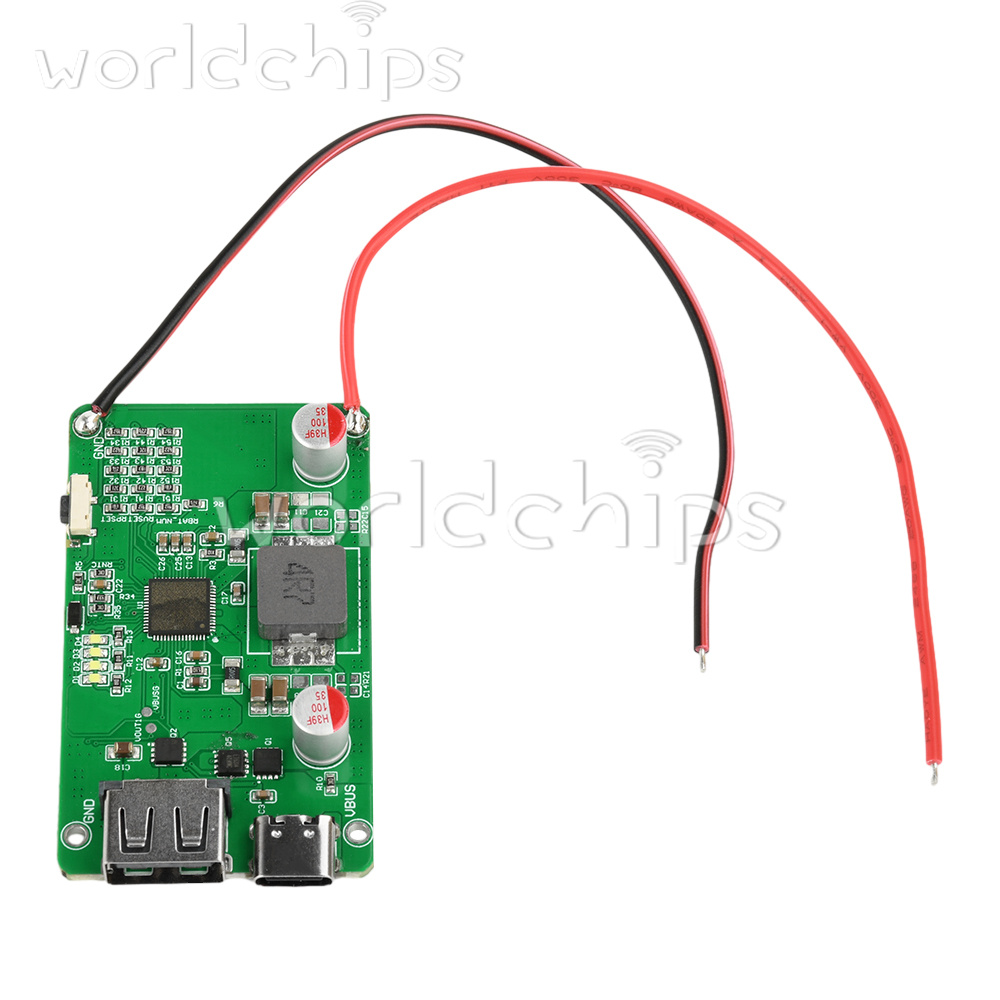

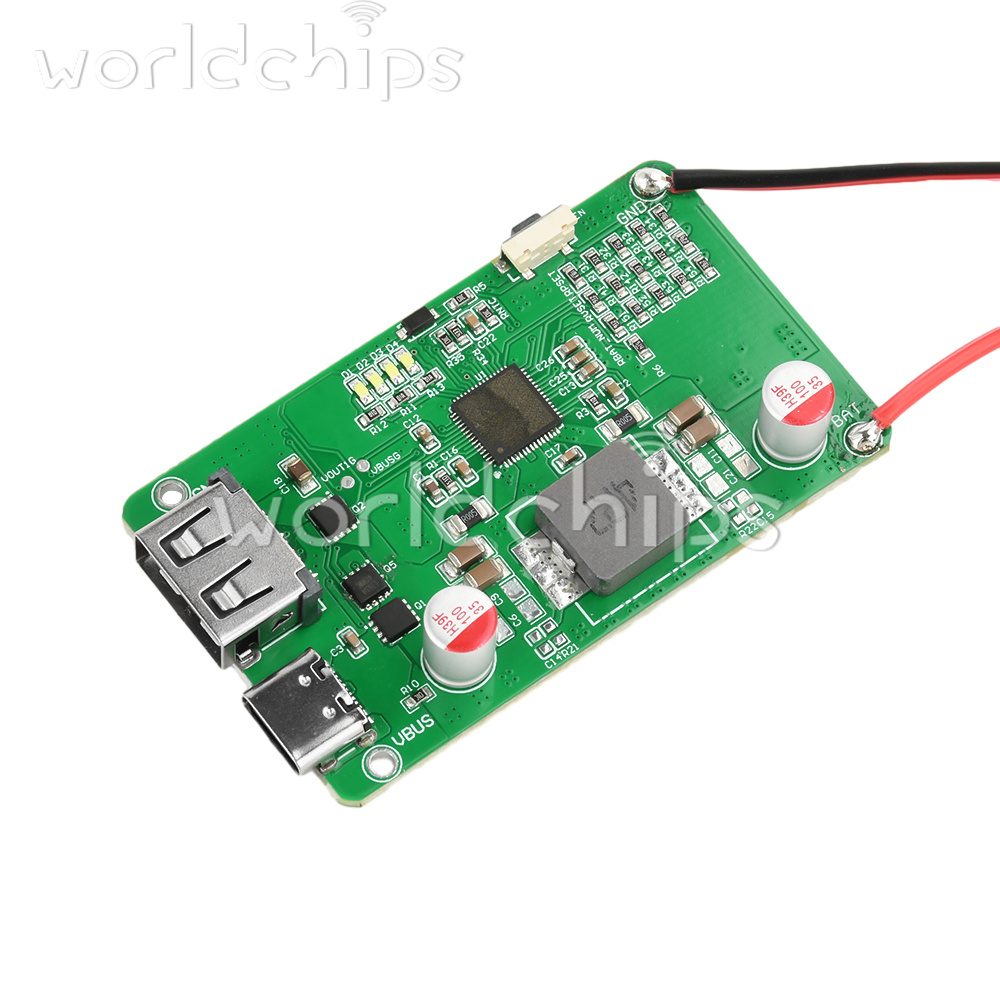

Features:

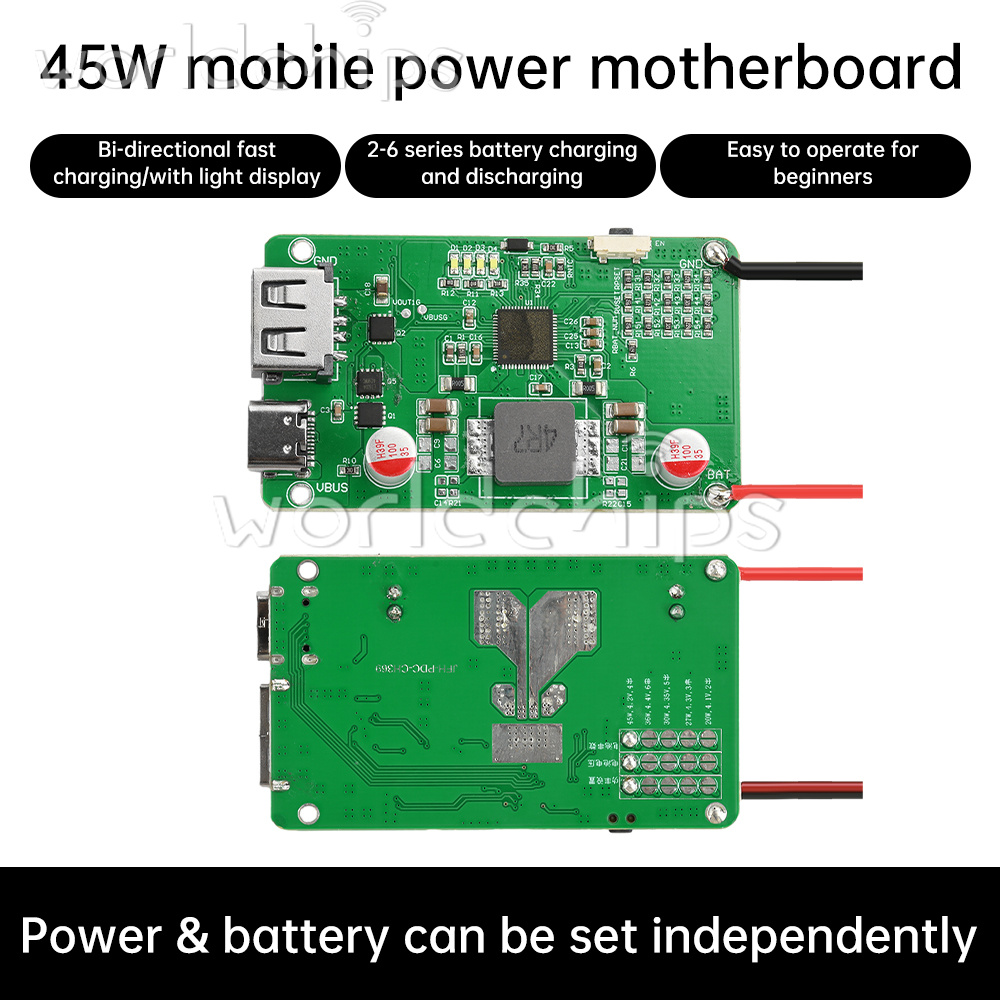

1.45W two-way fast charging: support PD/QC full protocol, charging and discharging are efficient and fast, saving time.

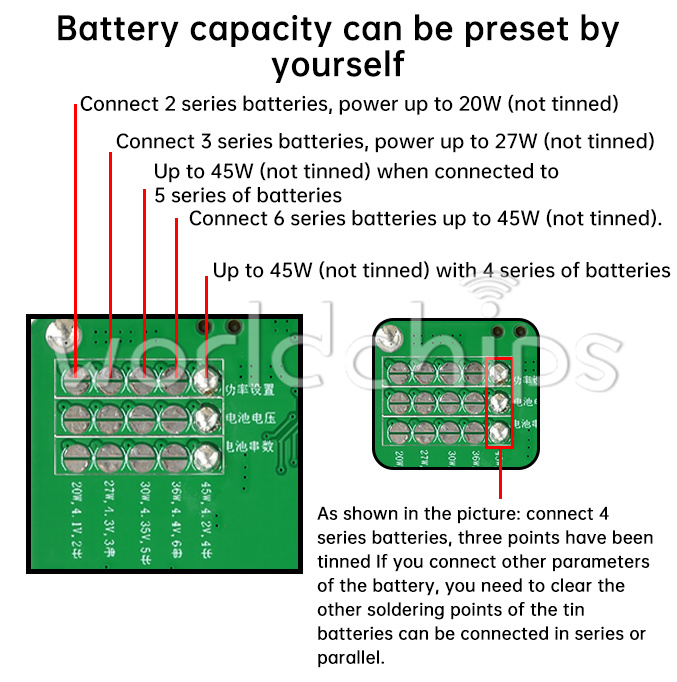

2.Wide compatibility: suitable for 2-6S lithium batteries, flexible to meet the needs of a variety of DIY charging treasure
3.Multiple safety protection: Built-in overcharge, over-discharge, short circuit protection, to ensure safe and reliable use.
4.Efficient energy management: Intelligent regulation of output and input, enhance battery life, energy saving and environmental protection.
5.DIY friendly design: modular structure, easy to assemble, suitable for DIY enthusiasts to customize the charging treasure

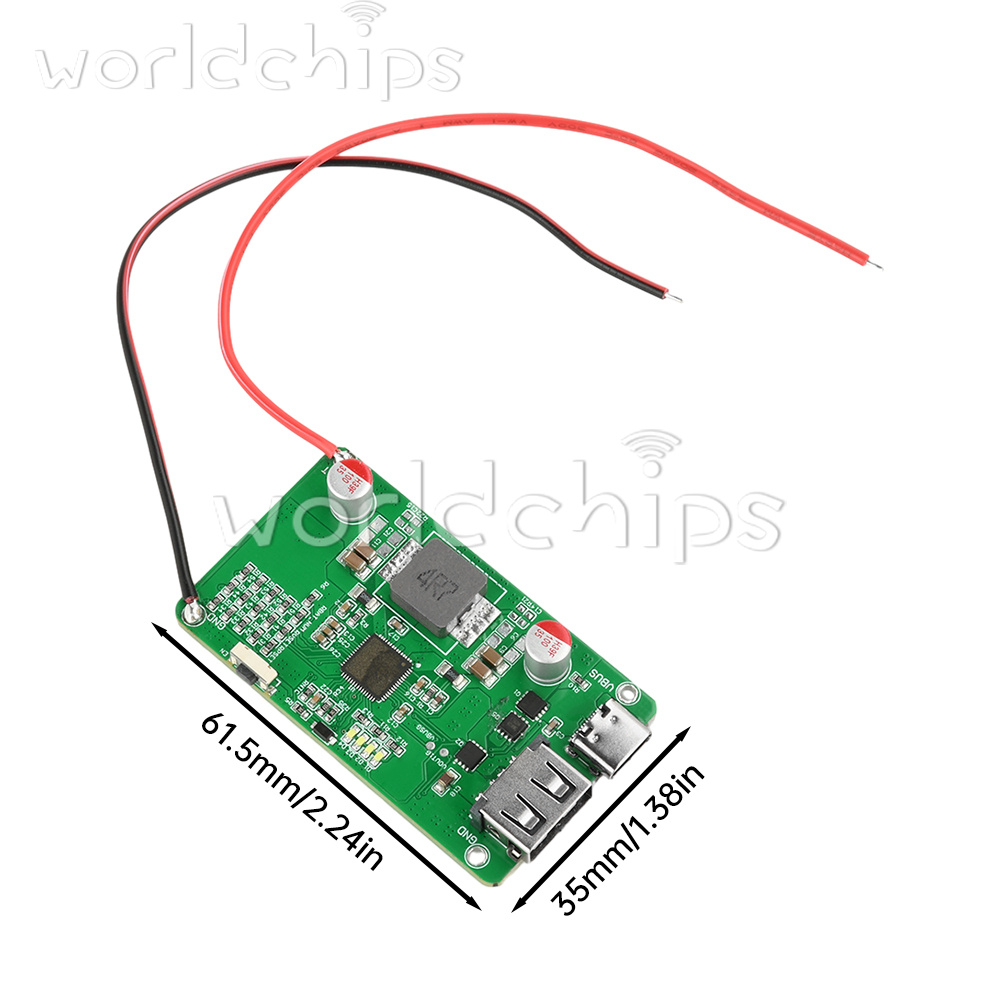

Parameter:

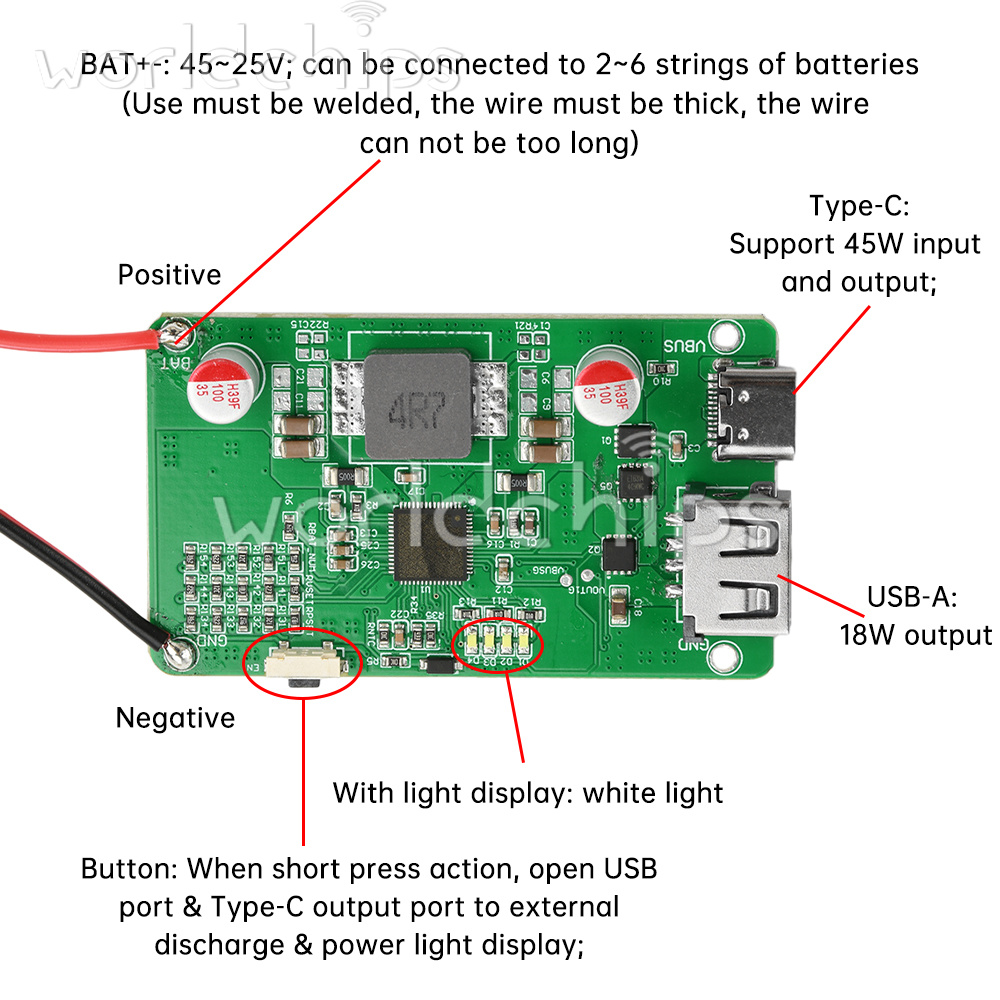

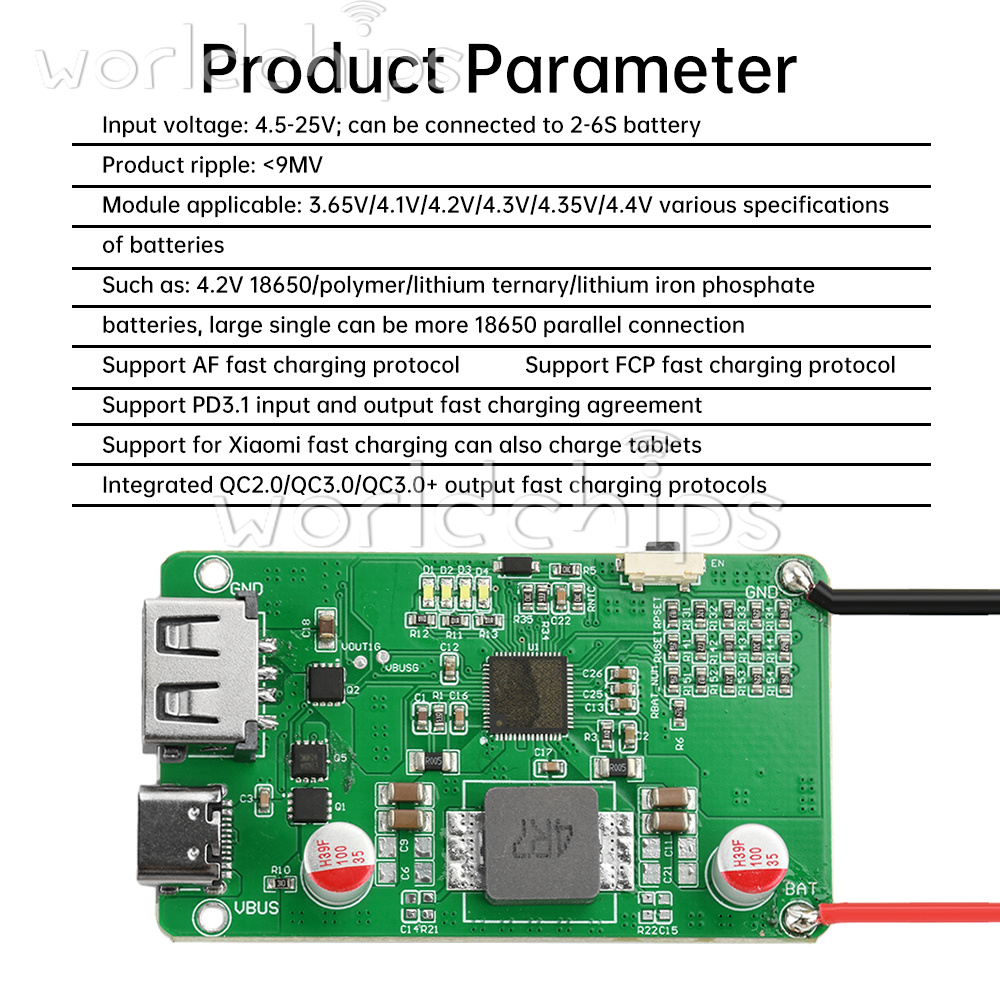

Input voltage: 4.5-25V; can be connected to 2-6S batteries
Product ripple: <9MV
Module applicable: 3.65V/4.1V/4.2V/4.3V/4.35V/4.4V various specifications of the battery
Such as: 4.2V 18650/polymer/lithium ternary lithium battery/lithium iron phosphate, large monomer can be connected in parallel with multiple 18650s.

Support AFC fast charging protocol
Support FCP fast charging protocol
Support PD3.1 input and output fast charging agreement
Support millet fast charging can also be used to charge tablets
Integrated QC2.0/QC3.0/QC3.0+ output fast charging protocols

Use matters:
1. The motherboard received first connected to the charging head test, look at the display status, to confirm that there is a display and then assembled due to the lack of batteries, the display brightness will change is normal!
2. Normal application of the battery must be welded (wire twisting will be insufficient power supply) battery reverse motherboard must burn dry million attention. Wire as thick and short as possible. If the charging voltage immediately rise or discharge voltage immediately drop, that wiring problems or battery performance is not enough!
3. If you find that can not be full or can not be discharged, this and the wiring of the battery internal resistance protection board have a relationship, check the wiring, and whether the voltage of each battery is the same, to ensure that the battery is good, if the battery is connected to the battery on a full charge, plug in the phone can not be discharged most of the battery aging scrapped!
4. connected to the battery found not working or not output check the battery voltage is used within the range, the battery string number has not been set to the right, the battery type is right. The board must be burned reverse burn IC will have traces, only the reverse connection will appear in this case!

Package include:
Two-way fast charging module * 1
