***MADE TO ORDER***

THE HANDLING TIME ON ALL SANDERSON HEADERS IS 15 DAYS.  WE HAVE SET THE HANDLING TIME SO HIGH ON THE SANDERSON HEADERS BECAUSE SOME WILL TAKE LONGER THAN OTHERS TO FABRICATE,  ALTHOUGH IN SOME CASES THE HANDLING TIME  COULD BE MUCH SHORTER.

This is a new set of Plain Steel Sanderson Exhaust Headers for Ford Cleveland (351C), 351W/400 engines found in 1969-73 Ford Mustangs and many other cars and trucks.

The FC4 is a very compact design that enables Cleveland engine swaps into a variety of street rods, classic trucks and customs---while also fitting many 351C factory-equipped Ford cars and trucks. Comes with all the hardware necessary for installation.

Also included in this listing are the 2-BBL Flange Adapters that are used to allow two barrel Ford Cleveland 351C and Ford 351M-400 cylinder heads to work with headers manufactured with a flange for four barrel cylinder heads.


INSTALL NOTES:

  • The FC4 header features flanges for four barrel cylinder heads. If you are using two barrel cylinder heads you must also use our copper adapter plates that are included in this listing.


SPECIFICATIONS:

Engine : Ford Cleveland/Midland (351C/M-400M)
Primary Tube Diameter : 1-7/8"
Collector Diameter : 3"
Weight : 18 LBS / 8.16 KGS

FEATURES:

  • 16-Gauge Primary and Collector Tube Thickness
  • 3/8" Thick Flange
  • Patented Flange Design Requires NO Gaskets
  • Tightest Fitting Header Available Anywhere!
  • Made in the USA

INCLUDES:

  • Header Bolt Set
  • Angle Collector Reducer Set



NOTES:

  1. The Patented Leak-Free Design that Sanderson Headers offer you is the only leak-free flange design on the market ... Do Not Attempt To Use Flange Gaskets! The raised flange on the Sanderson Headers will buckle the gasket during tightening and actually cause a leak!
  2. Sanderson Headers are NOT emissions legal on pollution-controlled motor vehicles. It is the purchaser's responsibility to verify local regulations for compliance.
  3. Wrapping your Sanderson Headers with ANY thermal tape voids your header warranty. The best thermal protection for your headers is our Aluminized Ceramic Coating that is available for every Sanderson Header.

WARRANTY:

Limited 5-Year Warranty

DIMENSIONS:

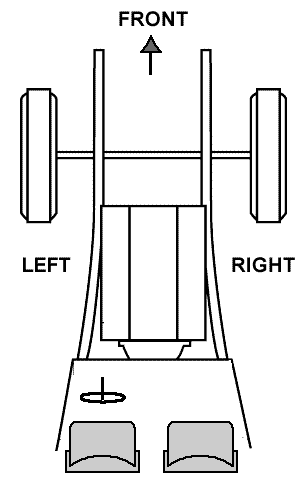

When sitting in driver's seat and engine in front of you, the LEFT header would be the Driver's Side on LH drive vehicles; coincidently, means the RIGHT header is on the passenger side. See the detail image that describes engine sides.

Please Note: It could take up to 10-14 business days for delivery of item.
