Product Description
Description:

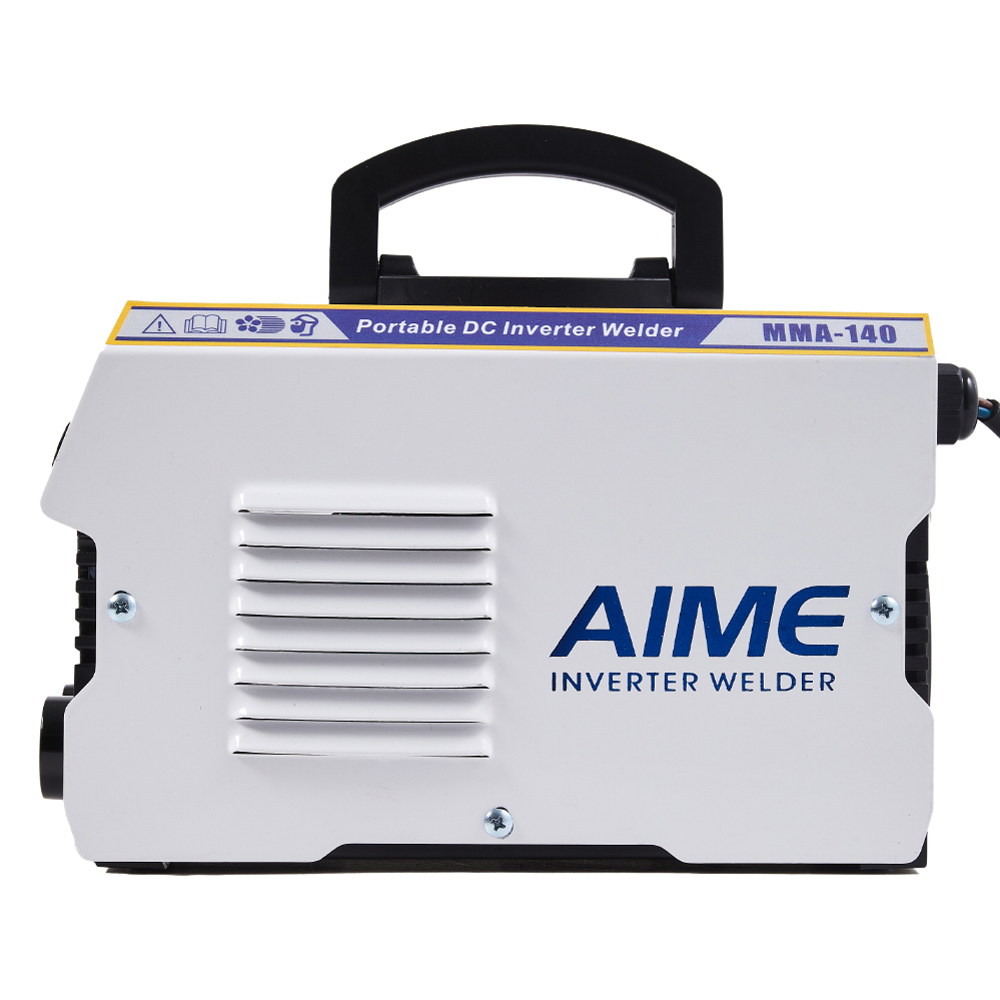

This portable inverter welding machine is designed for users who require mobility, offering both efficiency and stability. It features advanced IGBT inverter technology, delivering up to 5.5KVA of power to ensure high-quality welding. Closed-loop feedback control stabilises voltage, ensuring uniform material melting and smooth weld seams. With precise adjustments for current, arc force, and hot start, it caters to various welding needs, allowing both beginners and professionals to achieve high-quality welds with ease. The earth clamp ensures a stable connection, while the clamp-style electrode holder allows for convenient electrode replacement. Additionally, its lightweight design makes it easy to carry and suitable for various tasks.
Features:
• The welding current can be continuously adjusted between 20A and 140A, meeting various welding requirements.

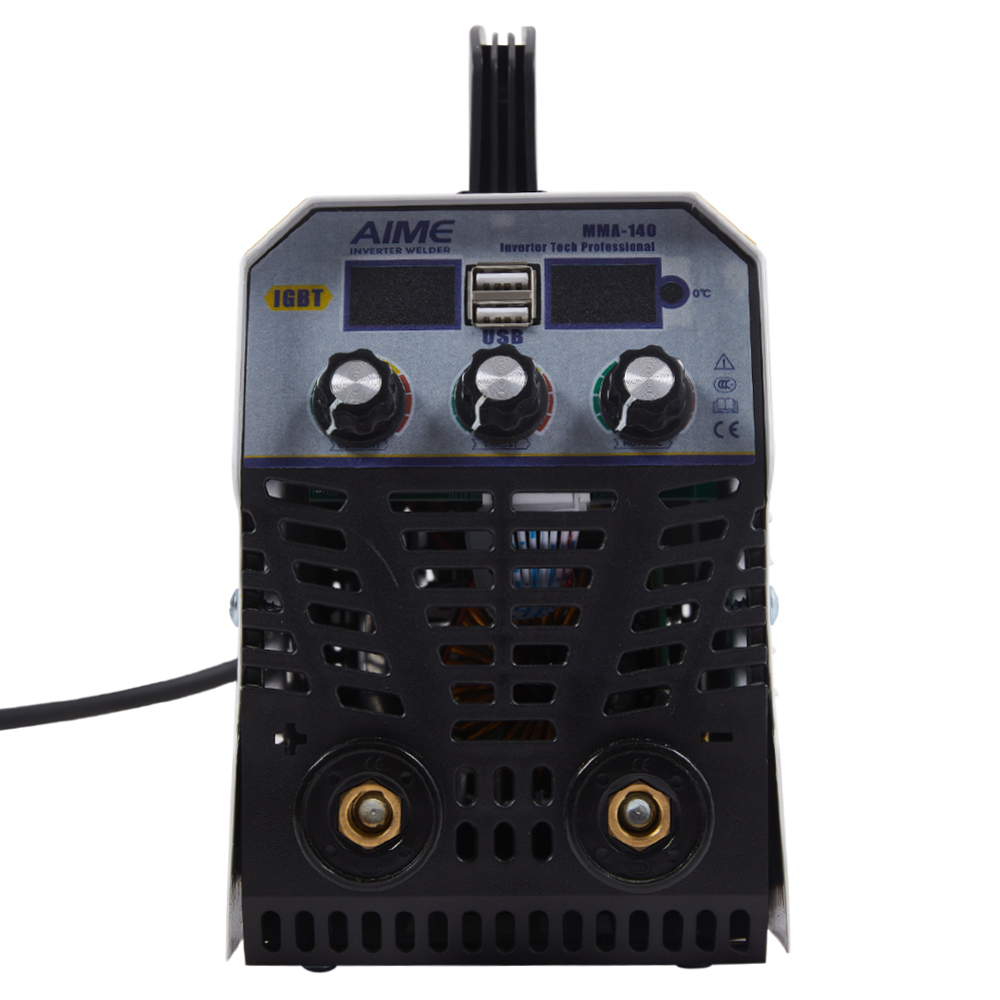

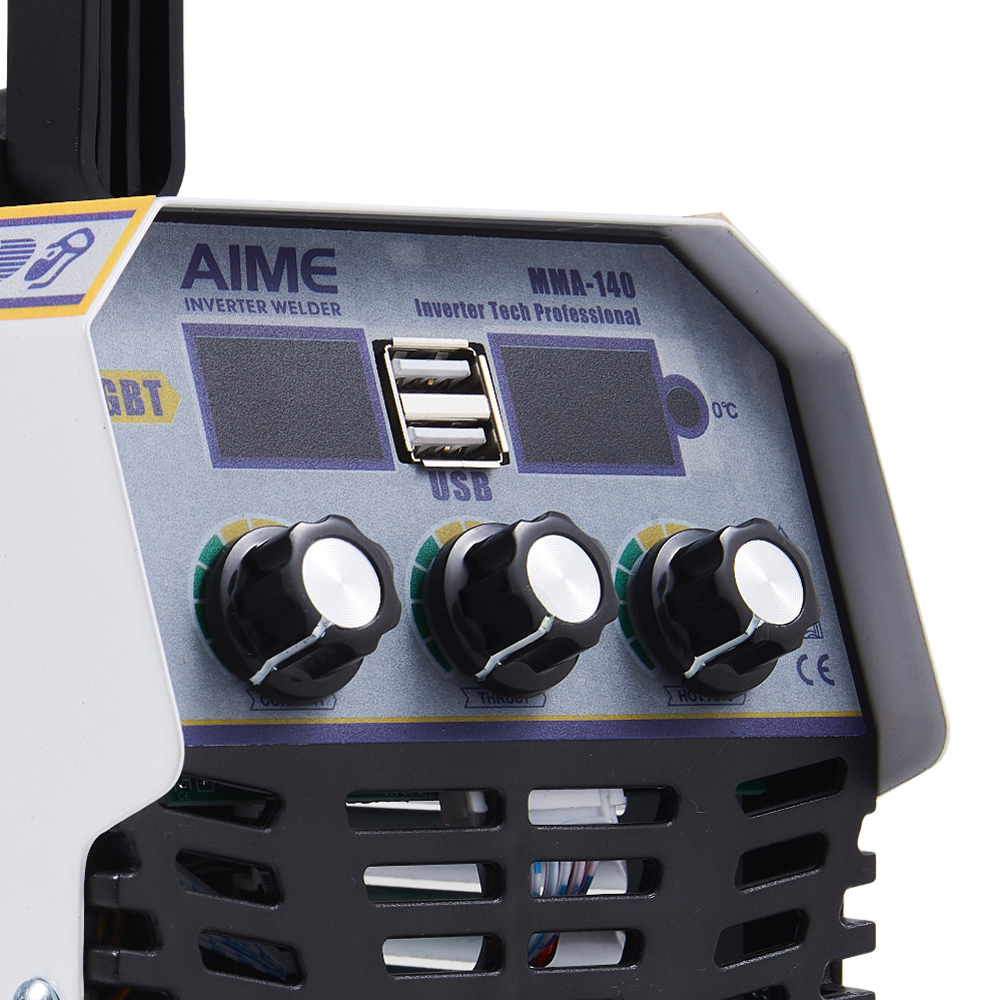

• Two digital displays show real-time current and arc force, ensuring optimal welding parameters.
• Overload protection safeguards internal circuits, ensuring long-lasting performance.

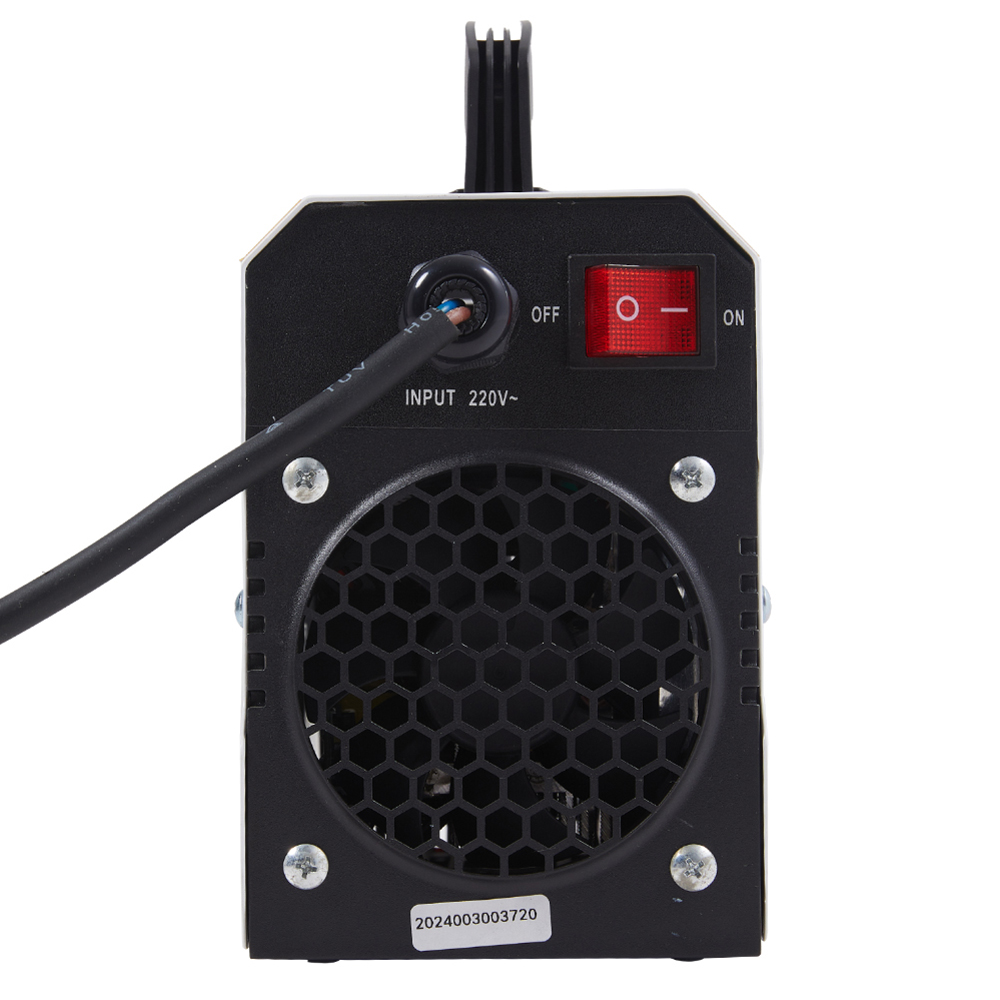

• The louvred cooling vent quickly expels hot air, ensuring stable operation over extended periods.
• The protective face shield effectively protects the eyes and face, while the hammer brush makes it easy to clean welding residue.
Specifications:

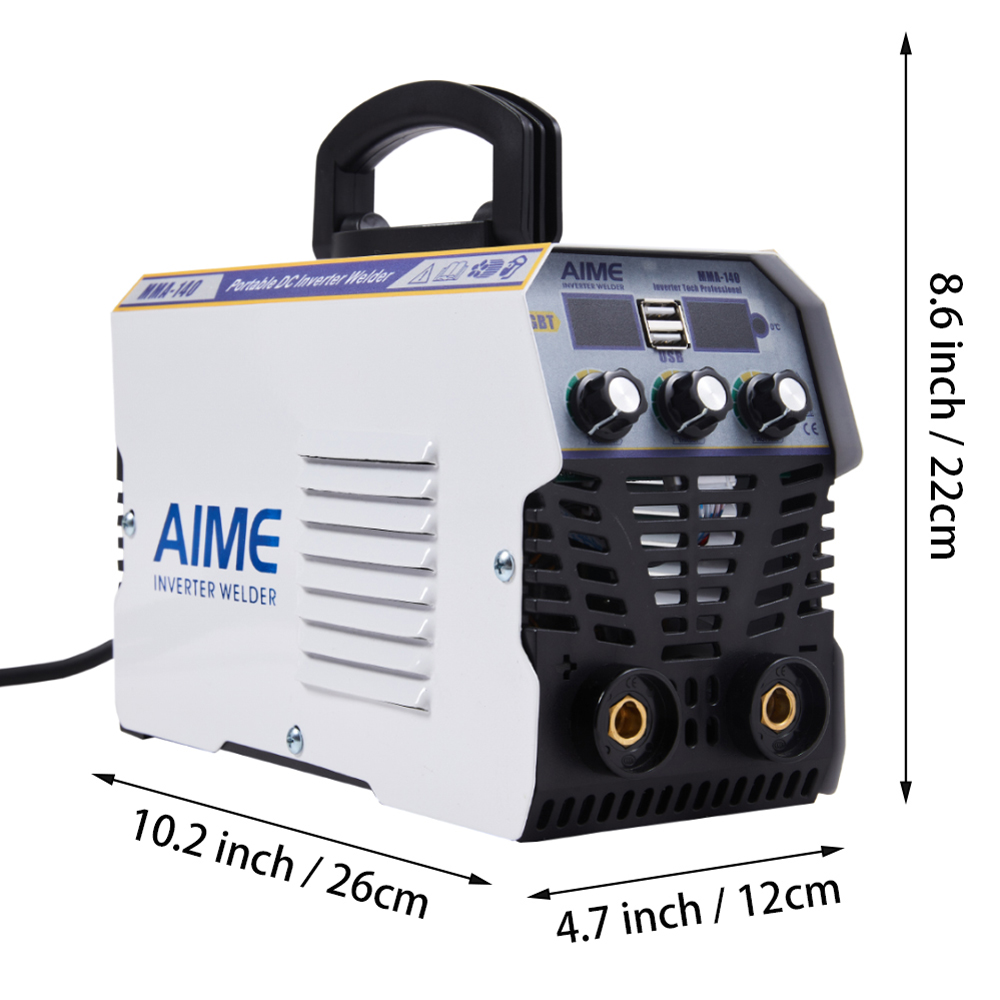

Overall Dimensions: 12cm(W) x 26cm(D) x 22cm(H)
Electrode Holder Wire Length: 180cm
Earth Clamp Wire Length: 120cm
Product Type: Welder
Mode: MMA(ARC)140
Shell Material: Iron
Colour: As Shown In The Picture
Power Voltage: AC 220V
Frequency: 50/60Hz
Power: 3700W
Rated Input Power Capacity: 5.5KVA
No-load Voltage: 60V
Output Current: 20-140A
Rated Output Voltage: 25.6V
Duty Cycle: 40%
No-load Loss: 40W
Efficiency: 0.85%
Power Factor: 0.76
Insulation Grade: F
Housing Protection Grade: IP21
Welding Electrode Included: No
Support Welding Electrode Type: 0.8-3.2mm(Diameter)
Applicable to: Iron
Adjustable Type: Knob
Number of Digital Displays: 2
Number of USB Ports: 2
Power Source: Plug-in(UK Adaptor)
Mainly Used: In Industry

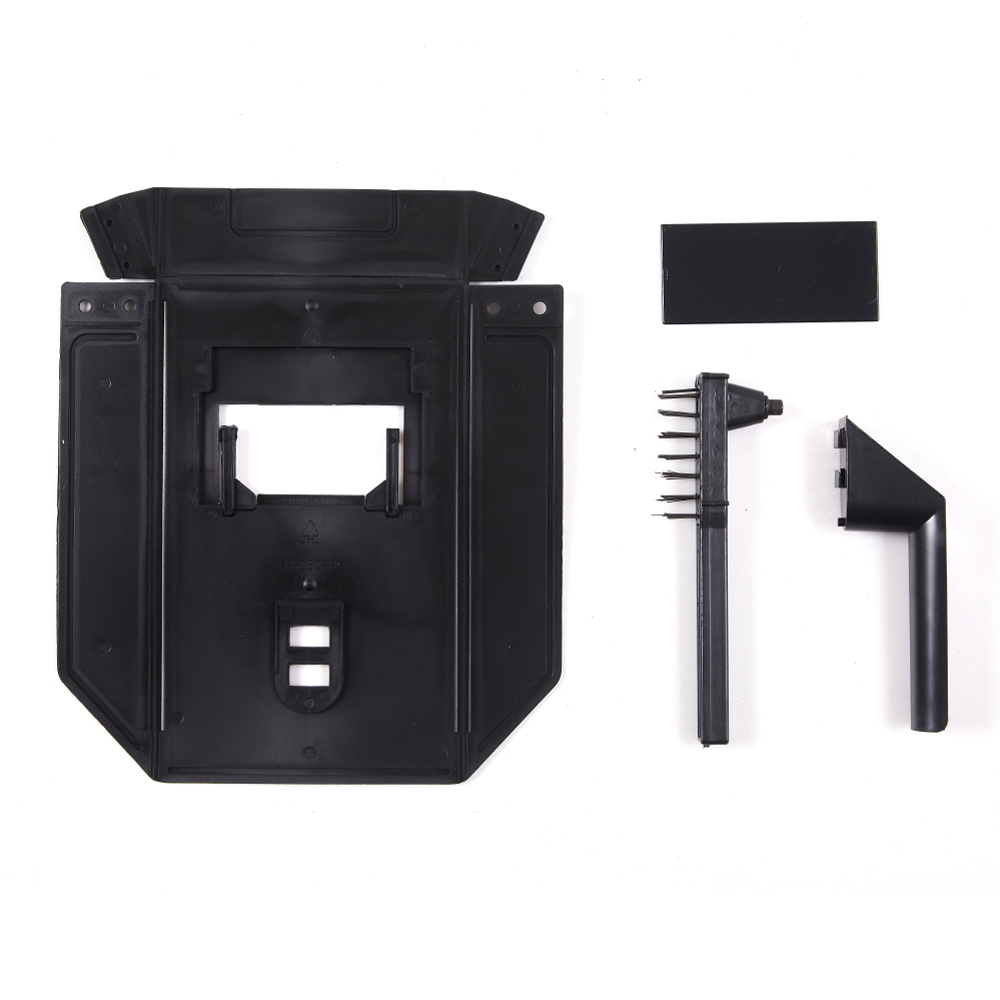

Package Content:
1 x Welder
1 x Electrode Holder
1 x Earth Clamp
1 x Protection Mask
1 x Mini Hammer with Brush
1 x User Manual
Package Specifications:
Package Dimensions(W x D x H): 34cm X 26cm X 17.5cm
Gross Weight: 3.2kg
Notes:
- PLEASE READ ALL THE INSTRUCTIONS CAREFULLY BEFORE USE, and retain them for future reference.
- WARNING: Ensure that non-professionals, children, and individuals with limited mobility stay away from the welding machine and the work area to prevent accidental injuries caused by high temperatures, welding sparks, or improper operation.
- There is a risk of injury during welding or cutting, so please ensure proper protection while operating.
- Welding sparks may cause fires, so make sure there are no flammable materials around the welding area.
- The arc light is harmful to the eyes and skin, so wear appropriate protective masks, filters, and protective clothing to safeguard your eyes and body.
- The noise generated during welding can be harmful to hearing, so earplugs or other hearing protection equipment should be used.
- Despite efforts for accuracy, there may be some reasonable error due to manual measurement.
- Actual product colours may vary due to monitor settings & lightings.
