Overview

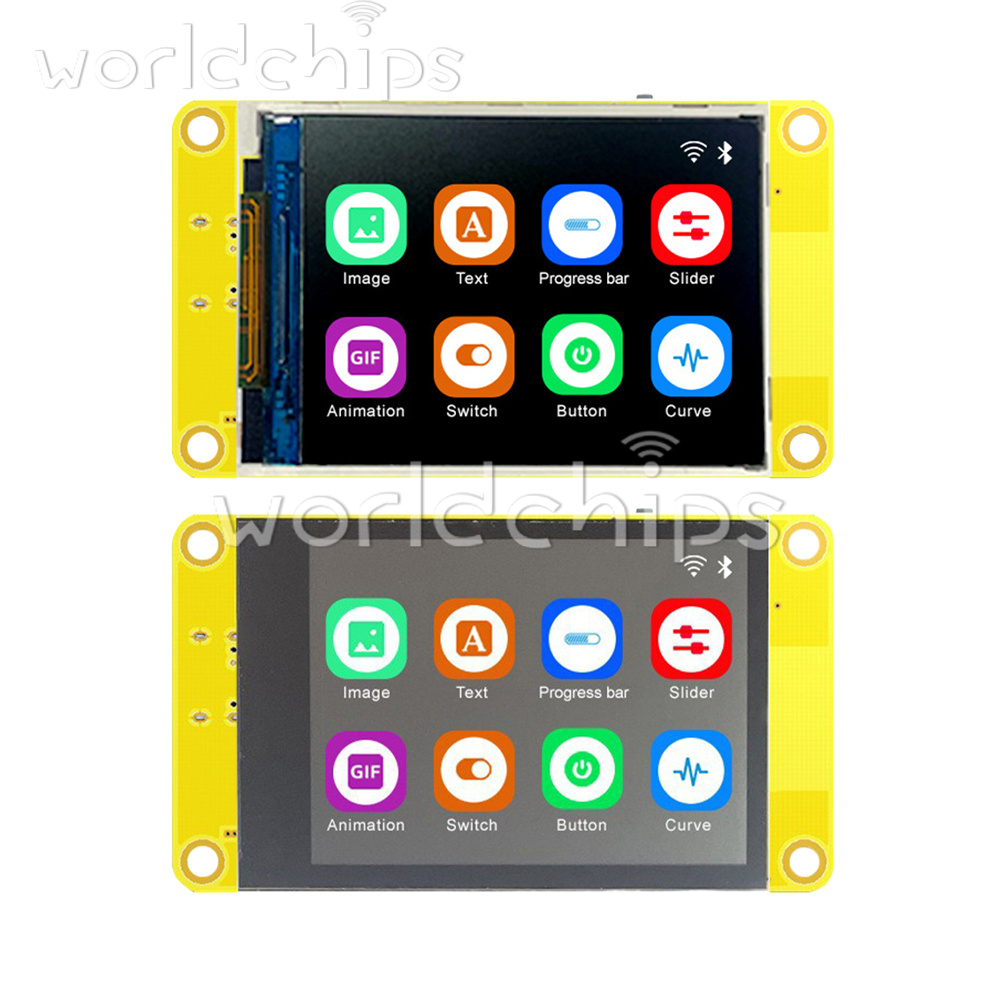

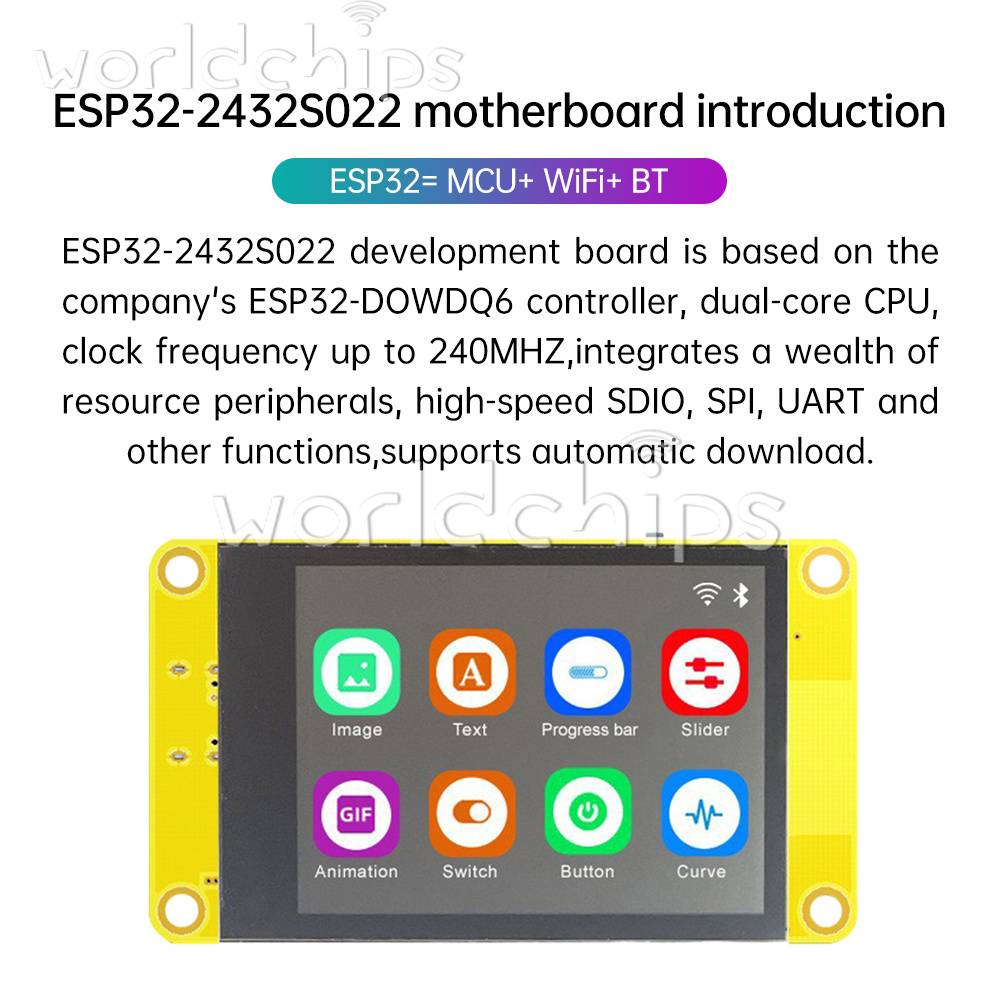

ESP32 development board built-in 2.2-inch screen, ESP32 = MCU + WiFi + Bluetooth, this development board is based on the ESP32-D0WDQ6 controller, dual-core CPU, clock frequency of up to 240MHZ, integrated with a wealth of resources peripherals, high-speed SDIO, SPI, UART and other functions, support for automatic download.
Remote IoT development board, ESP32 development board, give full play to the development advantages of IoT, is a real IoT development tool with controllable display, can be used for APP remote control, remote environmental data collection, remote data fusion, remote parameter setting and many other IoT development applications.

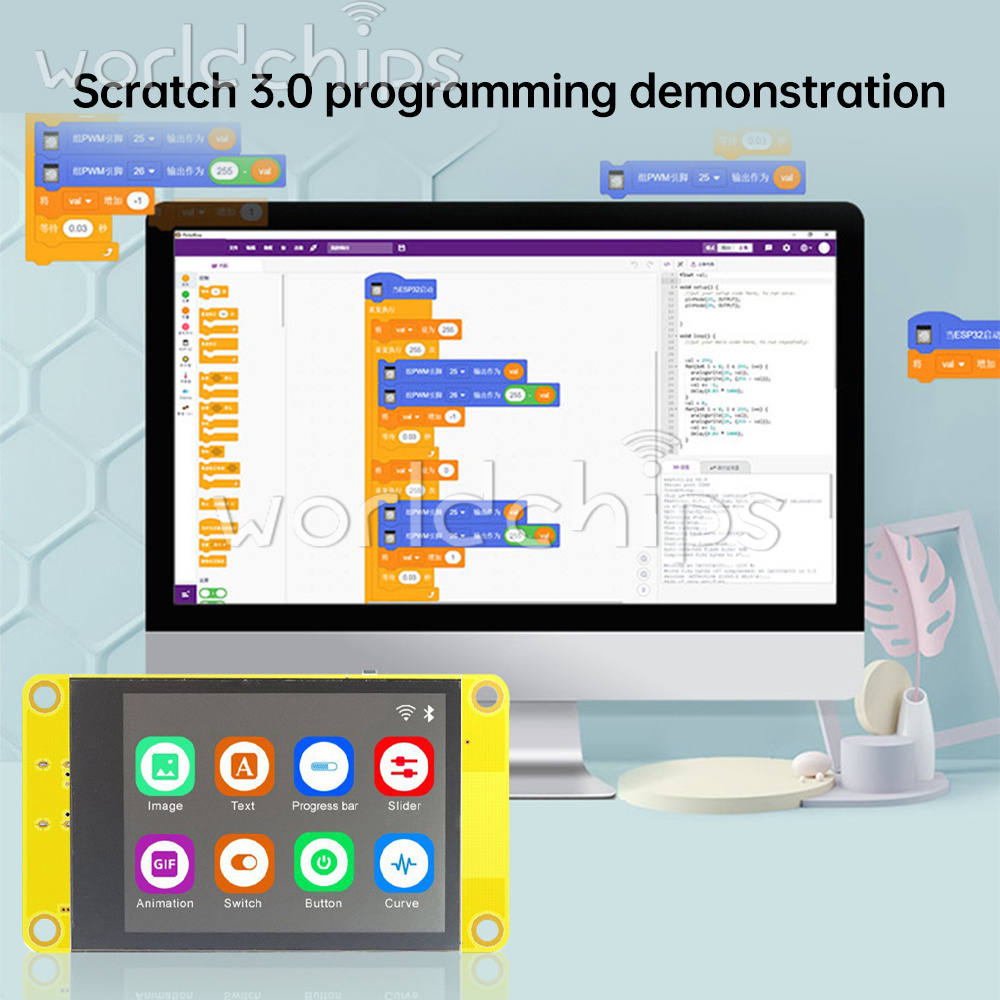

Application drag and drop programming, only display available range, no such tutorials and technology provided, remote IOTapp development using blank app software, can be customized on the terminal device personalized interface, built-in controls are rich, U interface is beautiful. The app control module and interface can be customized, perfect for making an app interface that meets your requirements.
ESP32 development board built-in 2.2-inch screen, ESP32 = MCU + WiFi + Bluetooth, this development board is based on the ESP32-D0WDQ6 controller, dual-core CPU, clock frequency of up to 240MHZ, integrated with a wealth of resources peripherals, high-speed SDIO, SPI, UART and other functions, support for automatic download.
Remote IoT development board, ESP32 development board, give full play to the development advantages of IoT, is a real IoT development tool with controllable display, can be used for APP remote control, remote environmental data collection, remote data fusion, remote parameter setting and many other IoT development applications.
Application drag and drop programming, only display available range, no such tutorials and technology provided, remote IOTapp development using blank app software, can be customized on the terminal device personalized interface, built-in controls are rich, U interface is beautiful. The app control module and interface can be customized, perfect for making an app interface that meets your requirements.
Features
1. Dual-core CPU, high performance: based on ESP32-D0WDQ6 controller, dual-core CPU, clock frequency up to 240MHz.
2. Rich peripheral interfaces: integrated high-speed SDIO, SPI, UART and other interfaces, support automatic download, convenient development.
3. 2.2-inch display: controllable display, suitable for APP remote control and data collection display.
4. Support IOT application: support 802.11b/g/n WiFi and Bluetooth, realize multi-field scene IOT application.
5. Personalized APP development: rich built-in controls, support customized interface and control module to meet personalized needs.
1. Dual-core CPU, high performance: based on ESP32-D0WDQ6 controller, dual-core CPU, clock frequency up to 240MHz.
2. Rich peripheral interfaces: integrated high-speed SDIO, SPI, UART and other interfaces, support automatic download, convenient development.
3. 2.2-inch display: controllable display, suitable for APP remote control and data collection display.
4. Support IOT application: support 802.11b/g/n WiFi and Bluetooth, realize multi-field scene IOT application.
5. Personalized APP development: rich built-in controls, support customized interface and control module to meet personalized needs.
Specification
Module: ESP-WM-32
Processor: Xtensa® 32-bit LX6 dual-core microprocessor
Main frequency: up to 240MHz
ROM: 448 KB
SRAM: 520 KB
SPIFlash: 32 Mbit by default
Wi-Fi: 802.11b/g/n/WiFi + BT module
Spectrum range: 2412~2484MHz
Power consumption: 300mA@3.3V
Supply Voltage: 2.3V~3.6V
Security:WPA/WPA2/WPA2-Enterprise/wps
Operating Temperature:-20℃~85℃

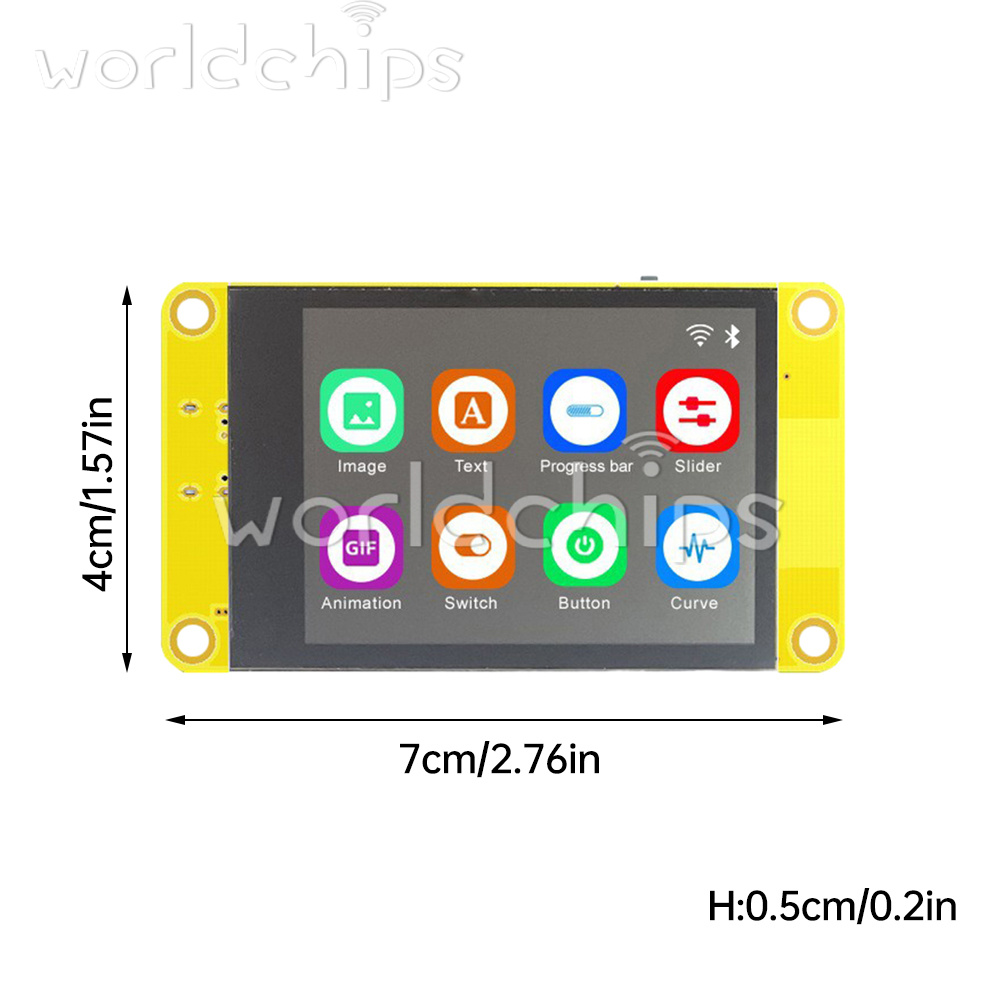

Product Size:7*4*0.5 CM
Module: ESP-WM-32
Processor: Xtensa® 32-bit LX6 dual-core microprocessor
Main frequency: up to 240MHz
ROM: 448 KB
SRAM: 520 KB
SPIFlash: 32 Mbit by default
Wi-Fi: 802.11b/g/n/WiFi + BT module
Spectrum range: 2412~2484MHz
Power consumption: 300mA@3.3V
Supply Voltage: 2.3V~3.6V
Security:WPA/WPA2/WPA2-Enterprise/wps
Operating Temperature:-20℃~85℃
Product Size:7*4*0.5 CM
Package Includes
1 x Development Board
1 x Development Board
-
