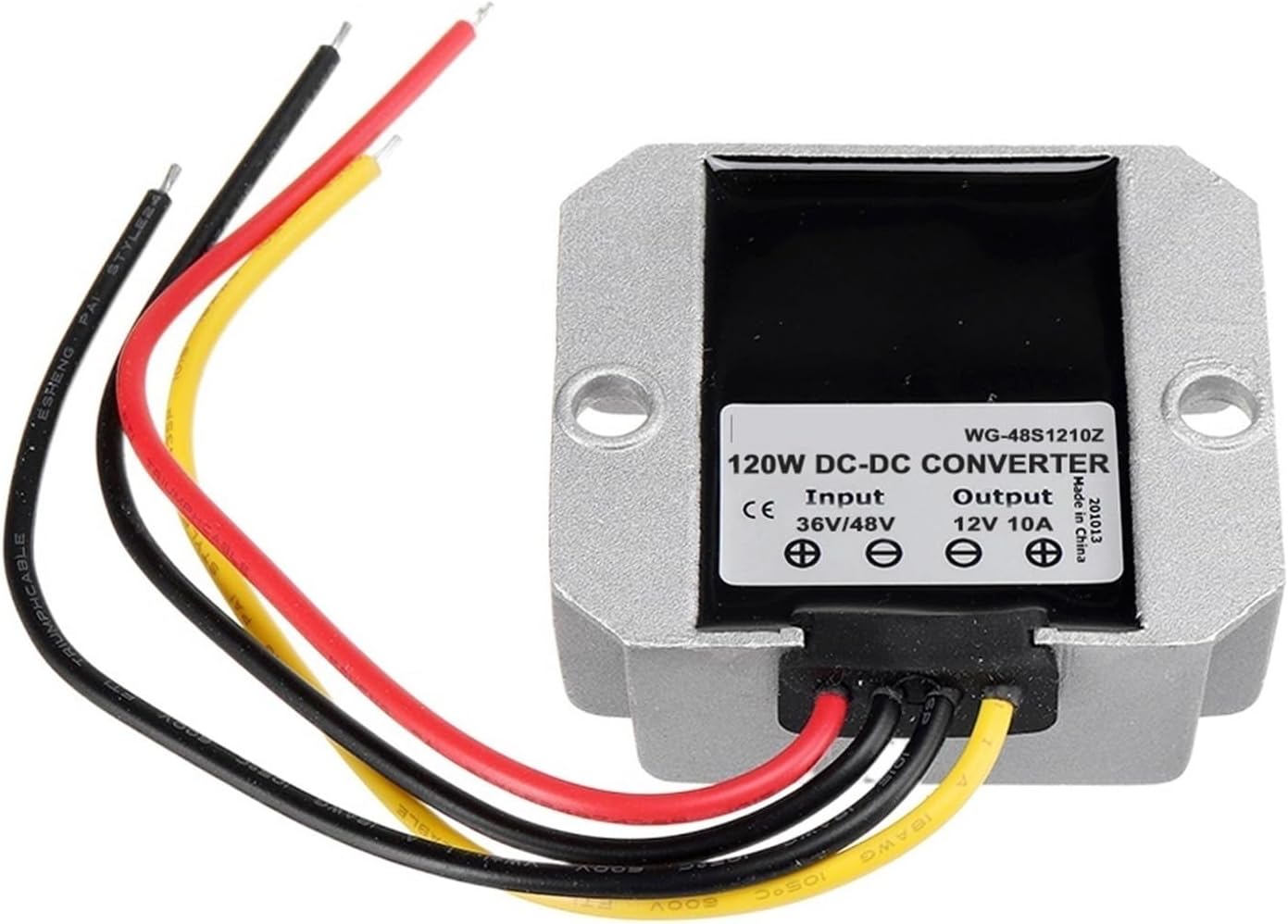

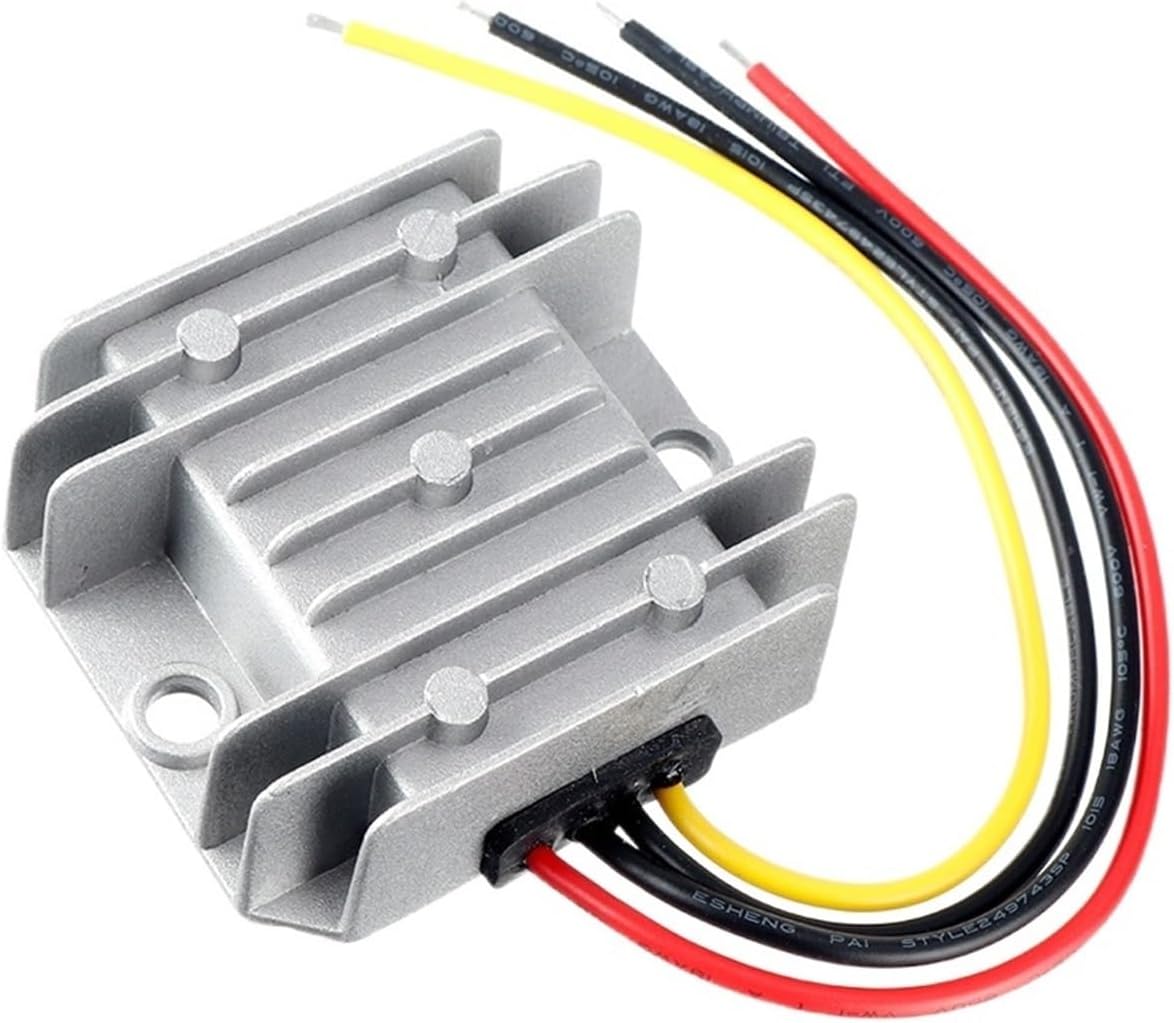

36V/48V to 12V 10A Step-down Voltage Regulator 120W DC DC Converter Buck Bus Car Truck Golf Cart Power Supply

Features

• Design Meeting RoHS/CE
• 100% Full stable current output
• Non-isolated between input and output
• Internal Capacitor: NCC & NICHICON (high Reliability)
• 100% Full Load Burn-in test

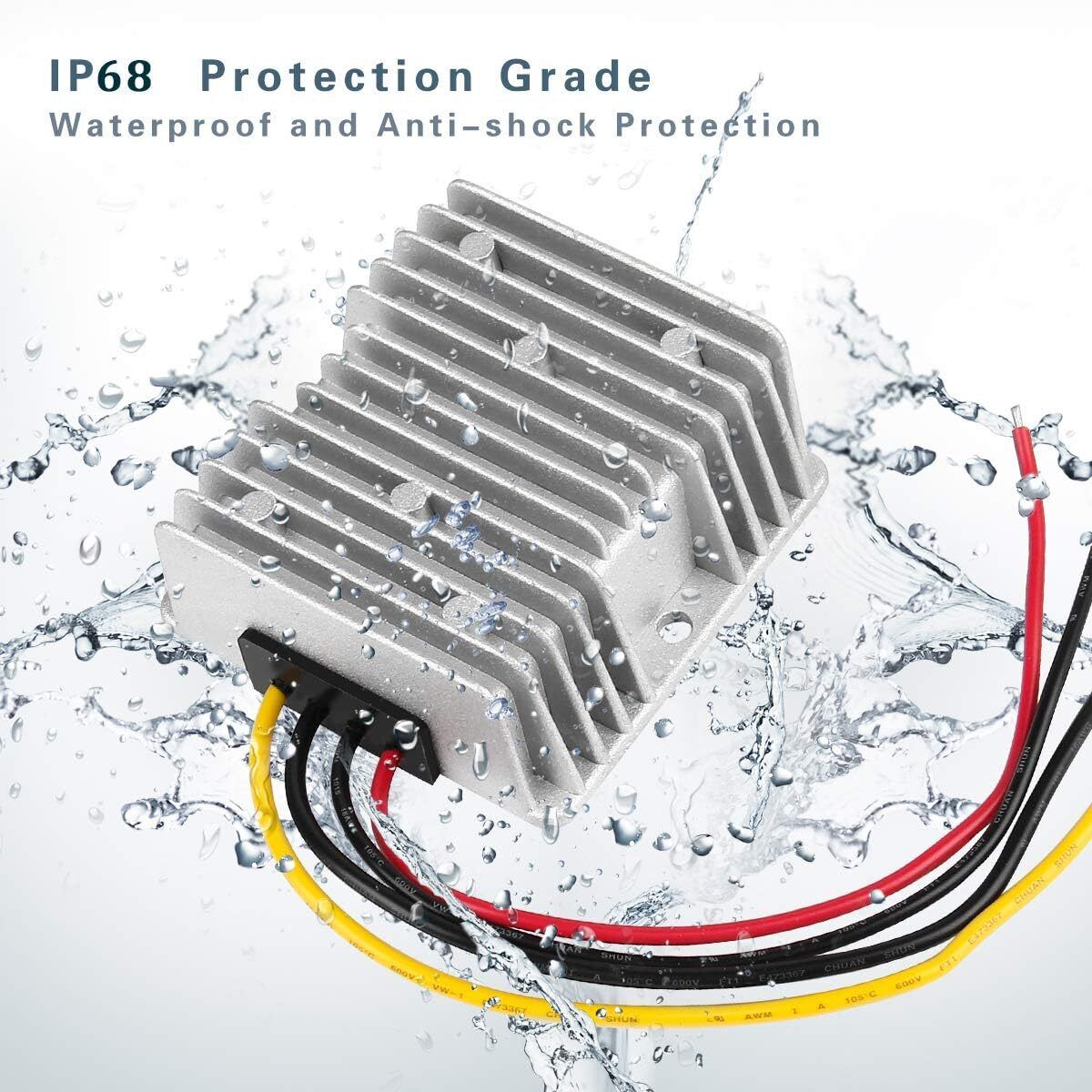

• Waterproof Level IP68
• Die-cast Aluminum Shell with Oxidation Resistant coasting to avoid rust, epoxy potting
• Cooling by free air Convection
• Surface mountable

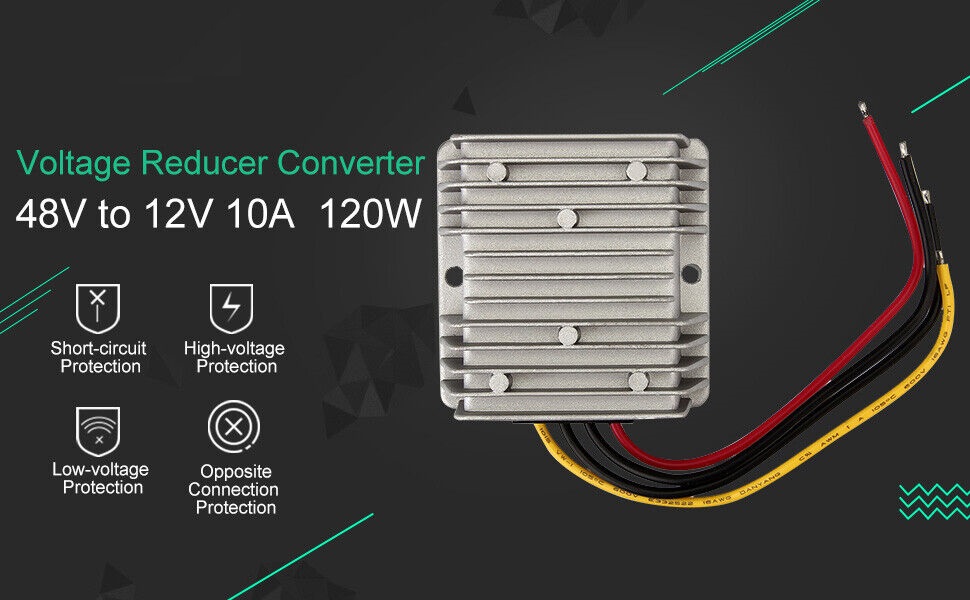

• Over-Current, Low Voltage, over-voltage, short-circuit and over temperature protections.

Specifications:

• Module Type: Non-isolated DC/DC Converter
• Input Voltage Range: 30-60V DC
• Input Rate voltage: 36V/48V DC
• Output Voltage: 12VDC ± 2%
• Output Current: 10A
• Output Power: 120W
• Efficiency: 94%
• Ripple & Noise: 120-150mVp-p
• No Load loss: 20mA
• Voltage regulation: <1%
• Load regulation: <2%
• Working Temperature: -40⁰C ~+80⁰C
• Dimension: 64*57*22mm
• Protections: Waterproof, Dustproof, Shockproof, Over-current, Low voltage, over temperature and short-circuit.

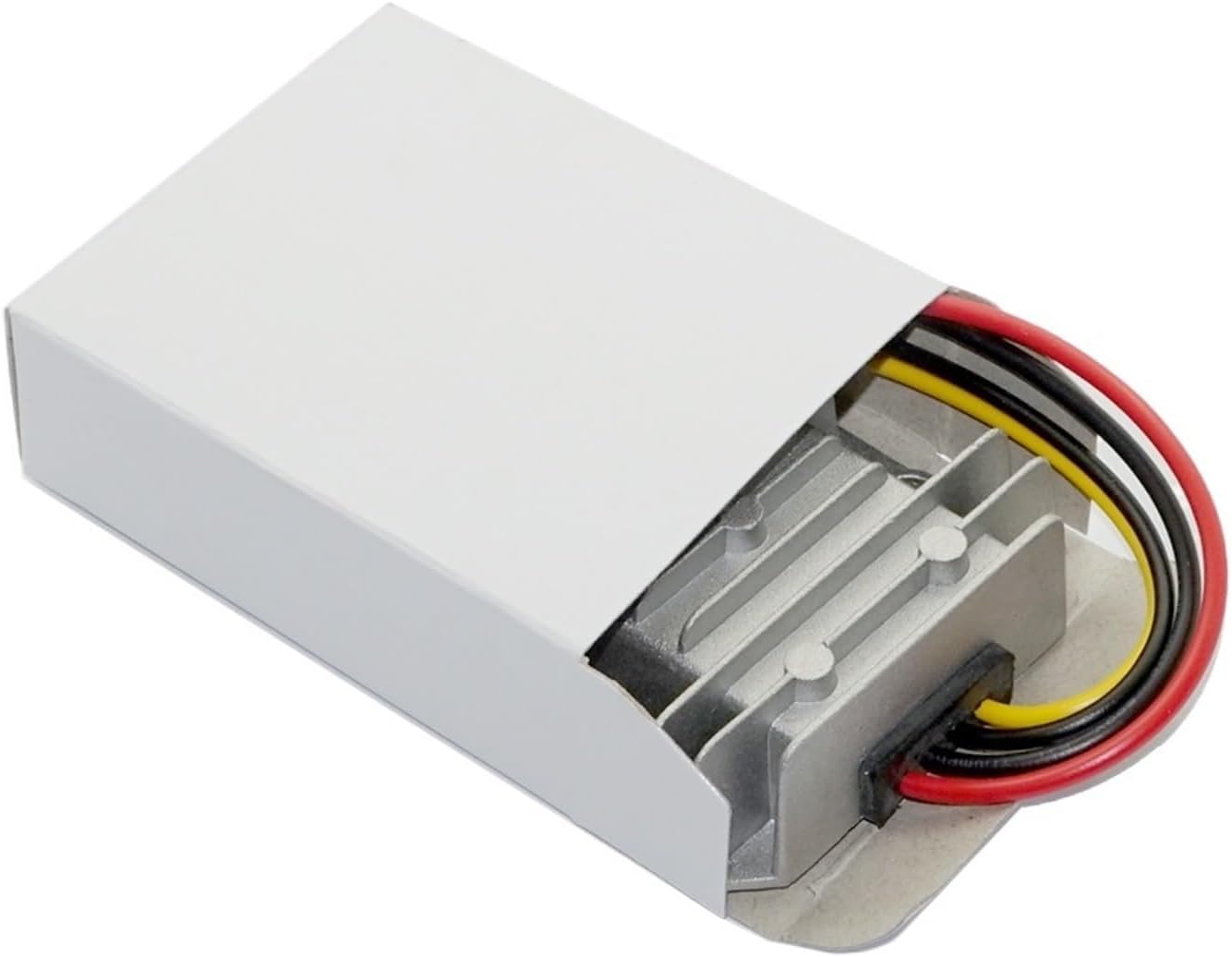

Package included:
1 x DC 36v/48 to DC 12V 10A Voltage Converter Regulator

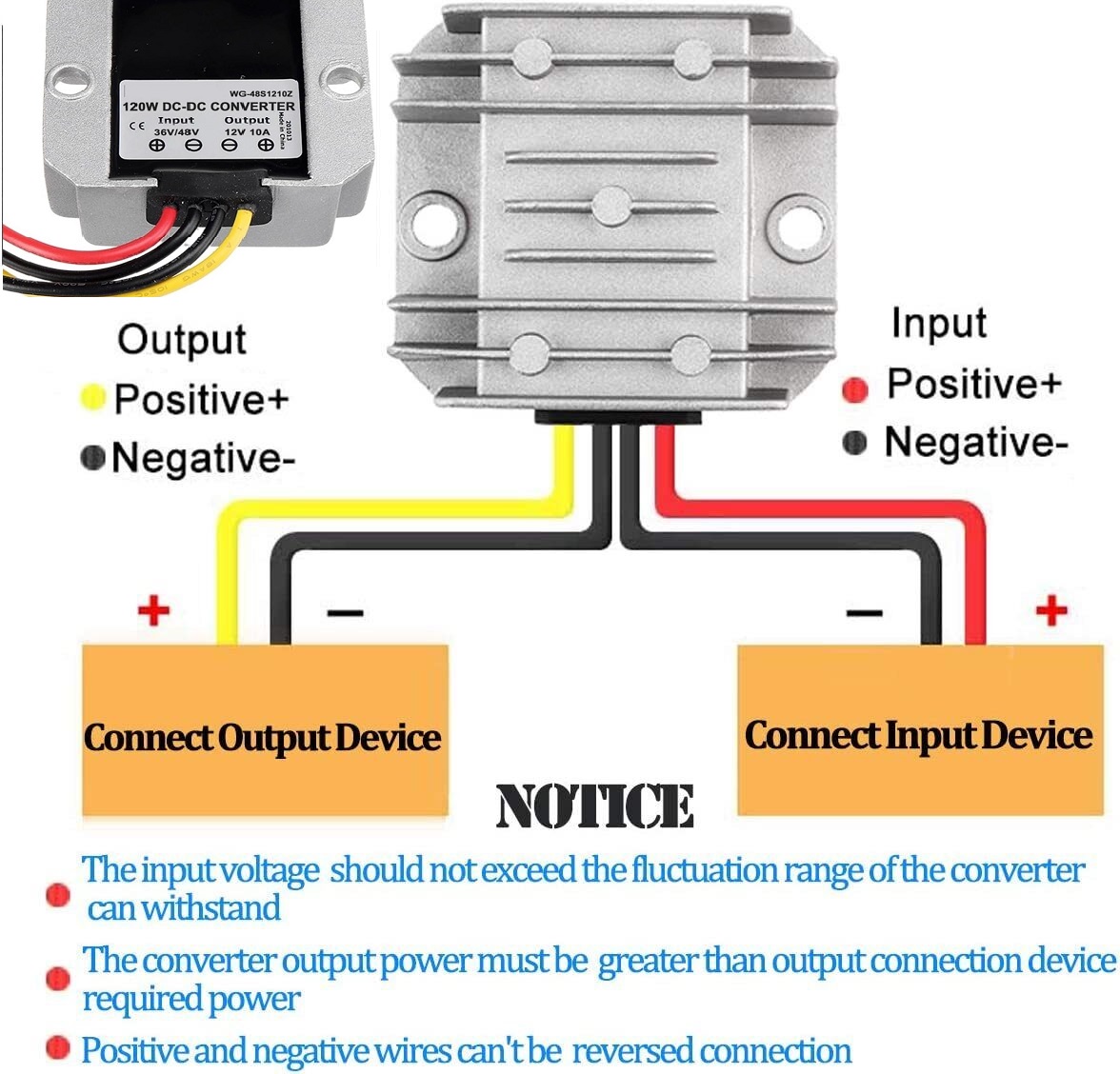

Note: The positive and negative pole, input and output connection are marked on the back of the product, be sure not to connect incorrectly
