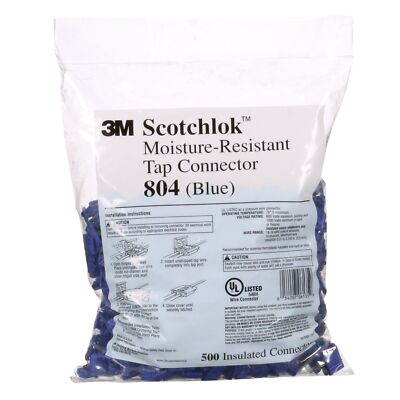

3M Scotchlok Electrical IDC 804-BULK, Blue, 18-16 AWG(solid/stranded), 14 AWG
- Manufacturer:3M
- Part Number:7100003537
Avoid tedious cutting and stripping processes when you use 3M Scotchlok 804 IDC Run or Tap Electrical Connectors during installation and electrical maintenance jobs. They let you connect run or tap wires quickly to existing wires mid-span, and each connector comes with the added benefit of insulation against elements. Include this valuable component in your 600V-rated applications.3M™ Scotchlok™ Insulation Displacement Connector 804 is suitable for control circuit wiring, fixture wiring, appliance wiring, signal and PA systems and automotive/boat/RV wiring. It is 600V rated and withstands temperatures of 167 degrees F (75 degrees C). UL Listed and RoHS 2011/65/EU Compliant.Please allow 2 days for production. Sold as bag
- Blue, polypropylene-insulated connector electrically taps into a wire in mid-span without cutting
- Suitable for control circuit wiring, fixture wiring, appliance wiring, signal and PA systems and automotive/boat/RV wiring
- Accommodates 18 to 14 AWG solid/stranded
- RoHS 2011/65/EU Compliant
General Information | |
| Brand | Scotchlok™ |
| Connection Type | Run & Tap |
| Connector Style | Insulation Displacement |
| Product Type | Connector |
| Wire Connector Type | IDC Connectors |
| Country Of Origin | United States |
| Sold As | bag |
| Lead Time | 2 days |
Dimensions and Specifications | |
| Conductor Sizes (Imperial) | 14 AWG (Stranded) |
| Conductor Sizes (Metric) | 2.5 mm² (Stranded) |
| Insulation Outer Diameter (Imperial) | 0.145 in |
| Maximum Conductor Size (Imperial) | 16 AWG |
| Maximum Conductor Size (Metric) | 2.5 mm² (Stranded) |
| Maximum Operating Temperature (Celsius) | 75 Degree Celsius |
| Maximum Operating Temperature (Fahrenheit) | 167 Degree Fahrenheit |
| Maximum Recommended Voltage Rating | 600 V |
| Minimum Conductor Size (Imperial) | 18 AWG |
| Minimum Conductor Size (Metric) | 1 mm² |
| Run Maximum Insulation Outer Diameter (Imperial) | 0.145 in |
| Run Maximum Insulation Outer Diameter (Metric) | 3.7 mm |
| Tap Maximum Insulation Outer Diameter (Imperial) | 0.145 in |
| Tap Maximum Insulation Outer Diameter (Metric) | 3.7 mm |
| Voltage Application | Low Voltage |
| Conductor Sizes Imperial | 16 AWG 18 AWG 14 AWG (Stranded) |
| Maximum Conductor Size Imperial | 16 AWG 14 AWG (Stranded) |
| Maximum Conductor Size Metric | 1.5 |
| Minimum Conductor Size Imperial | 18 AWG |
| Minimum Conductor Size Metric | 1 mm² |
| Width | 0.28 yd 0.25 m |
| Height | 0.39 yd 0.36 m |
| Length | 0.06 yd 0.05 m |
| Volume | 281.42 cubic inch 4611.62 cm3 |
| Weight | 32 oz 907.2 g |
Other Details | |
| Flame Retardant | No |
| Grease Filling Against Corrosion | No |
| Max. Number Of Cores | 1 |
| Moisture Resistant | Yes |
| Recommended Crimping Tool | E-9BM or 9 in. Linemans Pliers |
| Units Per Case | 500.0 |
| Family | IDC for Electrical Applications |
Material and Composition | |
| Material | Plastic |
Color and Appearance | |
| Insulation Color | Black |
| Product Color | Blue |
Packaging and Shipping | |
| Packaging | Bulk |
