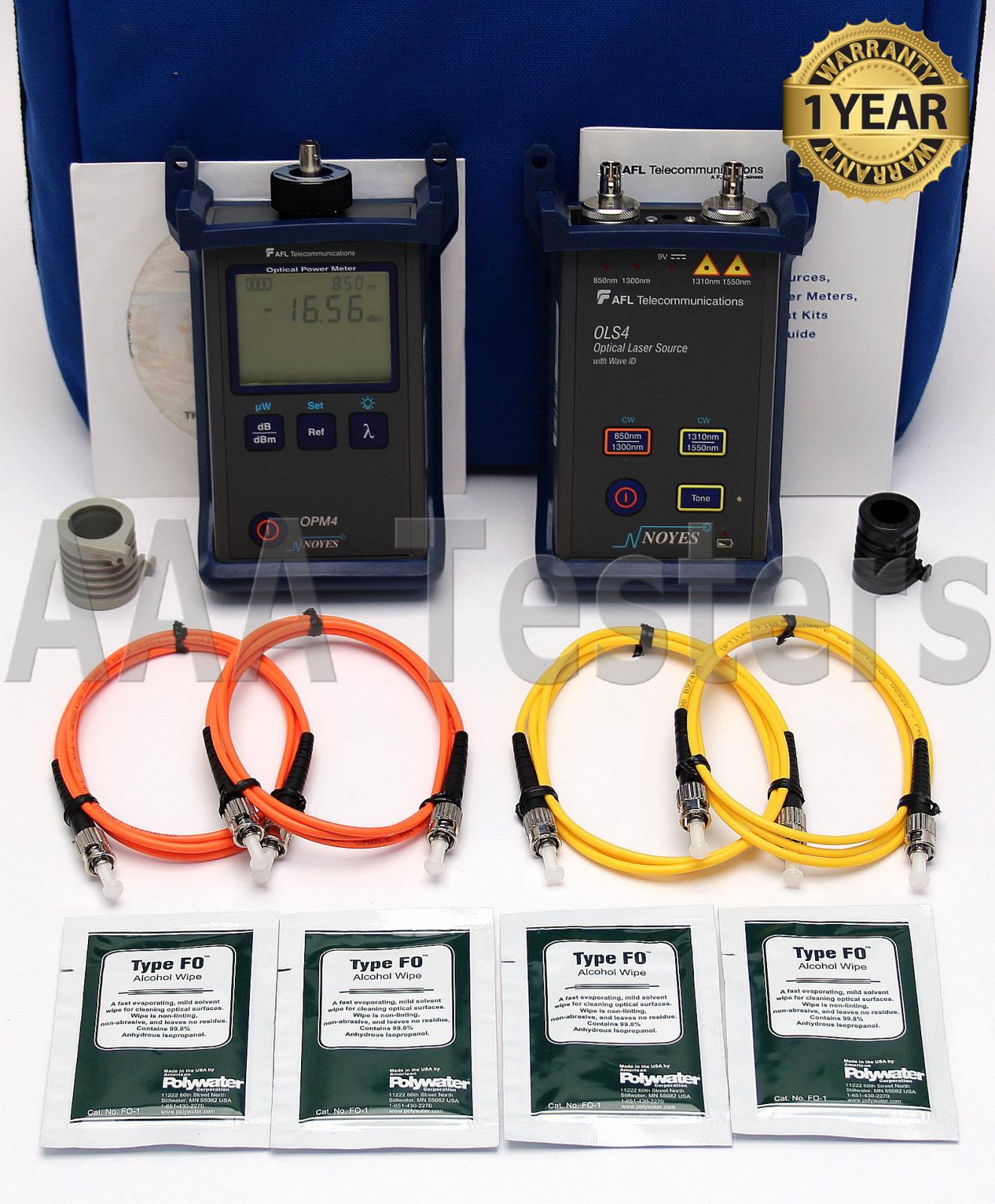

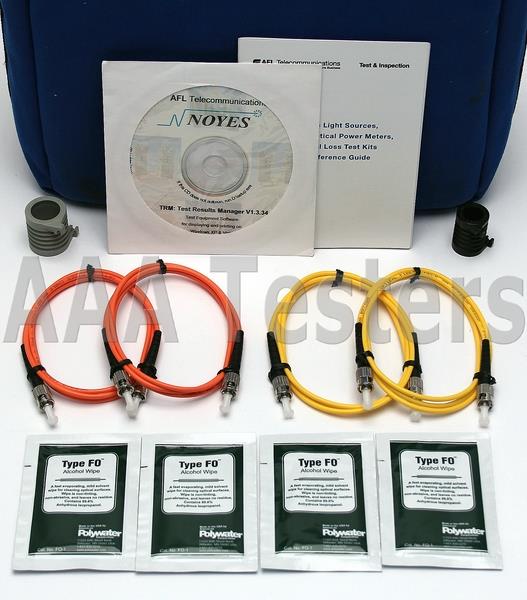

The Following Items Are Included:

AFL Noyes OLS 4 SM MM Fiber Optic Laser Source w/ Wave ID (BC# 42410-L/T*)
- SM Source:
  - 1310nm
  - 1550nm
- MM Source:
  - 850nm
  - 1300nm
- (2) ST Connectors For Source
AFL Noyes OPM 4-2D SM MM Power Meter (BC# 42411-L/T*)

Power Meter:
- 850nm
- 1300nm
- 1310nm
- 1490nm
- 1550nm

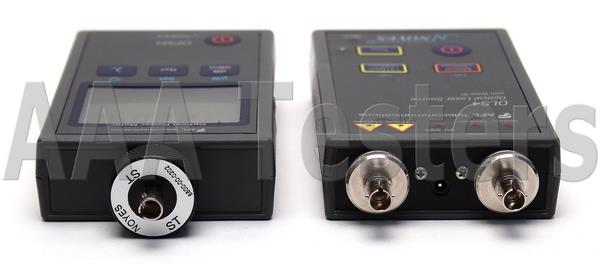

ST Connector For Power Meter

Noyes 625 Mandrel
Noyes 50um Mandrel
OPM-OLS Quick Reference Guide
(2) ST-ST SM Fiber Optic Cables
(2) MM ST-ST Fiber Optic Cables
Noyes Test Results Manager V1.3.34
(4) Fiber Wipes
User Manual On CD-ROM
Carrying Case

BE SURE TO CHECK OUR EBAY STORE FOR OTHER ITEMS!

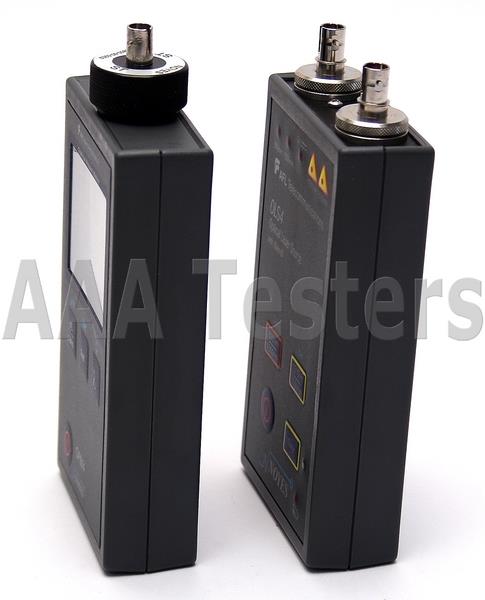

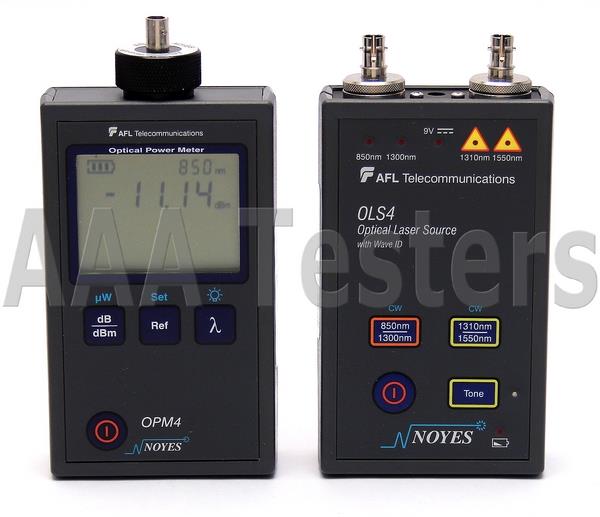

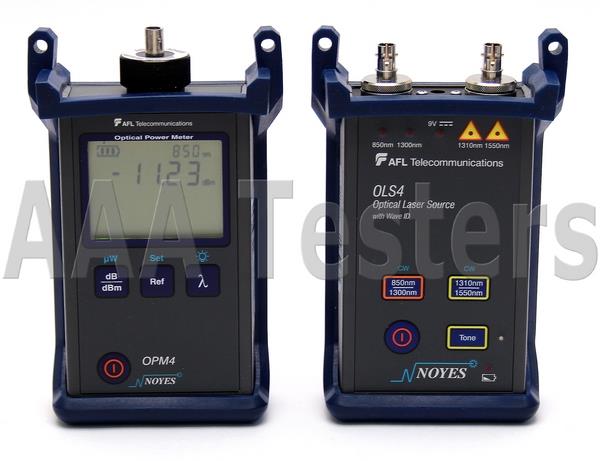

AFL Noyes SMLP4-4 OPM4-2D / OLS4 SM MM Fiber Optic Loss Test Set

OLS4 Source:
- 850nm
- 1300nm
- 1310nm
- 1550nm

OPM4-2D Power Meter:
- 850nm
- 1300nm
- 1310nm
- 1490mn
- 1550nm

Includes Carrying Case & Accessories As Listed Above!

Working Condition: Excellent
Condition: Refurbished
Warranty: 1 YEAR WARRANTY

Noyes SMLP 4-4 Single and Multimode Fiber Test Kit

Covers 850 and 1300 Multimode and 1310 and 1550 Singlemode in one kit.

The Noyes SMLP 4-4 test kit combines the OPM 4-2D optical power meter and OLS 4 integrated LED and LASER light source and is ideally suited for testing fiber optic networks with hybrid (single-mode and multimode) cables. The OLS 4 features 850 nm and 1300 nm LED output from a multimode output port and 1310 nm and 1550 nm LASER output from a single-mode output port. The LED and LASER outputs are stabilized to ensure accurate test results per current TIA/EIA requirements. This light source offers 4 modes of operation: Dual wavelengths sending ID, single wavelength sending ID, CW, and modulated Tone. [Active Output], [Tone], [Battery], and [External Power] indicators identify the currently enabled operating mode, battery charge status, and external power presence. Both output ports are equipped with removable SC (FC & ST available) adapters to allow the output connectors to be inspected and cleaned.

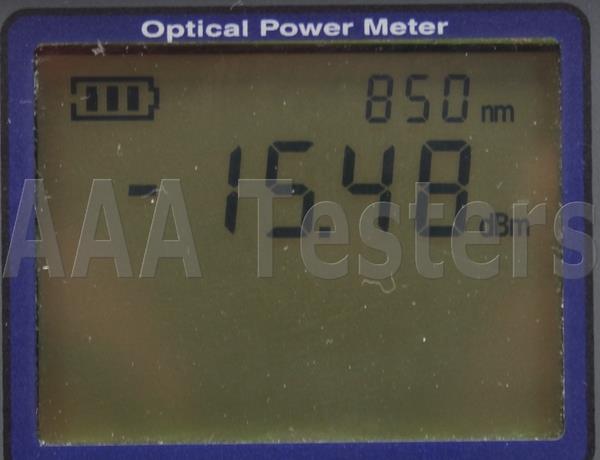

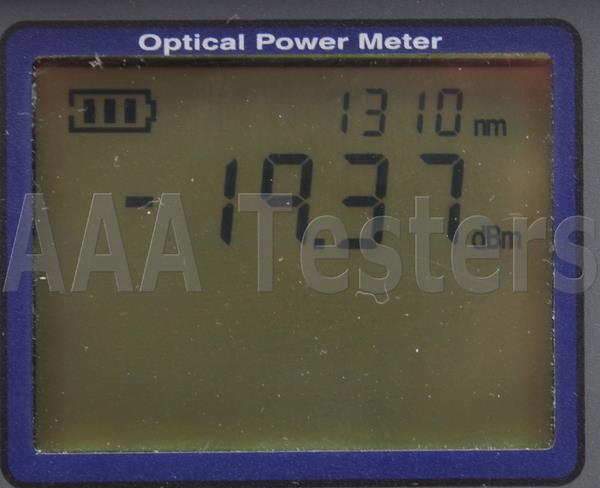

The Noyes OPM 4-2D offers Wave ID, automatic wavelength identification and switching, when used with the OLS 4. Multiple test Tone detection is provided for fiber identification. The OPM 4-2D stores optical references for each calibrated wavelength. An easy to read Dual Wavelength LCD display with Backlight shows measured power [dBm or µW] or insertion loss [dB], calibrated wavelengths, tone signal [Hz], wavelength ID, and the battery charge status. In addition to being powered by two AA alkaline, the OPM 4-2D or OLS 4 can be powered by optional AC adapter and/or rechargeable NiMH battery pack. The OPM 4-2D optical input port accepts Noyes thread-on style adapter caps. Adapter caps are required for operation and must be ordered separately. The OPM 4-2D and OLS 4 are fully N.I.S.T. traceable.

Features

Rugged, handheld, lightweight

Designed for field use

Certify multimode and single-mode links per TIA/EIA standards

Wave ID - automatic wavelength identification and switching

Dual Wave ID, single Wave ID, CW, and modulated Tone (on single-mode output) 270 Hz, 330 Hz, 1 kHz, and 2 kHz Tone

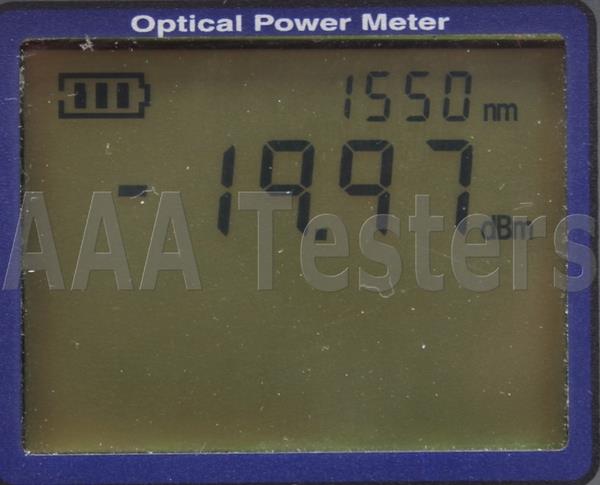

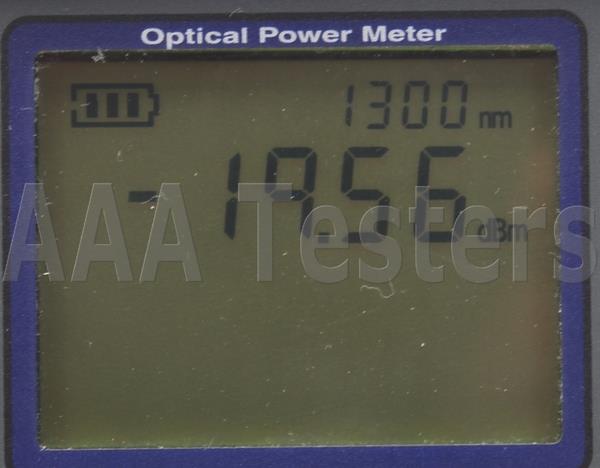

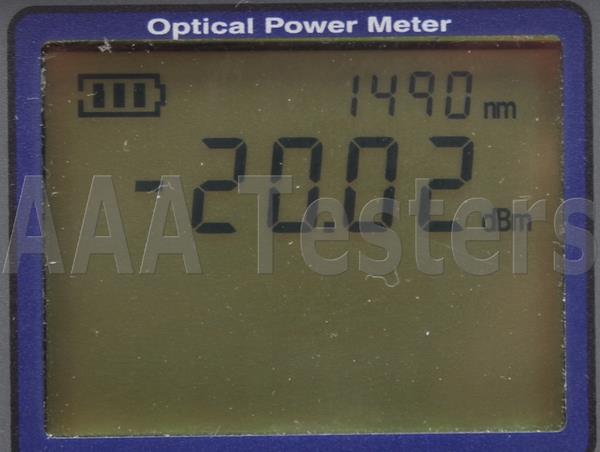

Large LCD with Backlight

Power measurements in dBm or µW; insertion loss in dB Reference power level storage

AA alkaline, optional rechargeable NiMH battery pack or AC adapter

Low battery indicator

Cost-effective, easy to use

N.I.S.T traceable

OPM4-2D Specifications

Calibrated Wavelengths	850, 1300, 1310, 1490, 1550 nm
Detector Type	Germanium (Ge)
Measurement Range	+6 to -60 dBm
Tone Detect Range	+6 to -50 dBm +6 to -45 for 850 nm
Wavelength ID Range	+6 to -50 dBm +6 to -45 for 850 nm
Accuracy	+-0.25dB
Resolution	0.01 dB
Measurement Units	dB, dBm, uW
GENERAL
Power	2 x AA Batteries
Battery Life	300 Hours
Operating Temperature	-10 to 50°C, 90% RH (non-condensing)
Storage Temperature	-30 to 60°C, 90% RH (non-condensing)
Size (H x W x D)	14.0 x 8.1 x 3.8 cm (5.5 x 3.2 x 1.5 in
Weight	0.26 kg (.58 lb)

OLS4 Light Source specifications

Optical	MM Optical Port		SM Optical Port
Wavelength	850 ± 30 nm	1300 -10/+50 nm	1310 ± 20 nm	1550 ± 20 nm
Emitter type	LED		Laser
	Class I FDA 21 CFR 1040.10 and 1040.11, IEC 60825-1: 2007-03
Spectral width	40 nm (typ)	120 nm (typ)	5 nm (max)	5 nm (max)
Output power	> - 20 dBm, 62.5 µm multimode*		0 dBm, 9 µm single-mode
Output Stability	± 0.1 dB over 8 hours (after 5 min. warm-up)		± 0.05 dB over 1 hour (after 15 min. warm-up) ± 0.1 dB over 8 hours (after 15 min. warm-up)
General
Power	2 x AA batteries, optional AC adapter
Battery life	Typical 30 hours, minimum 20 hours		Typical 72 hours, minimum 40 hours
Available adapters	SC FC, ST, LC
Operating temperature	-10 to 50°C, 90% RH (non-condensing)
Storage temperature	-30 to 60°C, 90% RH (non-condensing)
Size (H x W x D)	14.0 x 8.1 x 3.8 cm (5.5 x 3.2 x 1.5 in)
Weight	0.29 kg (0.65 lb)

For full Noyes SMLP 4-4 product specifications, please click here: Noyes SMLP 4-4
