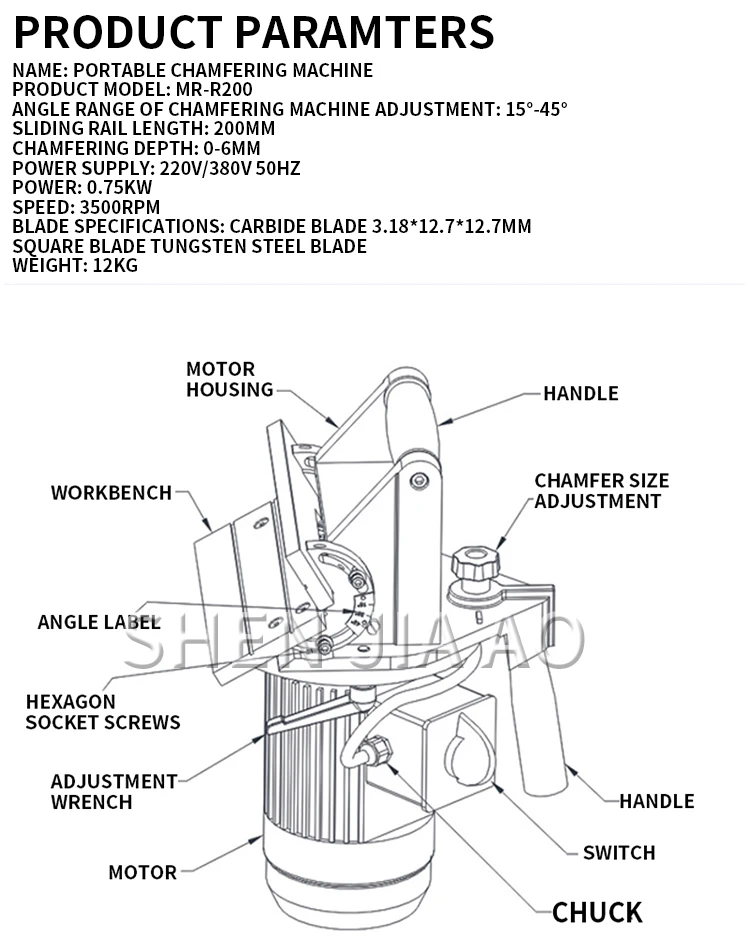

Name: portable chamfering machine

Product model: MR-R200

Angle range of chamfering machine adjustment: 15°-45°

Sliding rail length: 200mm

Chamfering depth: 0-6mm

 Power supply: 220V/380V 50HZ

Power: 0.75kw

Speed: 3500rpm

Blade specifications: carbide blade 3.18*12.7*12.7mm

square blade tungsten steel blade Weight: 12kg

Features: *This machine is suitable for large workpieces without heat treatment, such as various molds and mechanical parts. The chamfering does not need to be clamped, the operation is simple, the chamfering is regular, the adjustment is convenient, economical and reliable, and the efficiency is 10-15 times that of CNC equipment. It is the development trend of the machinery industry. *The work surface is made of high-quality die steel after heat treatment, which is durable and has low friction. * Any length of steel, iron, copper, aluminum and other metal parts can be easily chamfered. * Place the slide rail against the workpiece during operation and cut in the direction indicated by the arrow. *Standard square-edged tungsten steel (carbide) blade 3.18*12.7*12.7 is easy to replace, and old blades used by milling machines can also be used. *The surface roughness of the chamfer is good. *It is better to keep the grinding amount of feed 2mm each time.
