Product features:
Output current: 0~15A
Conversion efficiency: 85%
Active heat dissipation Continuous operation with input fan

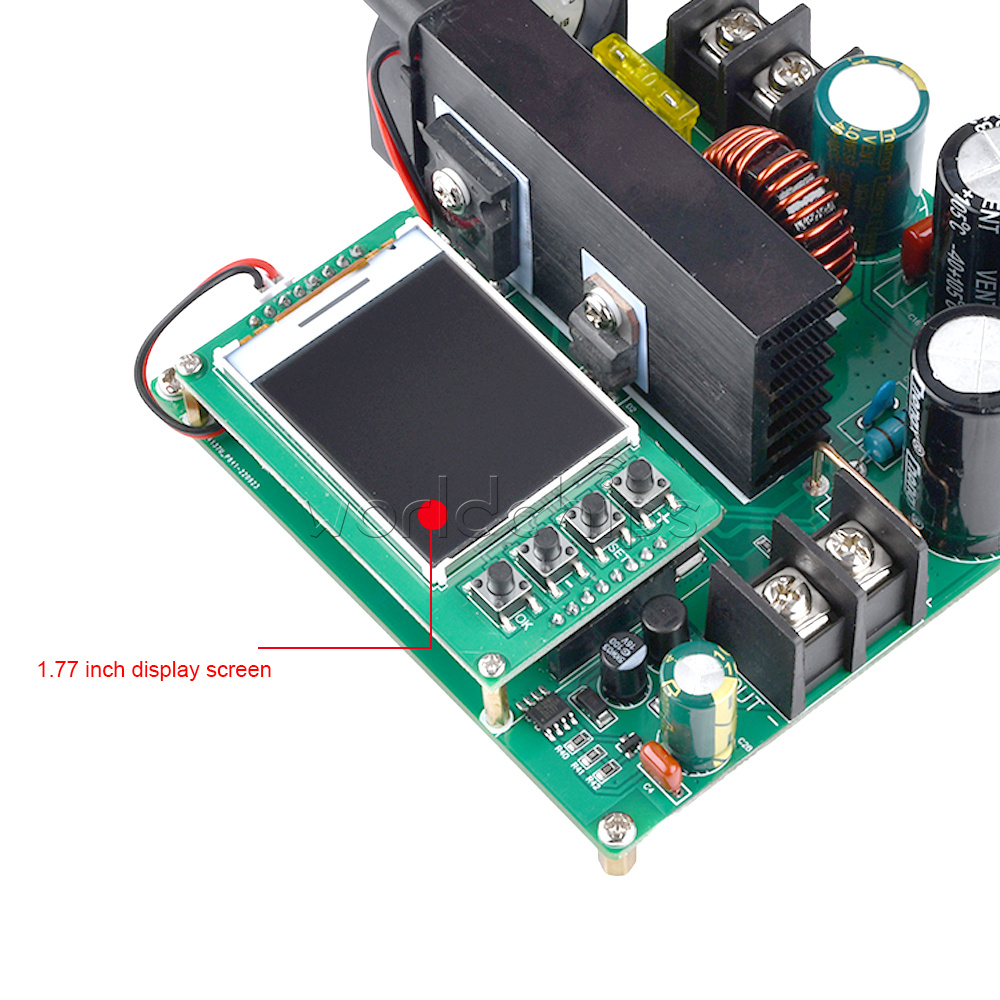

Digital control + colour screen display
Storage groups: 10 groups
Technical parameters:

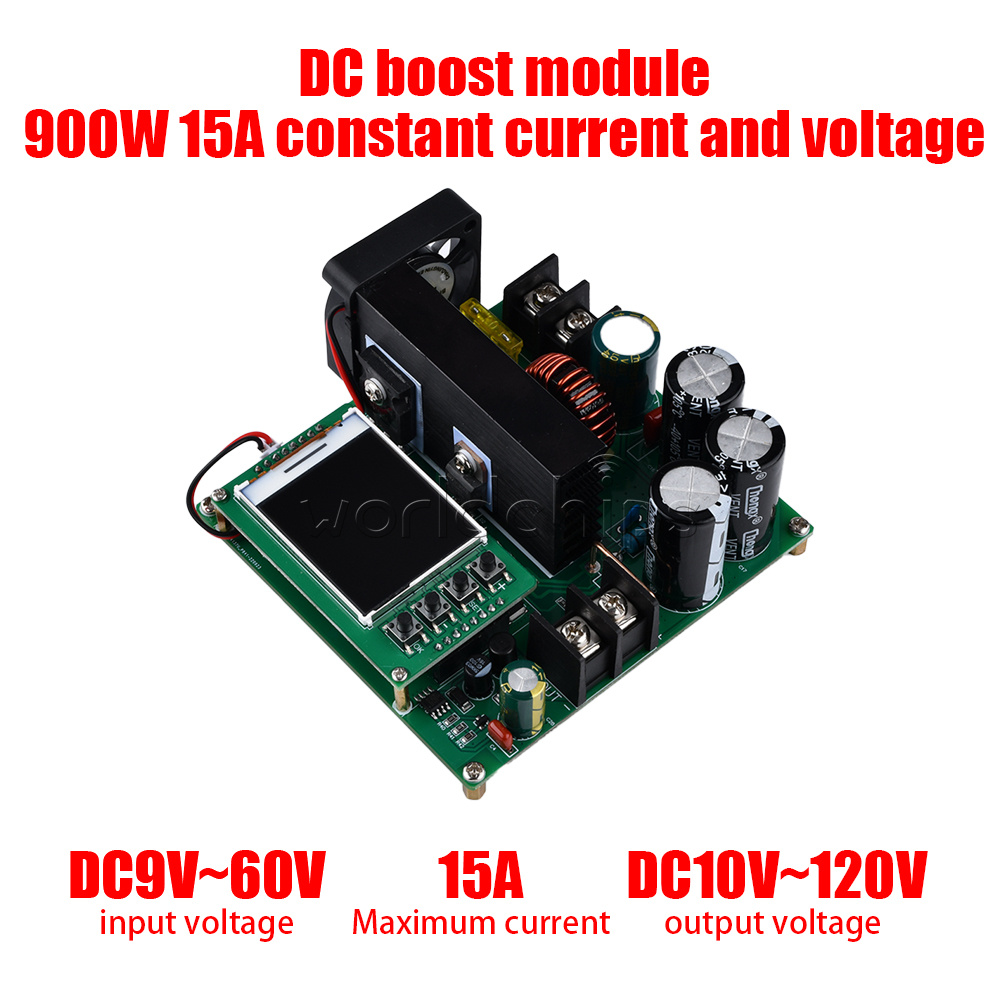

Input voltage (U-IN): DC9V~60V
Input current: 0~15A
Output voltage (U-OUT): 10V~120V
Output current: 0~15A
Conversion efficiency：85%
Operating frequency: 150KHZ

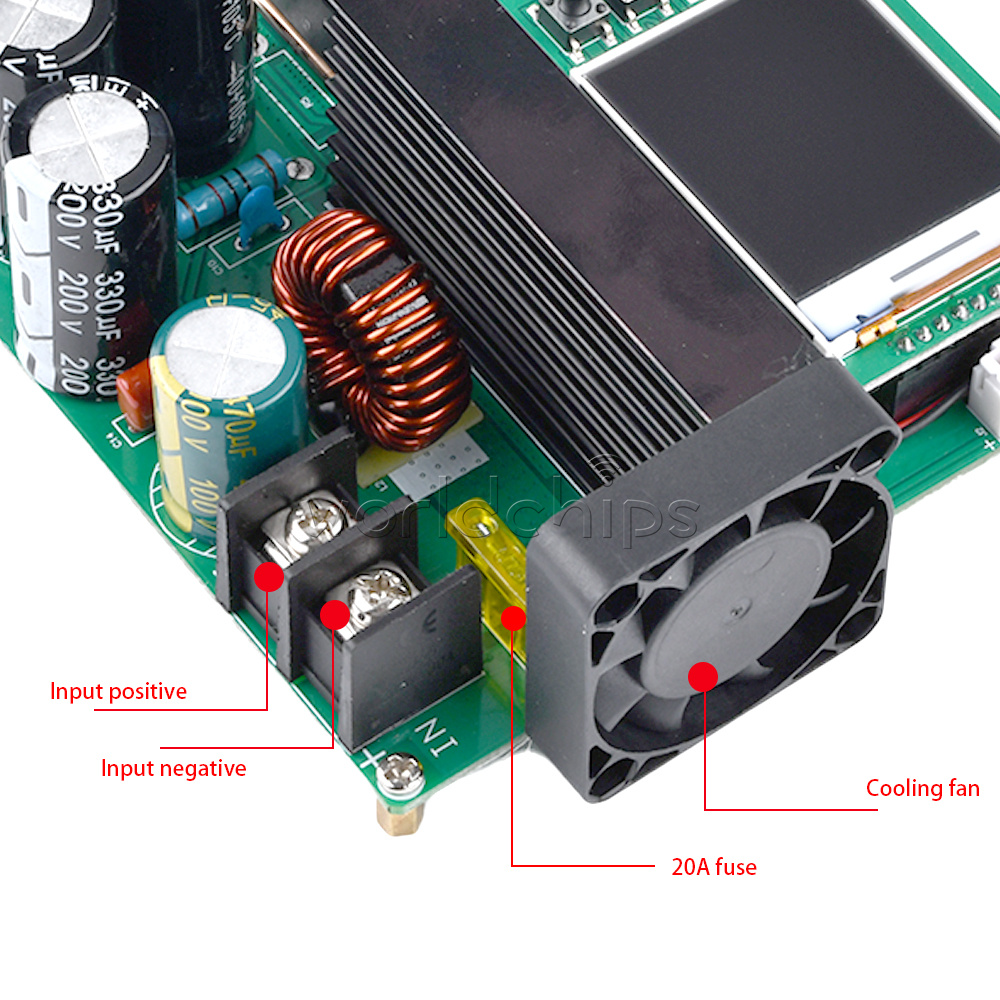

Short circuit protection: 20A fuse (non-self-recovery)
Working temperature: -40℃~85℃
Heat dissipation mode: active heat dissipation Continuous operation by connecting input fan
Control mode: CNC + colour screen display
Voltage adjustment display: 009.0V~120.0V
Current adjustment display: 00.01A~15.00A
Output ripple: ≤50mV
Storage group: 10 groups
Standby power consumption: less than 150mA (measured at 12V input)
Weight: 235g (net weight) 280g (including packaging)
Dimensions: 110mm x 105mm x 48mm (product)
Package size: 90mm x 110mm x 120mm (static bag + carton packaging)
Caution.

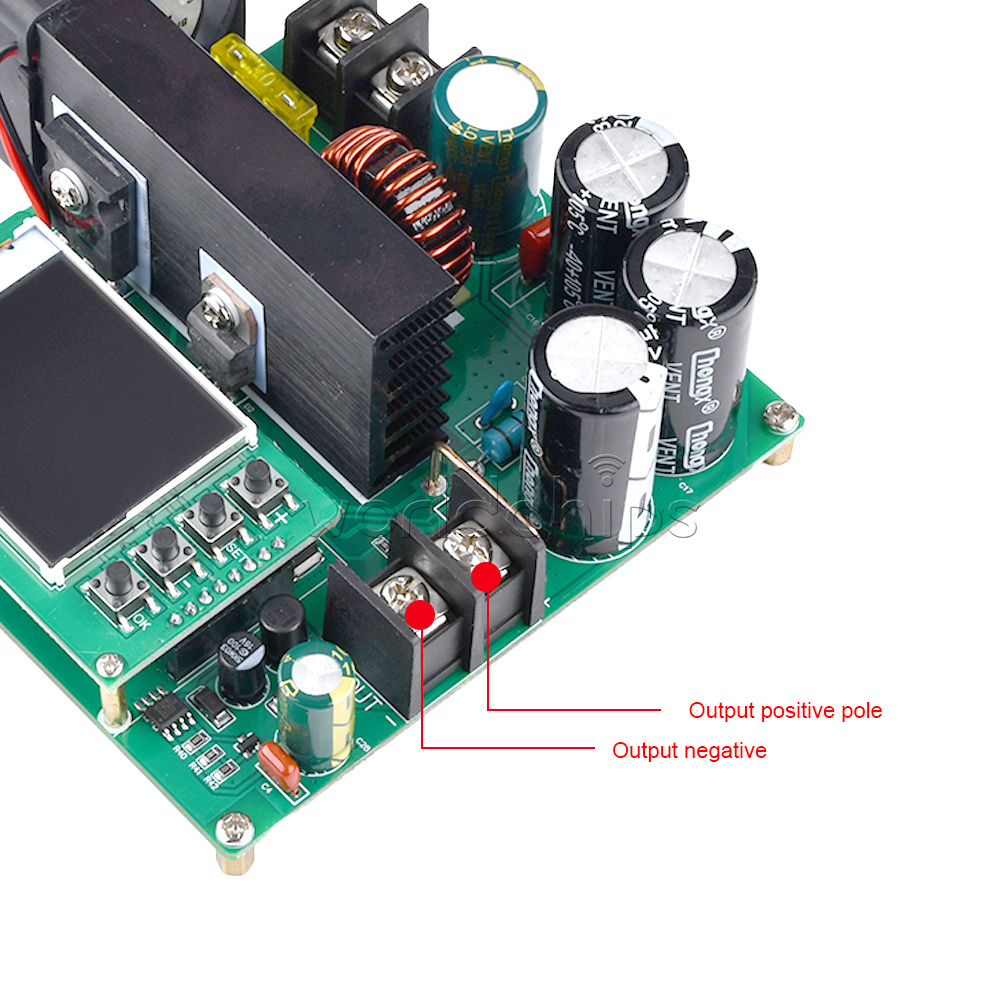

When the input is switched on, the output always has electrical output and the voltage is equal to the real time output voltage shown on the interface
How to use?
Package list:

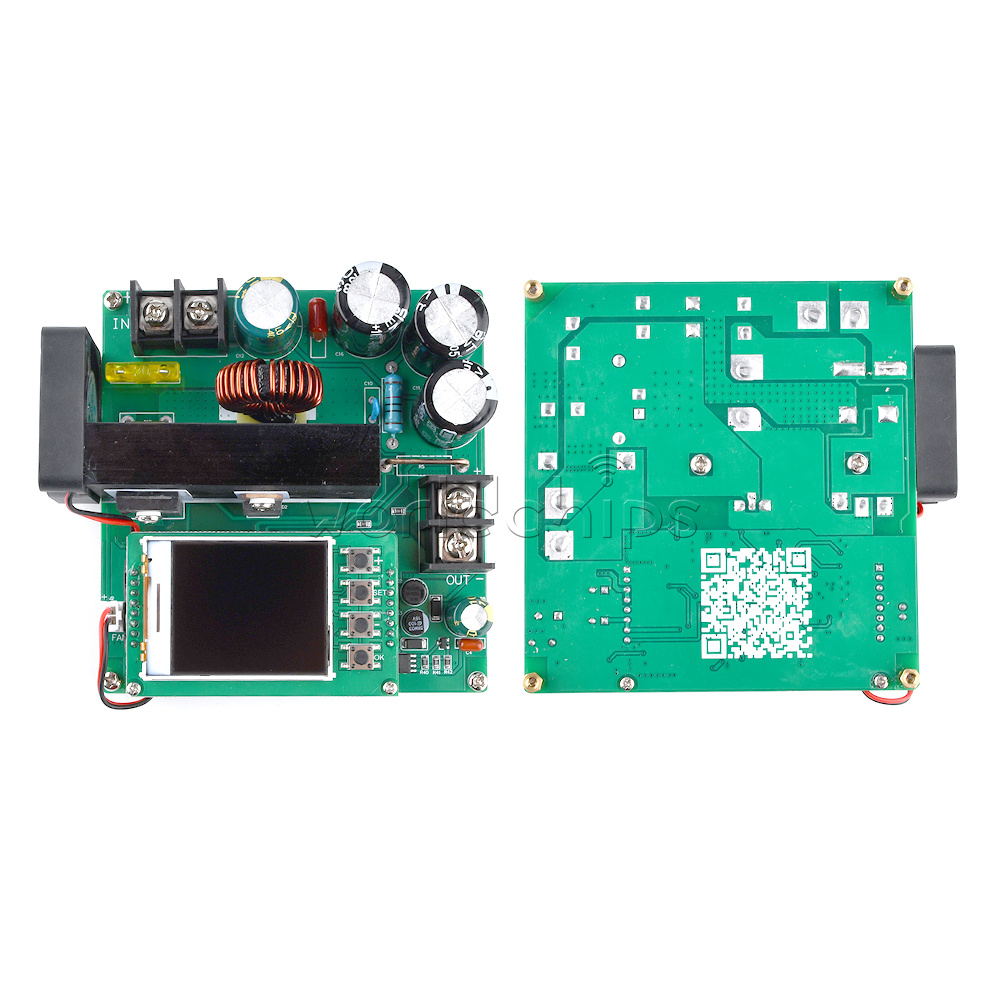

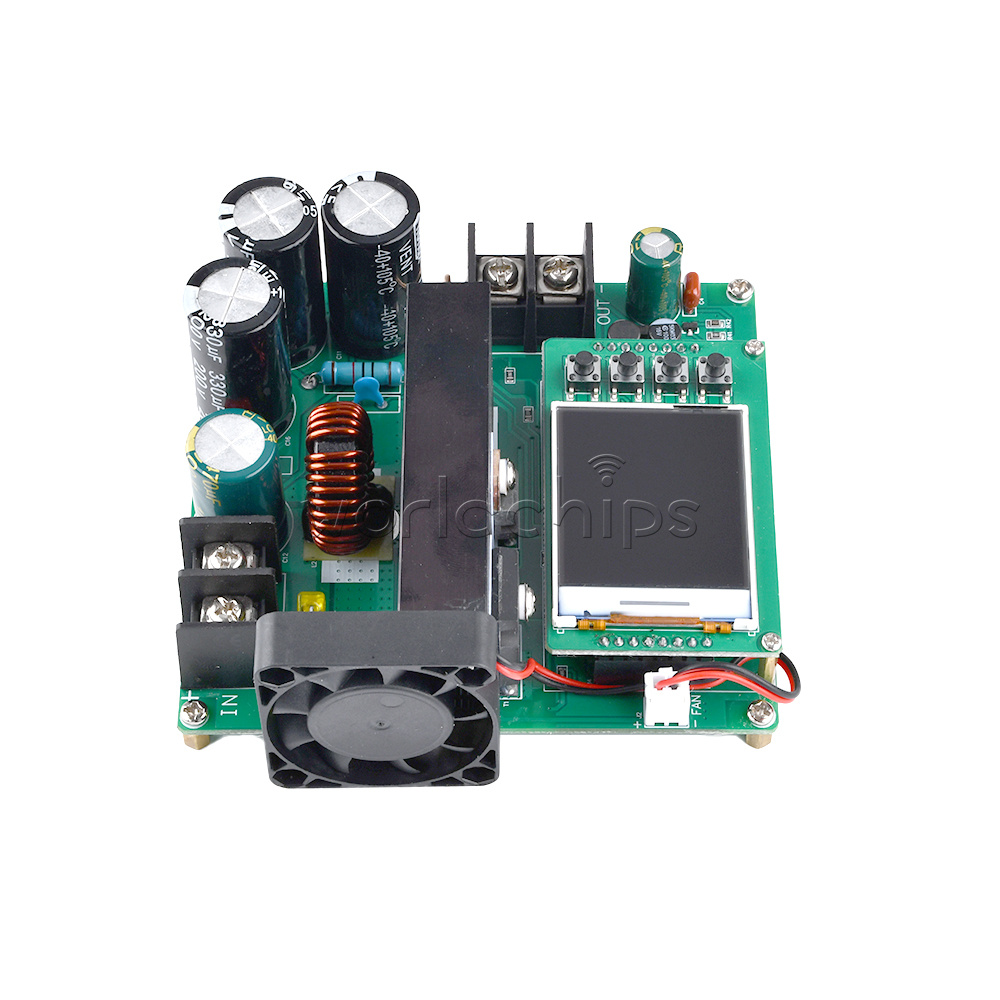

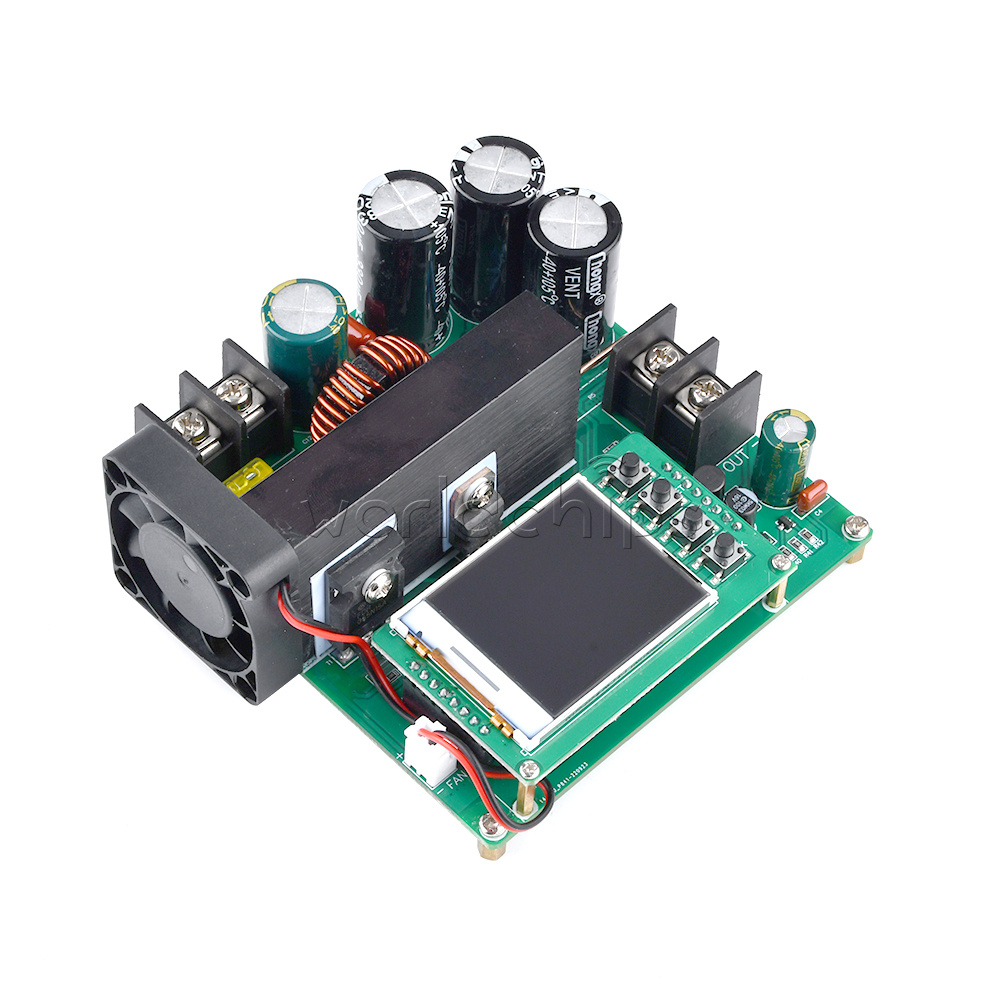

DC Boost Module *1
