Fluke 6500-2 PAT Tester + Free Accessory Kit Details

For a limited time we are supplying this PAT tester with a special bundle pack of essential PAT testing accessories for no extra charge!

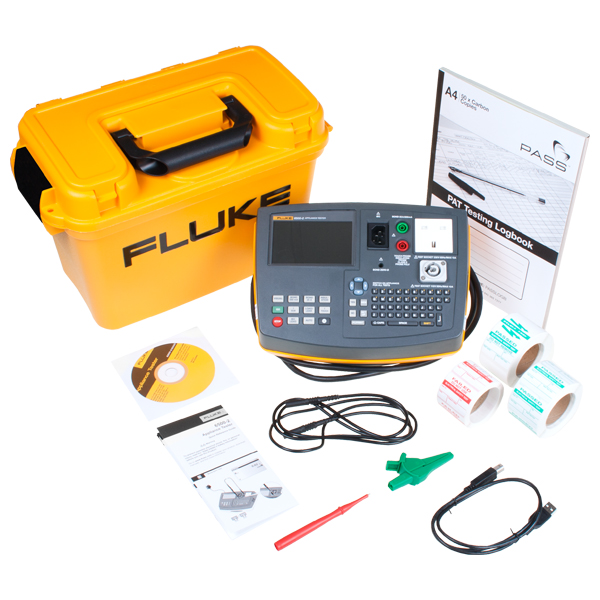

What's Included?

  • Fluke 6500-2 PAT Tester
  • User Manual on CD
  • Quick Reference Guide
  • Hard Carrying Case
  • Test Lead
  • Test Probe
  • Crocodile Clip
  • Mains Cord
  • USB Stick
  • USB Cable

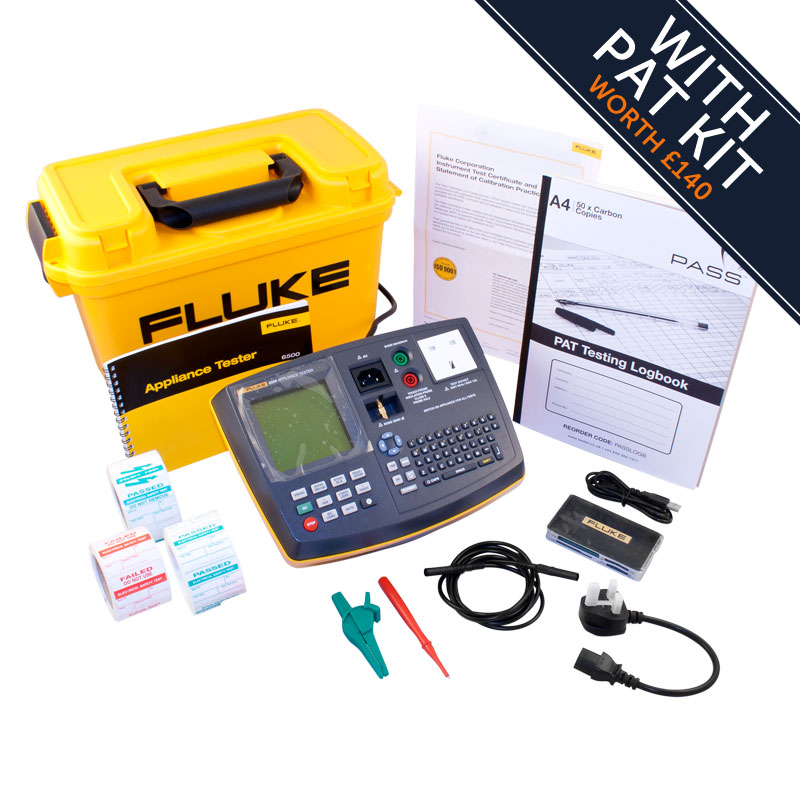

Plus you'll also get the following accessory pack, worth £140!

  • Microwave Leakage Detector*
  • Socket Tester*
  • PAT Testing Logbook
  • 500 x Passed PAT Testing Labels
  • 250 x Failed PAT Testing Labels
  • 250 x Cable Wrap Labels (for applying to leads etc)

Electrical Direct, a company of PASS LTD, is a UK-based Fluke distributor. This tester is supplied directly from Fluke and is 100% the genuine article.

Don't get caught out buying counterfeit goods or waiting several weeks buying fake items from China - get the real, authentic item and get it within days from a fully accredited test equipment supplier.

Fluke 6500-2 Downloadable PAT Tester Details

The Fluke 6500-2 is Fluke's most powerful PAT tester, highly recommended for use by professional PAT testers.

This is the upgraded version of the standard Fluke 6200-2; the main difference is the inclusion of fully downloadable memory storage, allowing you to easily store and manage your testing results without having to jot everything down in a logbook*. A full QWERTY keyboard is built into the tester, making managing your stored data as simple as possible, even when you don't have access to a PC. You can even speed up asset management even further by purchasing an optional Fluke barcode scanner!

Testing with the Fluke 6500-2 is quick, intuitive and easy. All it requires is connecting your leads to an appliance and pressing one button to activate the test. A number of different pre-set testing procedures are available for this mode, or you can take full manual control over your PAT testing if you prefer.

The main interface of the 6500-2 includes a port for a standard 3-pin mains plug and a connector for IEC style leads (commonly found on IT equipment etc) and a 110V connector, allowing you to test any appliance you encounter.

You can expect the 6500-2 to do all the tests required for PAT testing; this tester can measure earth continuity, insulation (at 250V and 500V) and performs several current tests including protective earth conductor current, touch current and substitute leakage current. It can also measure RCDs, appliance power (in kVA) and appliance load current.

There's so much more to the 6500-2; see below for a full breakdown of this tester's capabilities!

*Note - you will require a copy of Fluke's DMS PAT software (sold separately) to analyse results on a PC

Fluke 6500-2 PAT Tester Key Features

  • Fluke's most advanced PAT tester - highly recommended for those who PAT test regularly, testing a large amount of appliances
  • Fully downloadable memory storage with space for over 1000 individual records
  • USB port for download to PC - USB stick included for storage
  • Speed up your testing with pre-set, automatic test sequences with one touch test activation
  • Large-size, backlit LCD screen
  • Full QWERTY keyboard included for easy management of testing results
  • Integrated site, location and description codes for faster data processing
  • Optional barcode scanner (for faster asset management) and printer available (sold separately)
  • One of the few PAT testers available with a dedicated 110V connector for testing 110V appliances
  • No more adapters - dedicated IEC and mains plug connection ports are built into the tester
  • Test all appliances including class I and class II, IT equipment and all associated leads
  • Built-in carrying handle for easy transportation from test to test
  • Insulation tests at 500V and 250V
  • Measure protective earth conductor current, touch current and substitute leakage current
  • RCD tests
  • Appliance power tests (kVA)
  • Appliance load current tests
  • Polarity checks

*The brand of the supplied socket tester and/or microwave leakage tester may vary depending on current stock.

Fluke 6500-2 Technical Specifications

Test Specifications The accuracy specification for the display range is defined as ±(%reading + digit counts) at 23 °C ±5 °C, ≤75 % RH.
Between 0 °C and 18 °C and between 28 °C and 40 °C, accuracy specifications may degrade by 0.1 x (accuracy specification) per °C.
The measurement range meets the service operating errors specified in EN61557-1: 1997, EN61557-2: 1997, EN61557-4: 1997, EN61557-6: 1997, DIN VDE0404-2.
Power-on Test The test indicates reversed L-N, missing PE, and measures the mains voltage and frequency.
Display Range 90 V to 264 V
Accuracy at 50 Hz ± (2% + 3 counts)
Resolution  0.1 V
Input Impedance       > 1 MΩ // 2.2 nF
Maximum Input Mains Voltage 264 V
Earth Bond Test (Rpe) Display Range 0 to 19.99 Ω
Accuracy (After Bond Test Zeroing) ± (2.5% + 4 counts)
Resolution 0.01 Ω
Test Current 200 mA AC -0% +40% into 1.99 Ω
25 A AC ± 20% into 25 mΩ at 230 V
Open Circuit Voltage > 4 V AC, < 24 V AC
Bond Test Zeroing can subtract up to 1.99 Ω
Insulation Test (Riso) Display Range 0 to 299 MΩ
Accuracy ± (5% + 2 counts) from 0.1 to 300 MΩ
Resolution 0.01 MΩ (0 to 19.99 MΩ)
0.1 MΩ (20 to 199.9 MΩ)
1 MΩ (200 to 299 MΩ)
Test Voltage 500 V DC -0% + 25% at 500 kΩ load or 250 V dc -0 % +25 % at 250 kΩ load
Test Current > 1 mA at 500 kΩ load, < 15 mA at 0 Ω
Auto Discharge Time < 0.5 s for 1 μF
Max. Capacitive Load Operational up to 1 μF
Touch Current Test Display Range 0 to 1.99 mA AC
Accuracy ± (4% + 2 counts)
Resolution 0.01 mA
Internal Resistance (via Probe) 2 kΩ
Measuring Method Probe*
Substitute Leakage Current Test Display Range 0 to 19.99 mA AC
Accuracy ± (2.5% + 3 counts)
Resolution 0.01 mA
Test Voltage 100 V AC ± 20%
Load/Leakage Test: Load Current Display Range 0 A to 13 A
Accuracy ± (4% + 2 counts)
Resolution 0.1 A*
Load/Leakage Test: Load Power Display Range 230 V Mains 0.0 VA to 3.2 kVA
Accuracy  ± (5 % + 3 counts)
Resolution 1 VA (0 to 999 VA), 0.1 kVA (>1.0 kVA)*
Load/Leakage Test: Leakage Current Display Range 0 to 19.99 mA
Accuracy ± (4% + 4 counts)
Resolution 0.01 mA*
PELV Test Accuracy at 50 Hz ± (2% + 3 counts)
Overload Protection 300 V rms
Warning Threshold 25 V rms
RCD Test: Trip Current Operational Error ±10 %
Nominal 30 mA
Accuracy ±5 %
RCD Test: Trip Time Standard Requirement 61557 Part 6; tolerance of rated test current 0 % to +10 %
Operational Error ±10 %
RCD Type AC general-purpose 30 mA
Display Range 310 ms
Resolution 0.1 ms
Accuracy 3 ms
Trip Time Limit at 100 % (30 mA) 300 ms
Trip Time Limit at 500 % (150 mA) 40 ms
*The appliance under test is energized at mains potential.



Environmental Specifications
Operating Temperature 0 to 40 °C
Relative Humidity Non condensing < 10 °C
95% from 10 to 30 °C
75% from 30 to 40 °C



Safety Specifications
Safety Rating Complies with EN61010-1 3rd edition
CAT II, 300 V, pol 2



Mechanical & General Specifications
Size 200 mm (L) x 275 mm (W) x 114 mm (H)
Weight 3.13 kg
Power Supply 230 V +10 % -15 %, 50 Hz ±2 Hz or (6500-2 only: 110V +10 % -15 %,50 Hz ±2 Hz)
Power Consumption (Tester) 13 W typical (idle)
60 W max. during 25A Bond test
Storage Temperature -10 to 60 °C
Corrosion 70 °C @ 95 % RH for 5 days max.
Operating Altitude 0 up to 2000 m
Sealing IP-40 (enclosure), IP-20 (connectors)
EMC Complies with EN61326-1, portable
EMI Immunity 3 V/m
