Industrial 5 Ports Gigabit Solar POE Switch with DC12V-48V to DC48V Voltage Booster, Supports 4 x IEEE802.3af/at 30W POE Ports @120W, Compact POE Power Supply for Solar Power/RV Truck/VoIP Systems.
Overview
Mini Industrial 5-Port 10/100/1000T Gigabit Ethernet PoE+ Switch with 12~48VDC wide range power input. This unmanaged industrial Ethernet switch is designed to match the critical industrial standards. With reliable and simple operation against vibration and shock, and wide operation temperature range, it could match a variety of harsh environment. The switch complies with CE and standards, and passed the 100% burning test to ensure that it will fulfill the needs of industrial applications. It is a good choice for an economical solution for industrial Ethernet connections.

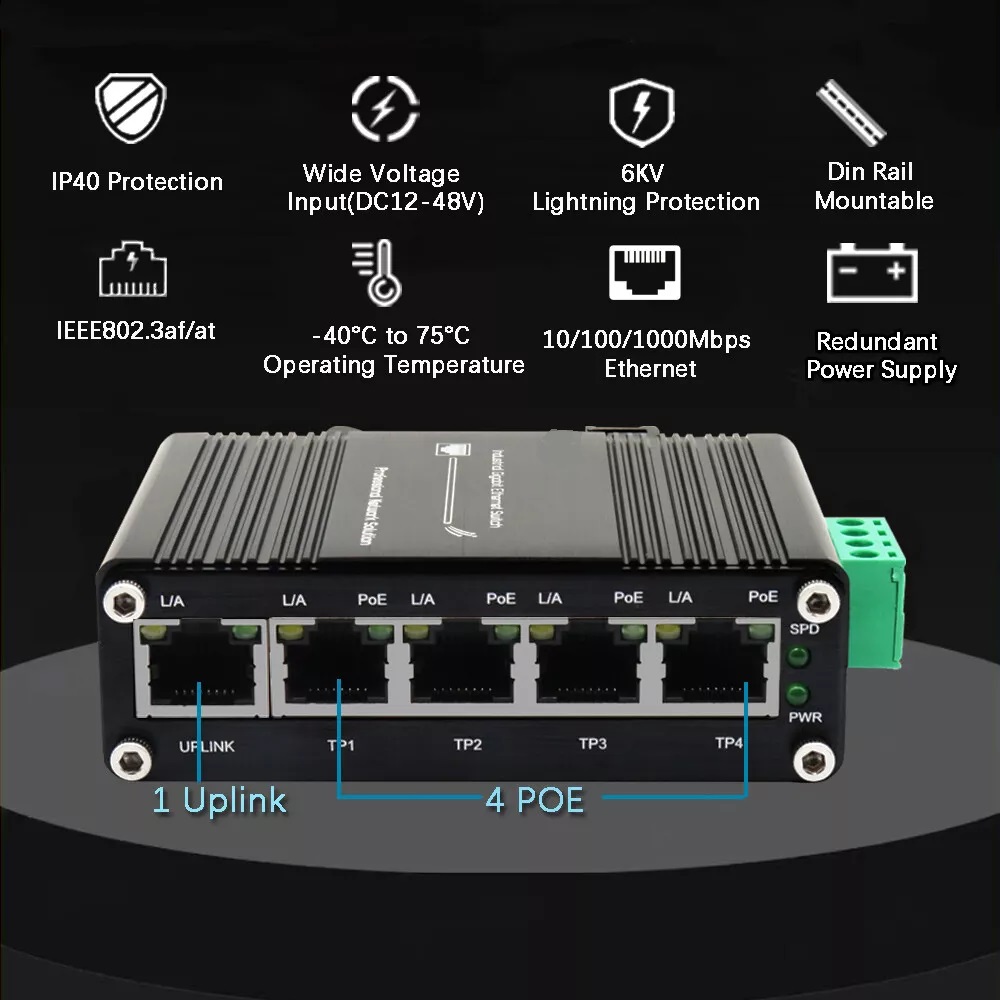

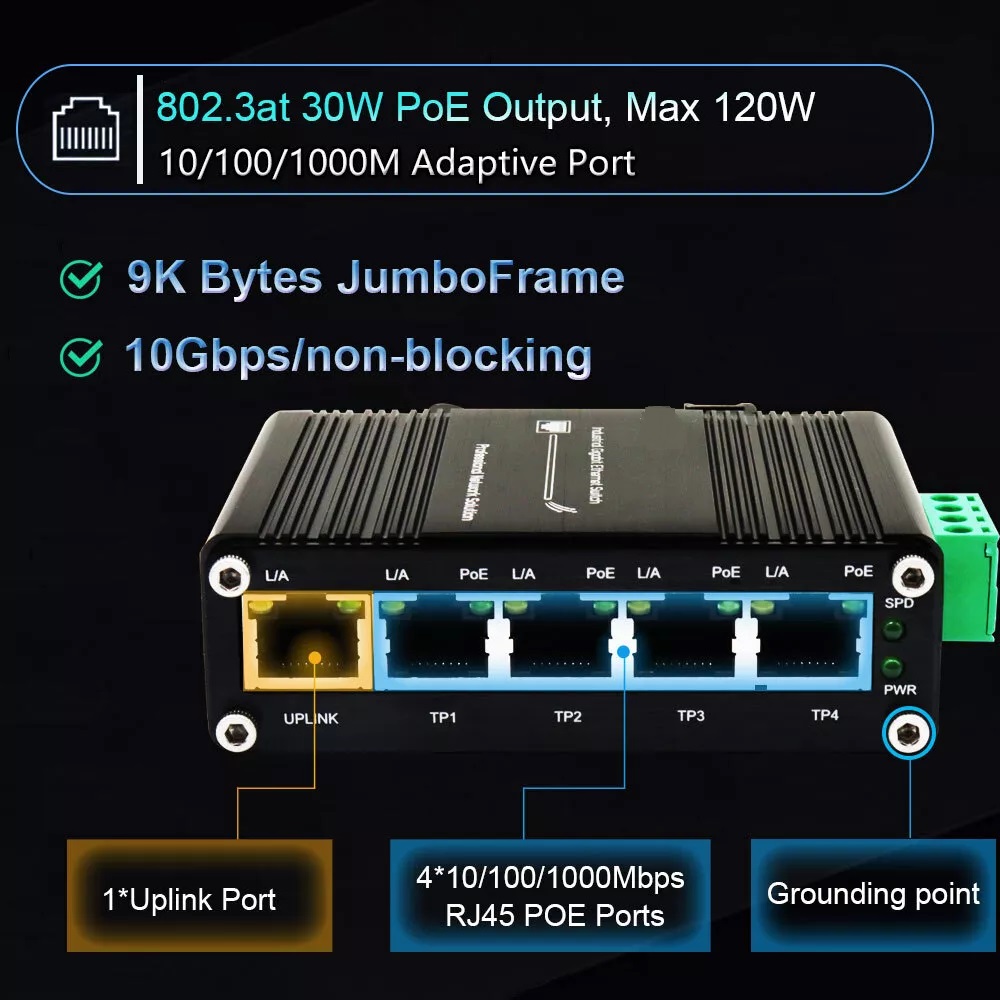

- Interface: Gigabit Ethernet Unmanaged PoE+ Switch is equipped with 4 10/100/1000BASET RJ45 ports & 1 Uplink Port，RJ45 ports support auto-negotiation, auto MDI/MDIX, full/half-duplex(10/100Mbps half/full duplex and 1000Mbps full duplex)

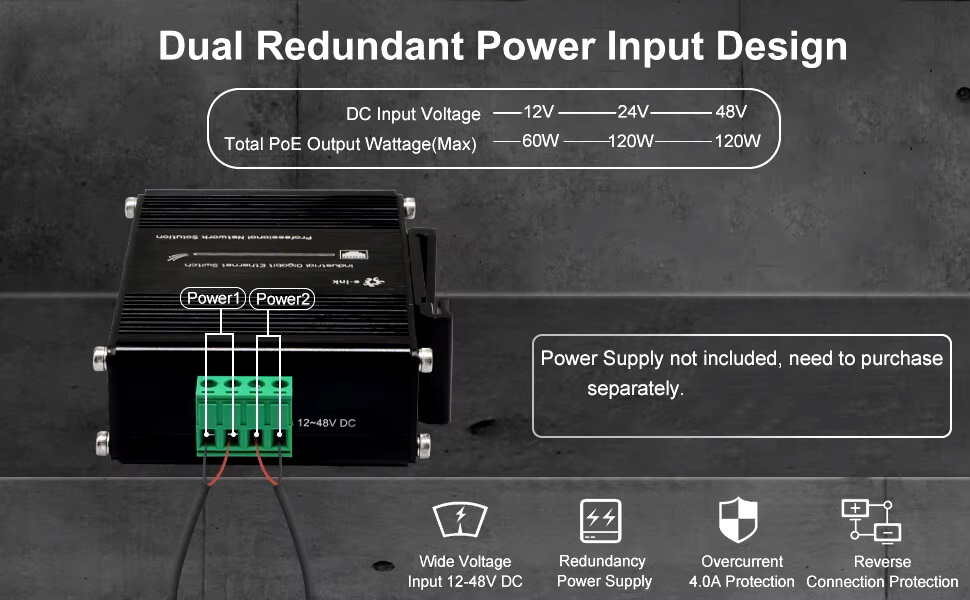

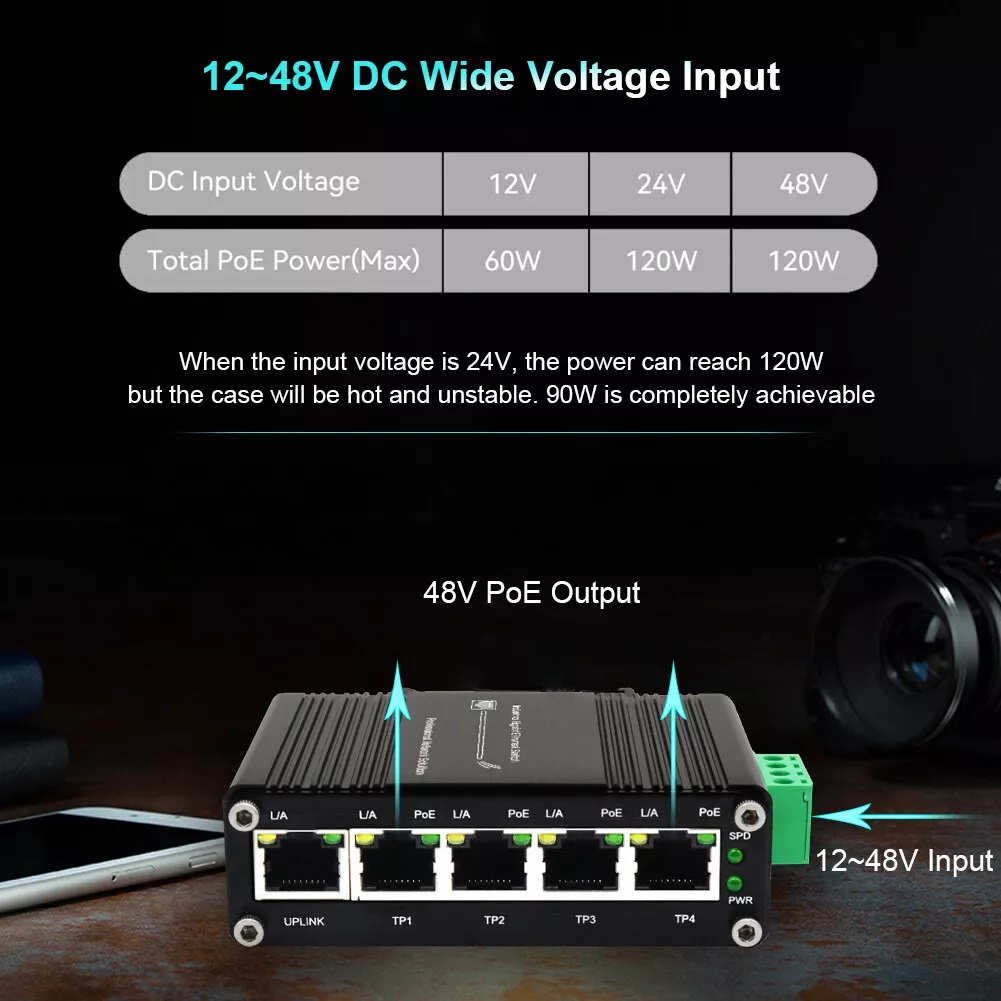

- Wide Input: The Ethernet Switch supports 12~48V DC(Terminal Block) power input, Up to 120-watt PoE budget (48VDC), 90-watt PoE budget (24VDC), 60-watt PoE budget (12VDC)
- 12~48V DC Input: The switch support 12~48V DC Input and boost to 48V output. It will solve the problem that you only have 12V or 24V centralized power supply or solar power supply. And also support Redundant power.

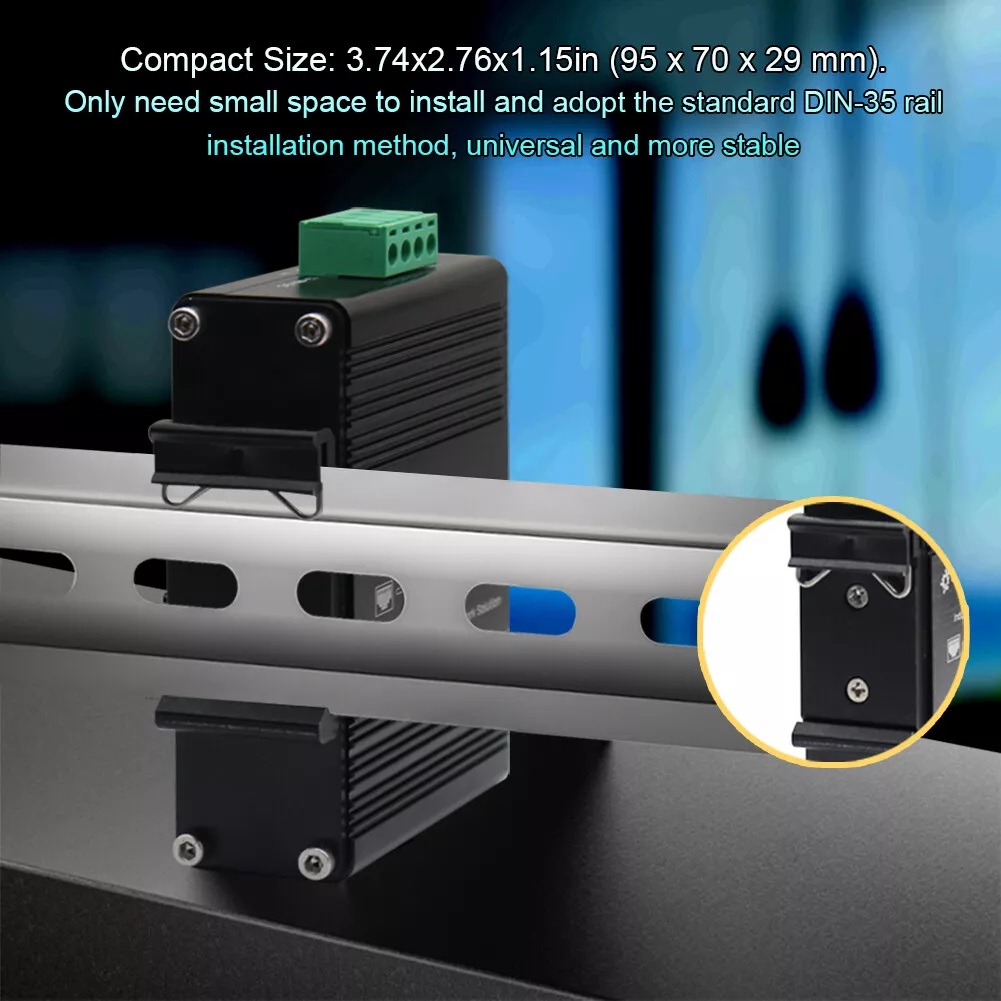

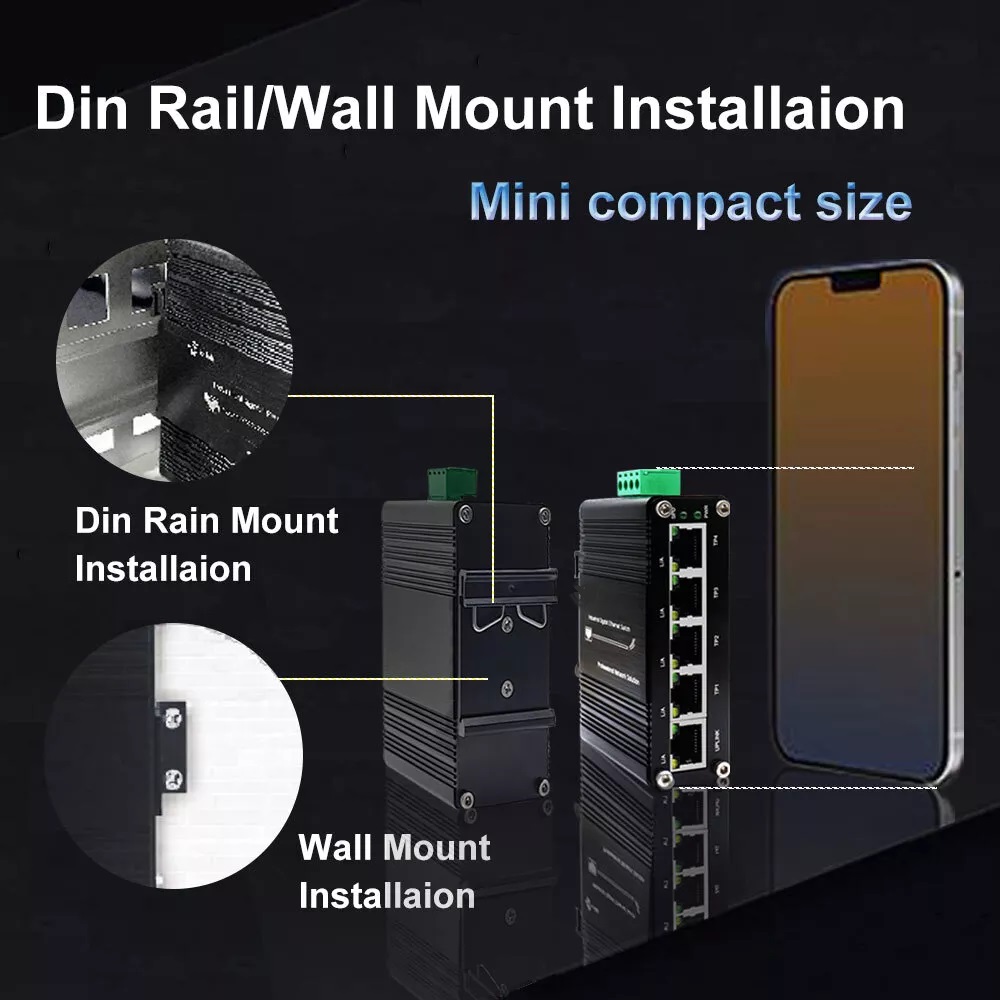

- 2 Installation Methods: The Gigabit Network Switch come with 35mm din-rail mounting bracket and wall mount accessory, supports Din-Rail & Wall Mount Installation

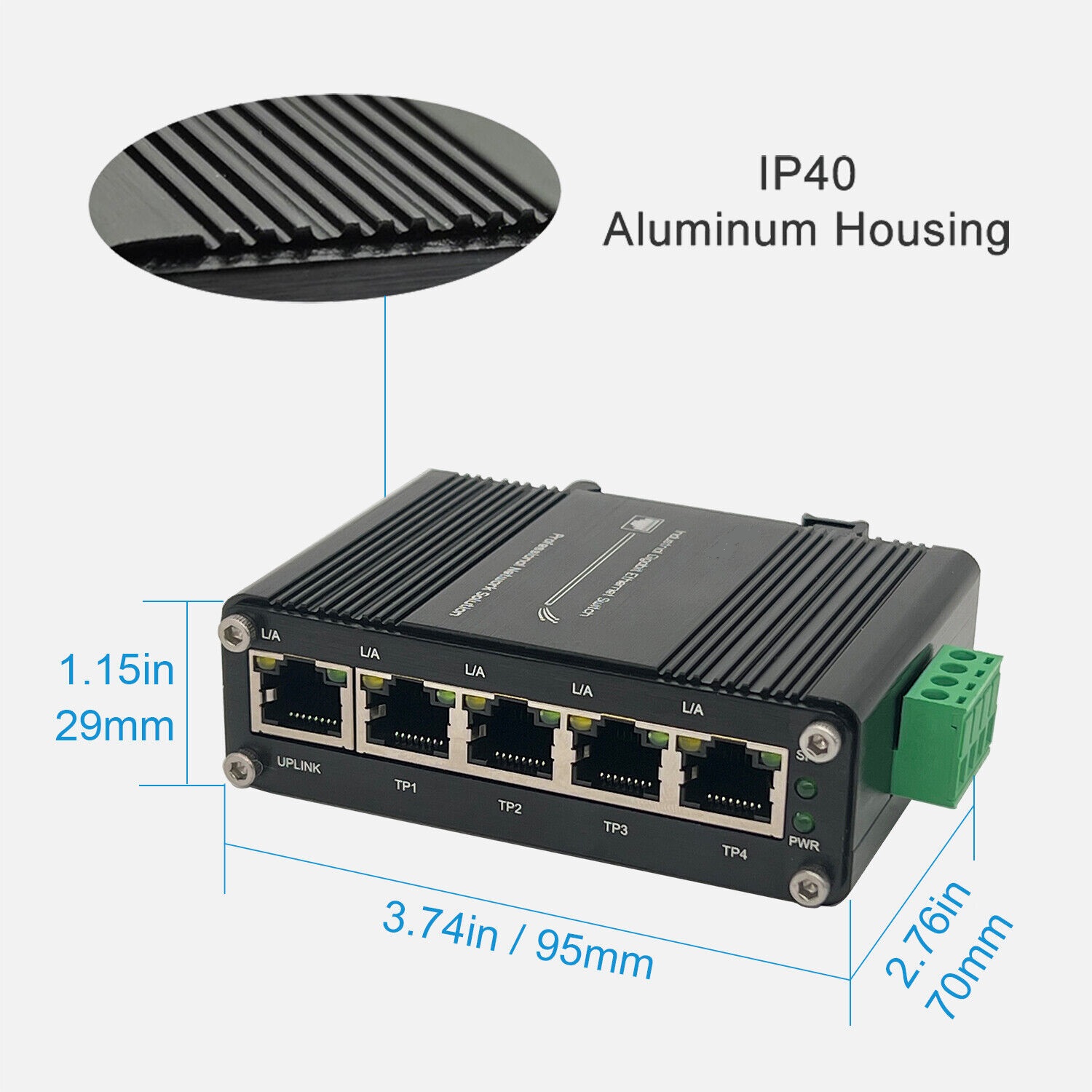

- Industrial Grade Quality : The Hardened Industrial Switch is made of Aluminum Case, Dustproof IP40, With reliable and simple operation against vibration and shock, and wide operation temperature range (- 40°F - 176 °F) for harsh environments

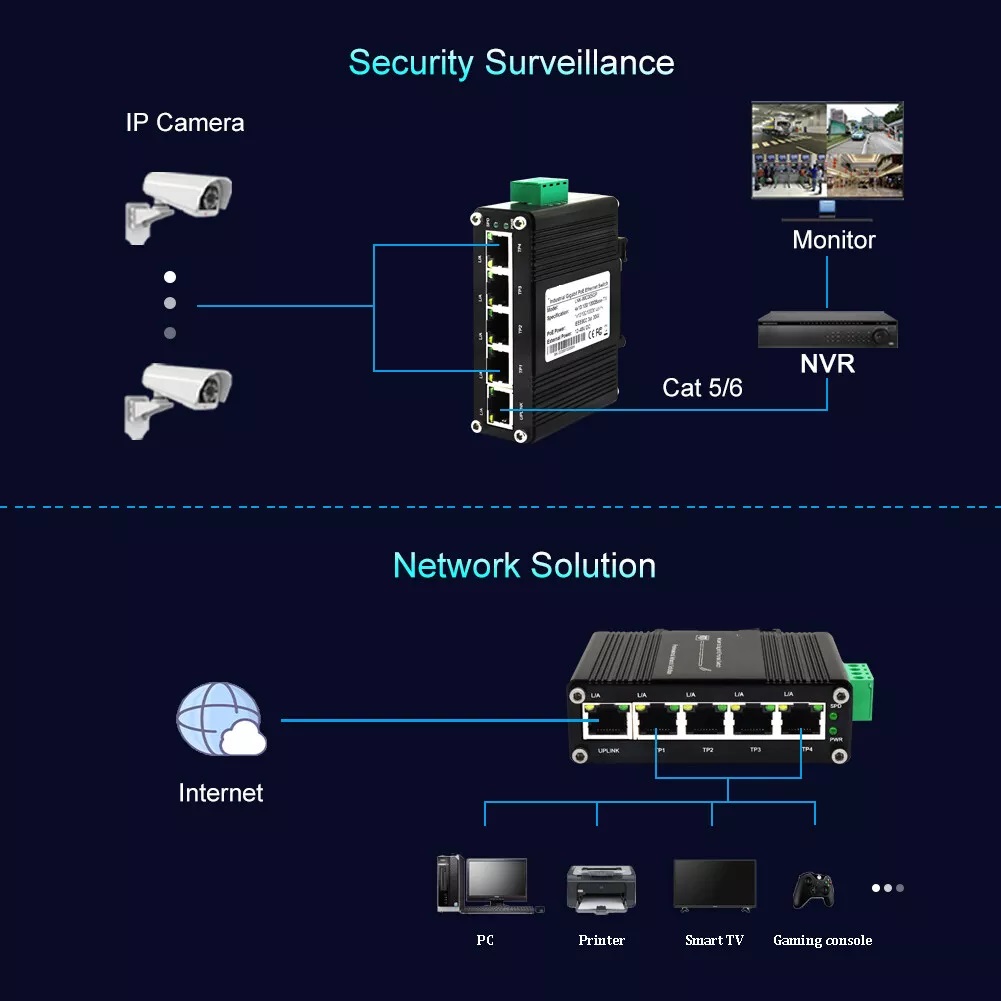

- Industry Standards &Variety Usage: Our Network Fiber Optical Switch Complies with IEEE 802.3az Energy Efficient Ethernet (EEE). At the same time, it also supports 802.3x Flow control. With its reliable design and ease of use, the Ethernet PoE switch is a great choice for integrating networks consisting of network devices such as IP phones, IP cameras, and wireless access points between remote locations. It can be use in traffic, mine field, factory, office, homes, and so on.
Product Features:

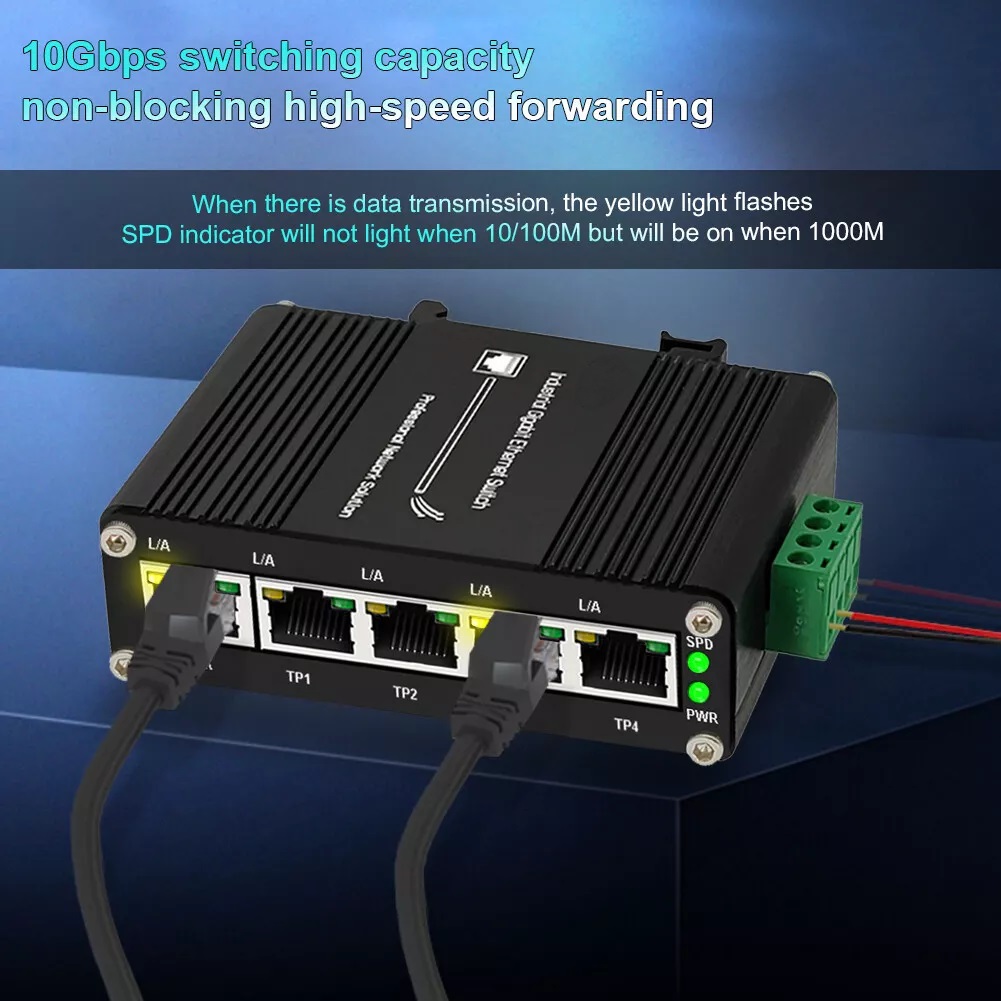

- 5-port 10/100/1000BASE-T RJ45 with auto-MDI/MDI-X function

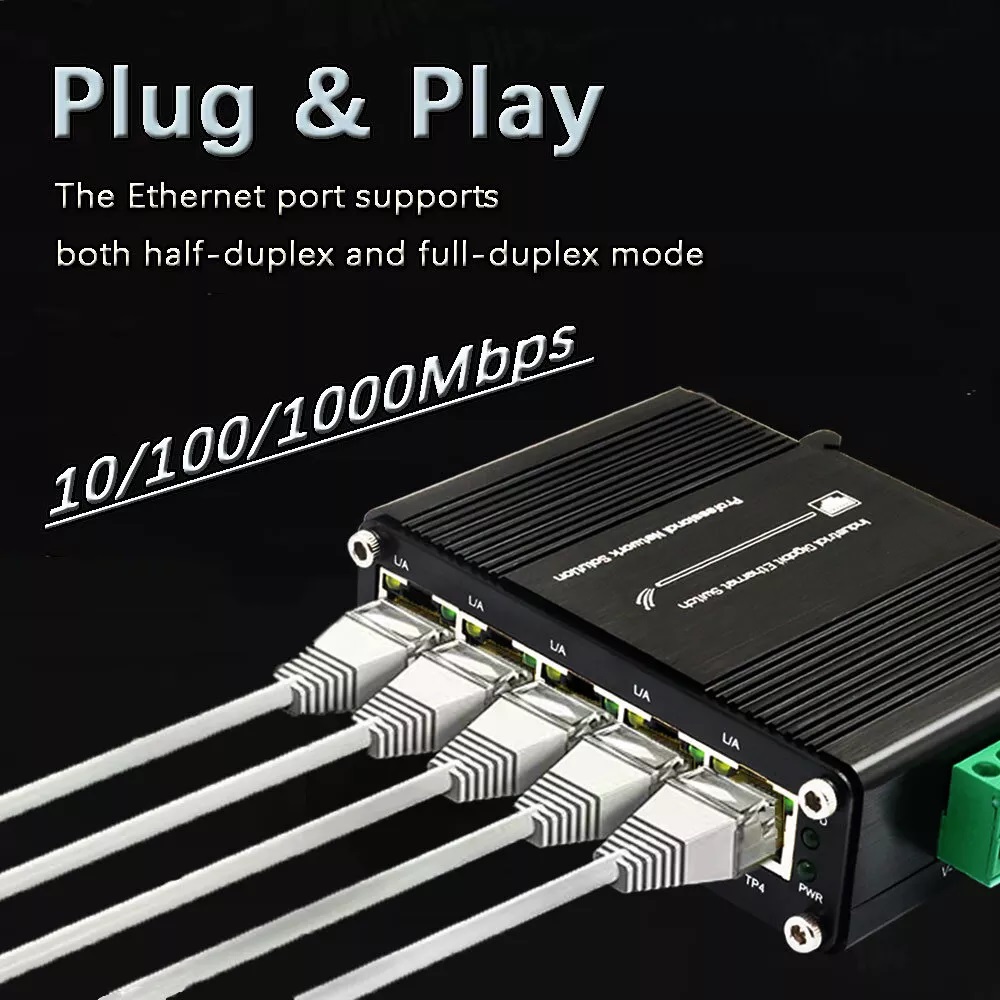

- Supports auto-negotiation and 10/100Mbps half/full duplex and 1000Mbps full duplex
- 12~48VDC wide range power input
- Supports 802.3x Flow control
- PoE Injector: supports 12~48V DC input, Up to 120-watt PoE budget (48VDC), 90-watt PoE budget (24VDC), 60-watt PoE budget (12VDC)
- Standard: IEEE802.3 10Base-T Ethernet, IEEE802.3u 100Base-TX Fast Ethernet, IEEE 802.3x flow control, IEEE802. 3af (PoE),IEEE802. 3at (PoE+)
- Supports DIN-Rail and Wall-mount installation

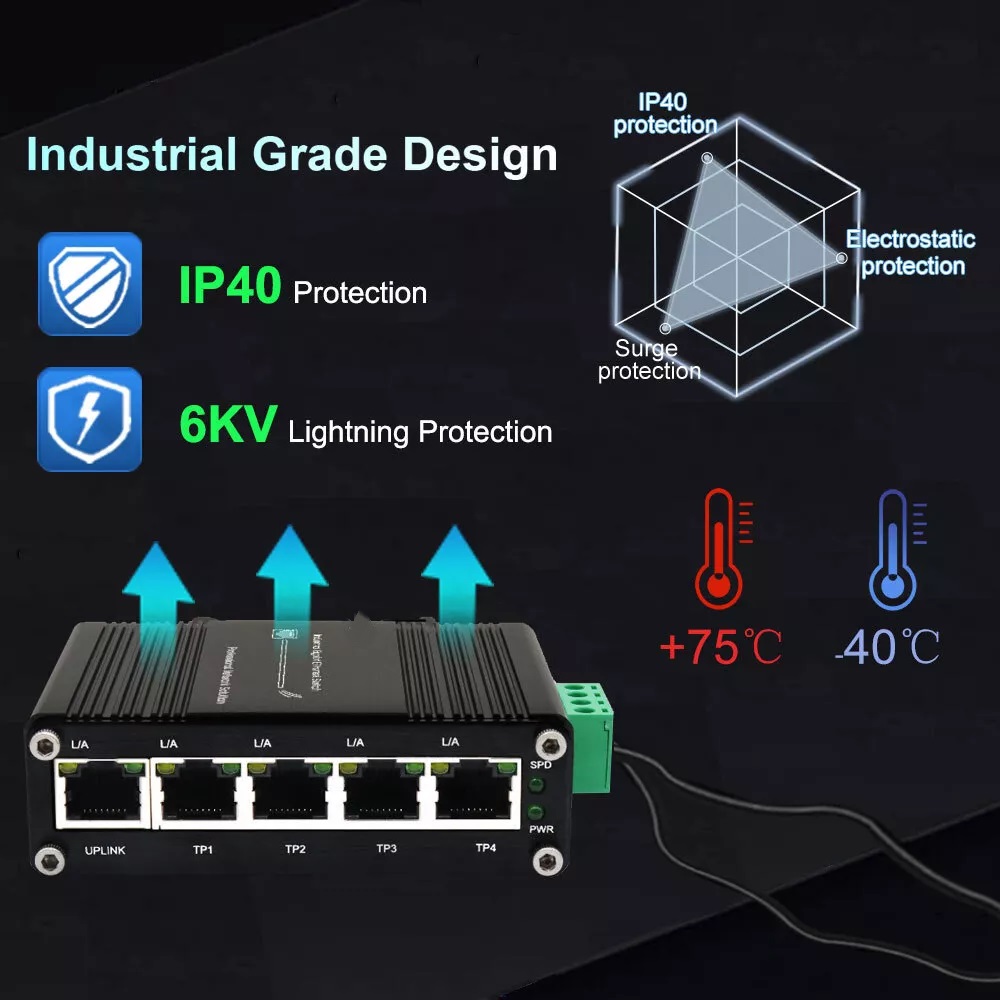

- Industry standard design, dustproof and close design IP40, rugged high-strength metal case
- -40°C to 80°C (-40°F to 176°F) operating temperature
Package Content
- PoE Switch x 1
- Quick Start Guide x 1
- L-shaped wall mount bracket x 1
