Evertz 7814UDX-3G-2 Dual 3G/HD/SD Up/Down/Cross Converter Frame Synchronizer
Evertz 7814UDX-3G-2 Dual 3G/HD/SD Up/Down/Cross Converter Frame Synchronizer
Evertz 7814UDX-3G-2 Dual 3G/HD/SD Up/Down/Cross Converter Frame Synchronizer
Functional Condition: Fully Functional
Cosmetic Condition: Good
CONDITION:
Functional: Fully Functional
Cosmetic: Good
Scroll down for additional photos
Overview:

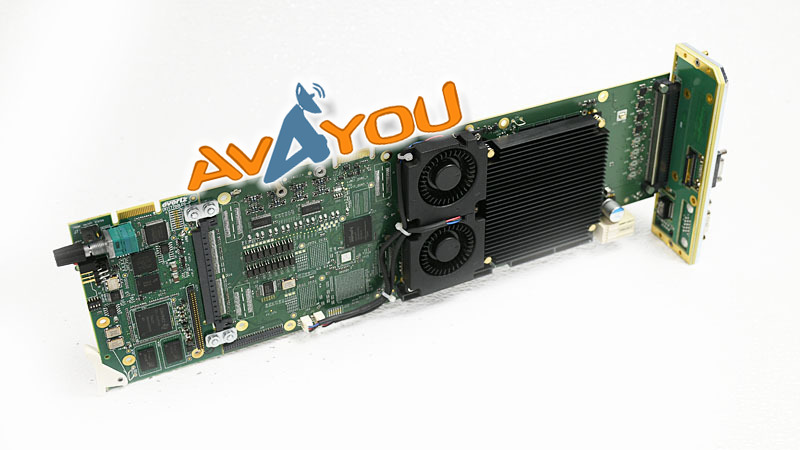

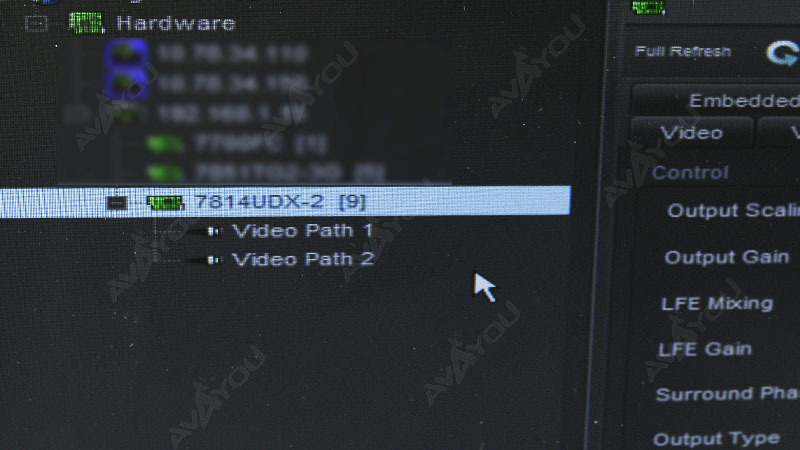

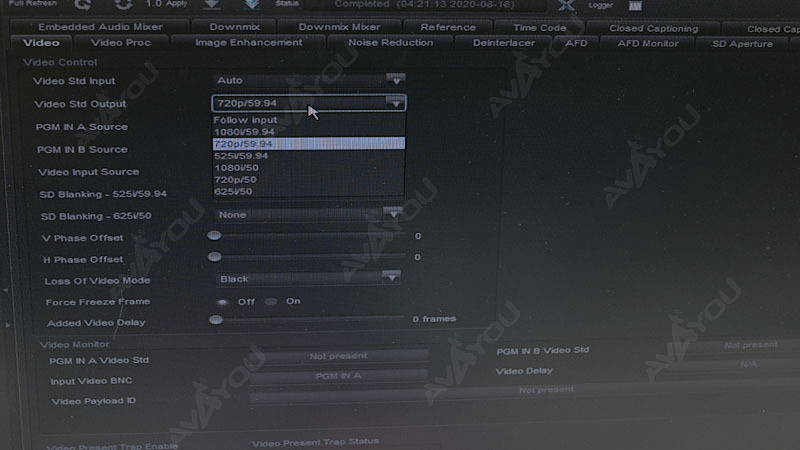

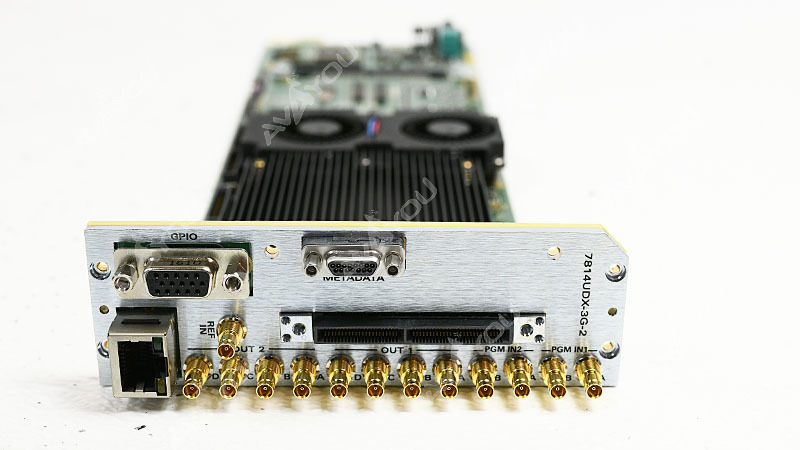

For sale is ONE (1) used dual path converter and frame synchronizer in one. This card comes with +UMX2 option for AES operations. It comes with a corresponding backplane. Excellent condition, tested with Vista Link software and via serial port. Will be shipped in anti-static film. This card will work with 7800FR or 7801FR only. Actual photos are showed.
SKU# 3734
Description:
The 7814UDX series are dual path broadcast quality up/down/cross converters that convert between common SD/SMPTE 259M and HD/SMPTE 292M video signals. \"-3G\" versions add support for common 3G/SMPTE 424M video signals. These modules support frame synchronization and external genlock inputs (card and frame reference) for video timing adjustments.
The 7814UDX series supports 16x channels of embedded audio with audio delay automatically matching video delay. Additional audio delay can be applied. Full audio processing is supported with standard proc features including audio channel shuffling, gain, and inversion. 5.1-to-stereo down-mixing (LoRo or LtRt) and mono-mixing. With \"-AES8\" variants, 8x discrete AES inputs and outputs are provided on a per path basis. Advanced audio processing options include stereo to 5.1 upmixing (+UMX2) and IntelliGain audio loudness management (+IG2). Full audio routing capability allows outgoing embedded and discrete AES audio (-AES8 versions) to be sourced from any combination of embedded audio, discrete AES inputs (-AES8 versions) or processed audio.
Features:
  • Dual path processing in a single modular form factor
  • Broadcast quality up/down/cross conversions between common SD/SMPTE 259M and HD/SMPTE 292M video signals
  • Support for common 3G/SMPTE 424M video signals (-3G versions)
  • Integrated frame synchronizers
  • Supports standard and user-defined aspect ratio conversions
  • Broadcast quality color corrector and detail enhancement engines
  • 16x channel embedded audio support
  • Supports 8x external AES inputs and 8x AES outputs per path (-AES8 versions only)
