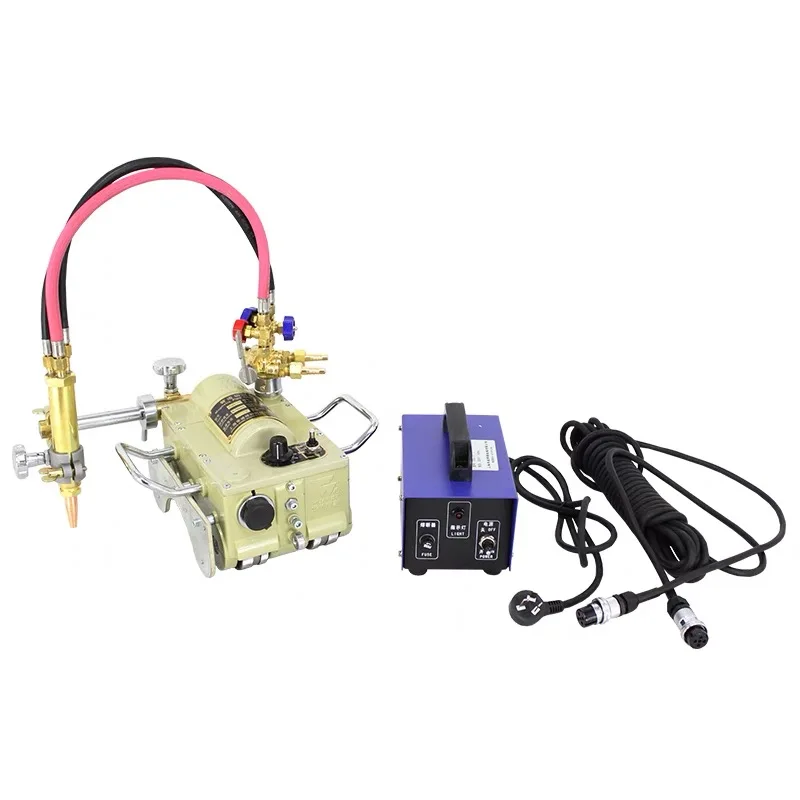

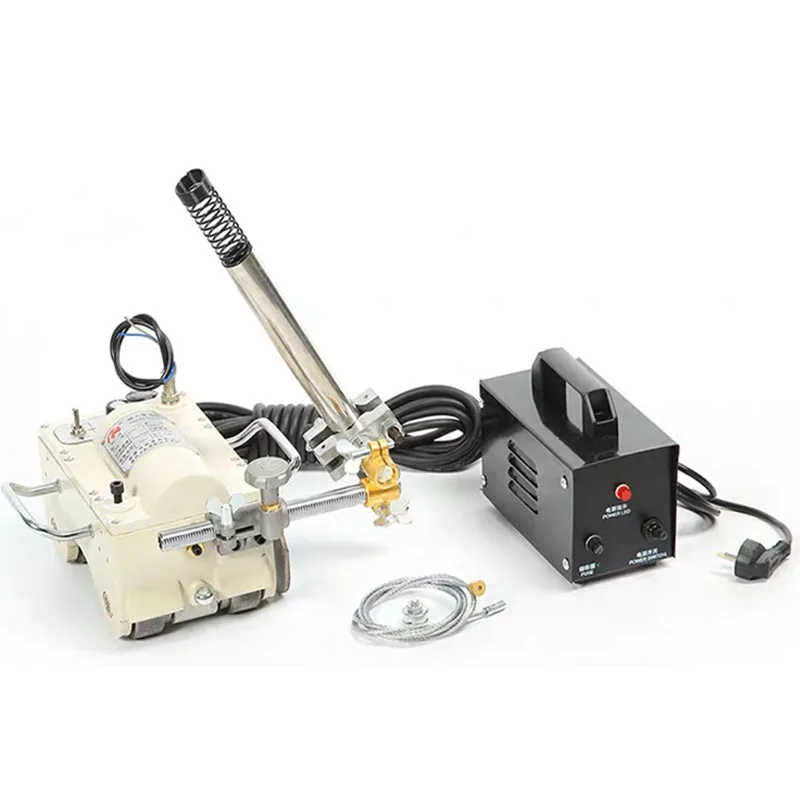

CG2-11 plasma pipe gas cutting machine pipe beveling machine semi-automatic flame cutting machine magnetic pipe cutting tool
Machine model CG2-11
Overall dimensions: 350*310*180mm
Machine weight 20KG
Input voltage AC220/50HZ

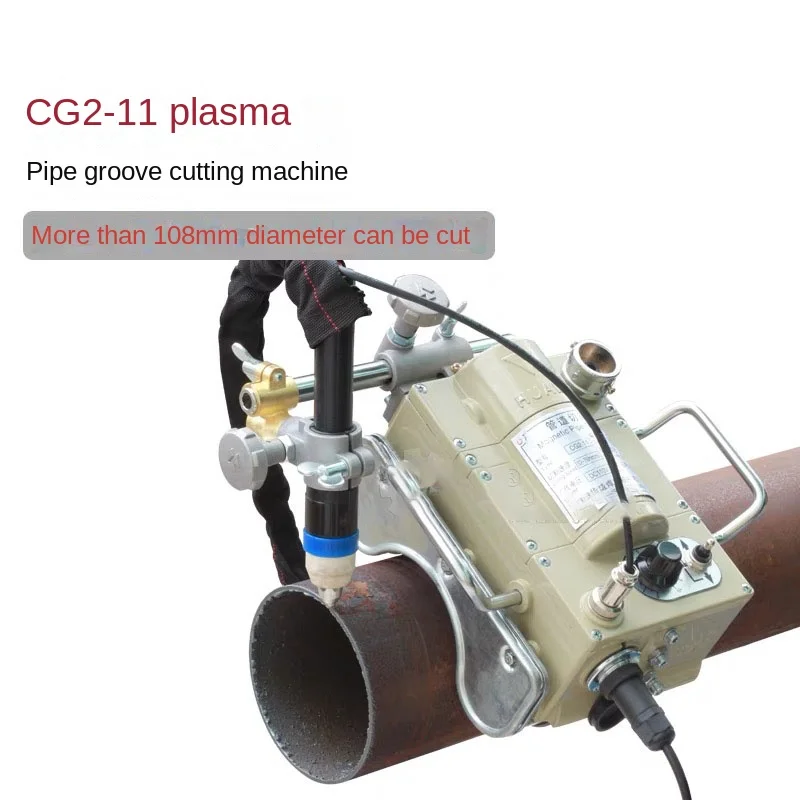

Cutting diameter ��108mm
Cutting pipe wall thickness 6-50mm
Cutting speed of steel plate 50-750mm/min
Magnetic wheel adsorption force ��50KG
Technical Parameters
1. This product is made of aluminum alloy and has a compact structure.

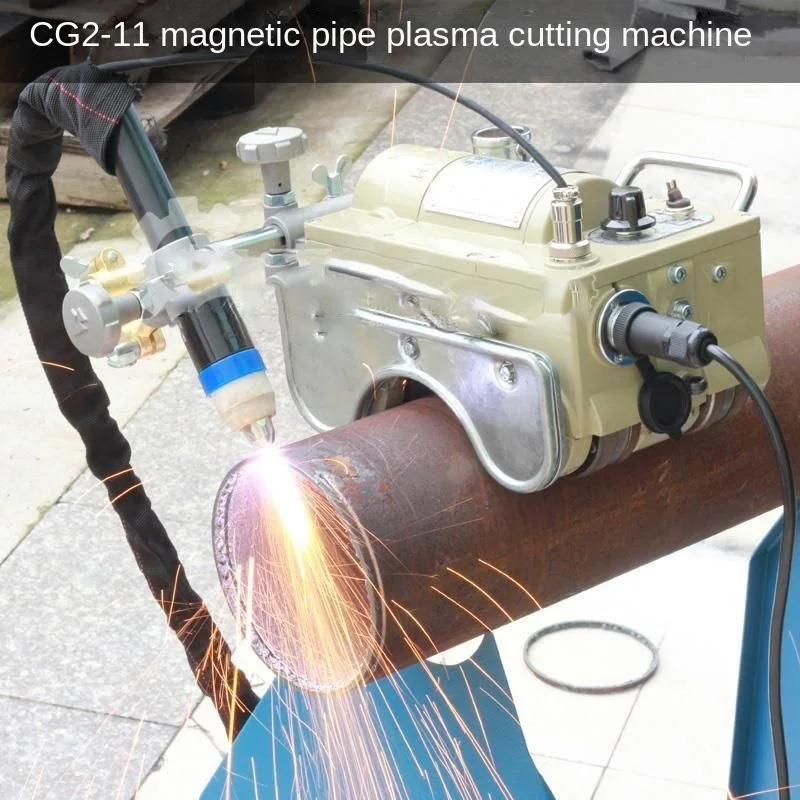

2. This machine uses permanent magnetic wheels to adsorb on the steel pipe for crawling and cutting, and can cut horizontally, vertically and upwards.

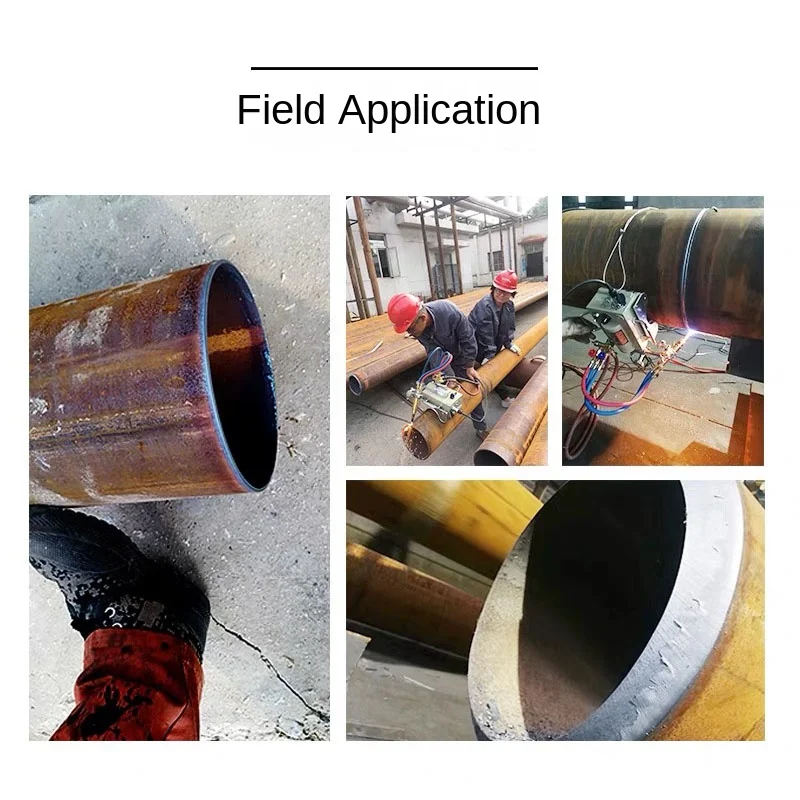

3. This machine has the characteristics of good cutting circle and easy operation. The bevel is i/45°4. It is widely used for cutting steel pipes in petroleum and chemical pipeline projects.
5. Note: If cutting diameter (above 600mm) pipes, an additional steel belt device assembly is required (additional purchase required)
