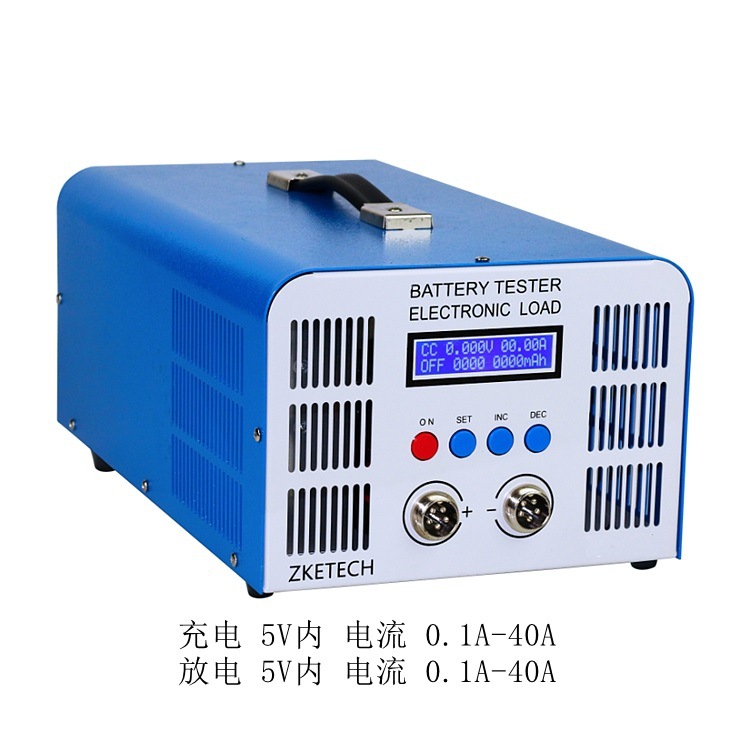

EBC-A40L Electronic Load Battery Capacity Tester Lithium Lead Acid Battery Capacity Tester Charge / Discharge 40A 110V/220V 200W
Specification:
Name: EBC-A40L Battery Capacity Tester
Voltage: 110V / 220V
Maximum discharge power: 200W
Voltage range: 0-5V
Current range: 0.1-40A
Current accuracy: 0.2% +-0.01A
Discharge mode: CC constant current discharge / CP constant power
Discharge termination: time / voltage is below the set lower limit / manual
Charging mode: CV constant current and constant voltage charging
Charging termination: constant voltage current is lower than the set lower limit / manual
Cooling method: active cooling by fan
Accessories: one online cable, one pair of test cables, one power cable
Capacity measurement:
Within 10Ah, resolution 0.001Ah
10Ah-100Ah, resolution 0.01Ah
Above 100Ah, resolution 0.1Ah
Voltage: 110V / 220V
Maximum discharge power: 200W
Voltage range: 0-5V
Current range: 0.1-40A
Current accuracy: 0.2% +-0.01A
Discharge mode: CC constant current discharge / CP constant power
Discharge termination: time / voltage is below the set lower limit / manual
Charging mode: CV constant current and constant voltage charging
Charging termination: constant voltage current is lower than the set lower limit / manual
Cooling method: active cooling by fan
Accessories: one online cable, one pair of test cables, one power cable
Capacity measurement:
Within 10Ah, resolution 0.001Ah
10Ah-100Ah, resolution 0.01Ah
Above 100Ah, resolution 0.1Ah
Note:
The picture is for reference only, battery is not included.
The picture is for reference only, battery is not included.
