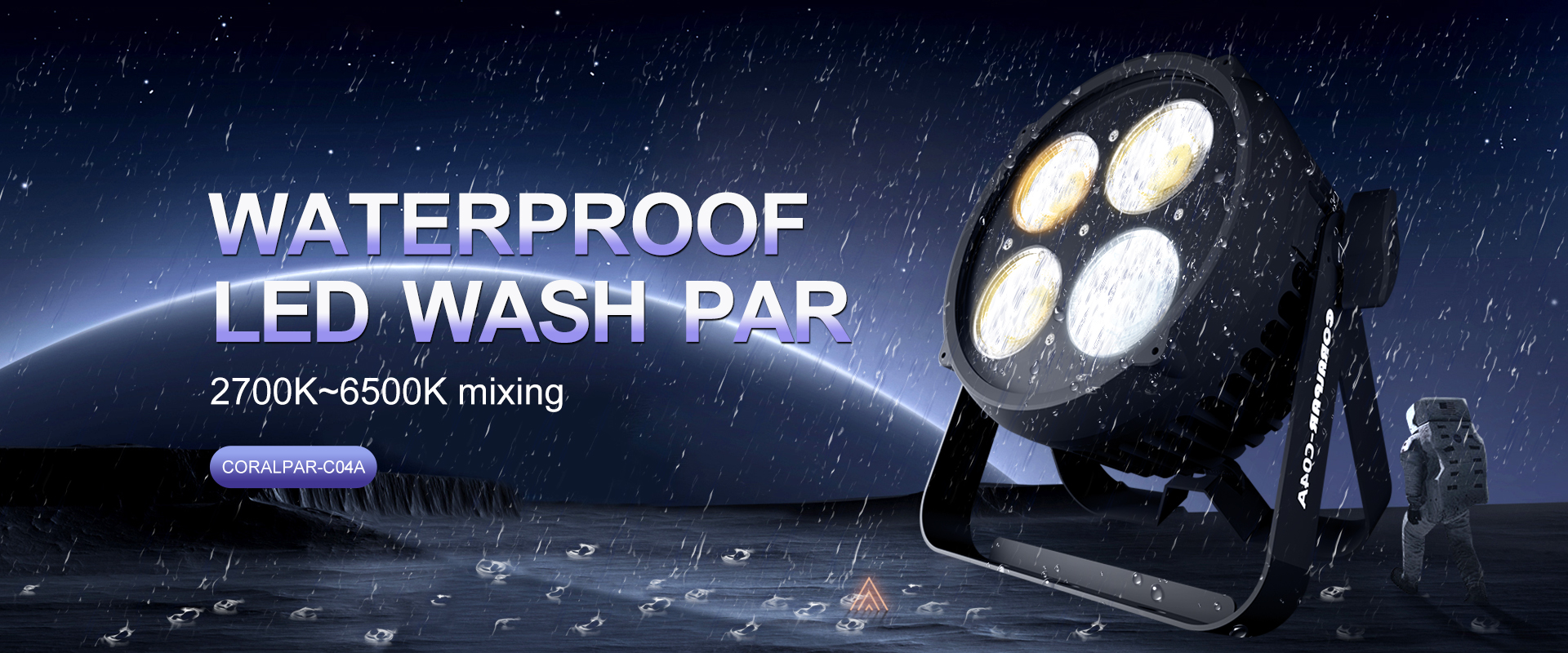

Waterproof LED Wash Par
CoralPar-C04A(IP65)
The light source consists of 4X50W LEDs,
Linear adjustable color 2700K~6500K mixing,
creates the most realistic stage scene environment,
creates a strong visual impact for the performance.

Product Features
Dual modes are available, allowing the lights to dance to the music,
The lighting engineer can flexibly switch colors, angles, and lighting effects.

Technical Parameter
|
Light source parameters |
|
|
Dimmer: |
0-100% linear dimming |
|
Light source: |
4X50W LEDs |
|
Beam Lux: |
4824 Lux / 10m |
|
Beam Angle: |
45° |
|
Strobe: |
Flash rate 0-25HZ |
|
Color Temp: |
2700K~6500K |
|
Security System |
|
|
Safety Item |
Over current and voltage protection |
|
Degree Of Protection |
IP65 |
|
Operating Temperature |
-20℃~45℃ |
|
Interface And Control System |
|
|
Control Interface |
DMX In/Out |
|
DMX Channel |
6/14 CH |
|
Power Interface |
Neutrik PowerCon |
|

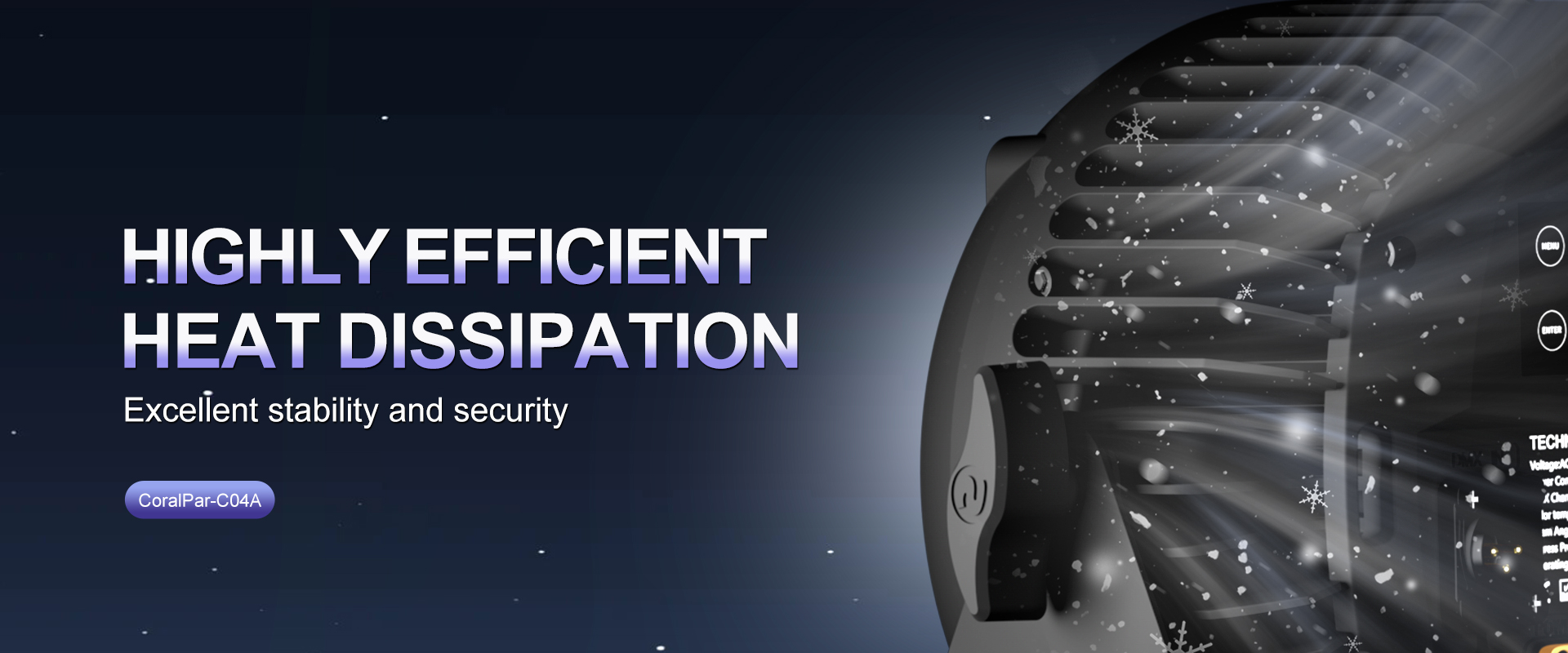

Cooling System |
|
|
Cooling Method |
Passive heat dissipation |
|
Power Consumption |
|
|
Working Power |
100~240V AC 50/60HZ |
|
Power Consumption |
200W |
|
Physical Parameters |
|
|
Material: |
Die cast aluminum casing |
|

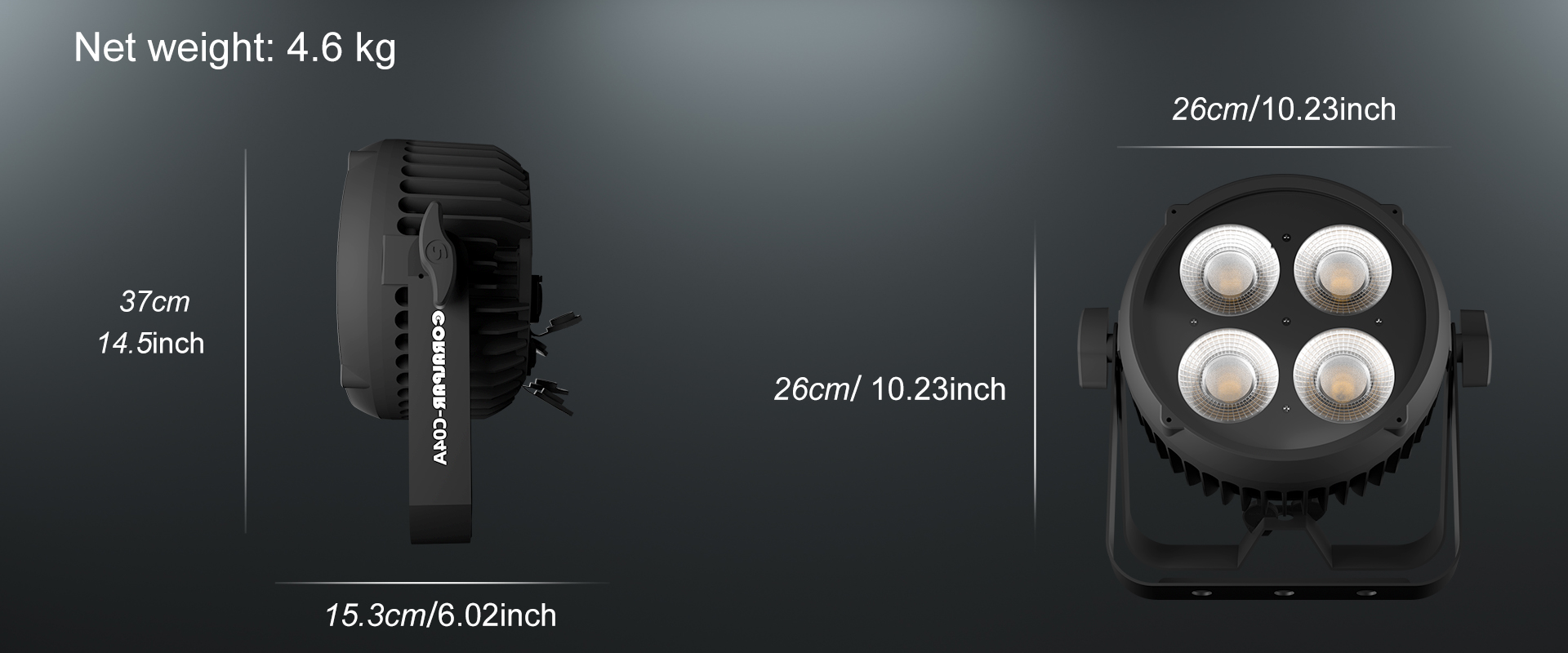

Product Size |
22x22x22 cm / 8.66x8.66x8.66 inch |
|
Product Weight |
3.7 kg |
|
Package Size |
26x26x37 cm / 10.23x10.23x14.5 inch |
|
Package Weight |
4.6 kg |

Beam Angle
The 45 degree beam angle provides a moderate illumination range for the stage,
allowing it to accurately locate specific stage areas or objects.

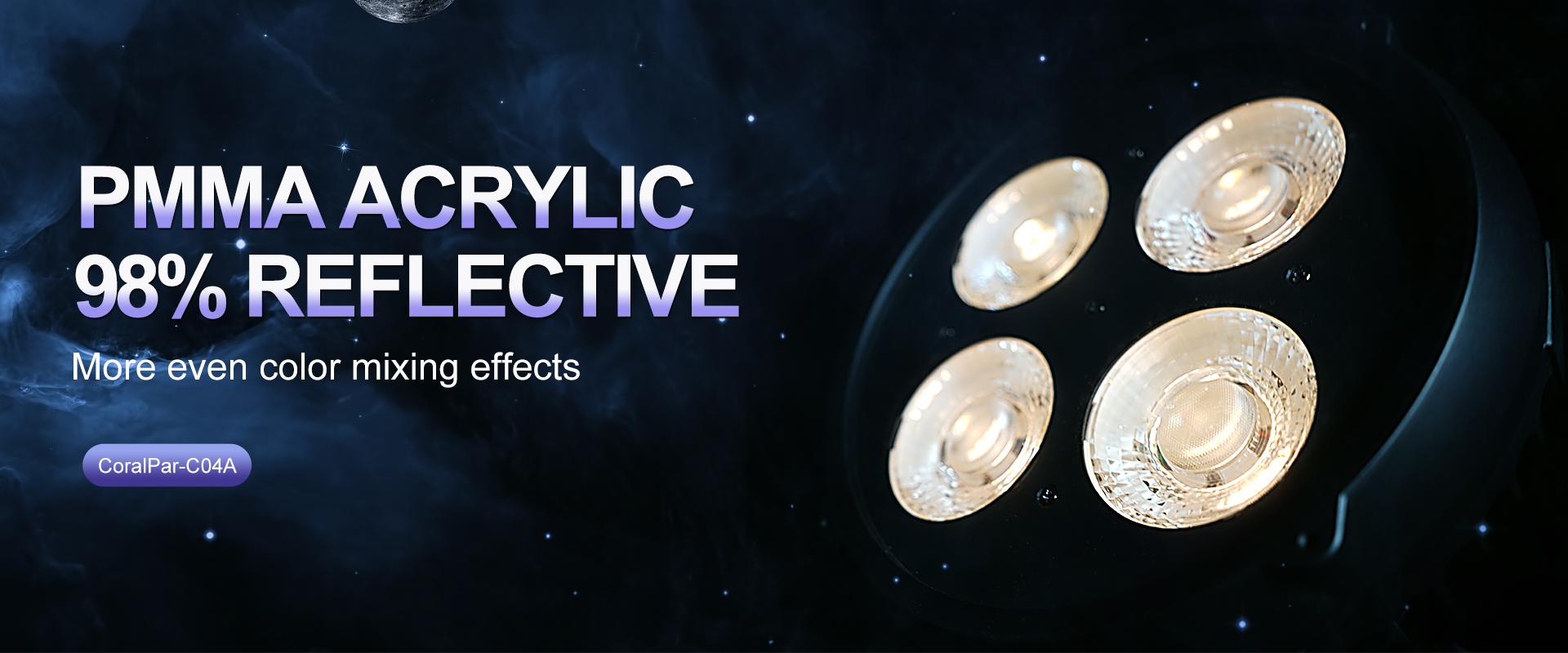

Optical Lens
Adopting customized PMMA acrylic material lenses to achieve a 98% reflectivity and higher lighting efficiency
More uniform color mixing effect

Wash Effect

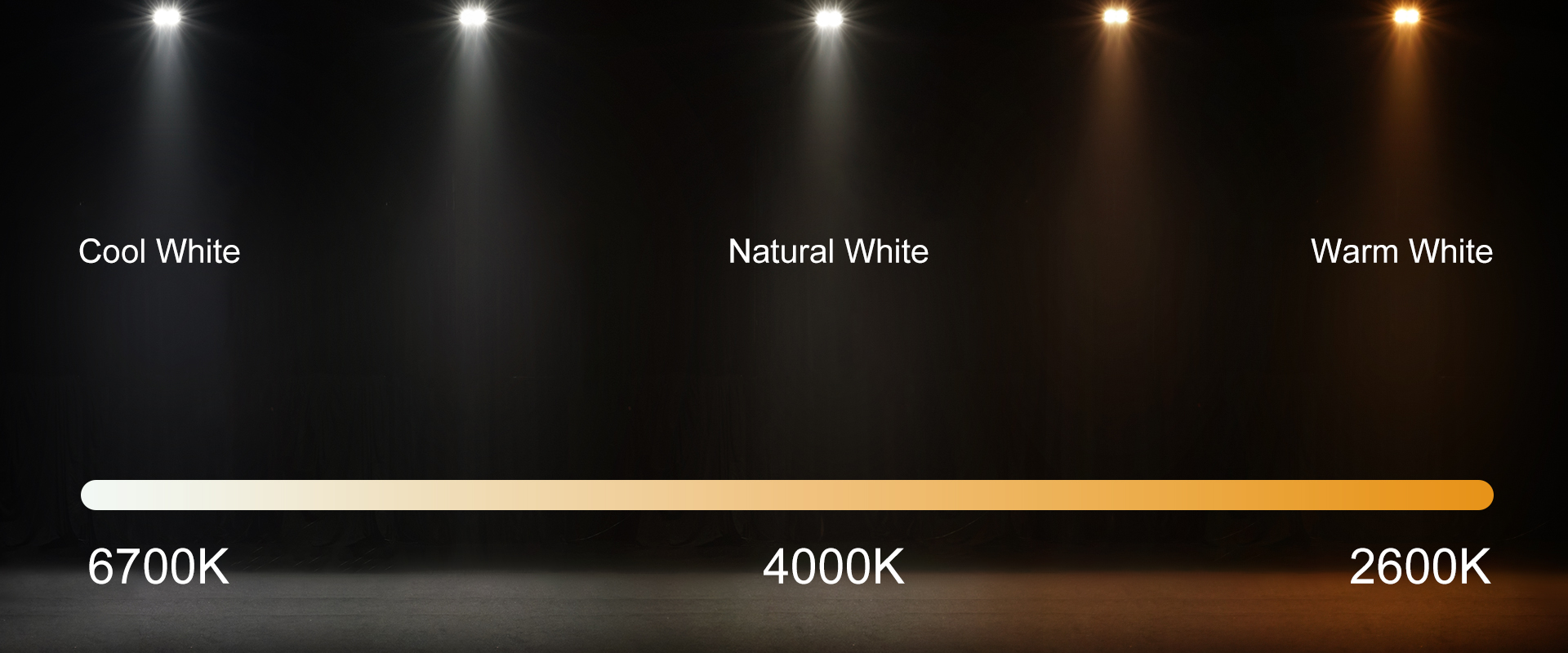

2700K~6500K color temperature lighting, coloring the stage background to create a dreamy visual effect.
Create different atmospheres and emotions for the performance.

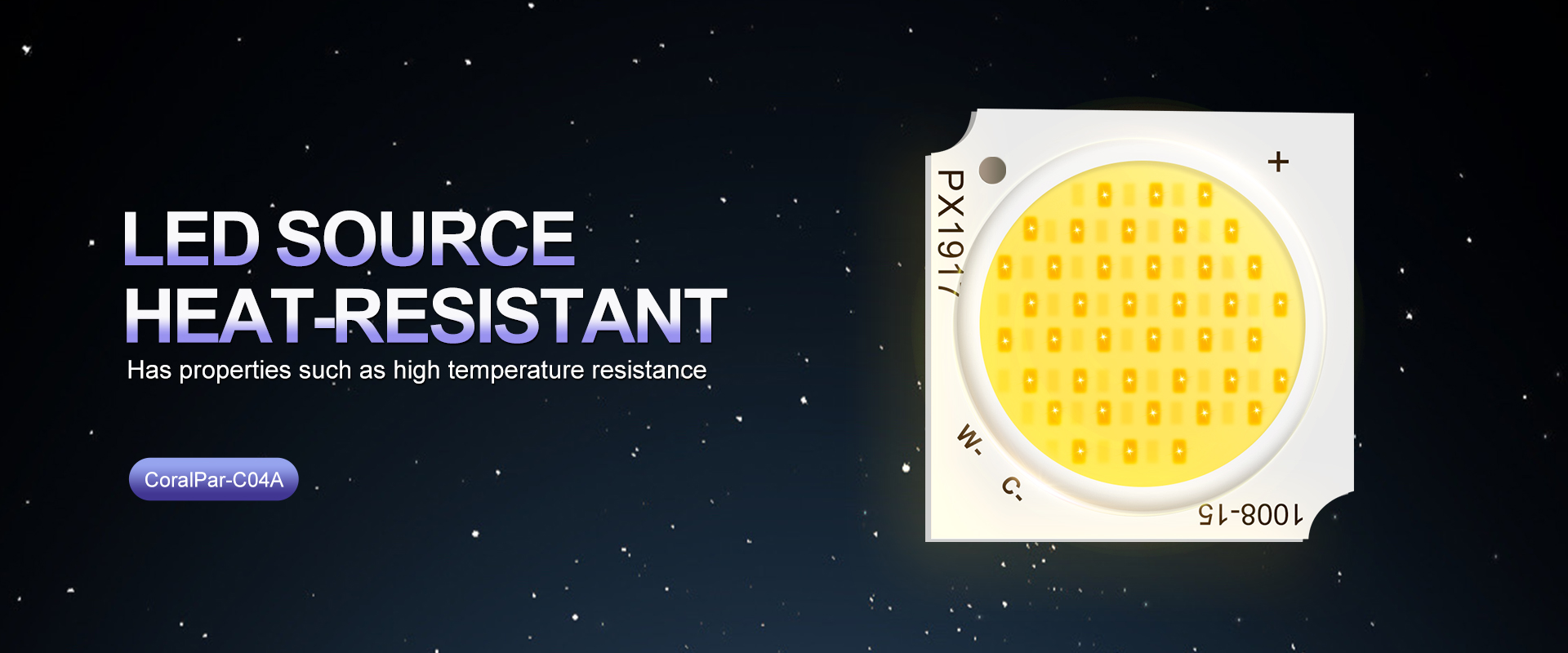

LED Light Source
Using ceramic substrate LED Source,
Has properties such as high temperature resistance, oxidation resistance, and corrosion resistance
So as to adapt to different lighting environments and customer needs.

Different
We have summarized the feedback from customers and made extensive
optimizations based on their needs,
improving the waterproof performance and brightness of the product,
and increasing the stability of outdoor use

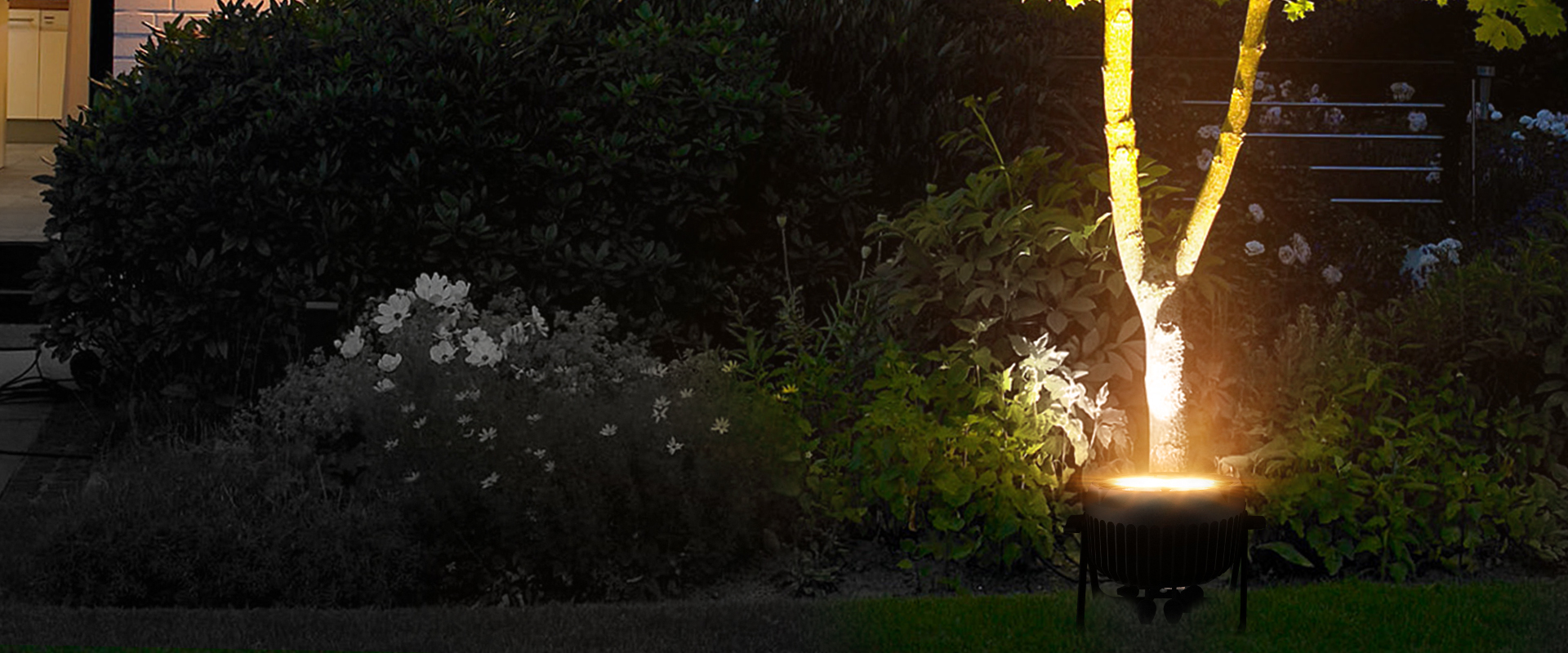

Applicable Scene
These lights are perfect for creating stunning visual effects in bars and clubs,
enhancing the vibrant atmosphere of any venue.

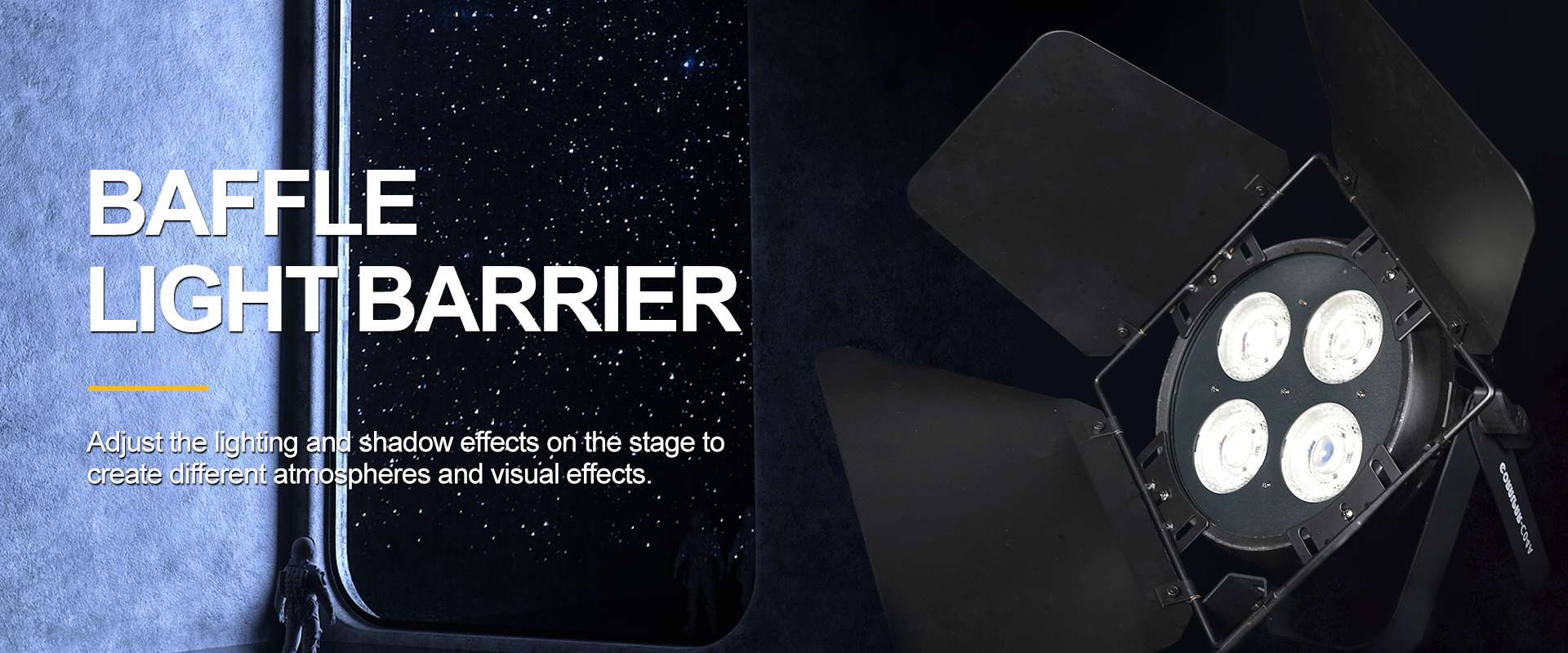

Light Barrier
Adjust the lighting and shadow effects on the stage to create different atmospheres and visual effects.
Highlight the key areas or characters on the stage,
making the audience pay more attention to these areas or characters,
and enhancing the visual effect of the stage.


Introduction To Panel Functions
Equipped with a 1.8-inch touchscreen menu panel, the operation is simple and intuitive.
You can easily adjust parameters such as lighting color, brightness,
and mode to achieve personalized stage effects.

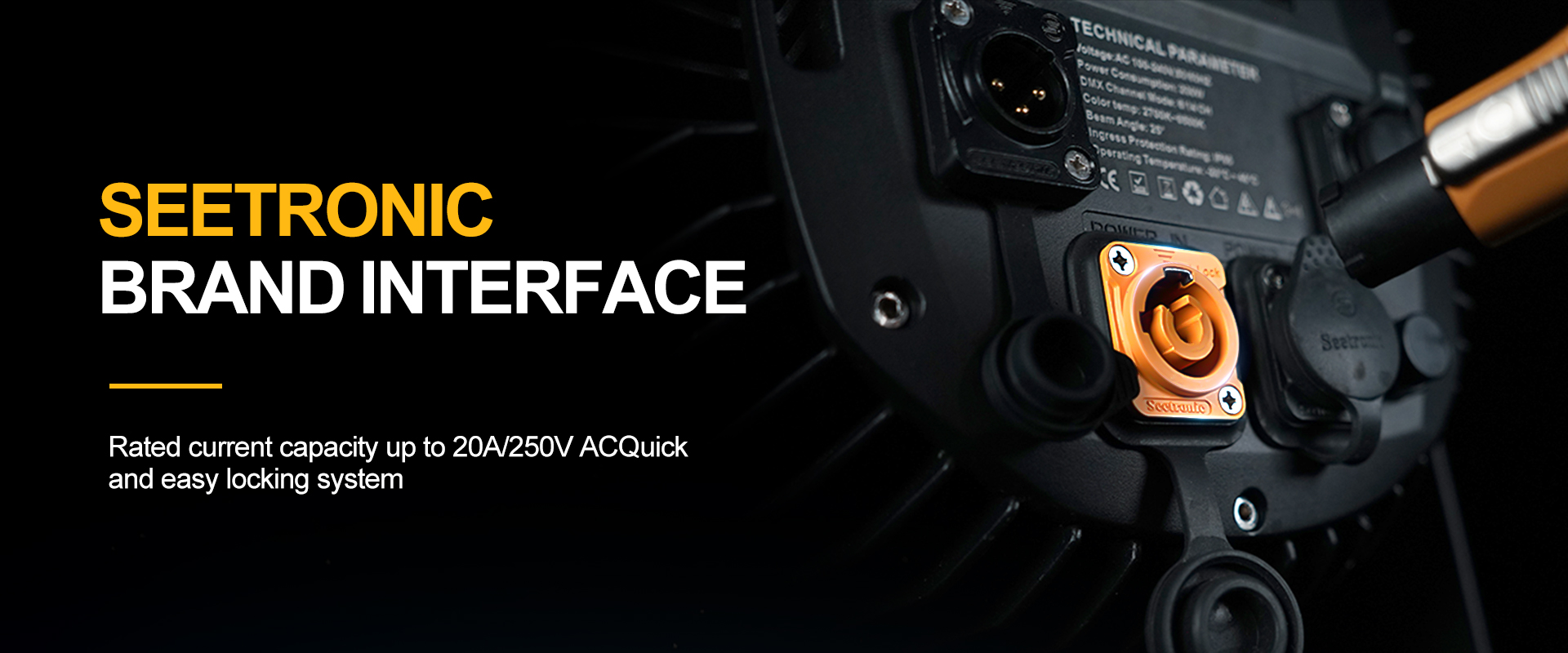

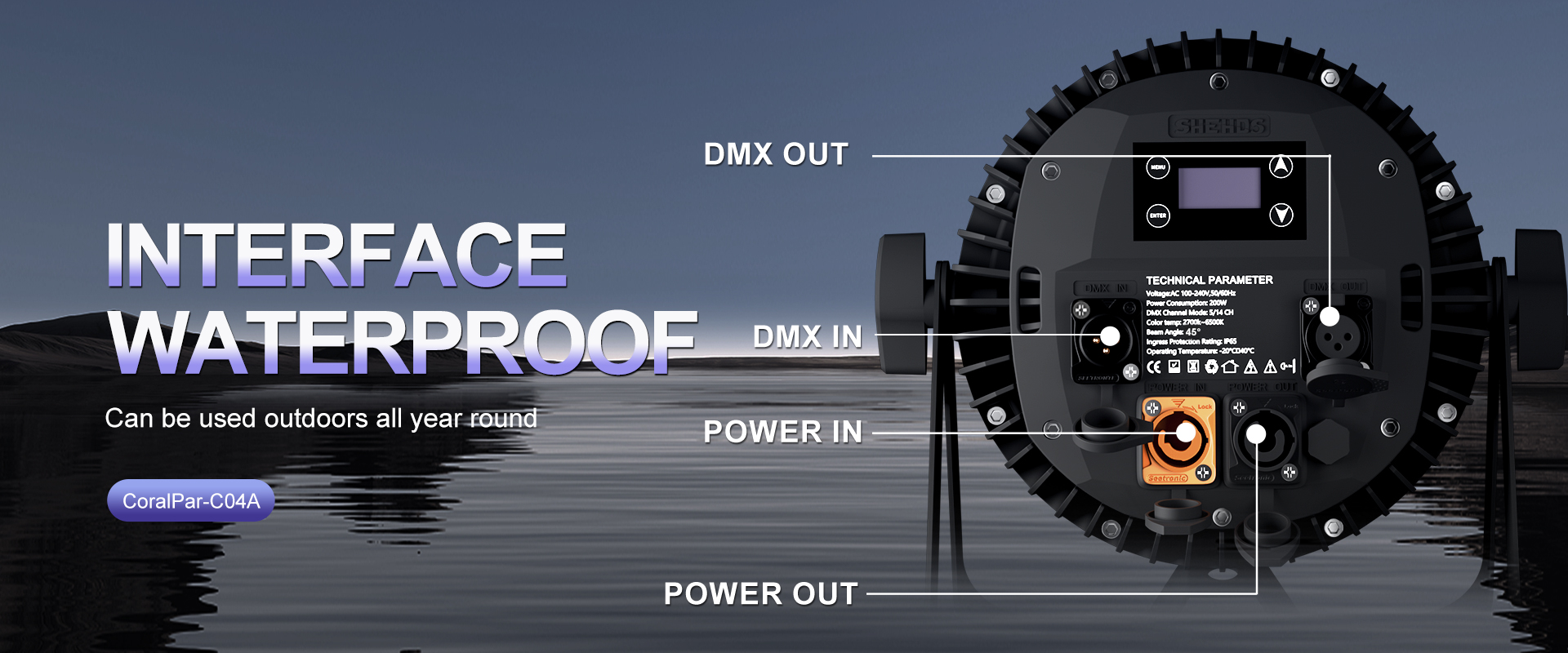

Waterproof Interface
Adopting Seetronic brand waterproof interface, High current capacity rated at 20A/250V AC
Quick and easy locking system
IP65 waterproof rating
Waterproof power connector input/output, can be used outdoors year-round.
Ensure the lifespan and smooth operation of the lamp.

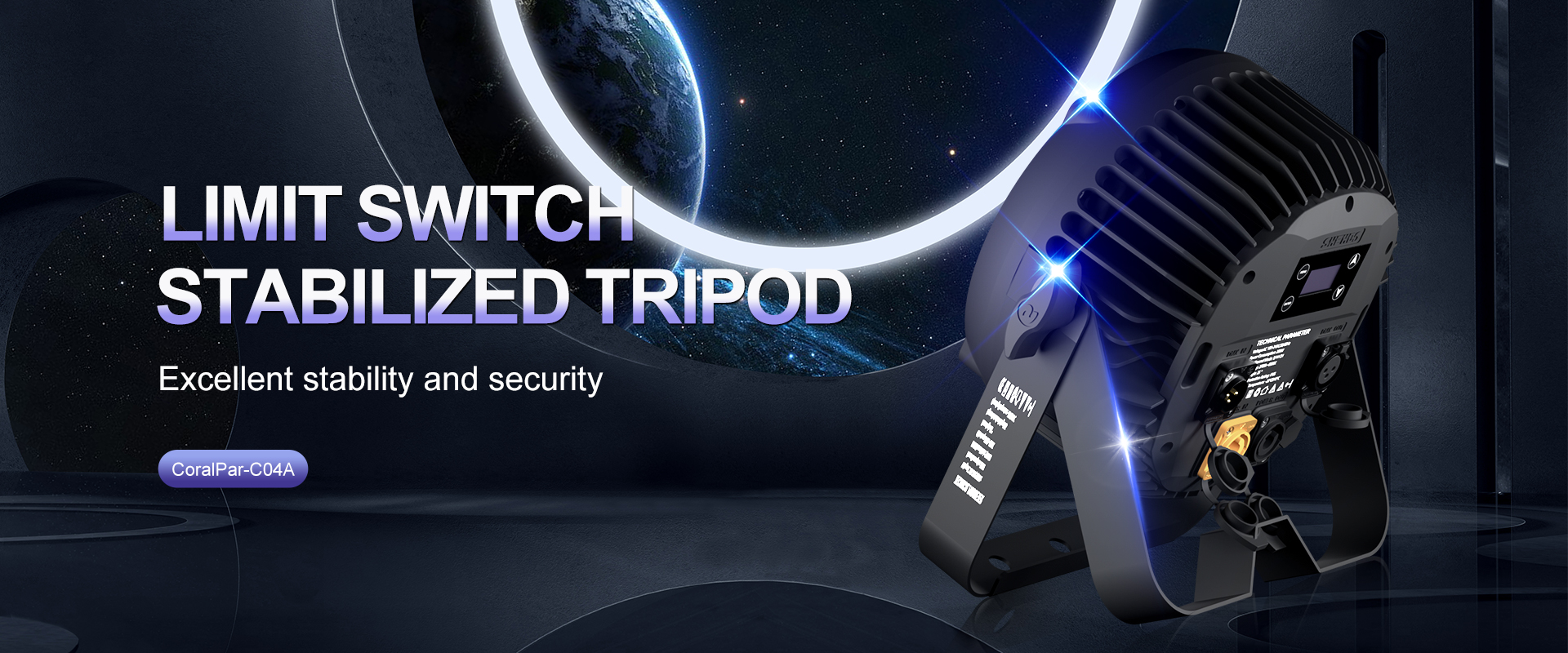

Foot Stand And Knob
Our tripods can provide excellent stability and safety.
The limit design can effectively prevent the tripod from slipping in unexpected situations,
ensuring that your device remains stable at all times.

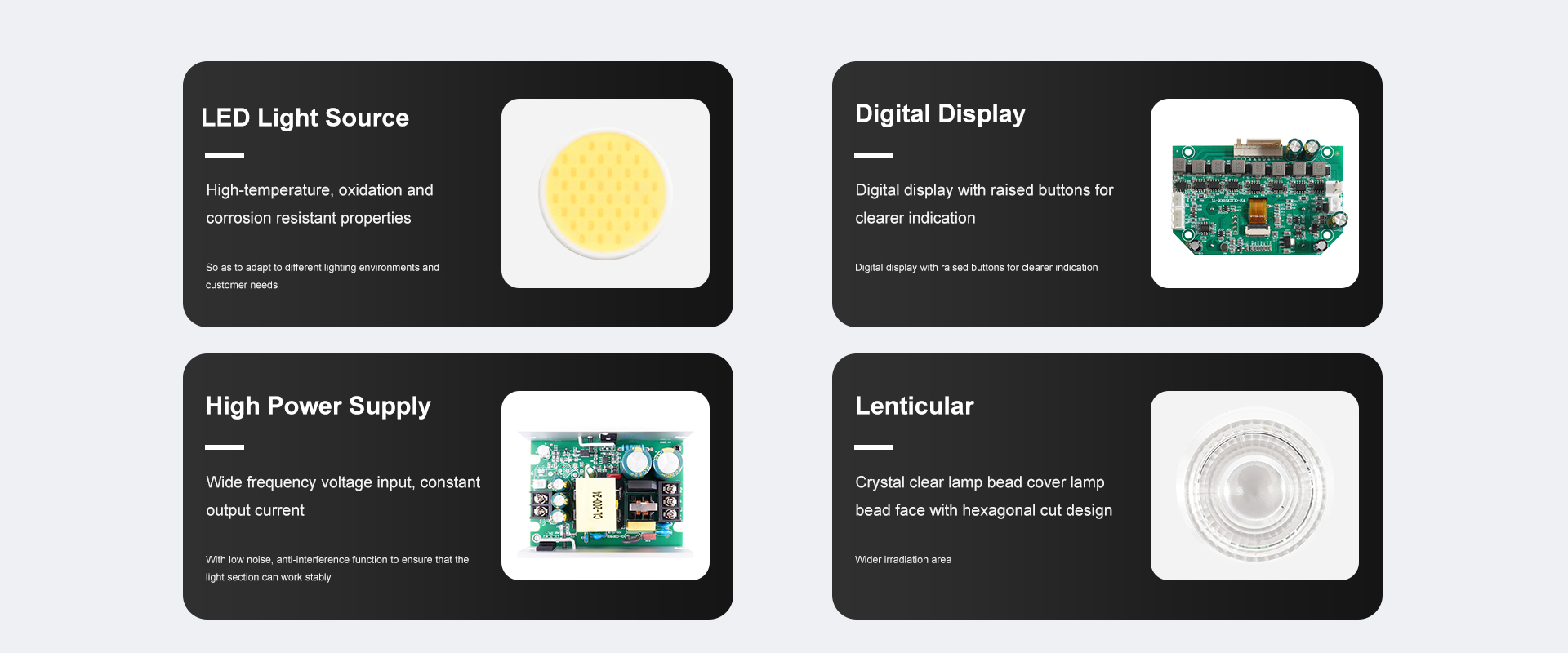

Carefully Select Excellent Accessories
We focus on quality and details, using high-quality materials and exquisite craftsmanship to create.
At the same time, we also provide comprehensive after-sales service and technical support,
allowing you to shop worry free and use with peace of mind.

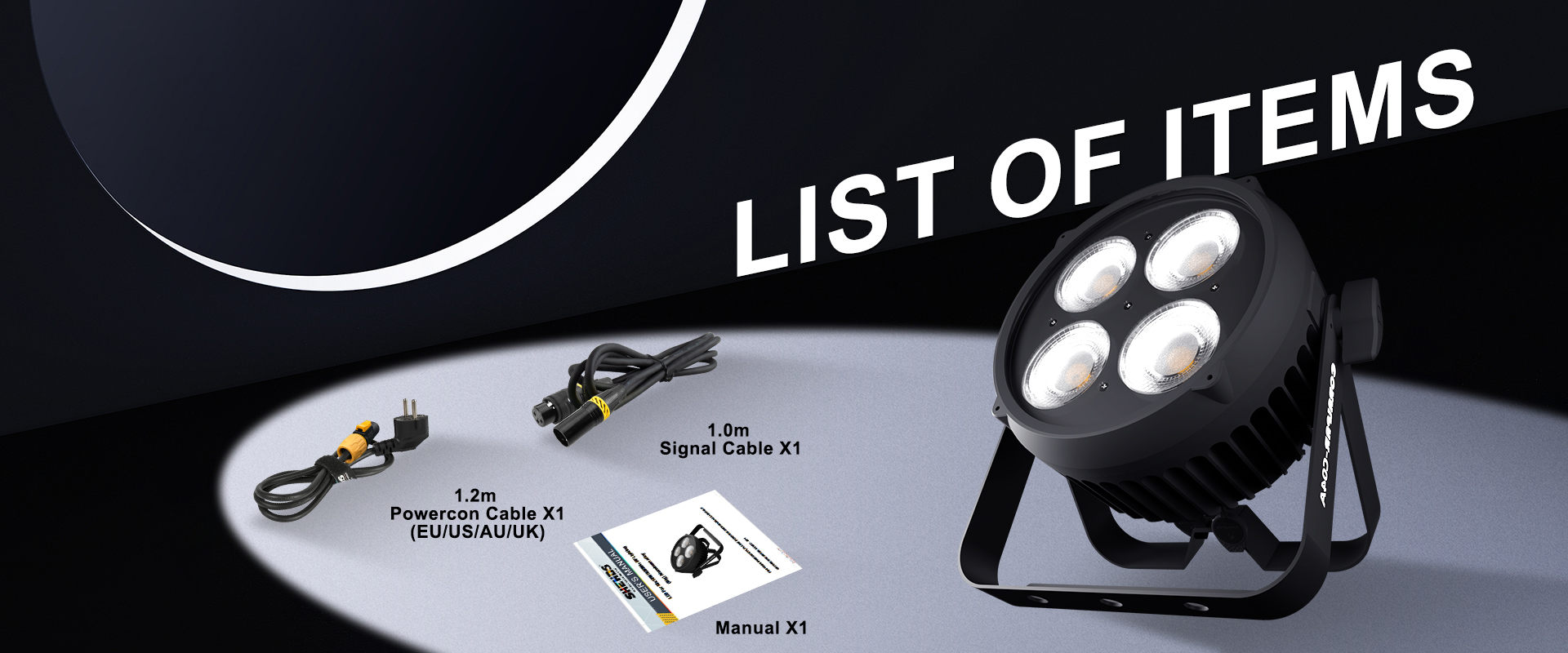

Packing List
Each process undergoes strict verification
Every part is carefully selected

After-Sale Service
We provide one year (365 days) of comprehensive after-sales service,
including product installation guidance, user training, maintenance, etc.
If you have any questions or concerns,
please feel free to contact our customer service team and we will be happy to answer them for you.

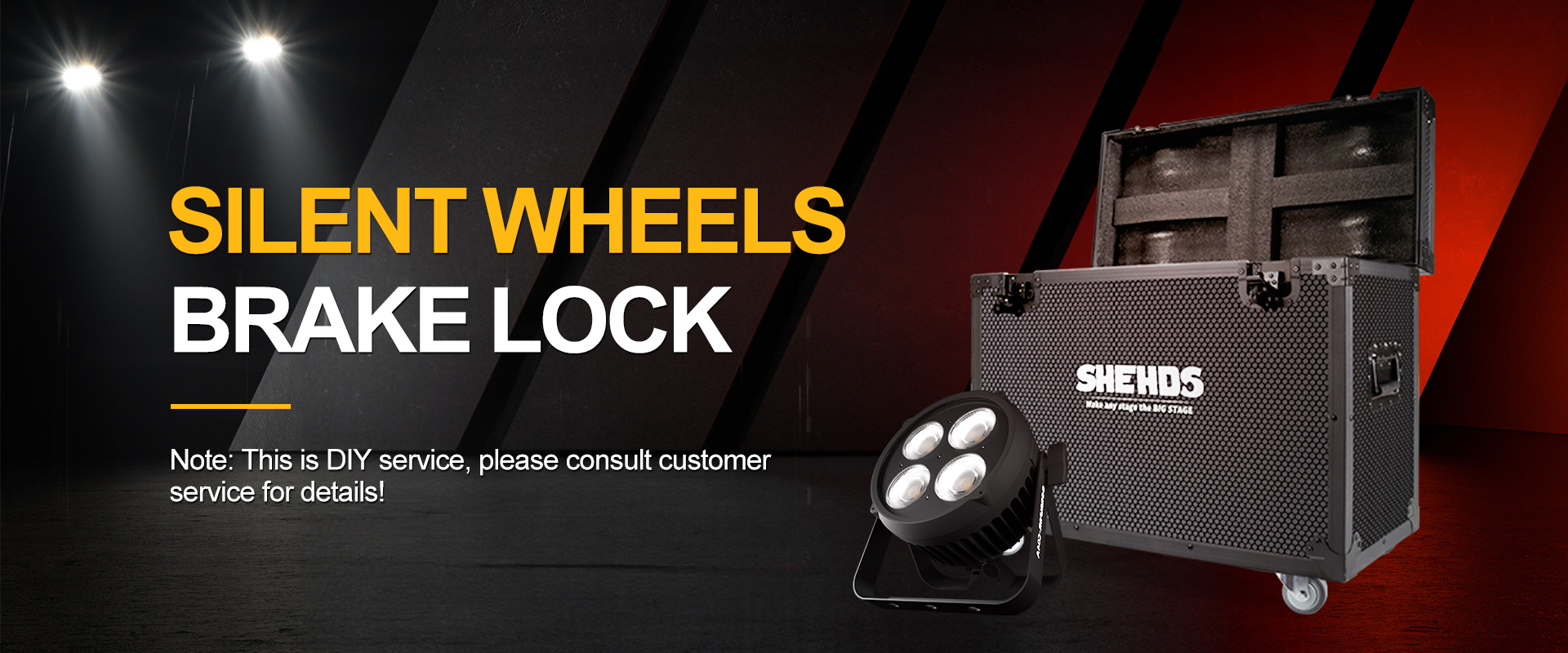

Flight Case DIY Service
Equipped with silent 360 degree wheels + brake lockers
Note: This is DIY service, please consult customer service for details!

Qualification Certificate
International organizations Authority certification
