Muffle furnace box type resistance furnace industrial high temperature return quenching heat treatment measuring ash furnace measuring instrument laboratory
Product parameters：

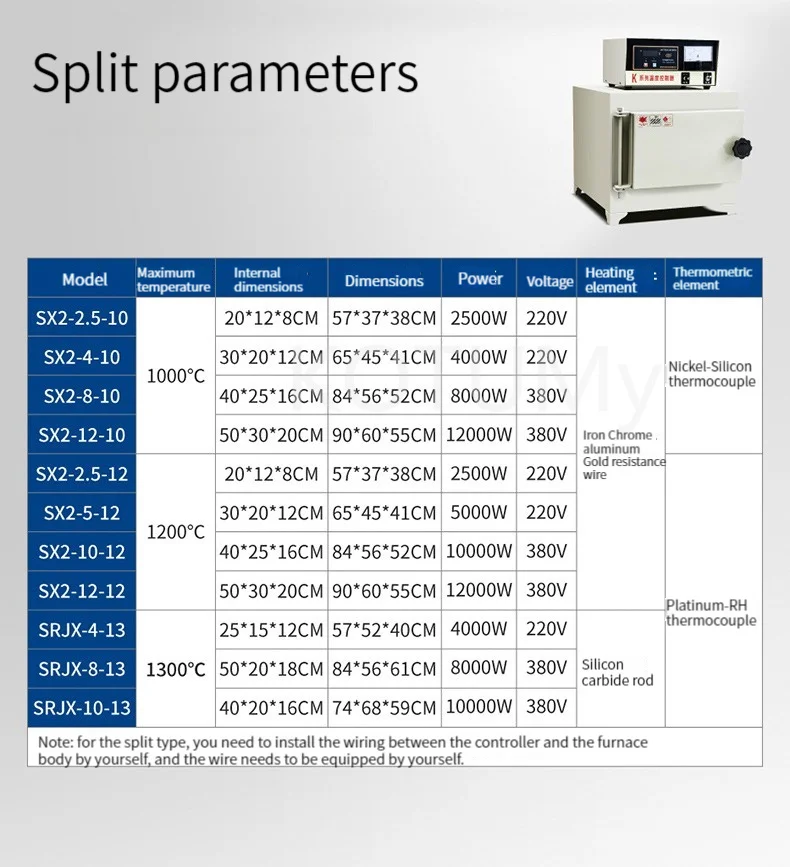

SX2-2.5-10 1000℃ split type high temperature resistance furnace

Internal size: 20* 12*8CM

Weight: 50KG

Maximum temperature: 1000°C

Power: 2500W

Voltage: 220V

Timing: None

Heating element: iron-chromium-aluminum alloy resistance wire

Temperature measuring element: nickel silicon thermocouple

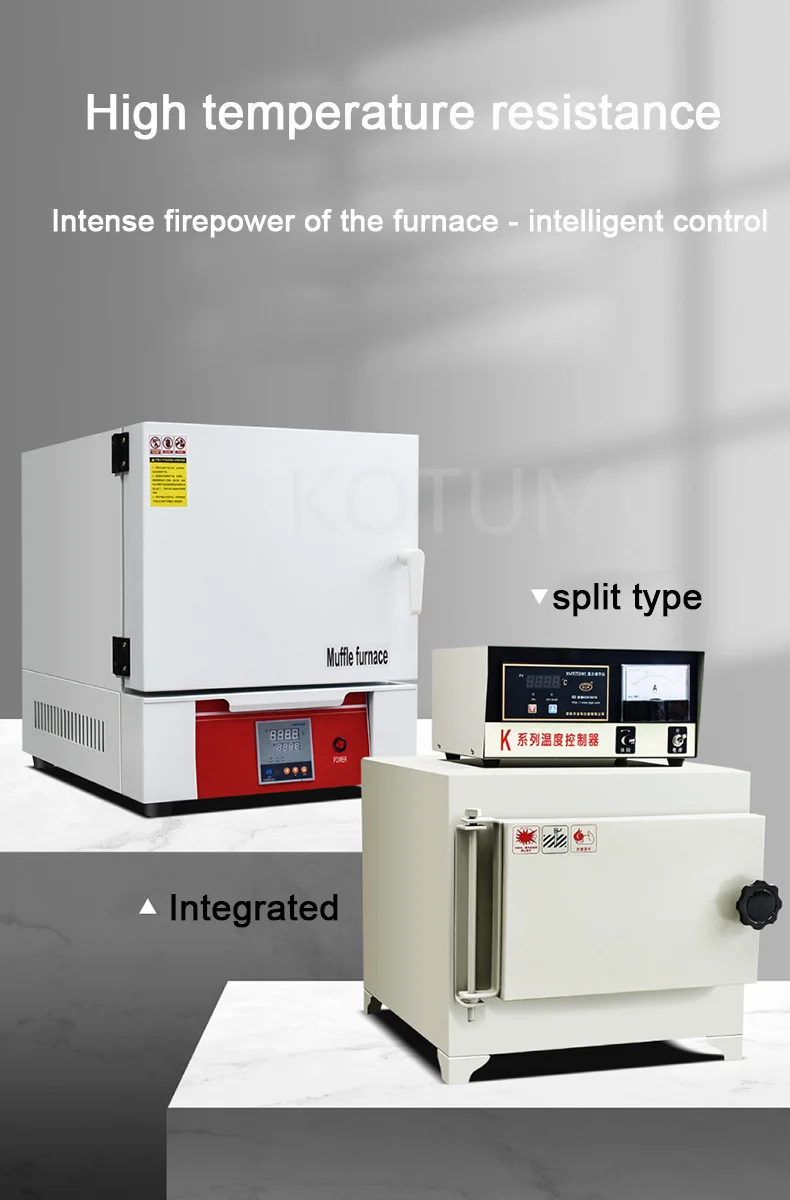

Note: For the split type, you need to install the wiring between the controller and the furnace body by yourself, and the wires need to be matched by yourself.

SX2-2.5-12 1200℃ high temperature resistance furnace

Internal size: 20* 12*8CM

Weight: 50KG.

Maximum temperature: 1200°C

Power: 2500W

Voltage: 220V

Timing: None

Heating element: iron-chromium-aluminum alloy resistance wire

Temperature measuring element: platinum rhodium thermocouple

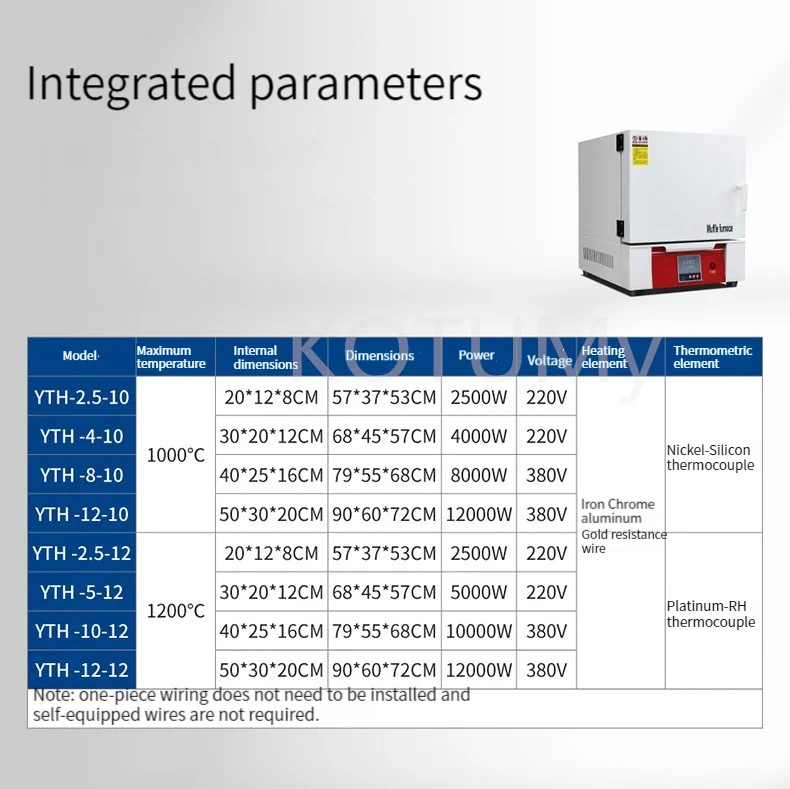

YTH-2.5-10 1000℃

Internal size: 20*12*8CM

Weight: 75KG

Maximum set temperature: 1000°C

Heating element: iron-chromium-aluminum alloy resistance wire

Power: 2500W

Voltage: 220V

Temperature measuring element: nickel silicon thermocouple

Timing: 1-9999 minutes

Remarks: The integrated type does not need to install wiring, and does not need self-distribution wires

YTH-2.5-12 1200 ℃

Internal size: 20*12*8CM

Weight: 75KG

Maximum set temperature: 1200°C

Heating element: iron-chromium-aluminum alloy resistance wire

Power: 2500W

Voltage: 220V

Timing: 1-9999 minutes

Temperature measuring element: platinum rhodium thermocouple
