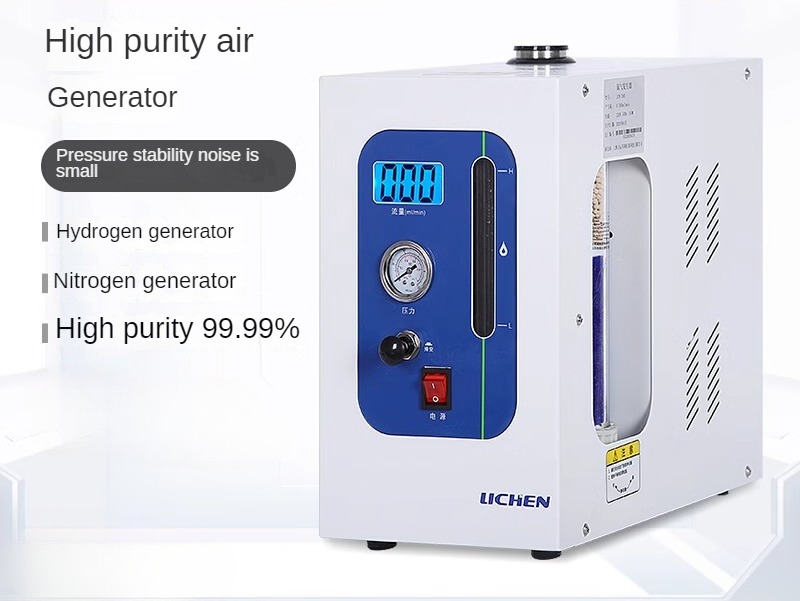

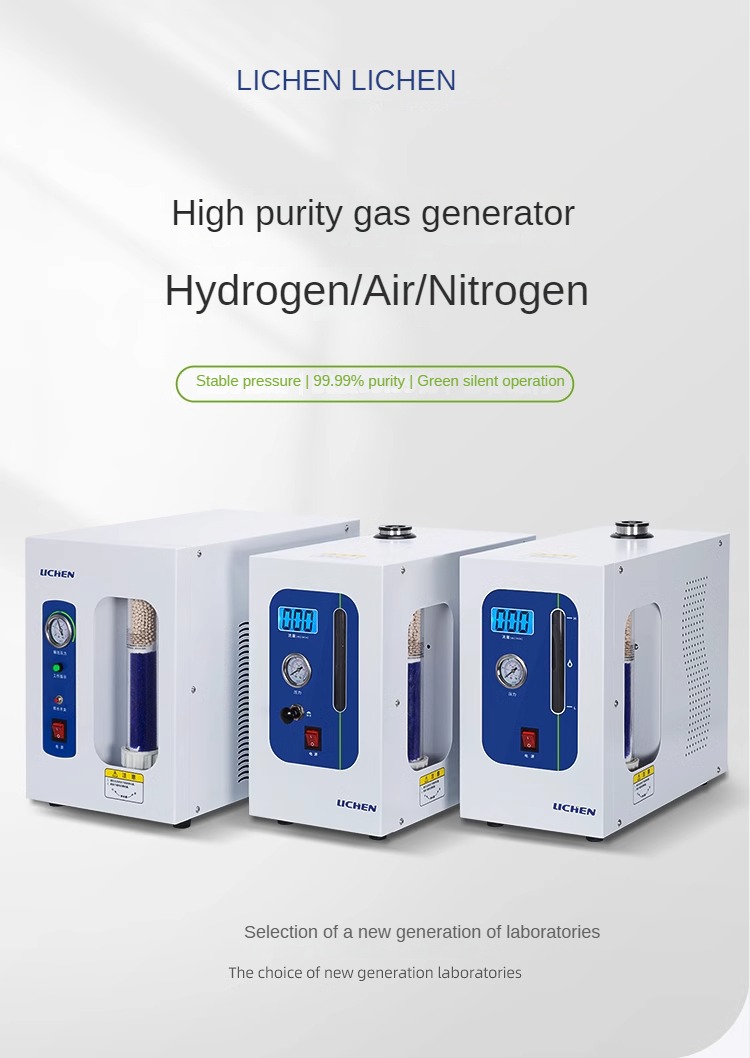

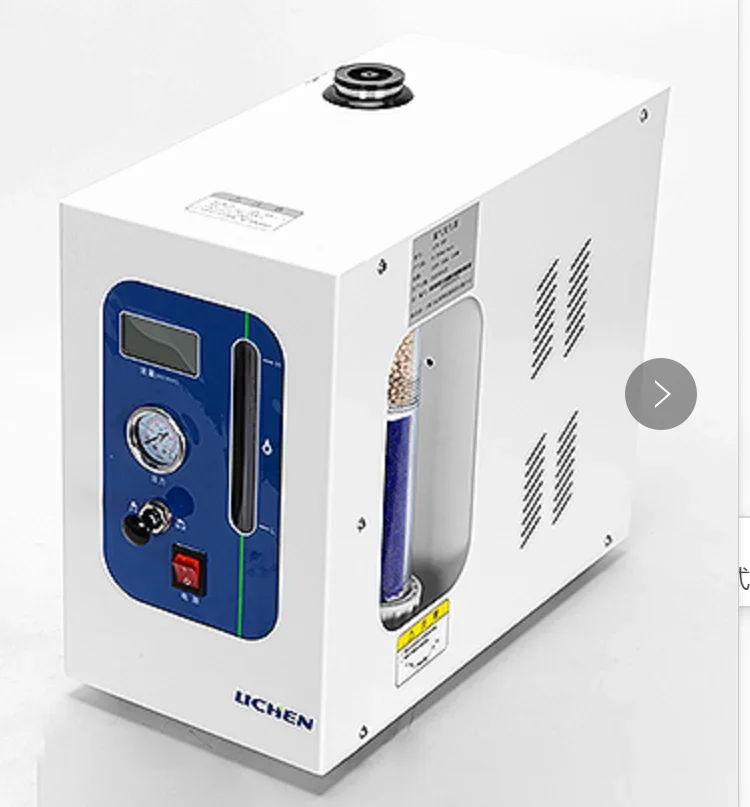

Power Chen high purity hydrogen generator Laboratory gas chromatograph gas source Nitrogen air gas generator
Description:

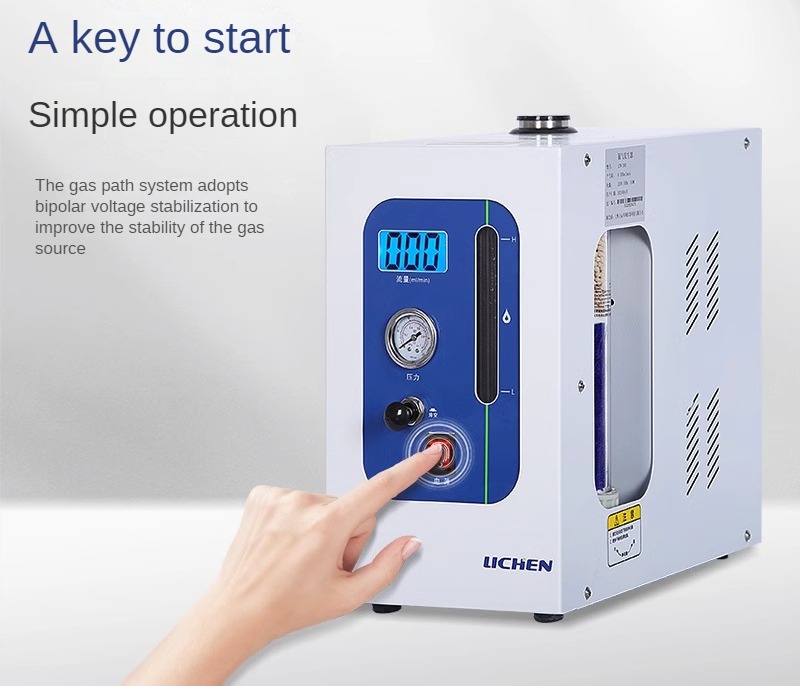

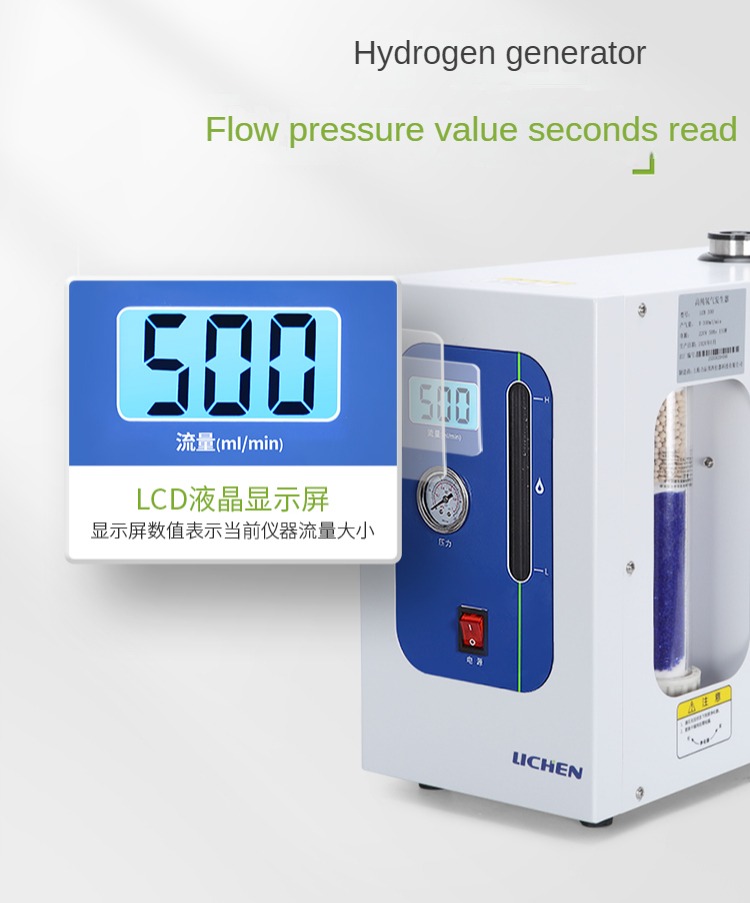

It is easy to operate and only needs to be turned on to generate hydrogen. The output pressure is stable, the digital display is eye-catching and intuitive. Made of PC polycarbonate pipe, pressure resistance, reagent resistance, impact resistance, and not easy to break.

The hydrogen generator produced by machine is "the gas source used by the gas chromatograph", because the generator we produce has small flow, small gas production (hydrogen 300-500ml/min, air 3-5L/min) and low gas pressure (0.3-0.4Mpa), and the gas outlet of the generator has no regulating valve to control the gas output, so it needs to be controlled by the regulating valve on the gas chromatograph.

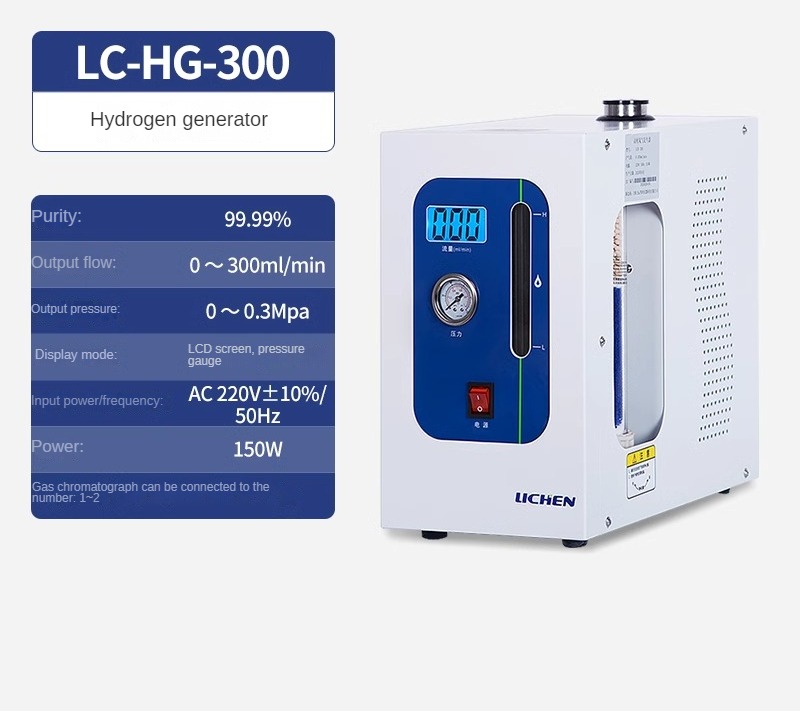

Specification:

Output pressure: 0-0.3MPa

Output pressure stability: ≤ 0.001MPa

Output flow: 0-300ml/min / 0-500ml/min

Purity: 99.99%

Maximum power: 150W

Operating temperature: 0-40 ° C

Power supply voltage:AC 220V ± 10%, 50HZ

Dimensions: 425x210x365MM

Weight: 10KG
