Description

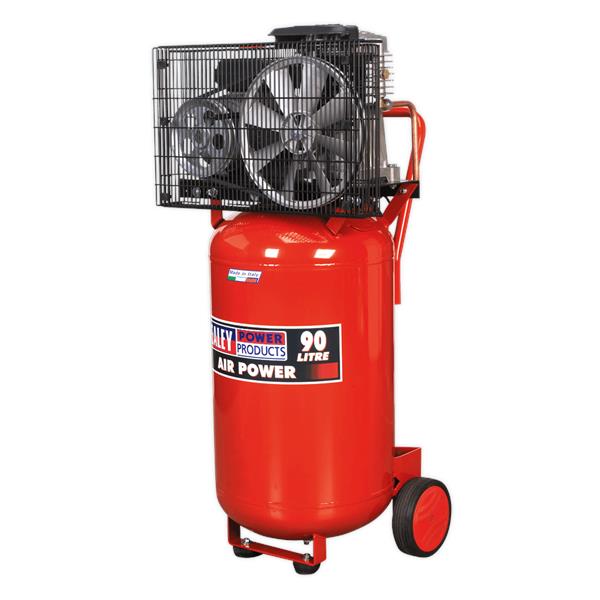

Sealey SAC1903B Compressor 90L Vertical Belt Drive 3hp

Suitable for the professional workshop fitted with a genuine 3hp motor. Vertical tank saves space without compromising on performance. Twin capacitors and a centrifugal switch aid trouble free start up on a 13Amp supply. Pump features heavy-duty full cast cylinders, capped by an alloy head for improved heat dissipation and long life. Heavy-duty drive guard protects belt and flywheel that is designed to force air over the pump to aid cooling.

SAC1903B Features

• Suitable for the professional workshop these units are fitted with a genuine 3hp motor
• Vertical tank saves space without compromising on performance
• Twin capacitors and a centrifugal switch aid trouble free start up on a 13amp supply
• Pump features heavy-duty full cast cylinders, capped by alloy heads for improved heat dissipation and long life
• Heavy-duty drive guards protect belt and flywheel that is designed to force air over the pump to aid cooling

SAC1903B Specification

• Model No SAC1903B
• Air Displacement cfm(L/min): 13.4(380)
• Brand: Sealey
• Maximum Free Air Delivery cfm(L/min): 9.7(275)
• Maximum Pressure: 145psi(10bar)
• Minimum Rated Supply: 13A
• Motor Output: 3hp
• Nett Weight: 65kg
• Outlet: Quick Release Coupling
• Phase: 1ph
• Receiver Capacity: 90L
• Size (W x D x H): 525 x 495 x 1130mm
• Speed: 1636rpm
• Supply: 230V

What is included:

• 1 x Sealey SAC1903B Compressor 90L Vertical Belt Drive 3hp
