Description

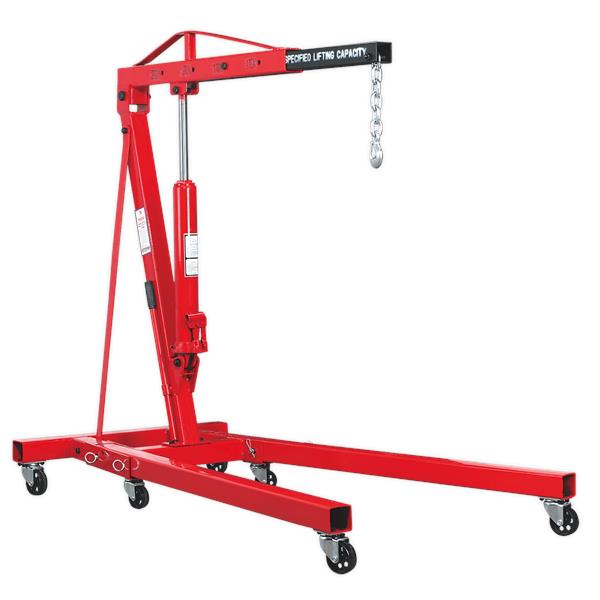

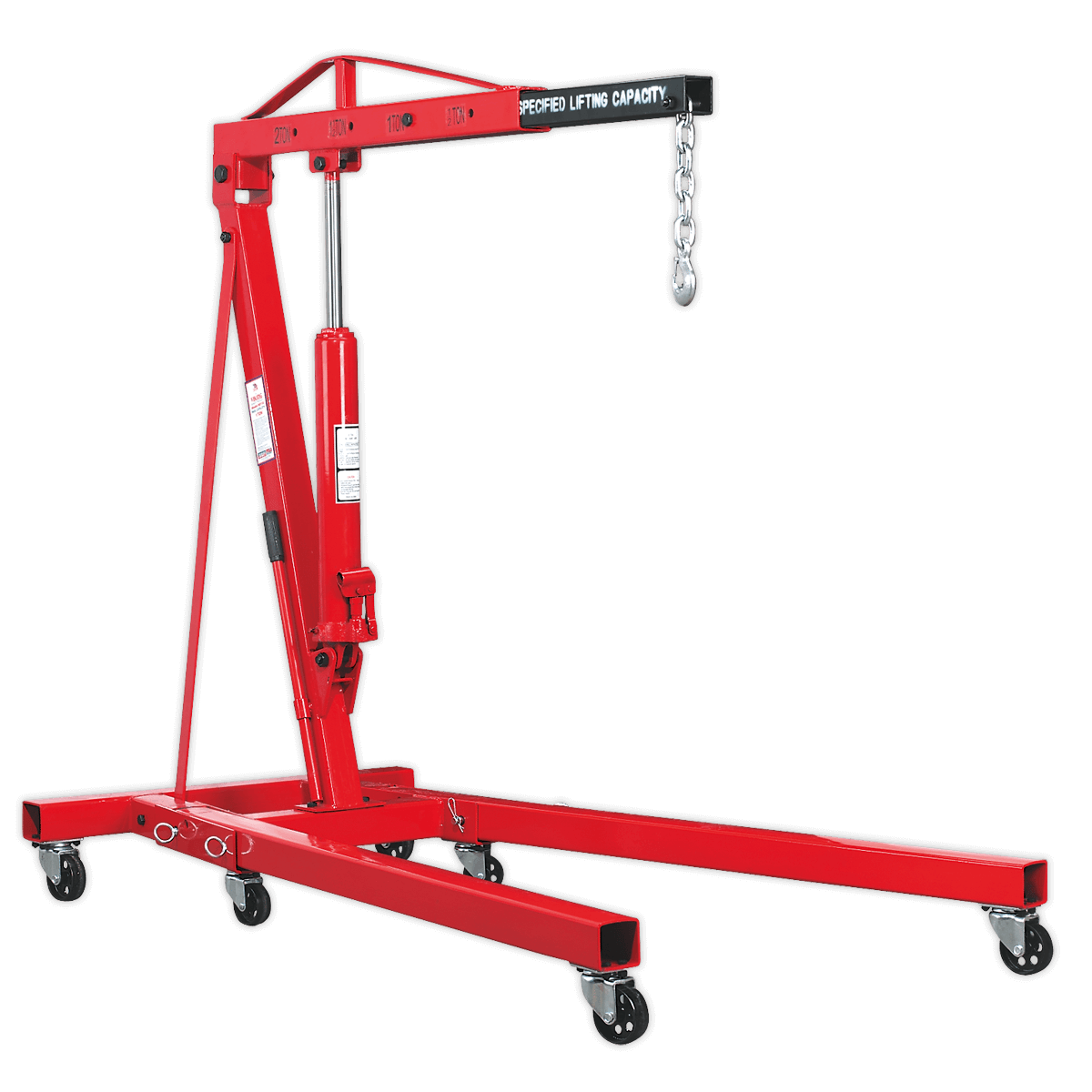

Sealey PH20 Folding Crane 2tonne

2tonne Folding crane - economy model. Folds for easy storage, freeing valuable workshop space when not in use. Heavy-duty castors. Weighs only 77kg and is perfect for mobile or workshop use. Pump access from side. Delivered in knock-down form for reduced freight cost. Some self-assembly required.

PH20 Features

• Lifts 2000kg at 930mm jib extension
• Folds for easy storage, freeing valuable workshop space when not in use
• Bottle jack type hydraulic unit for economy
• Some self-assembly required

PH20 Specification

• Model No PH20
• Brand: Sealey
• Height Jib Down: 1440mm
• Height Legs Folded: 1540mm
• Height of Frame: 195mm
• Length Legs Extended: n/a
• Length of Jib Position 1: 930mm
• Length of Jib Position 2: 1110mm
• Length of Jib Position 3: 1200mm
• Length of Jib Position 4: 1460mm
• Length of Jib Position 5: n/a
• Length: 1750mm
• Lifting Capacity in Position 1: 2000kg
• Lifting Capacity in Position 2: 1500kg
• Lifting Capacity in Position 3: 1000kg
• Lifting Capacity in Position 4: 500kg
• Lifting Capacity in Position 5: n/a
• Max. Lift Ht at Jib Position 1: 2060mm
• Max. Lift Ht at Jib Position 2: 2190mm
• Max. Lift Ht at Jib Position 3: 2330mm
• Max. Lift Ht at Jib Position 4: 2490mm
• Max. Lift Ht at Jib Position 5: n/a
• Nett Weight: 77kg
• Rear Width: 850mm
• Width Front Frame: 1055mm
• Width Inside Front Frame: 915mm

What is included:

• 1 x Sealey PH20 Folding Crane 2tonne
