HY-D23130 Self Priming Diaphragm Water Pump DC 12V 1.6 LPM 30 PSI Replacement For Bottom Loading Water Dispenser Cooler Ice Maker Electric Appliance

Rated Volts :DC 12V Amp Draw : 0.35-0.5AMP Pressure : 30PSI. Max Flow Rate : 1.2L/min Vertical Suction Lift : 4.2ft (1.3m) Inlet/Outlet:1/4 inch (6.35mm) Working Temperature Range : 0~60°C /32~140°F Application: for water dispenser ,medical equipment,cooling system, home appliance, Garden and Camping Installation step: 1) Unplug the dispenser 2) Take off water pipe connection from the broken pump 3) Find the power cord socket from the broken pump and unplug it. 4) Unscrew the two screws from the old pump( bracket) and take the pump out 5) Cut the power cord from old pump and connect it to the new one. It is to leave the red wire and black wire about an inch from the new pump. If the connector of pump is same, just plug in the connector of water dispenser. 6) Screw new pump to dispenser and plug in the power cord of pump.Re-install water pipe connection to the new pump. Next just test if the pump work or not. Return and Refund: If you are not satisfied with your purchase,please contact us directly. We stand behind every product we sell. All items carry a one year , unless otherwise stated. How To Use: 1) Unplug the dispenser 2) Take off water pipe connection from the broken pump 3) Find the power cord socket from the broken pump and unplug it. 4) Unscrew the two screws from the old pump( bracket) and take the pump out 5) Cut the power cord from old pump and connect it to the new one. It is to leave the red wire and black wire about an inch from the new pump. If the connector of pump is same, just plug in the connector of water dispenser. 6) Screw new pump to dispenser and plug in the power cord of pump.Re-install water pipe connection to the new pump. Next just test if the pump work or not. Frequently Asked Questions: 1) The pump doesn’t work. :Solution: Please try to use 12v power source to test the pump singly,check the pump work or not. 2) The pump operate, but no water or very little water come out. Solution: please check the silicone tube and make sure the tube is not bending, it should be straight, otherwise the water can't come out or just very little flow rate.

Features

• This dc 12V water pump is replacement of GMB-D23130 pump exactly. Max Flow rate: 1.6LPM (1.2L at 80 cm self priming and 60cm flow head). It doesn't mean 1.2LPM at 30psi. Working Volts: DC 9 ~ 14v (12V is recommended). Normal Working Load current: ≤550mA, No-load current: ≤350mA. The current goes up to 1.1A if the outlet is blocked. Not suitalbe for AC power source. This water dispenser pump with high-quality motor, ensure durable and stable work. : 1 year (365 days).
• This water dispenser pump has self priming function allows it to be mounted above water tank. Vertical Suction Lift: 3.3ft (1m) Max. Vertical Suction Lift: 6.5ft(2m). Max. Flow: 0.3GPM(1.3LPM), Head(High Lift):≥100ft (30m). Built-in pressure relief valve. Pressure range: 30PSI(default)~40PSI. This pump replacement is suitable for most of bottom loading water dispenser if the size and specification is .

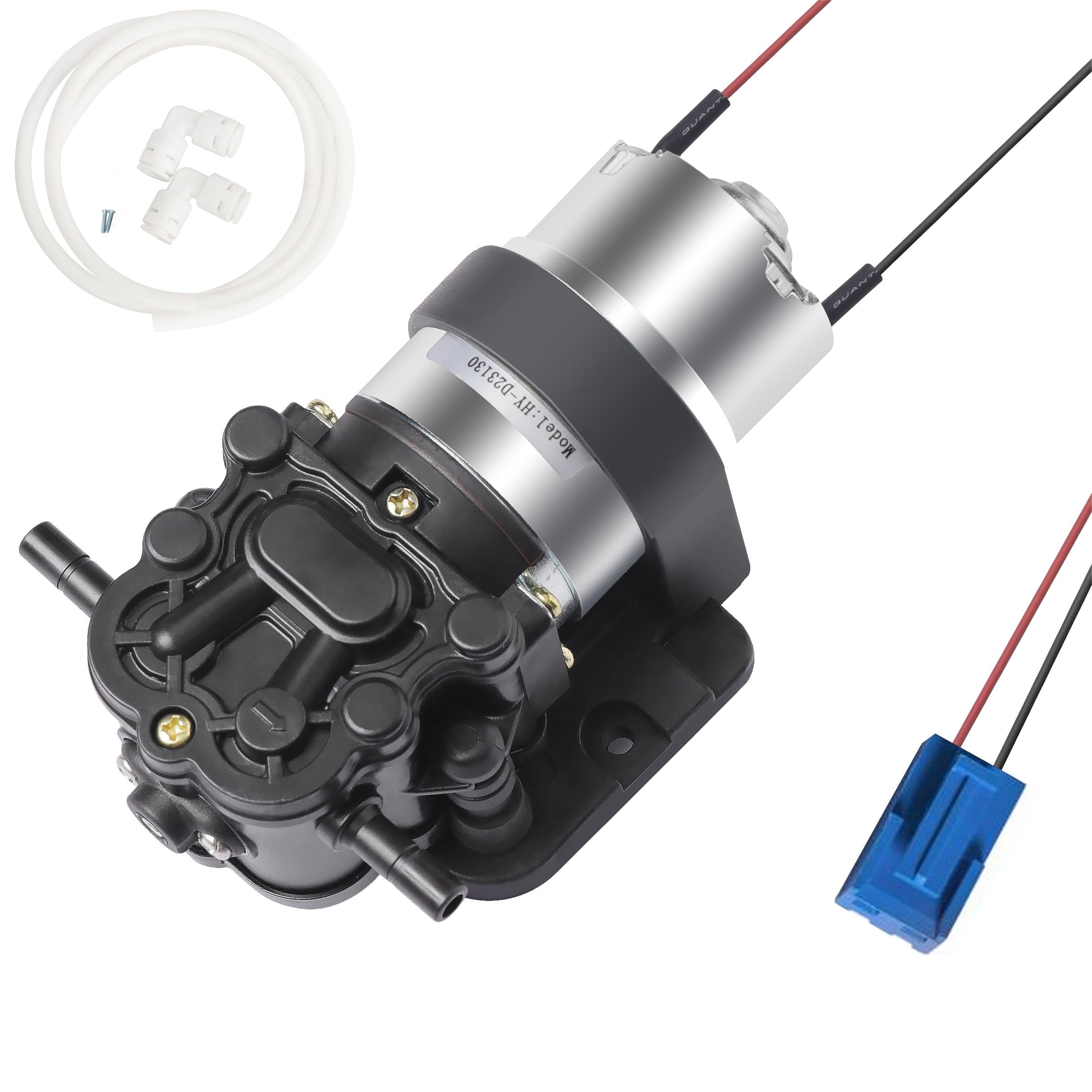

• Water pump size: 124mm x 81mm x 60.5mm (4.88" x 3.19" x 2.38"). Inlet and Outlet: 1/4” hose barb port. Come with 2 × 1/4" Pipe Quick Connect Elbow,1 × 1/4"RO Water Tubing 1m,1 × Heating Shrink Tube, 2x screws.
• Bigger mount provide more stable installation and lower noise ≤50dBA. Full set of accessories for easy installation on water dispenser.
• Please connect the water dispenser pump correctly. Red wire for positive pole and black wire for negative pole.If the pump doesn't work on your dispenser or other equipment, please try to use 12v power soure to test the pump singlely. If the pump operate but no water come out, please check the silicone tube and make sure the tube is not bending, it should be straight, otherwise the water can't come out or just very little flow rate.
