Item: DSC-MD-AHD-2CH-5MP
Mini 2 Channel Full HD Mobile DVR, Support 8MP/5MP/4MP1080P/720P AHD/TVI Camera(And CVBS Camera) ,Recording At The Same Time. The DVR Support Max. 512GB SD Card(Dual SD slot ). Recording Mode Support Power Up /Manual /Motion Detection. Security Code to Protect DVR Can Not Be Operated Without Password.
***SD Card are not included**
***This 2CH Mini DVR NOT SUPPORT CVI Camera***
Features：
- MINI Size,8MP/5MP/4MP1080P/720P/D1 2CH Mobile DVR
- 8MP/ 5MP/4MP1080P/720P/D1 Resolution Optional
- Max.512GB SD Card(Dual SD slot )

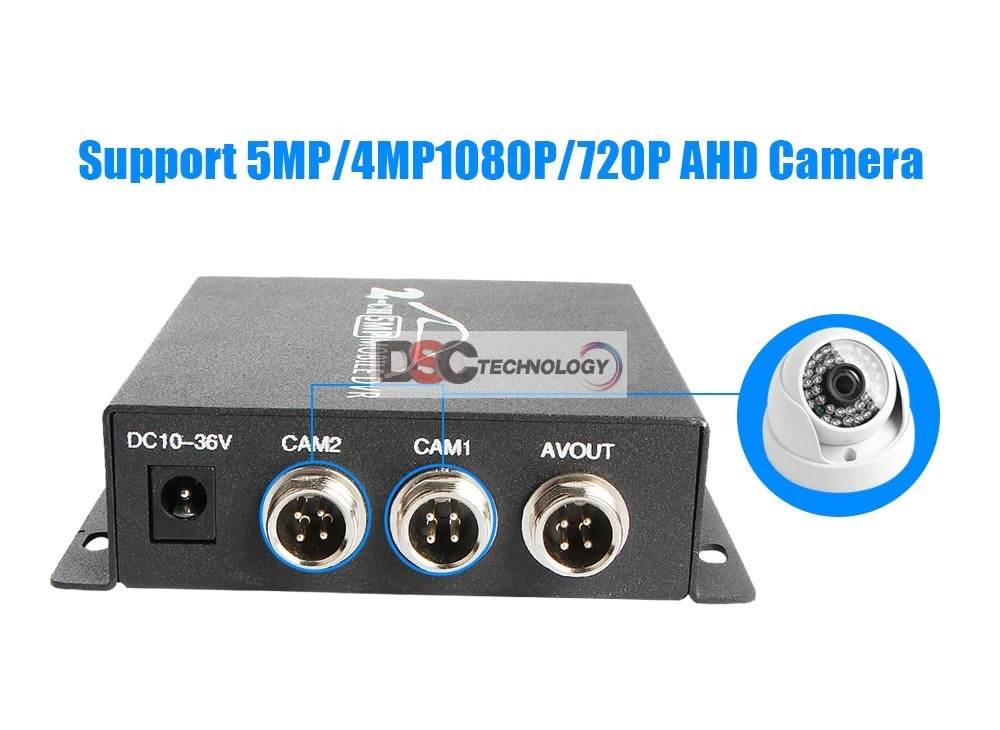

- Support 8MP/5MP/4MP1080P/720P TVI/AHD Camera
- Support 10V-32V Power Input,12v,1.5A Output

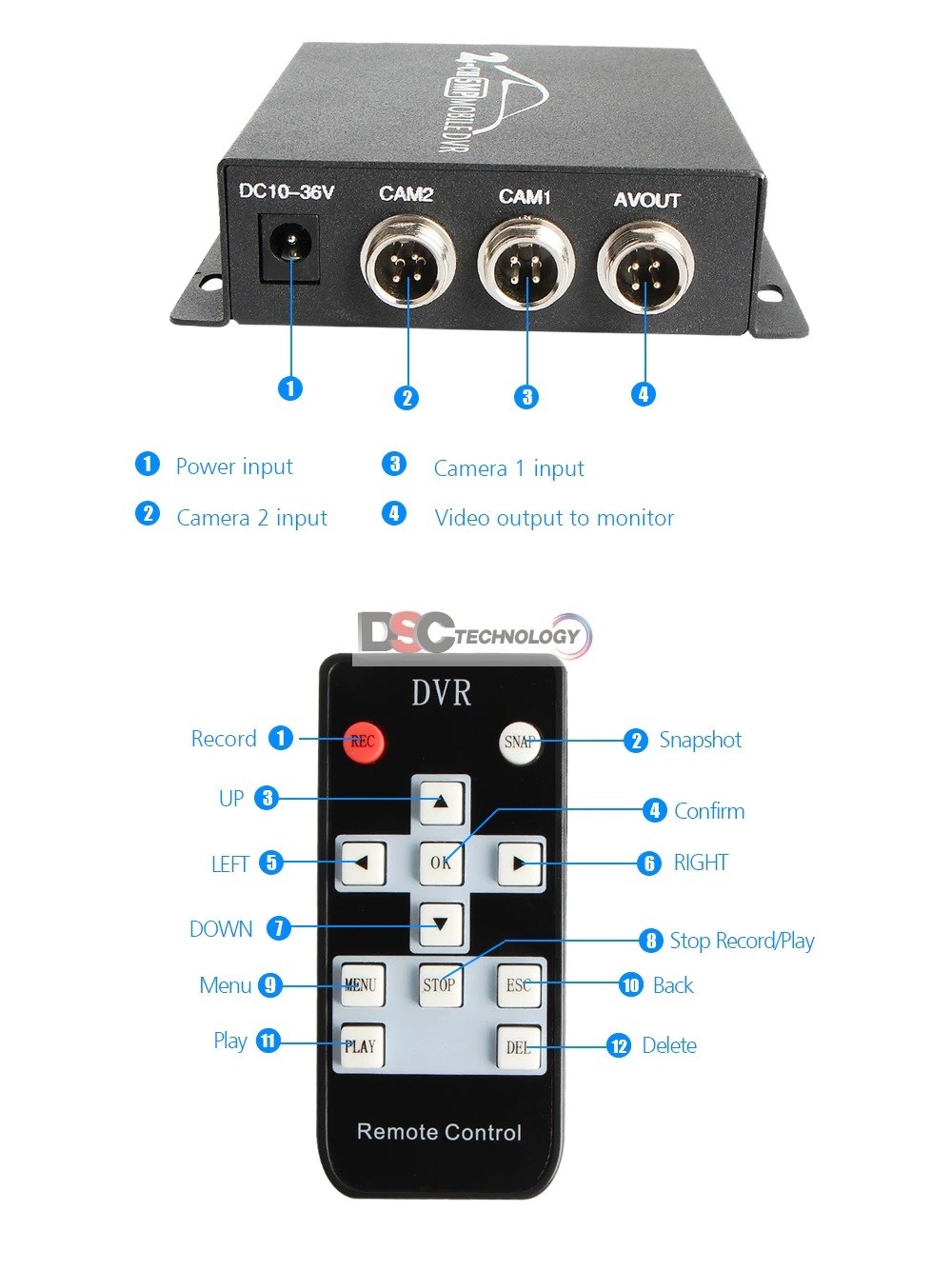

- Support IR Remote Control
- Support HDMI or AV Output Display
- Support Multi Record Modes: Auto Record when power is ON, Timer ,Manual ,Motion Detection
- Support Language:Chinese,English
- Support Audio
- Support Capacitor power-off protection
- Support Stable Voltage output
- Support Delay Shutdown
- Support Identification Camera
Specifications:
| Item | Data | Description |
| System | Language | Simple Chinese/English |
| Interface | Image menu | |
| Video | Video input | 1/2 Channel composite input(TVI/AHD) 1.0V,p-p,Impendence 75Ω,BNC |
| Video output | 1 Channel composite output, 1.0V,p-p,Impendence 75Ω,BNC | |
| Video display | 1/2 channel in 1 screen | |
|
Video Standard |
CVBS (720X576) | |
| TVI/AHD 1MP -8MP | ||
| Audio | Audio input | 1/2 channel audio input, Impendence 47KΩ,RCA |
| Audio output | 1 channel audio output, Impendence 10K,RCA | |
| Record mode | Audio video Synchronous recording | |
| Audio compression | G711 | |
| Image and storage | Image compression | H.264/H.265 High Profile, auto adapt to dynamic bit stream |
| video bitrate | D1: 200Kbps ~ 10Mbps,5 levels of image quality for options | |
| Audio bitrate | 8KB/s(after compression) | |
| storage | Dual SD slot(Max.512GB SD Card) | |
| Record | AVI audio video sync file output | |
| 3rd party media | VLC media player, storm media, WINAMP | |
| Update | SD card upgrade | |
| Power | Input | DC:+10V ~ +32V |
| Output | +12V 1.5A | |
| Power | Less than 5W | |
| Temp | Working Temp | -10℃ ~ +60℃ |

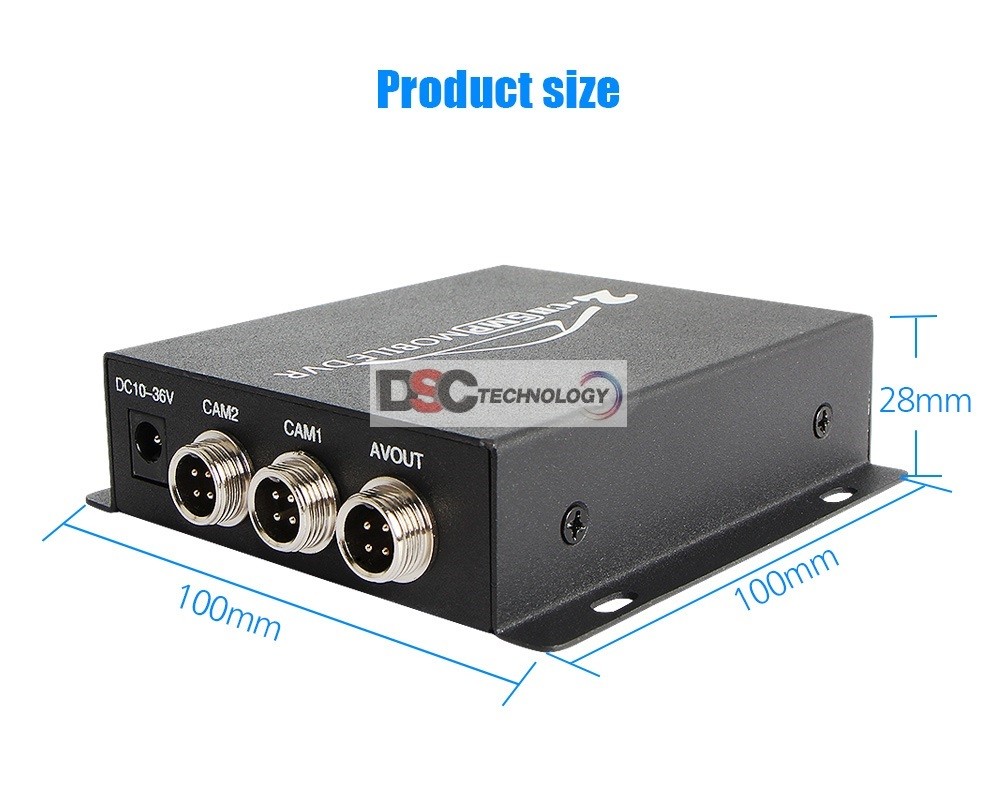

| Dimension | 10CM（W）X2.8CM（H）X11.2CM（L） | |

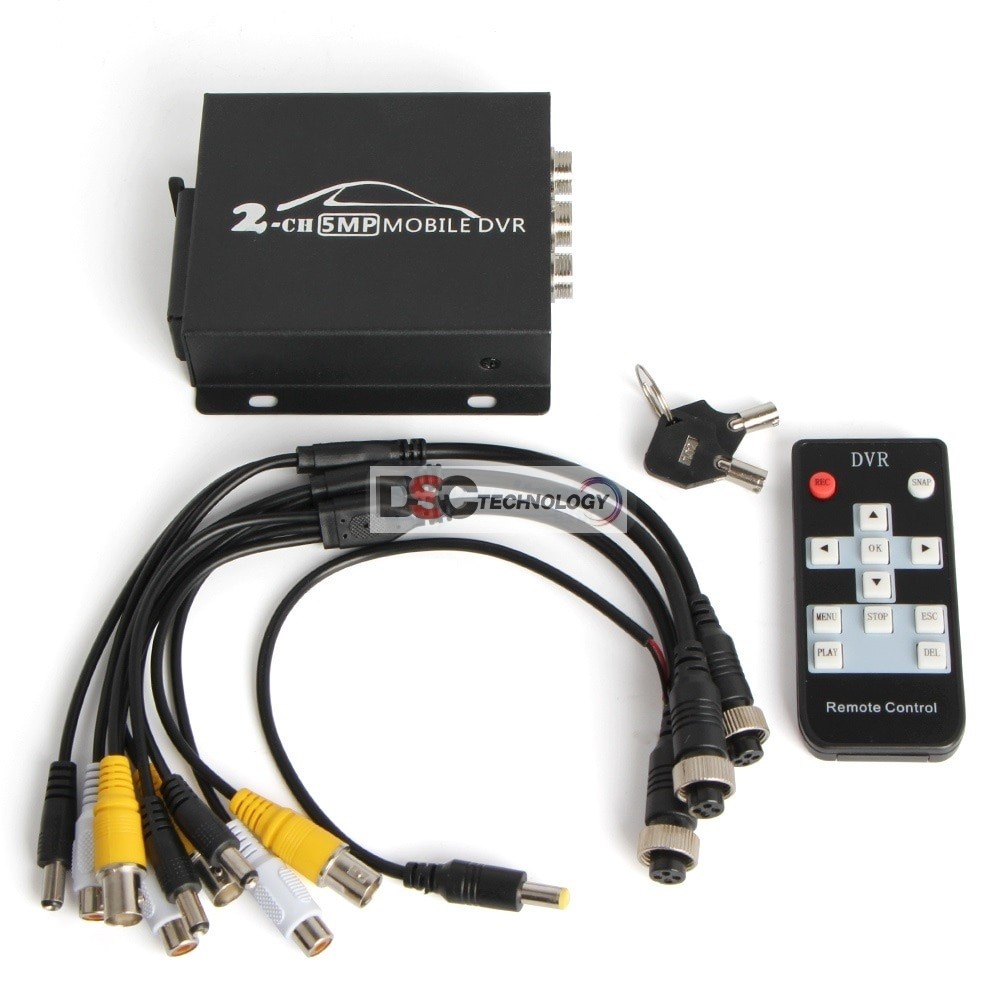

Package Contents:
- 1 x 2CH MINI HD Mobile SD Card DVR
- 2 x Keys
- 1 x Aviation to BNC Cable
- 1 x Power Cable
- 1 x Remote Control
Wholesale Welcome!
