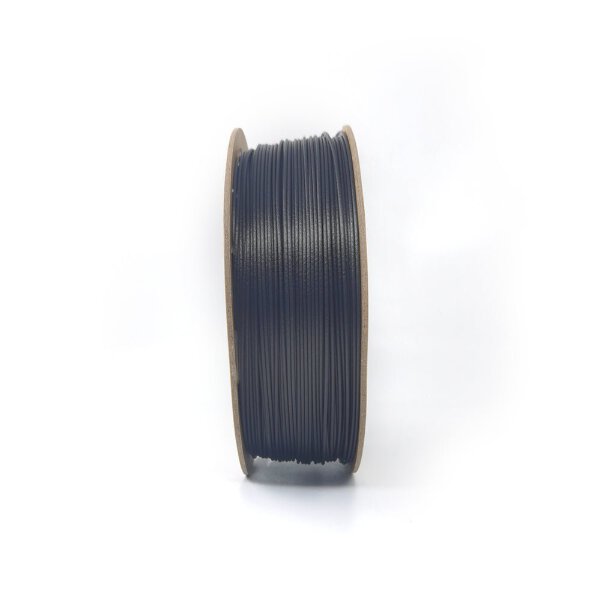

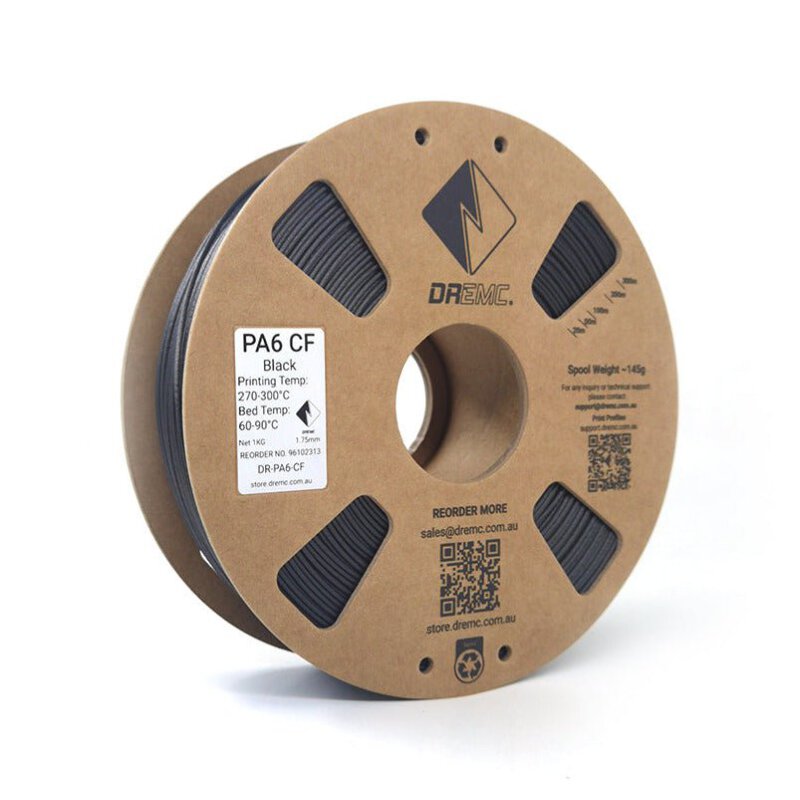

DREMC PA6 CF Filament 1.75mm 1kg

 DREMC PA6 CF Filament 1.75mm 1kg combines the strength and durability of polyamide 6 from LUVOCOM with carbon fibre reinforcement, delivering exceptional mechanical performance. Ideal for parts exposed to moderate heat and vibration environment such as jigs and fixtures.Materials Features/ApplicationsLUVOCOM® PA6 with added Carbon Fibre (contain chopped CF <15%)Temperature resistant up to 140 °C (50% retain properties for 100,000 hours)Good electrical properties3D prints with high dimensional accuracy and increased layer adhesionMaterials/Spool/Packaging Information: Cardboard spool and packagingVacuum sealed bag with an additional re-usable mylar bagHighly sensitive to moisture and require enclosure and its recommended annealing parts after printing for better strength under constant load.Diameter: 1.75mm (+/- 0.05mm)Net weight: 1KGDensity:  1.25g/cm3Empty Cardboard Spool: ~145gPrinting Settings A wear resistant nozzle must be used, carbon fiber material is abrasive and will wear standard brass nozzles and >0.5mm nozzle is recommended. Nylon is highly sensitive to moisture, we recommended a proper dryer and dry before and during printing, some older dryer without fans and exhaust outlet or cannot reach high enough temperature will not dry nylon thoroughly. You need a dryer that can reach at least 60°c+ . For best results, dry filament using a filament drier before use or print from dryer running or dry box. Keep in an airtight container or included mylar bag for medium/long term storage with silica desiccant. [If you hear popping or inconsistent extrusion while purging filament, suggest drying before printing for best results] Filament Drying Guide Print Profile Example: [Contact Us - Ebay does not allow external links] Avoid printing from AMS for better reliability, print from dry box or dryer, see above printing specific tips. Brittle Materials Guide:  [Contact Us - Ebay does not allow external links]  Nozzle Temperature  | 270°C - 300°C (~280°C & Low/no part cooling is recommended for strength parts)*Build Plate Temperature  | 60°C - 90°CBuild Surface Material  | Works well with most common build surfaces. We recommended PEI Build Plate (Texture suitable), smooth PEI with PVA/Bed Adhesive such as Magigoo. Build Surface Treatment  | Typically none required. Some surfaces such as glass work best with PVA glue stick or Magigoo.Cooling Fan  | LOW-MEDIUM for better surface qualityOFF-LOW (<10%) for better strengthEnclosure / Heater Chambers  | Recommended for complex larger geometries. 50-90˚C+ may be required for higher density and larger geometries. Recommend VOC/Air Filtering or print in well ventilated roomPrinting Speed  | 30 mm/s - 60 mm/sRetraction  | The ideal retraction settings vary from printer to printer. If you find the retraction settings are causing gaps in your part, the following settings may help.Direct Drive: Retraction distance of 0.5 - 1mm with retraction speed of 20mm/sBowden: Retraction distance of 2 - 3mm with retraction speed of 20 - 40mm/sDrying Recommendation  | ~70°c for 8-12hr (Only dry if filament is wet, over drying/repeat drying can damage filament) REQUIRE PRINTED CLAMP WHEN DRYING (Filament Dryer Guide)Storage  | Keeping filament in an airtight container or provided Mylar bag with new/dried desiccant. Support Material  | Single Extrusion:Self SupportNote: Due to the low co-efficient of friction please ensure you have smooth filament path from filament box/dryer. We recommended 3x4mm PTFE to be used for reverse bowden.  Based on 0.5/0.6 mm nozzle. Printing conditions may vary with different printers and nozzle diameters. * As always you should do temperature to tower as each machine printing temperature may vary depending on hotend/printing speed etc. Sample print STL : printables 351504, thingiverse thing:1984879 Spool Size: Spool Diameter: 198mm (+/-1mm)Spool Hub Diameter: 53mm (+/-1mm)Spool Width: 65mm (+/-4mm)Re-Order Number: 1946203
