Product Features:

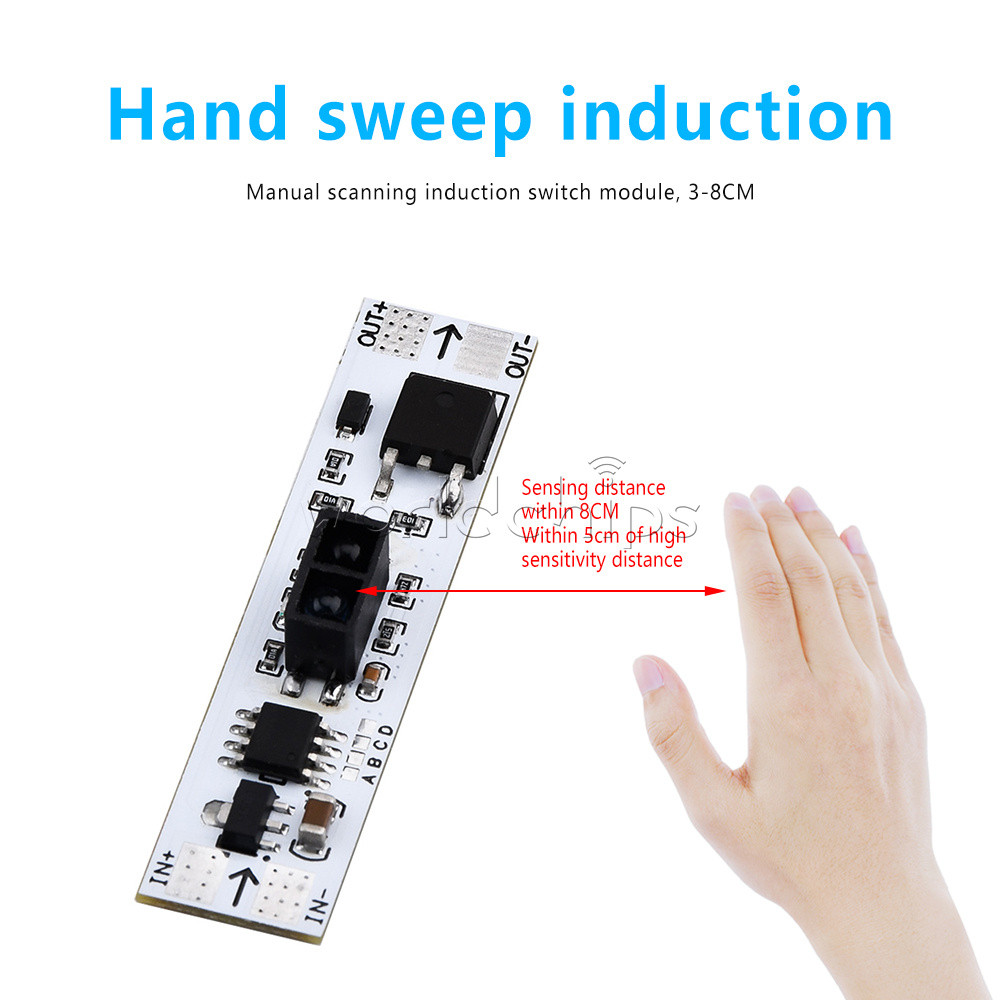

Hand sweep induction infrared switch, hand distance from the induction head 3-8CM, a light sweep that light
Increase the welding area to improve quality Wider output pad suitable for most of the common light board on the market
Instantly sweep that is open, rapid response
The design leaves sufficient margin to prevent the inset aluminum slot lamp housing card to avoid short-circuit situation brought about by the components contacting the lamp housing
Small body, big use Any indoor location can be installed
Hand sweep induction infrared switch, hand distance from the induction head 3-8CM, a light sweep that light
Increase the welding area to improve quality Wider output pad suitable for most of the common light board on the market
Instantly sweep that is open, rapid response
The design leaves sufficient margin to prevent the inset aluminum slot lamp housing card to avoid short-circuit situation brought about by the components contacting the lamp housing
Small body, big use Any indoor location can be installed
Version: conventional models
Product parameters:

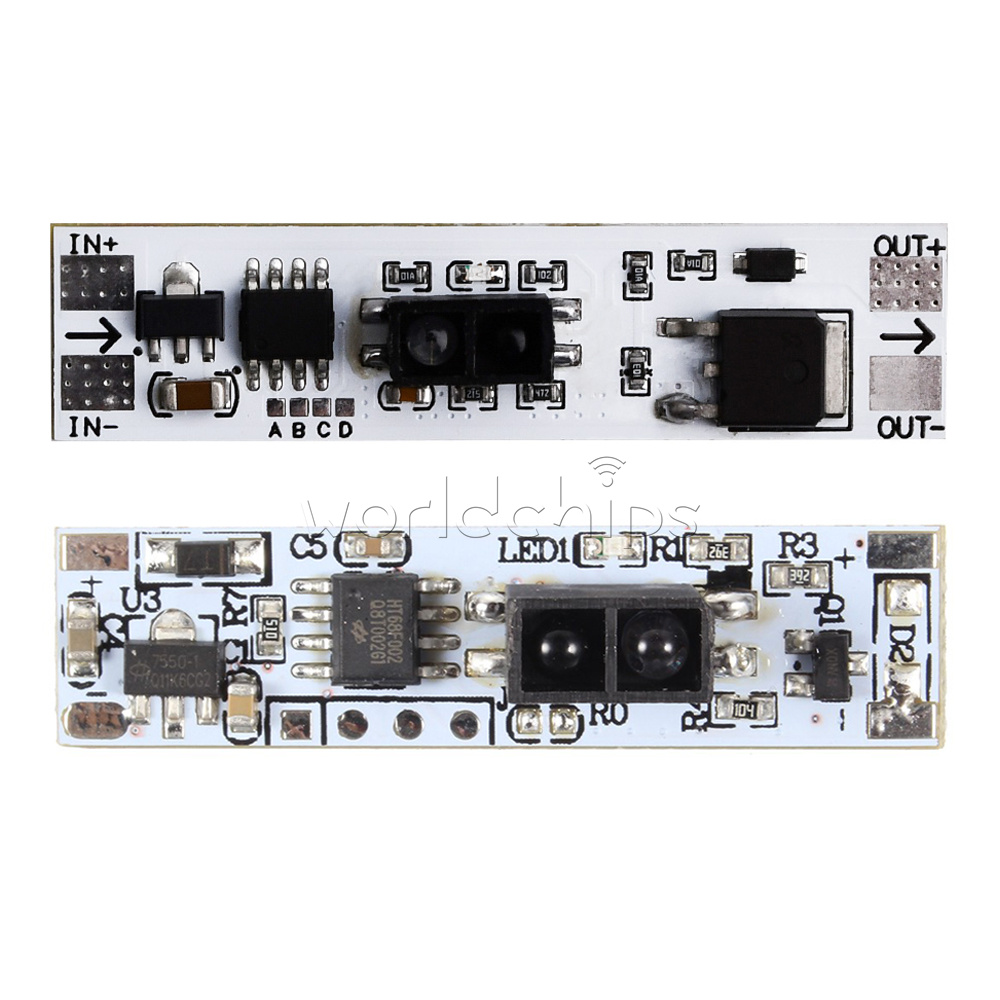

Model: XK-GK-4010A
Operating voltage.
Input: 12 V
Output: 12V
Output type: dual output
Detection range: adjustable 10-50MM
Detection principle: distance
Power load: 36W
Delay time: None
Application area: DC, constant voltage
Load current: 3A optional
Standby current: 10mA
VIN: 12V
Model: XK-GK-4010A
Operating voltage.
Input: 12 V
Output: 12V
Output type: dual output
Detection range: adjustable 10-50MM
Detection principle: distance
Power load: 36W
Delay time: None
Application area: DC, constant voltage
Load current: 3A optional
Standby current: 10mA
VIN: 12V
Features:
Using electrical appliances, such as small appliances, KTV VOD system.
Automotive industrial application systems and other electrical equipment for a wide range of customers can accept custom special features;
Product sensitivity can be customized, can penetrate plastic, acrylic, glass, ceramic and other non-metallic media, stable performance!
Using electrical appliances, such as small appliances, KTV VOD system.
Automotive industrial application systems and other electrical equipment for a wide range of customers can accept custom special features;
Product sensitivity can be customized, can penetrate plastic, acrylic, glass, ceramic and other non-metallic media, stable performance!
Description:

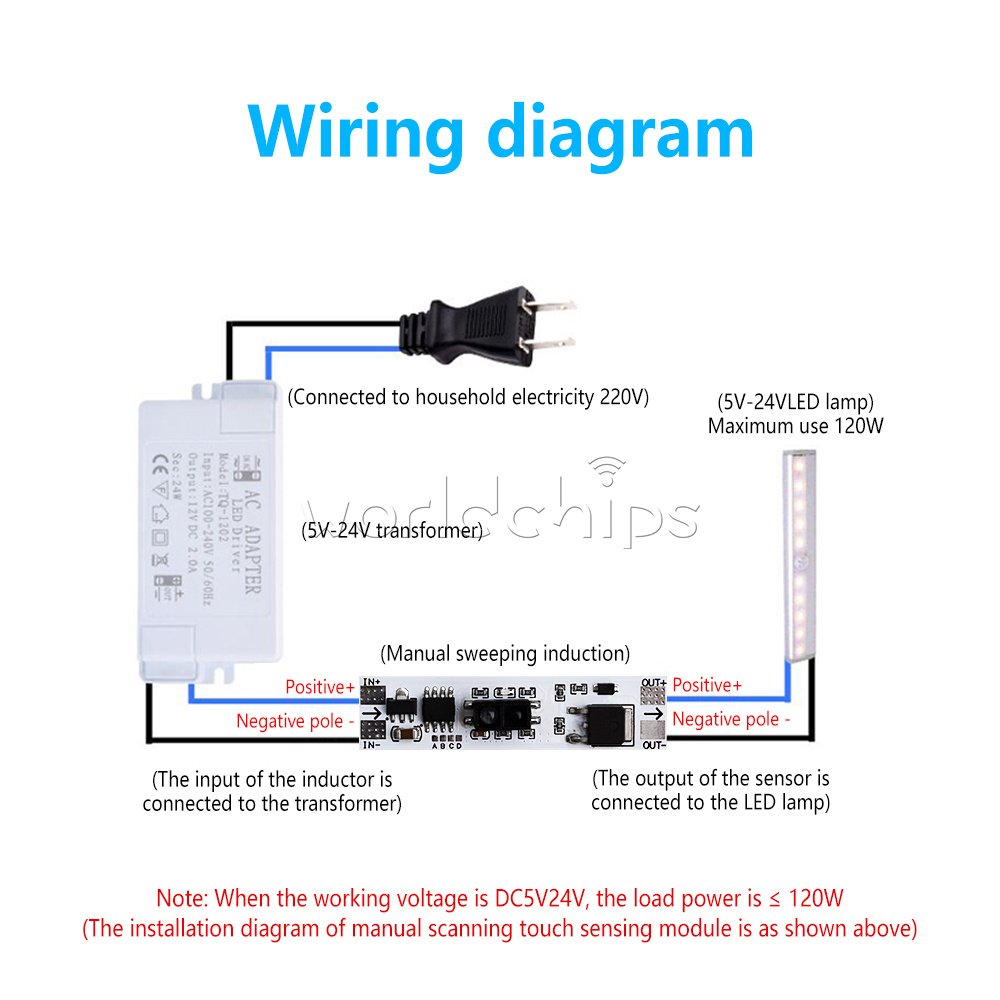

AC use: need to apply reactive rectifier for DC, constant voltage.
In the installation process, ensure that the dielectric insulation and tactile surface tightly coupled fixed!
No gaps! Installation then power supply, after initialization wait 3 seconds, may be normal operation!
AC use: need to apply reactive rectifier for DC, constant voltage.
In the installation process, ensure that the dielectric insulation and tactile surface tightly coupled fixed!
No gaps! Installation then power supply, after initialization wait 3 seconds, may be normal operation!
2. Recommended installation method.
First, the shell design a slot, touch the button can be firmly locked.
Second, use hot melt adhesive, touch the button and the shell near the adhesive hot melt can be used to live.

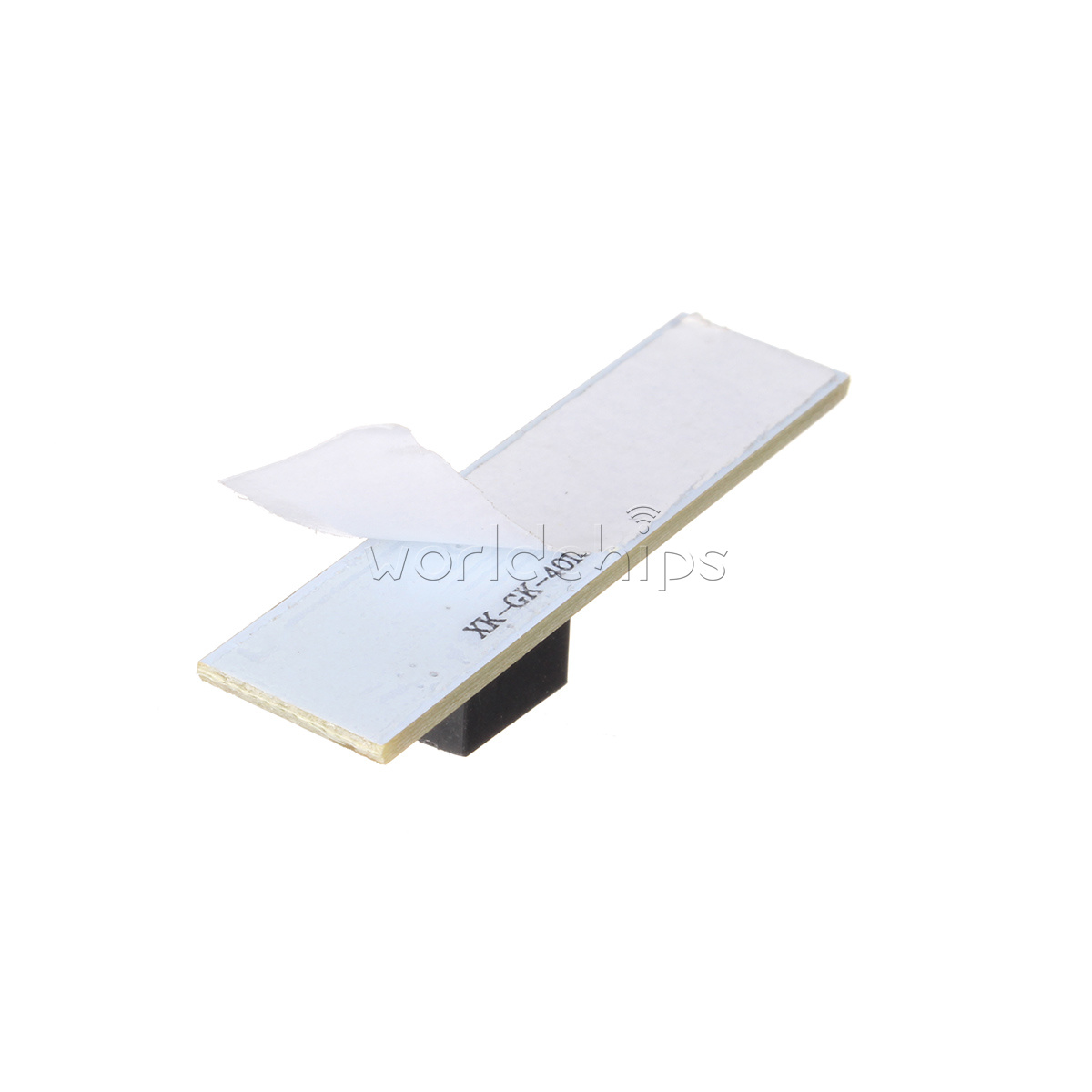

Third, the use of double-sided adhesive, direct touch stickers inside the shell.
First, the shell design a slot, touch the button can be firmly locked.
Second, use hot melt adhesive, touch the button and the shell near the adhesive hot melt can be used to live.
Third, the use of double-sided adhesive, direct touch stickers inside the shell.
Package includes:

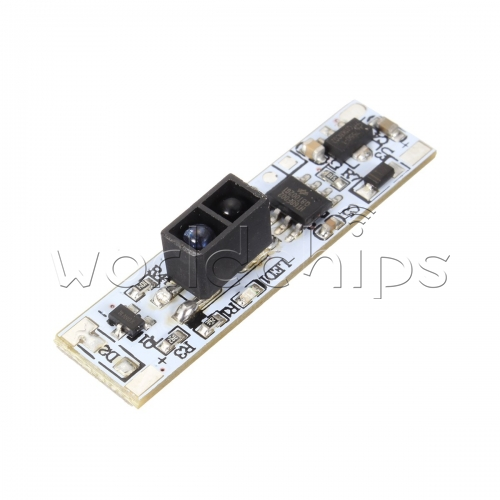

1 * K-GK-4010A scanning manual switch sensor
1 * K-GK-4010A scanning manual switch sensor

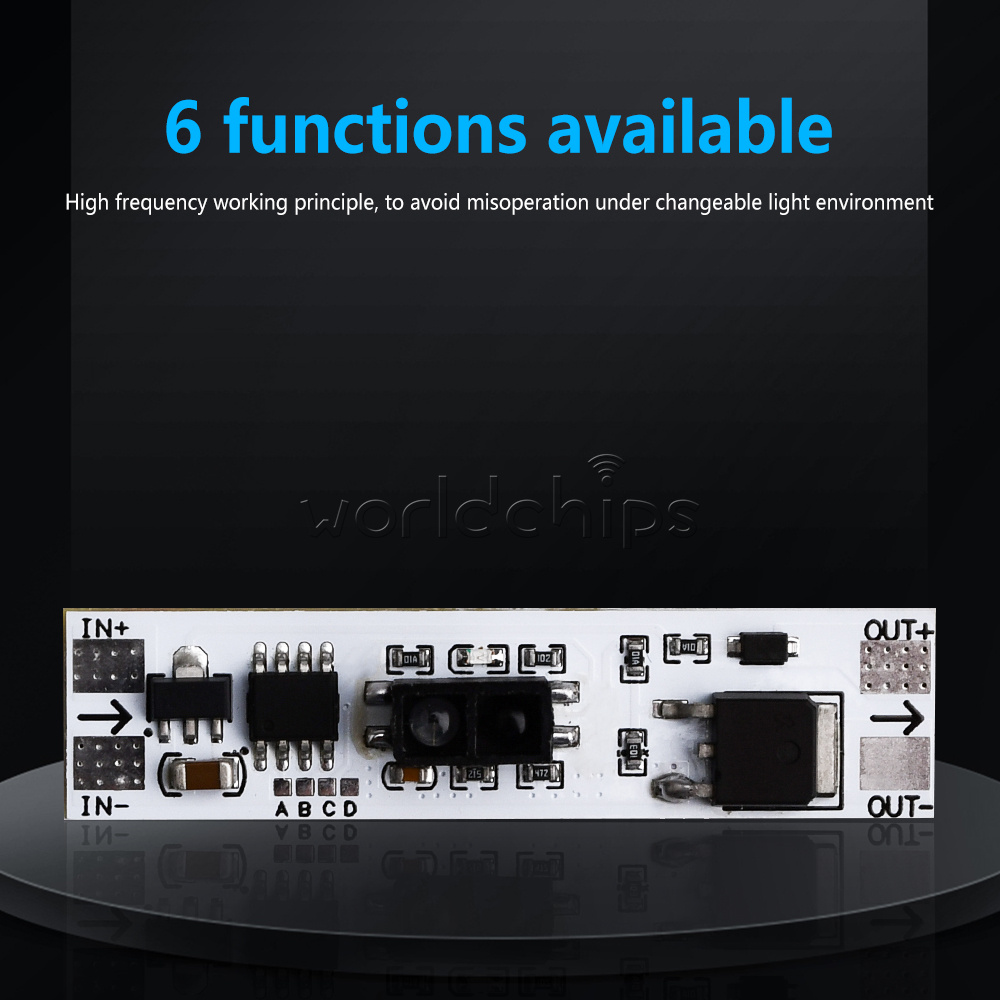

Version: multi-function version (six in one)

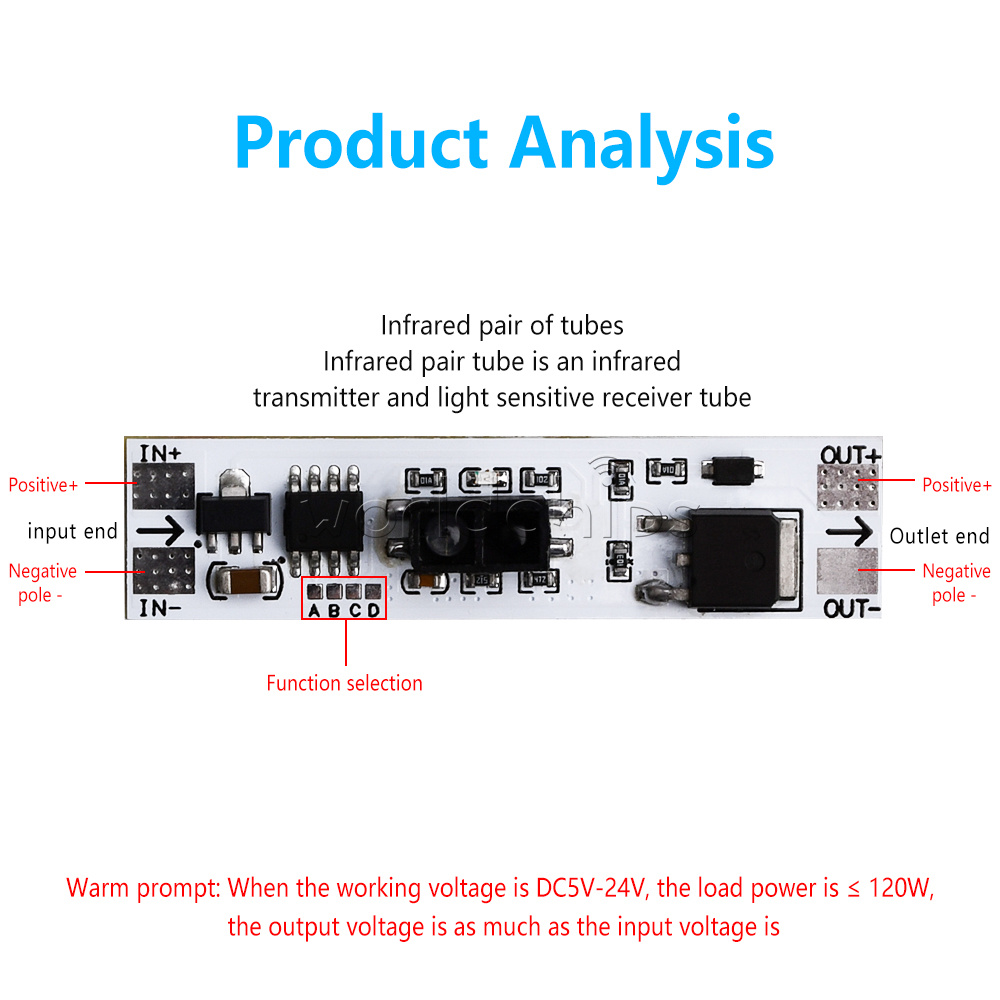

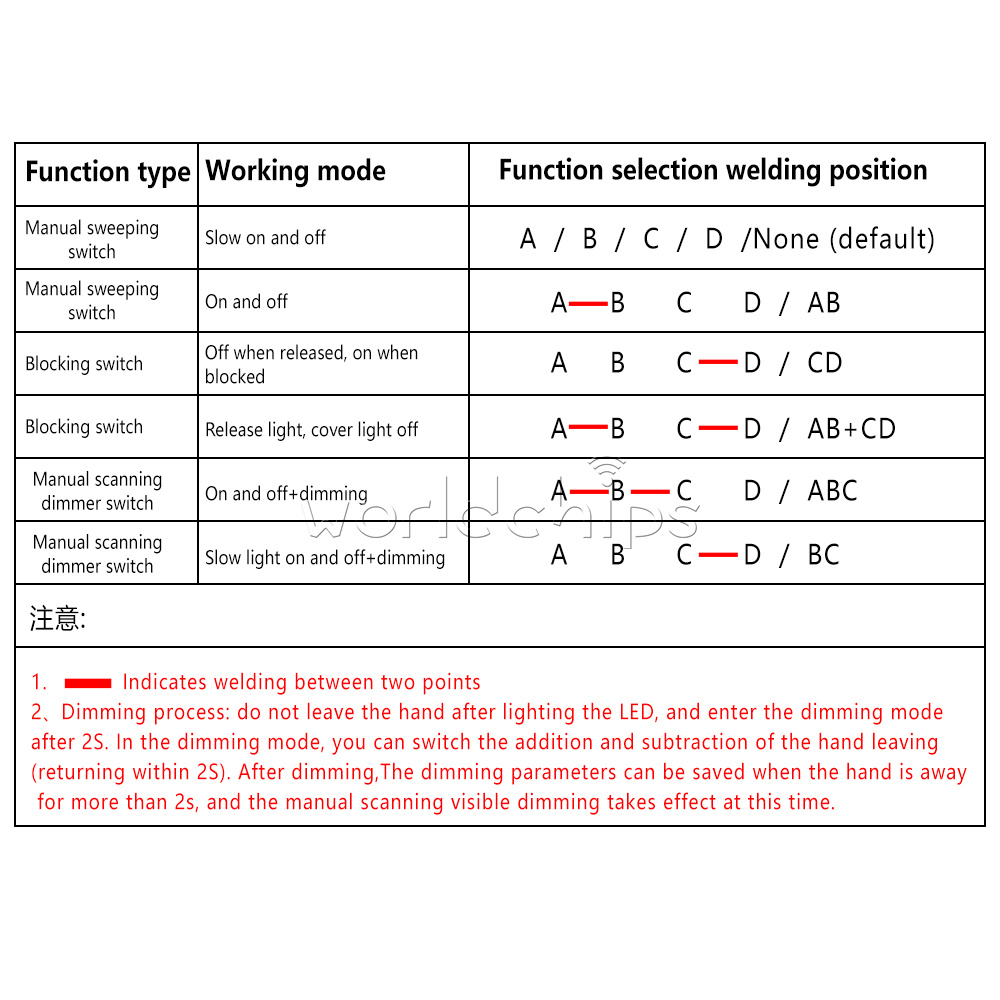

Sensing mode: 6 select one (slow bright slowly extinguish / that is bright that is extinguished / release extinguish, shade bright / release bright, shade extinguish / that is bright that is extinguished + dimming / slow bright slowly extinguish + dimming)
Load current: resistive 5A
Load power: 120W(MAX)
Standby current: ≤10mA

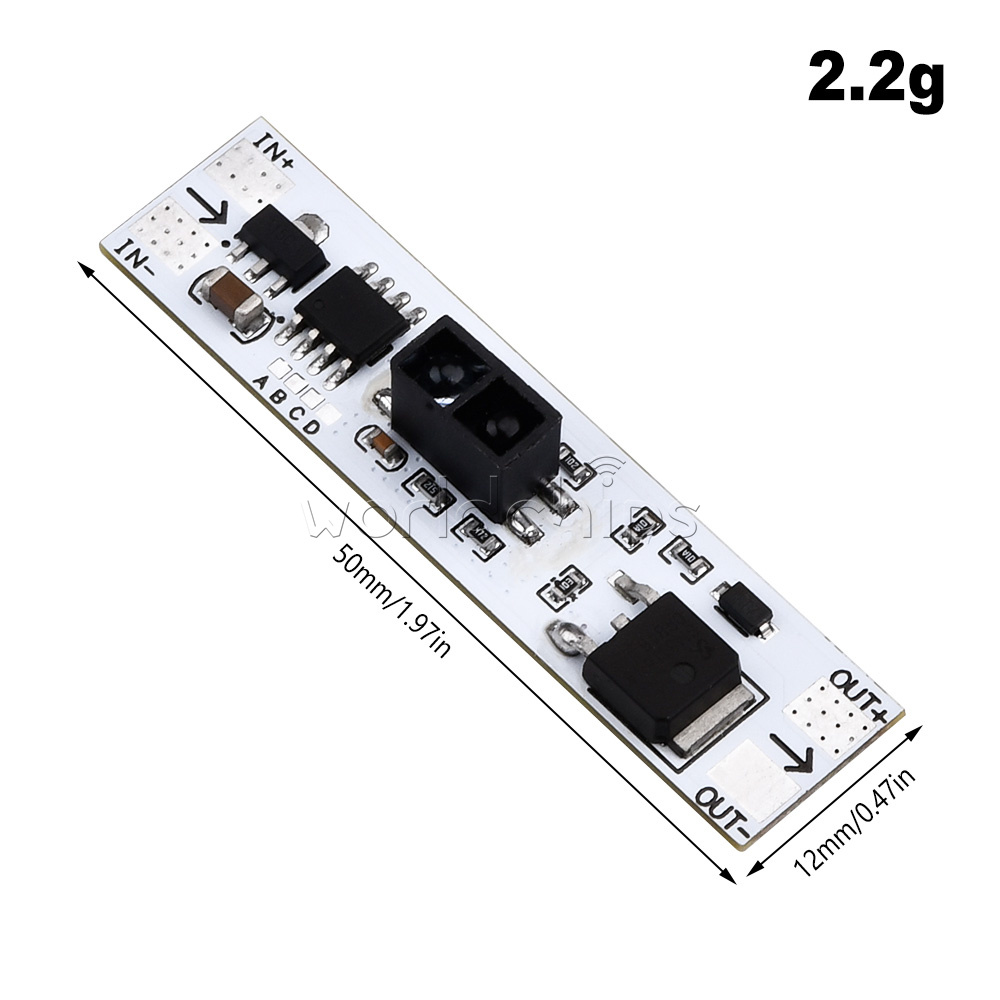

Size: 50*12*7.9(mm)
Sensing principle: infrared
Sensing range: 30-80MM
Input voltage: 5-24V(DC)
Output voltage: = input voltage
Output form: switch + indicator
Scope of application: DC, constant voltage
Delay off time: None
Package list:
Multi-functional hand sweep sensor switch *1
Multi-functional hand sweep sensor switch *1
