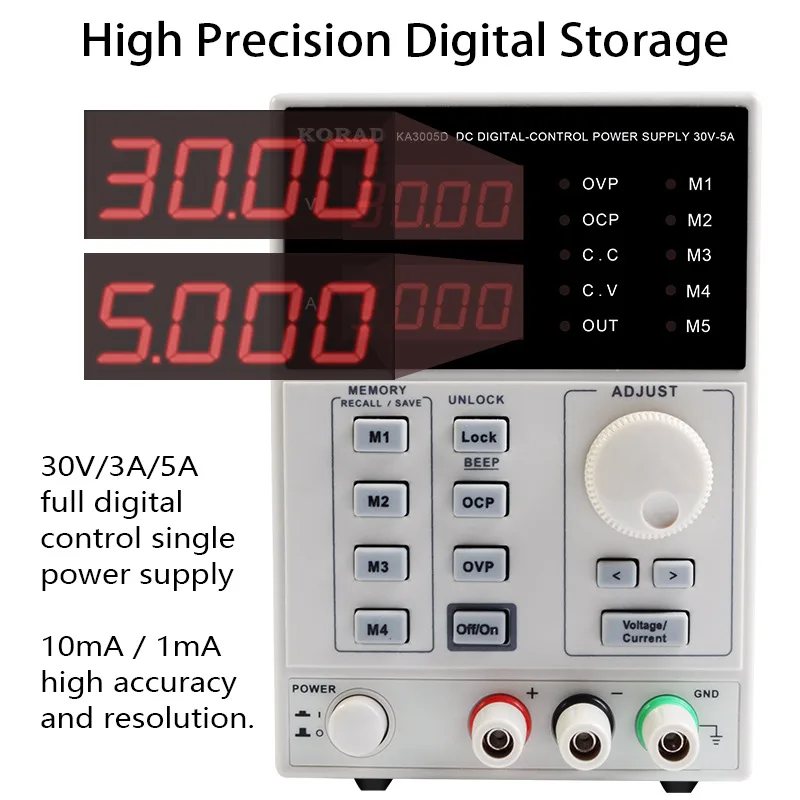

30V/5A full digital control single power supply
10mV/1mA high accuracy and resolution
Low noise and ripple
CV/CC constant voltage and constant current mode
Highly reliable OCP, OVP, arbitrary setting protection
Built-in 10 sets of parameter storage
Output switch control
Power-off memory function
Keyboard lock prevents misoperation
Intelligent temperature control fan, effectively reduce noise
Easily replace traditional digital display power supply
Accurately generate the required voltage and current
0-30V high precision adjustable DC output
10mV and 1mA resolution
Professional power supply design with intuitive operability
Simple and intuitive operation, can realize fast and accurate selection of voltage and current
Prevent damage to the load
Overvoltage protection and overcurrent protection can be set to prevent voltage regulation from exceeding the threshold.
The keyboard lock function locks the panel keys to prevent undesired results in key test projects
10 user programmable preset settings
Just press the recall and save area buttons to recall the user's stored data and save user settings with one key

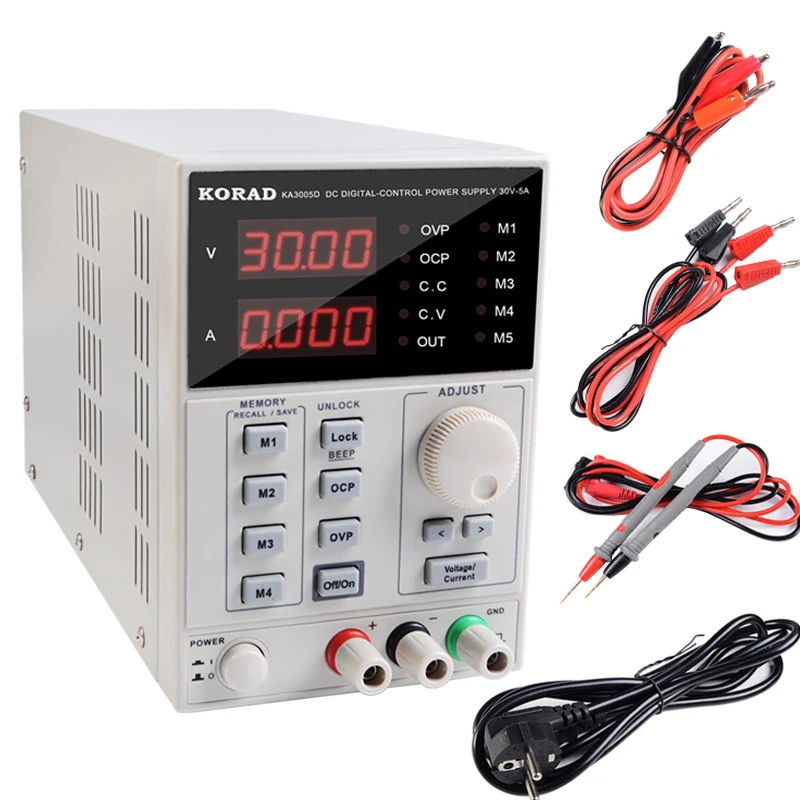

Power accessories: manual, AC power cord
Input voltage: 220V +/- 10%
Frequency range: 50-60Hz Working temperature: 32-104-F (0-40°C)
Working humidity: 80% RH
Storage temperature: 32-158-F (0-70℃)
Storage humidity: 70% RH
Output current range: 0-5A continuously adjustable
Resolution setting: 1 mA
Accuracy setting: 0.1% + 3 mA
Reading accuracy: 1 mA
Temperature coefficient: 0.1% + 5mA
Temperature after reading. Coefficient: 100ppm + 5ma
Stable voltage:
Output voltage range: 0-30V continuously adjustable
Resolution setting: 10 mv
Setting accuracy: 0.0 5% + 20 mV
Reading accuracy: 10 mv
Temperature coefficient: 0.1% + 10mV
Temperature after reading. Coefficient: 100ppm + 10mv
10mV/1mA high accuracy and resolution
Low noise and ripple
CV/CC constant voltage and constant current mode
Highly reliable OCP, OVP, arbitrary setting protection
Built-in 10 sets of parameter storage
Output switch control
Power-off memory function
Keyboard lock prevents misoperation
Intelligent temperature control fan, effectively reduce noise
Easily replace traditional digital display power supply
Accurately generate the required voltage and current
0-30V high precision adjustable DC output
10mV and 1mA resolution
Professional power supply design with intuitive operability
Simple and intuitive operation, can realize fast and accurate selection of voltage and current
Prevent damage to the load
Overvoltage protection and overcurrent protection can be set to prevent voltage regulation from exceeding the threshold.
The keyboard lock function locks the panel keys to prevent undesired results in key test projects
10 user programmable preset settings
Just press the recall and save area buttons to recall the user's stored data and save user settings with one key
Power accessories: manual, AC power cord
Input voltage: 220V +/- 10%
Frequency range: 50-60Hz Working temperature: 32-104-F (0-40°C)
Working humidity: 80% RH
Storage temperature: 32-158-F (0-70℃)
Storage humidity: 70% RH
Output current range: 0-5A continuously adjustable
Resolution setting: 1 mA
Accuracy setting: 0.1% + 3 mA
Reading accuracy: 1 mA
Temperature coefficient: 0.1% + 5mA
Temperature after reading. Coefficient: 100ppm + 5ma
Stable voltage:
Output voltage range: 0-30V continuously adjustable
Resolution setting: 10 mv
Setting accuracy: 0.0 5% + 20 mV
Reading accuracy: 10 mv
Temperature coefficient: 0.1% + 10mV
Temperature after reading. Coefficient: 100ppm + 10mv
