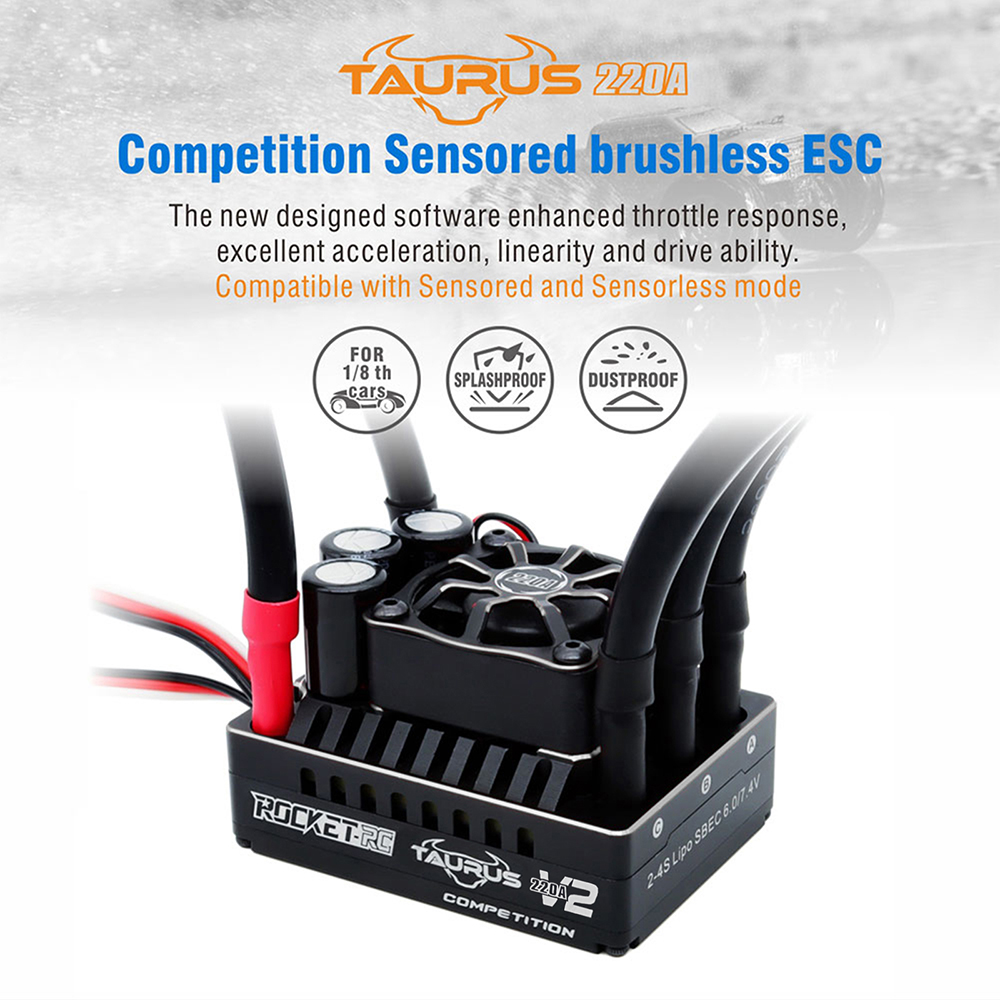

ROCKET-RC Brushless ESC Motor Combo Sensored 220A 2-4S Speed Controller 7.4V/6A BEC with 4268 4274 2700KV 2200KV Motor for 1/8 RC Car Off Road Buggy Replacement Parts
ESC
Features:

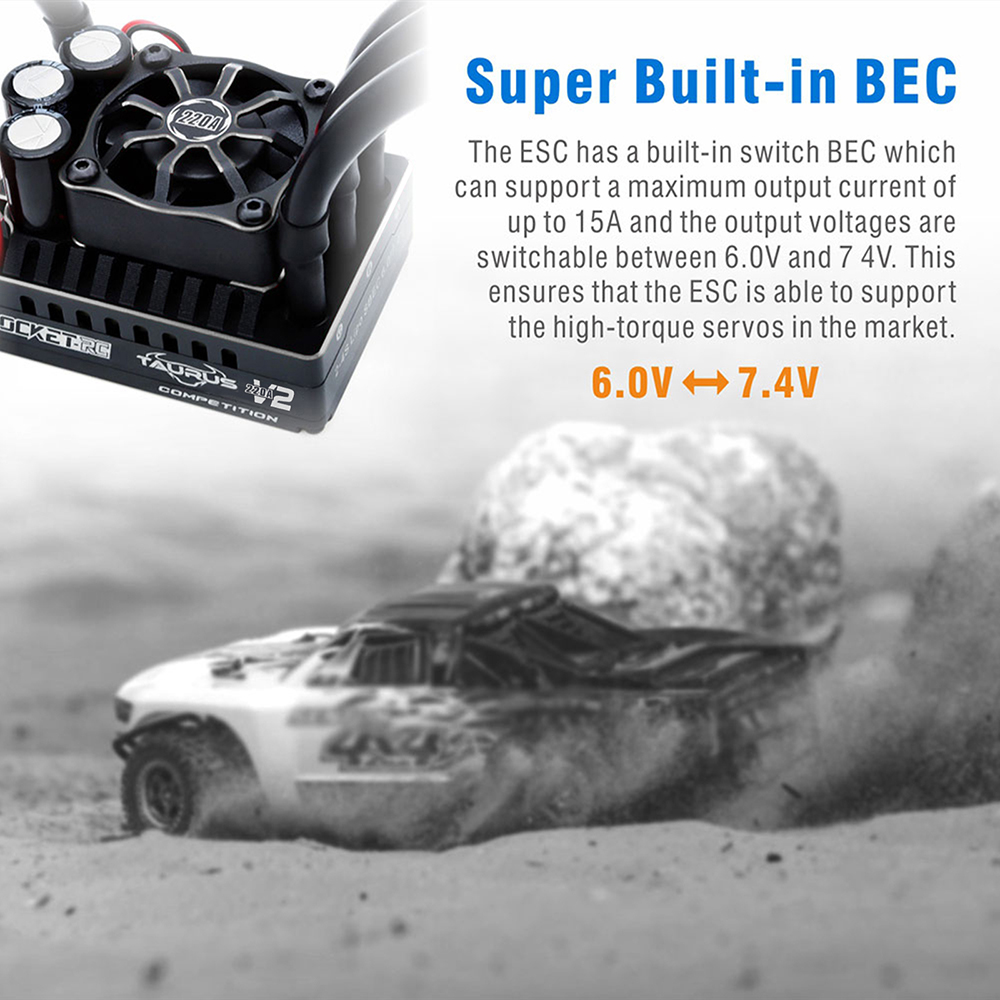

Splash-proof and dust-proof for all-weather races. For 2-4S Lipo or 4-12 cells NiMH. Super bulit-in BEC output 7.4V/6A. Compatible with 1/8 RC Truck, Buggy, Truck, Rock Crawler.

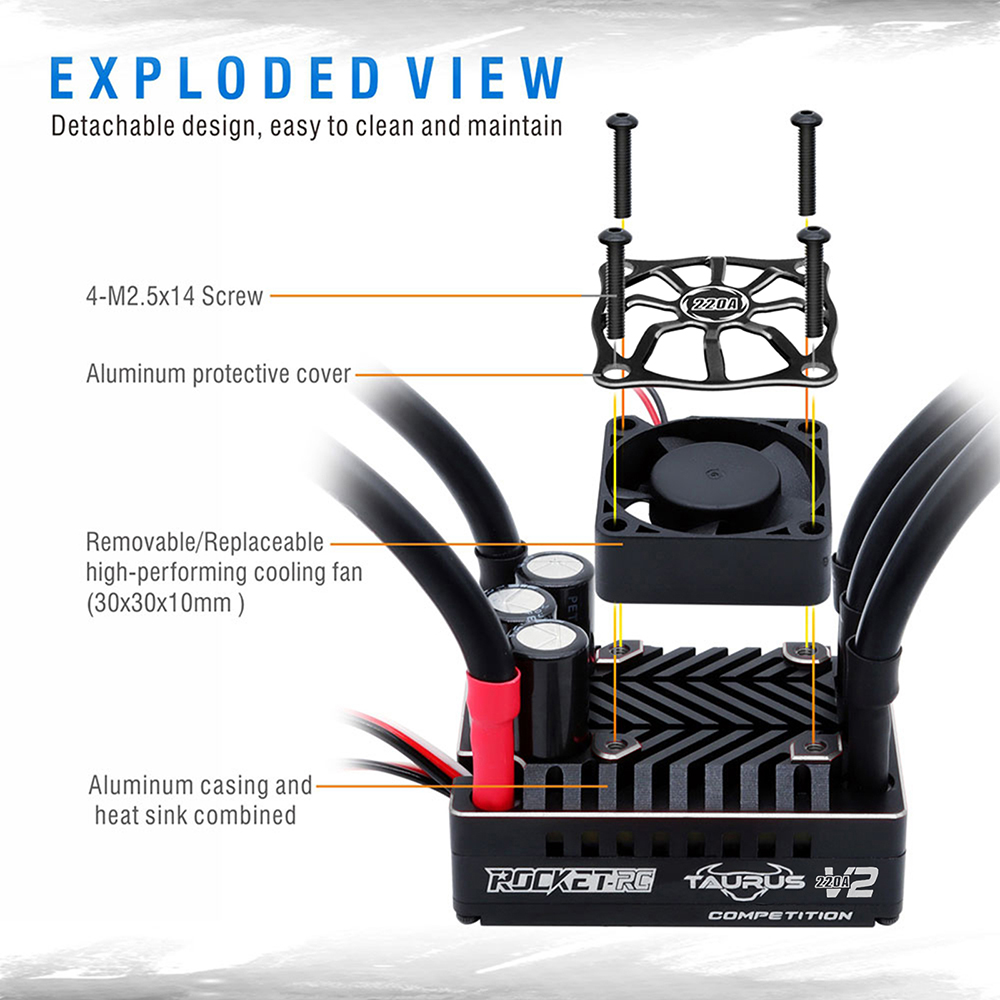

The ESC possesses an aluminum cooling system offering excellent heat dissipation, a strong resistant current capability.

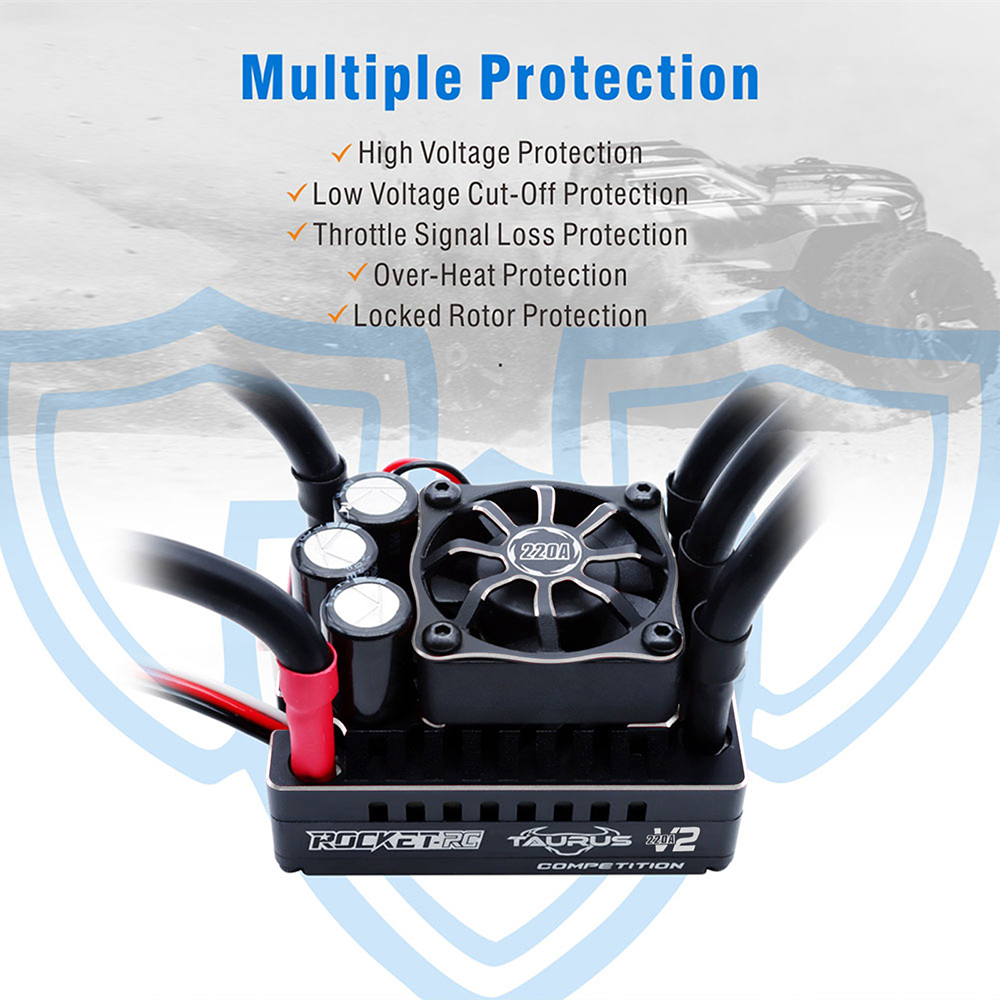

Multiple protections, over voltage protection, low voltage cut-off protection for battery. Over-heating protection, throttle signal loss protection, and much more.

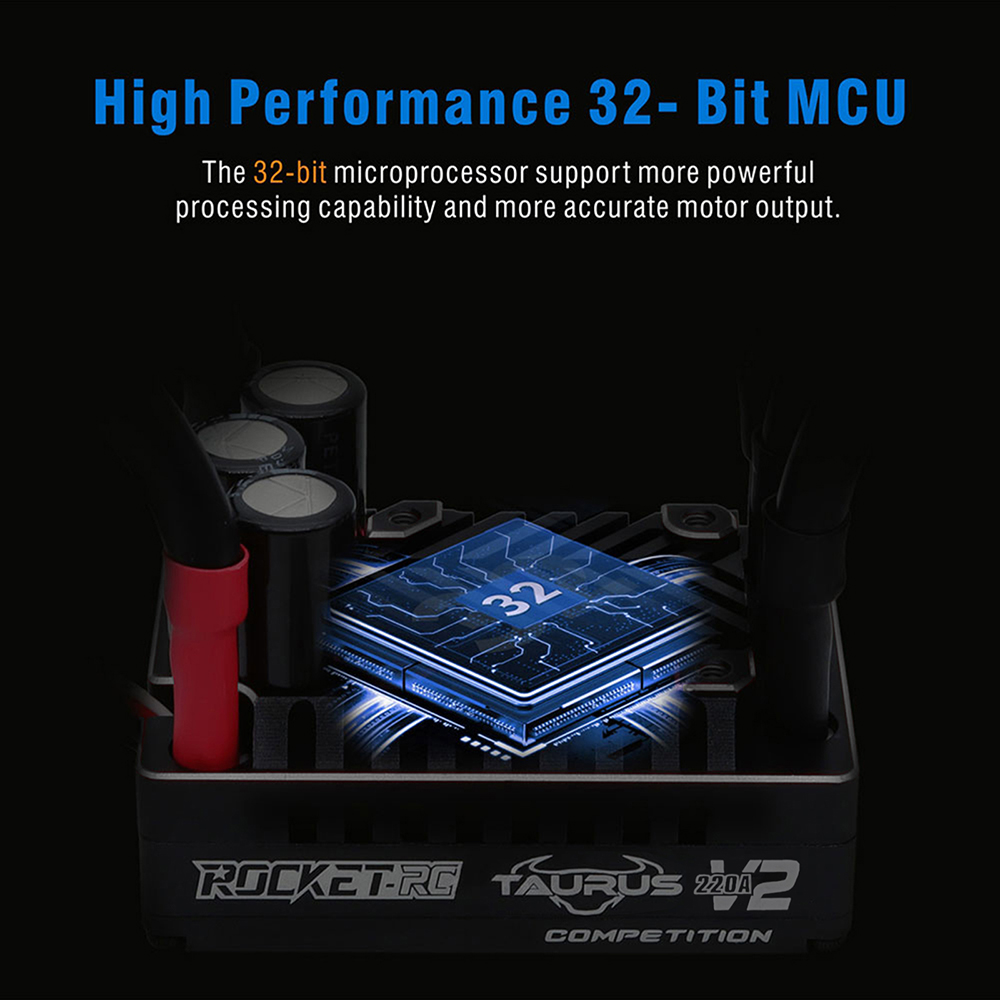

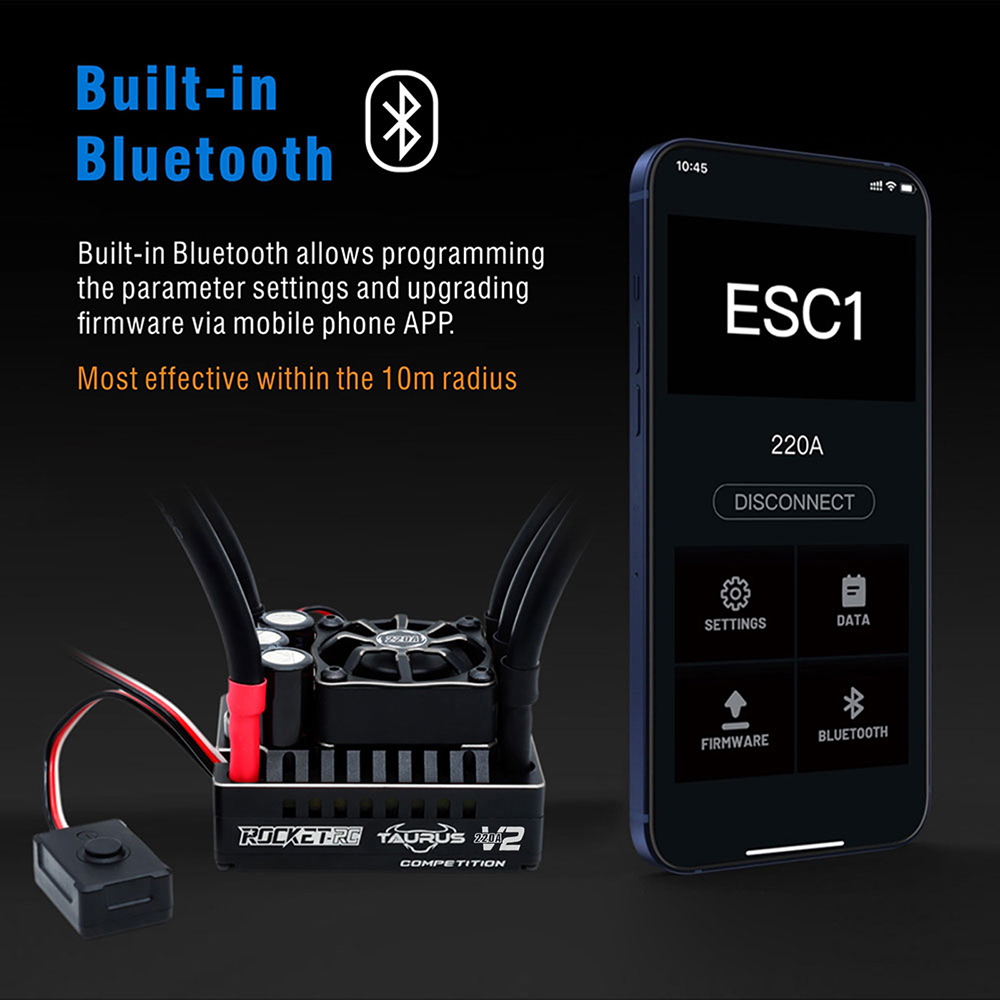

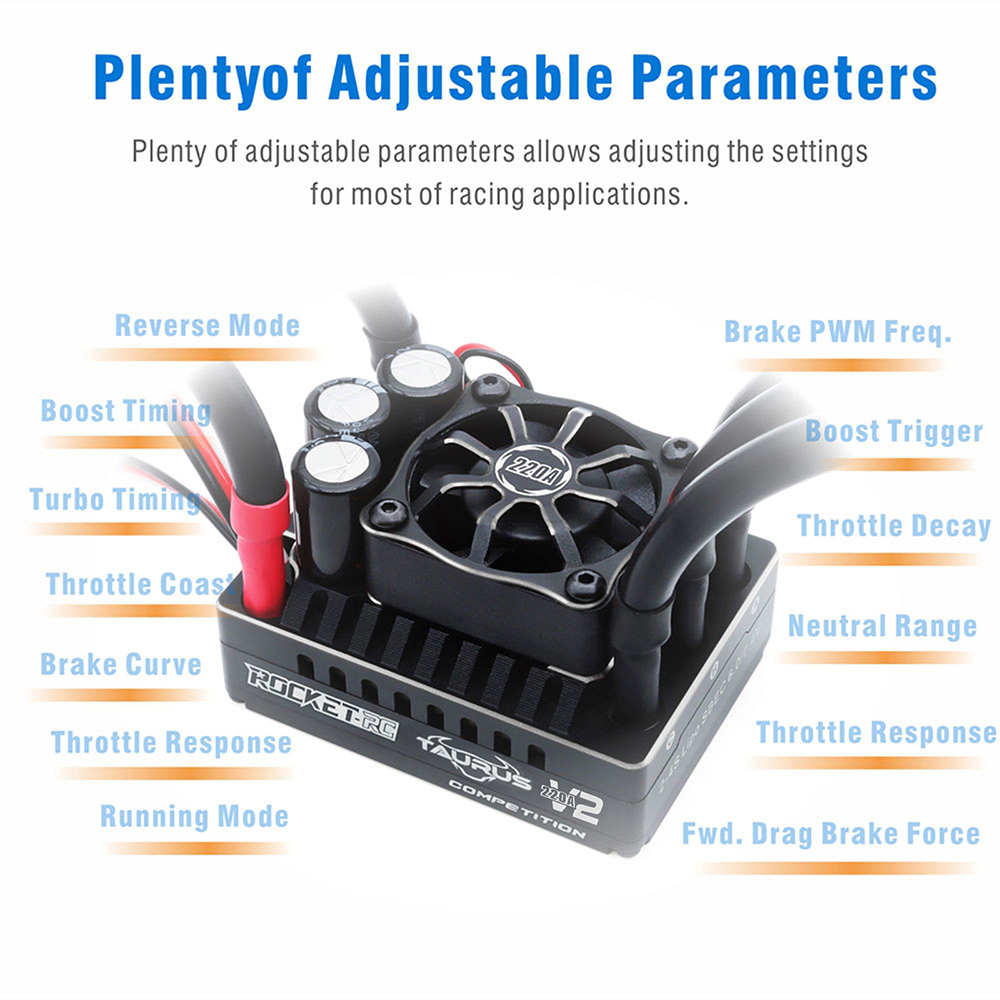

High performance 32-bit MCU. Built-in Bluetooth allows programming the parameter settings and upgrade firmware via mobile phone APP.
Built with the superior components features enhanced throttle response, excellent acceleration, linearity and drive ability, it is a good choice for RC hobbyists, especially for DIY enthusiasts.
Specifications:
Name: 220A Brushless ESC
Material: Aluminum
Battery: 2-4S Li-po battery
BEC output: 7.4V/6A
Item size: 55.2x40.2x36.5mm
Item weight: 155g
Suitable for: 1:8 RC car
Motor
Features:

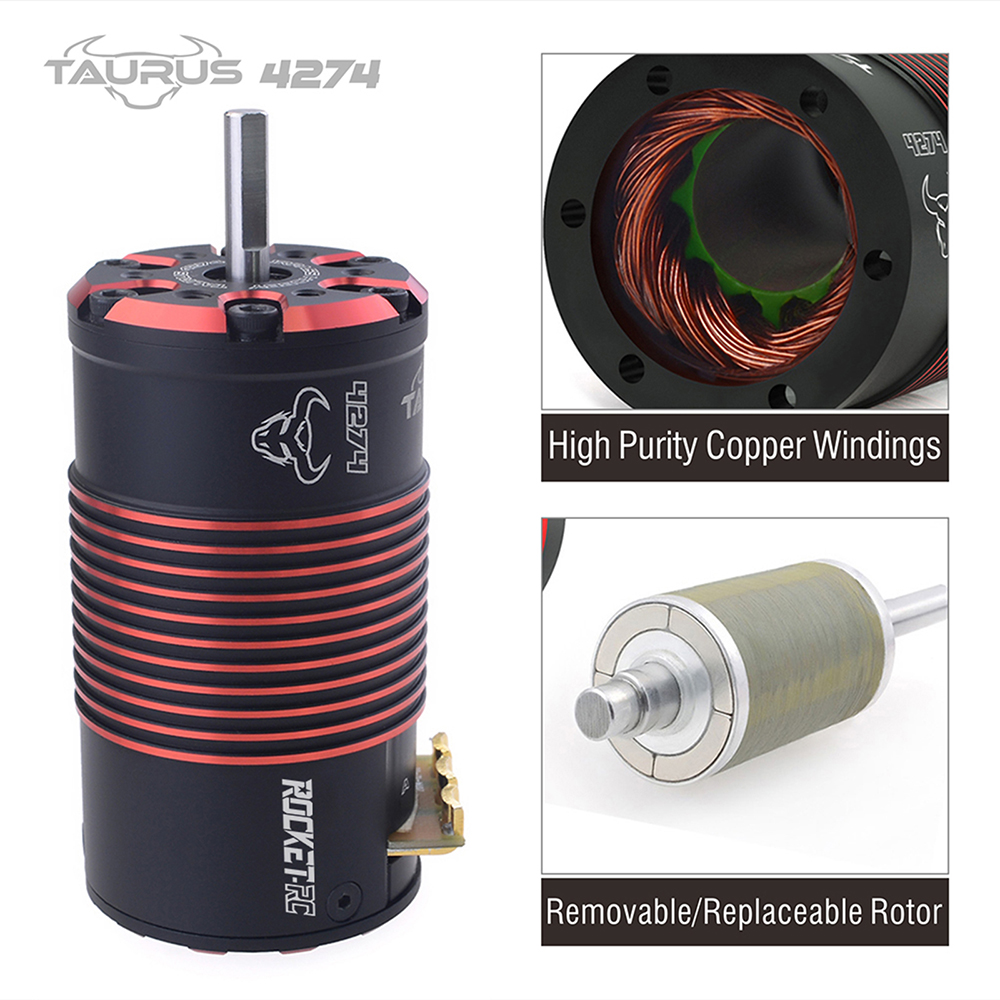

Sensored motor for 1/8 scale competition off road cars.
4 Pole 12 Slot Hi-torque Motor Design .
CNC Machined 6061 T6 Billet Aluminum Heatsink Can.

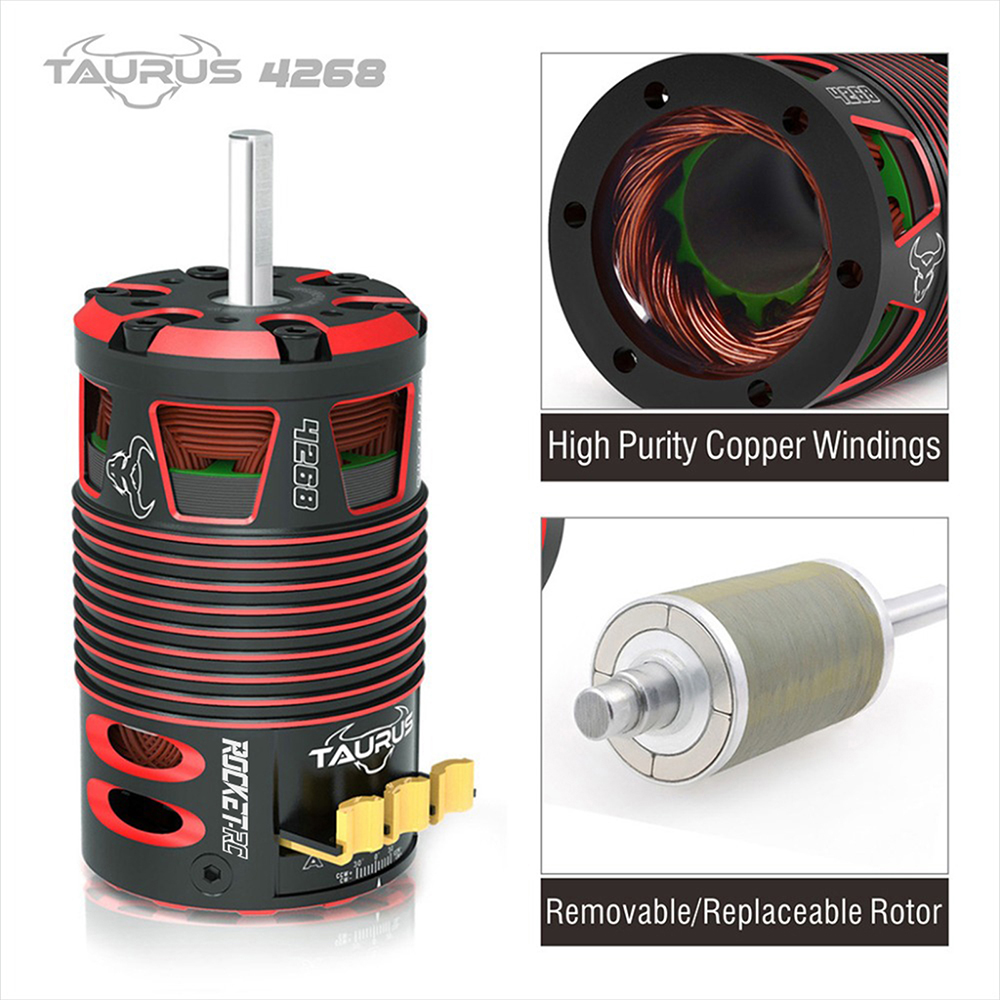

High Purity Copper Windings Maximizes Efficiency.
High RPM ABEC5 Oversized Bearings.
Universal fitment,fits all 1/8 brushless cars-multi-mounting system for M3 or M4 screws
Precision balanced rotor,smoothness for best reliability and maximum RPM
Stator - Super Thin (0.2mm) Laminations

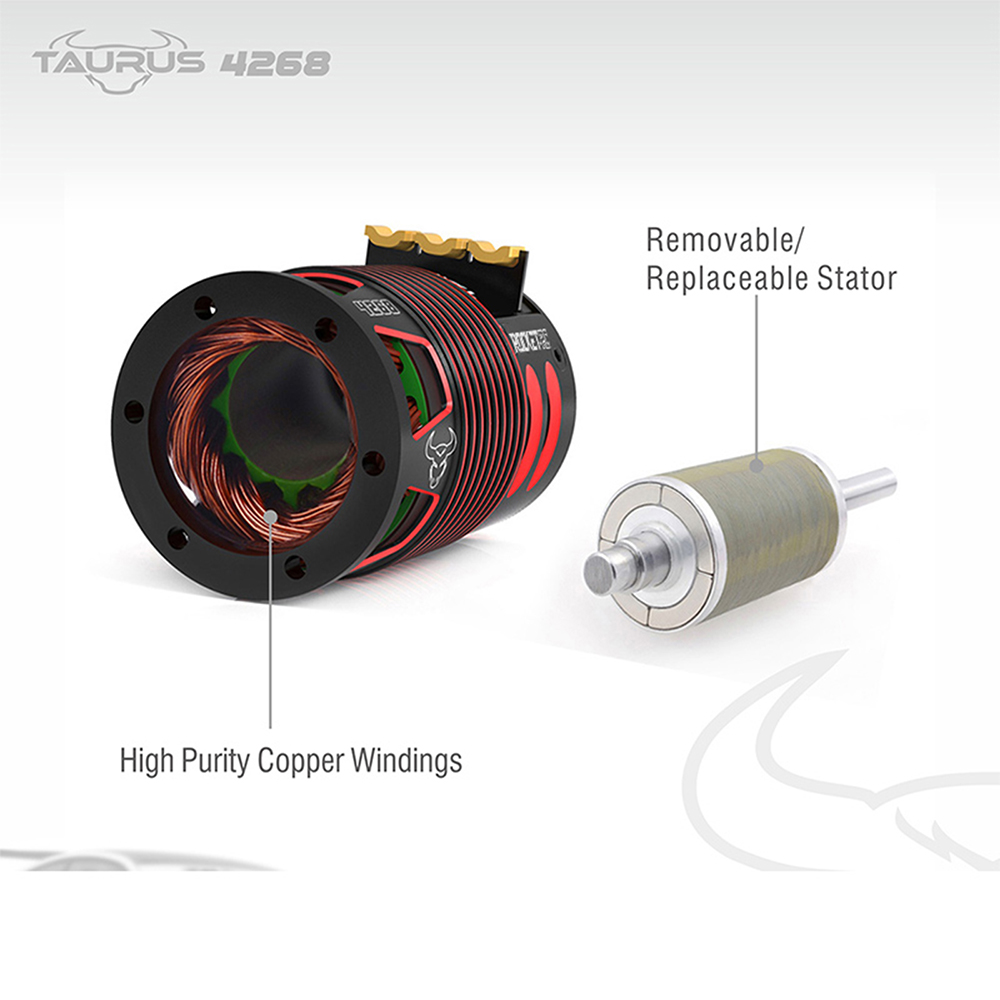

Removable/Replaceable Rotor
Precision Engineered for Maximum Energy Conversion
Specifications:
Item Name: 4268 2700KV
Color: Black&Red
KV(RPM/Volt): 2700KV
Watt: 2400
Max RPM: 50000
Max voltage: <18V
Max amps: 130A
Rotor poles: 4
IO:3.2A
Resistance:0.0048
Shaft length: 18mm
Shaft diameter: 5mm
Weight:320g
Size:42x68mm

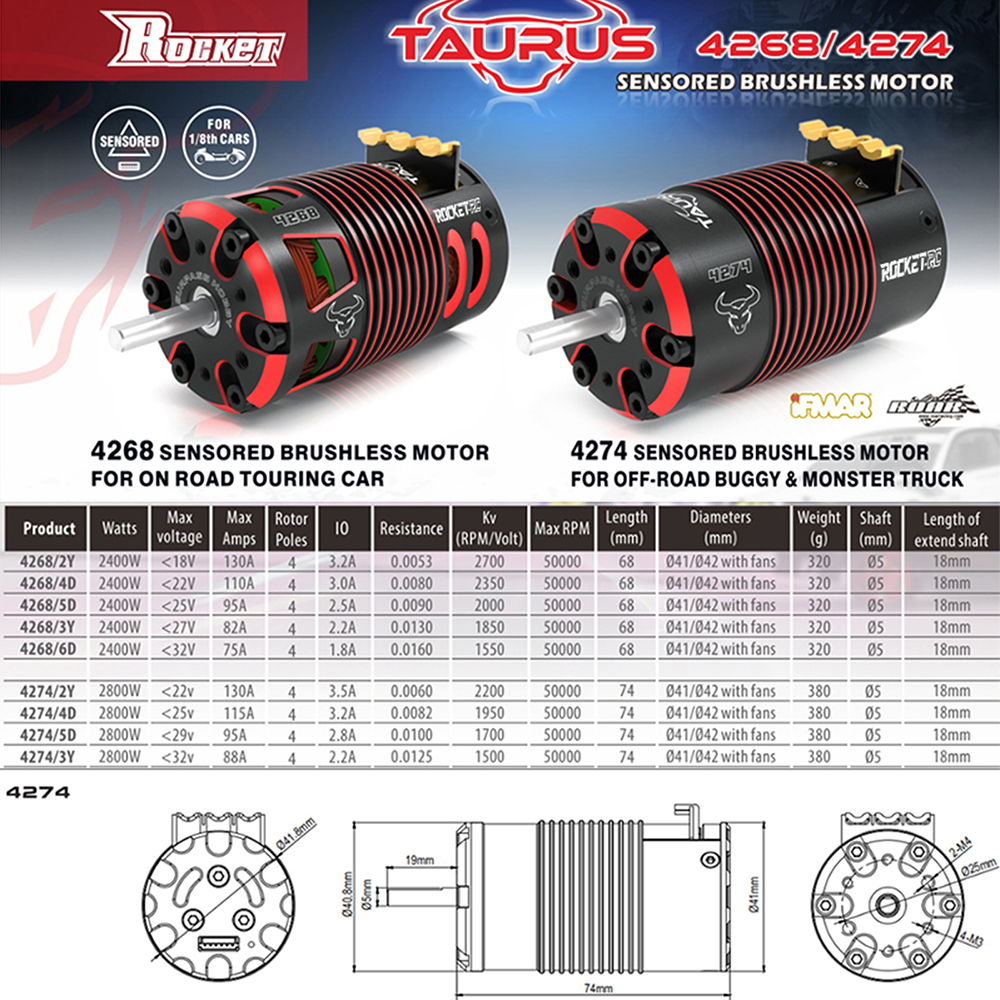

Item Name: 4274 2200KV
Color: Black&Red
KV(RPM/Volt): 2200KV
Watt: 2800
Max RPM: 50000
Max voltage: <22V
Max amps: 130A
Rotor poles: 4
IO:3.5A
Resistance:0.0060
Shaft length: 18mm
Shaft diameter: 5mm
Weight:380g

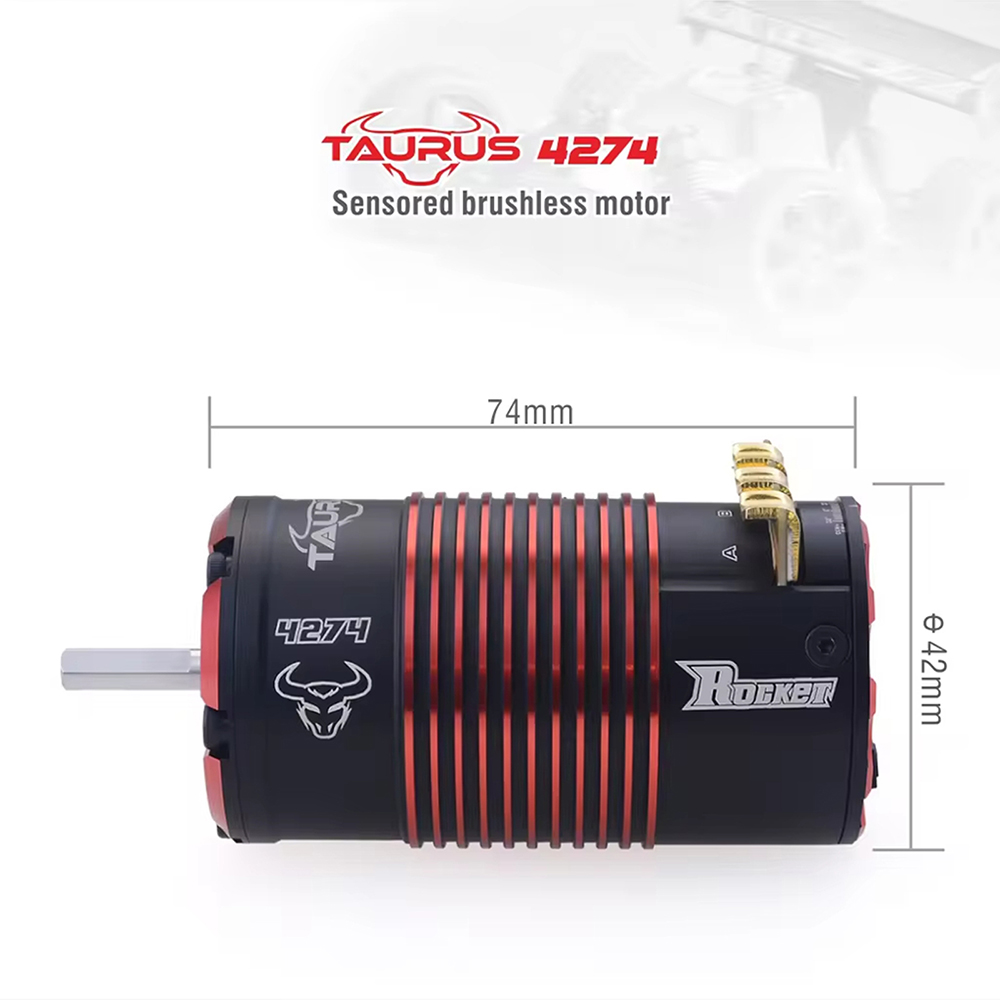

Size:42x74mm
Package List:
As you choice
Only the above package content, other products are not included.
1.Due to the difference between different monitors,the picture may not reflect the actual color of the item. We guarantee the style is the same as shown in the pictures.
2.Due to the manual measurement and different measurement methods, please allow 1-3mm deviation.Thanks!
