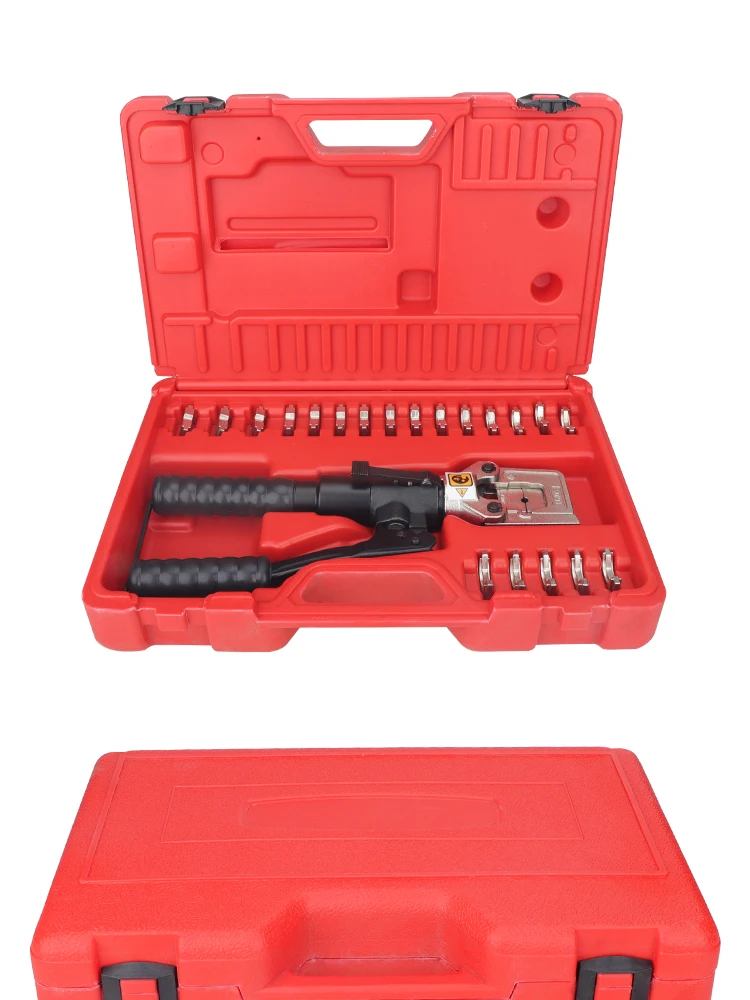

HT - 51 hydraulic clamp wire clamp

Pressure range: 10-240 mm²
The maximum pressure: 6 T
Range: 15 mm
Mould configuration: 10, 16, 25, 35, 50, 70, 95, 120, 150, 185, 240mm²
Form: pressure to confining pressure
Net weight: 3kg
Gross weight: 5.3kg

Product performance and advantages

1, Power cable wire has a hydraulic pressure type, closely conductive is good, not easy to fall off and thermal conductivity.
2, Double speed device will die to pressure over quickly, rising pressure relay, then automatically switch to low speed and at the completion of crimping process to save time and effort.
3, Clasp type pressure joint easily opened in the middle of work pressure.
4, Pressure joints can choose 180 degrees, apply to a variety of angles.
5, Built-in relief valve, when the pressure reaches maximum pressure automatic pressure, overpressure prevent tools.
6, Spring handle design, suitable for a single operation.

7, Packing method using molding plastic box of beautiful and practical.
