DESCRIPTION

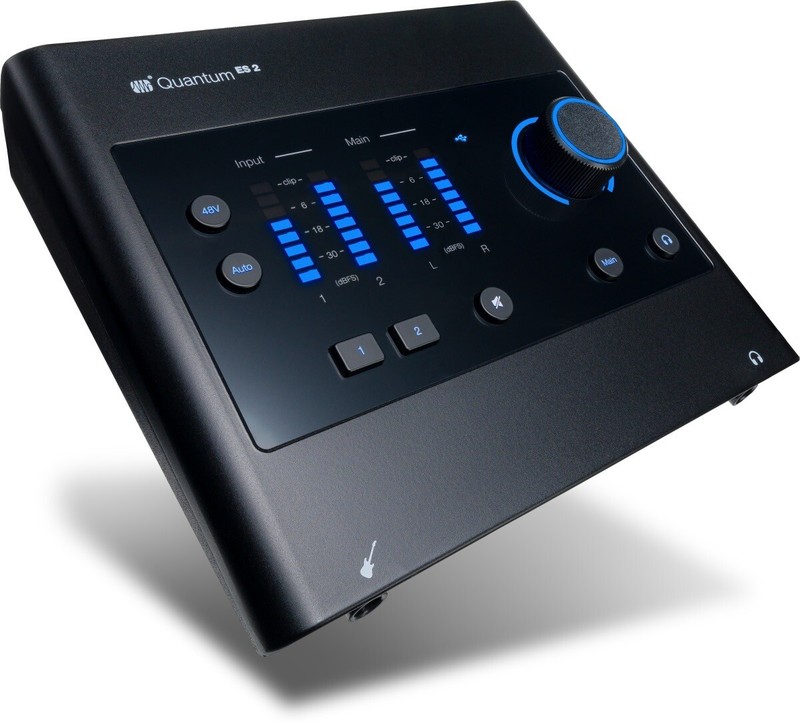

Capture your creativity with the Quantum ES 2. The next generation of PreSonus audio interfaces, the Quantum ES 2 is the culmination of nearly 30 years of PreSonus expertise, delivering pristine preamps and class-leading converters for self-made audio creators.
FEATURES
High Performance Signal Flow – Custom low-latency drivers and low-noise converters.
All-New MAX-HD Mic Preamps – The culmination of 30 years of innovation, our rigorously redesigned preamps feature digitally-controlled analog with +75 dB of gain range.
Co-Developed with Fender® – Front-facing instrument input engineered for guitarists by industry-leading experts.
Professional Recording Software Included – 6 months of Studio One+ with full access to Studio One, add-ons, and more.
Auto Gain – Dial in recording-ready levels, hassle-free.
Universal Control App – Full control and metering from your mobile device, desktop, or tablet.
General
SERIES: Quantum
COLOR: Black
COUNTRY OF ORIGIN: CN
Electronics
HEADPHONE JACK: One - 1/4" TRS Female Stereo
CONNECTIVITY: USB-C®
VOLTAGE: 120V
PHANTOM POWER: +48 VDC
Performance
DIGITAL AUDIO BIT DEPTH: 24-bit
DIGITAL AUDIO DYNAMIC RANGE: 120 dB
Inputs
INSTRUMENT INPUTS DYNAMIC RANGE: 111 dB (A-Weighted, Minimum Gain)
INSTRUMENT INPUTS FREQUENCY RESPONSE: 20 Hz to 20 kHz, +/- 0.2 dB (Unity Gain, Reference 1 kHz)
INSTRUMENT INPUTS GAIN RANGE: 75 dB
INSTRUMENT INPUTS MAXIMUM LEVEL: +15 dBu (Unbalanced, Minimum Gain)
LINE INPUTS DYNAMIC RANGE: 114 dB (A-Weighted, Minimum Gain)
LINE INPUTS FREQUENCY RESPONSE: 20 Hz to 20 kHz, +/- 0.1 dB (Unity Gain, Reference 1 kHz)
LINE INPUTS GAIN RANGE: +/- 10 dB
LINE INPUTS IMPEDANCE: 10K Ohms
LINE INPUTS MAXIMUM LEVEL: +15 dBu (Balanced, Minimum Gain)
LINE INPUTS TOTAL HARMONIC DISTORTION: 0.001% (1 kHz, Minimum Gain)
MICROPHONE INPUT CONNECTION TYPE: XLR Female (Combo), Balanced
MICROPHONE PREAMP DYNAMIC RANGE: 113 dB (A-Weighted, Minimum Gain)
MICROPHONE PREAMP EQUIVALENT INPUT NOISE: -129 dBu (Maximum Gain, 150 Ohms, 22 kHz BW, A-Weighted)
MICROPHONE PREAMP FREQUENCY RESPONSE: 20 Hz to 20 kHz, +/- 0.2 dB (Unity Gain, Reference 1 kHz)
MICROPHONE PREAMP GAIN CONTROL RANGE: 75 dB
MICROPHONE PREAMP INPUT IMPEDANCE: 1600 Ohms
MICROPHONE PREAMP MAXIMUM INPUT LEVEL: +14 dBu (Balanced, Minimum Gain)
MICROPHONE PREAMP TOTAL HARMONIC DISTORTION: 0.001% (1 kHz, Minimum Gain)
Measurements
DIMENSIONS: 4.00x9.00x12.00 IN
SHIPPING WEIGHT: 3.75 LB
PRODUCT DEPTH: 6.2" (158 mm)
PRODUCT HEIGHT: 1.9" (48.3 mm)
PRODUCT WIDTH: 6.9" (175 mm)
SHIPPING LENGTH: 12.00 IN
SHIPPING HEIGHT: 4.00 IN
SHIPPING WIDTH: 9.00 IN
Outputs
HEADPHONE OUTPUTS DYNAMIC RANGE: 111 dB (A-Weighted)
HEADPHONE OUTPUTS FREQUENCY RESPONSE: 20 Hz to 20 kHz, +/- 0.2 dB (Unity Gain, Reference 1 kHz)
HEADPHONE OUTPUTS IMPEDANCE WORKING RANGE: 22 Ohms
HEADPHONE OUTPUTS MAXIMUM OUTPUT: 7.5 dBu (50 Ohms)
HEADPHONE OUTPUTS TOTAL HARMONIC DISTORTION: 0.02% (1 kHz)
MAIN AND LINE OUTPUTS DYNAMIC RANGE: 117 dB (A-Weighted)
MAIN AND LINE OUTPUTS FREQUENCY RESPONSE: 20 Hz to 20 kHz, +/- 0.1 dB (Unity Gain, Reference 1 kHz)
MAIN AND LINE OUTPUTS MAXIMUM LEVEL: +15 dBu (Balanced)
MAIN AND LINE OUTPUTS OUTPUT IMPEDANCE: 51 Ohms
MAIN AND LINE OUTPUTS TOTAL HARMONIC DISTORTION: 0.001% (1 kHz, +4 dBu)
MAIN OUTPUTS CONNECTION TYPE: 1/4" TRS Female
Hardware
MIDI IO: 3.5 mm Type-B
Accessories
INCLUDED ACCESSORIES: 1.5M USB-C to USB-C cable
Miscellaneous
COMMODITY CODE: 8517620000
SUPPORTED SAMPLE RATES: 44.1, 48, 88.2, 96, 176.4, 192 (kHz)
