Features:
1. The use of high-quality materials, quality assurance, greatly improving the service life of the product

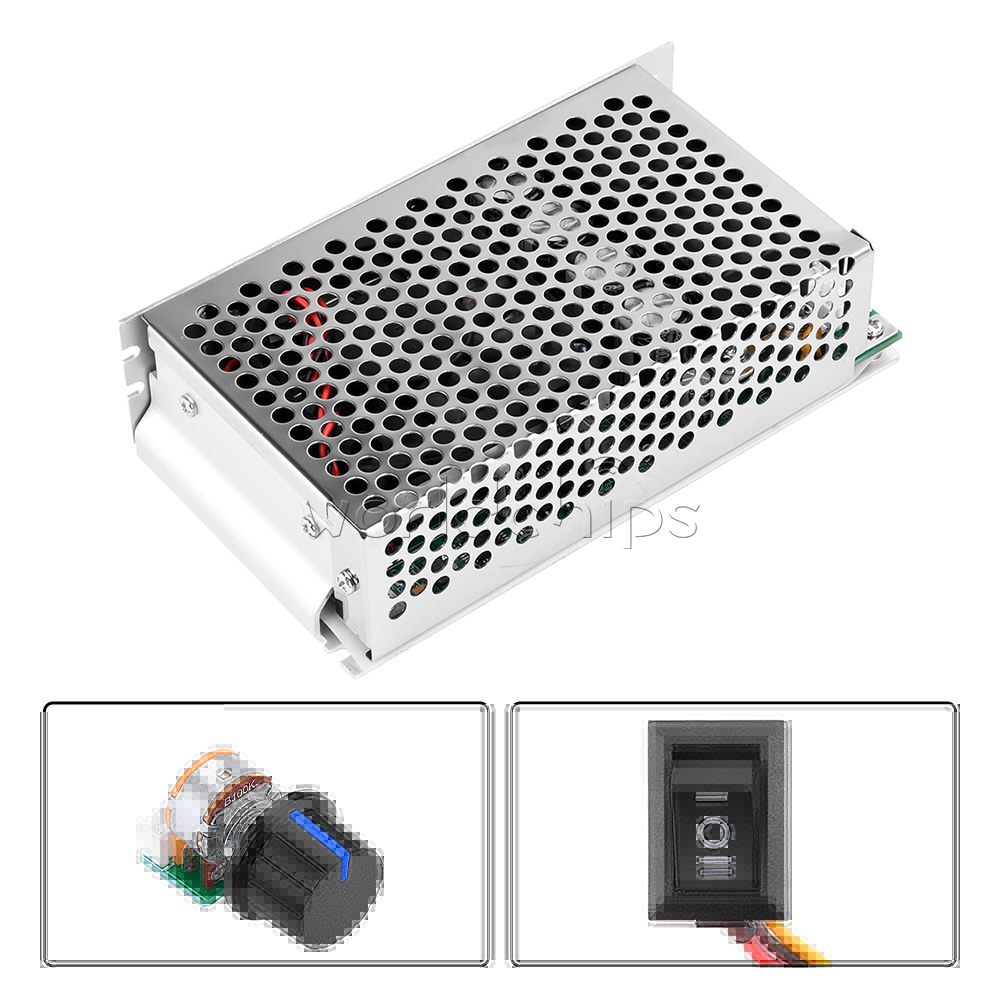

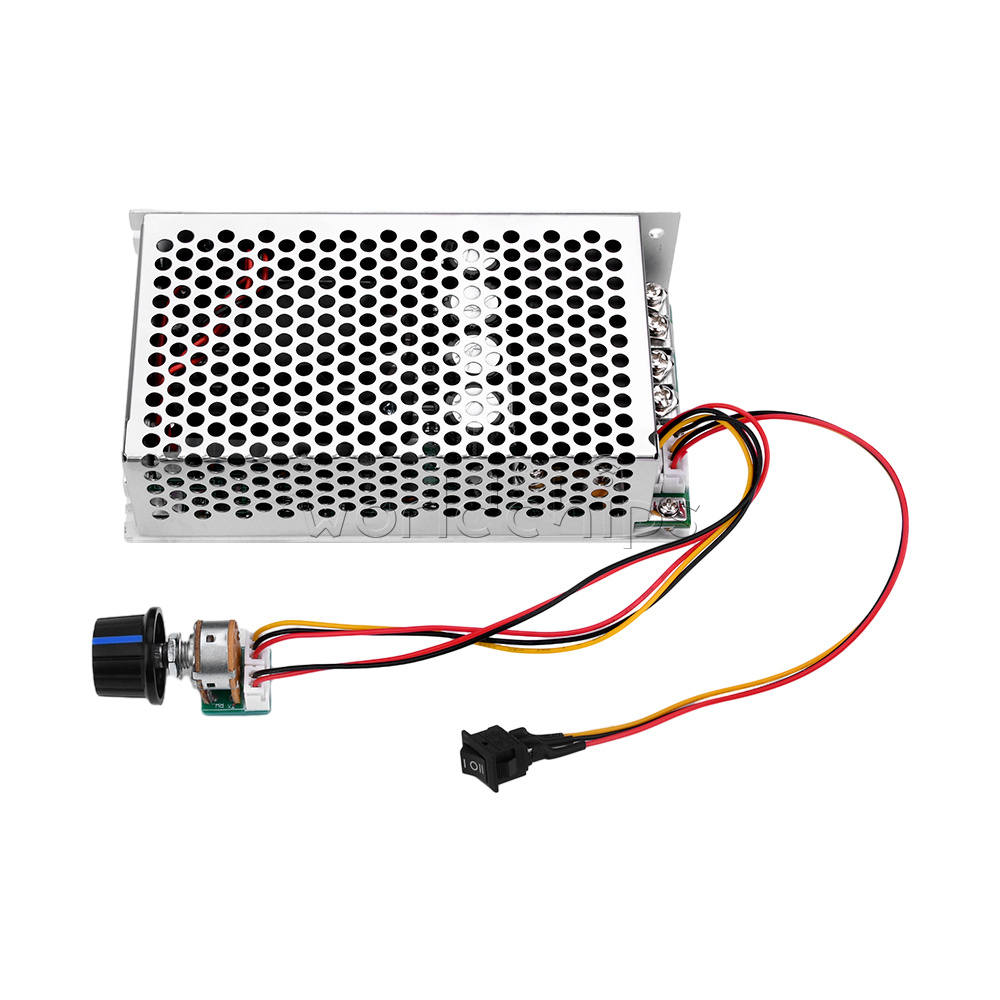

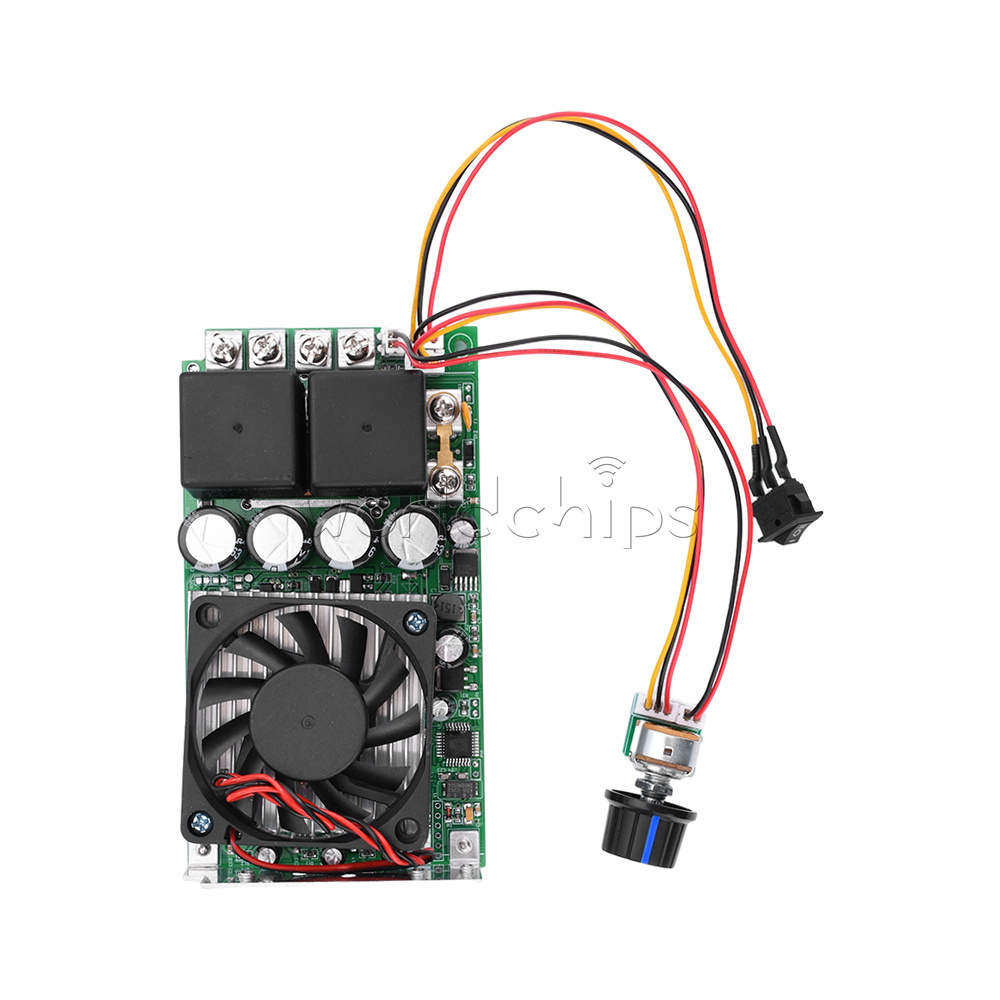

2. This is a DC brush motor speed controller with an extension cord potentiometer knob design, very simple and convenient to use.
3. Stable product performance, rated current 60A, maximum rated current 100A, power support 3000W
4. The governor for industrial-grade quality, can work stably in the environment below zero degrees, the general commercial-grade quality of the governor can not work stably below zero degrees
5. The product is widely used in a variety of industrial DIY occasions

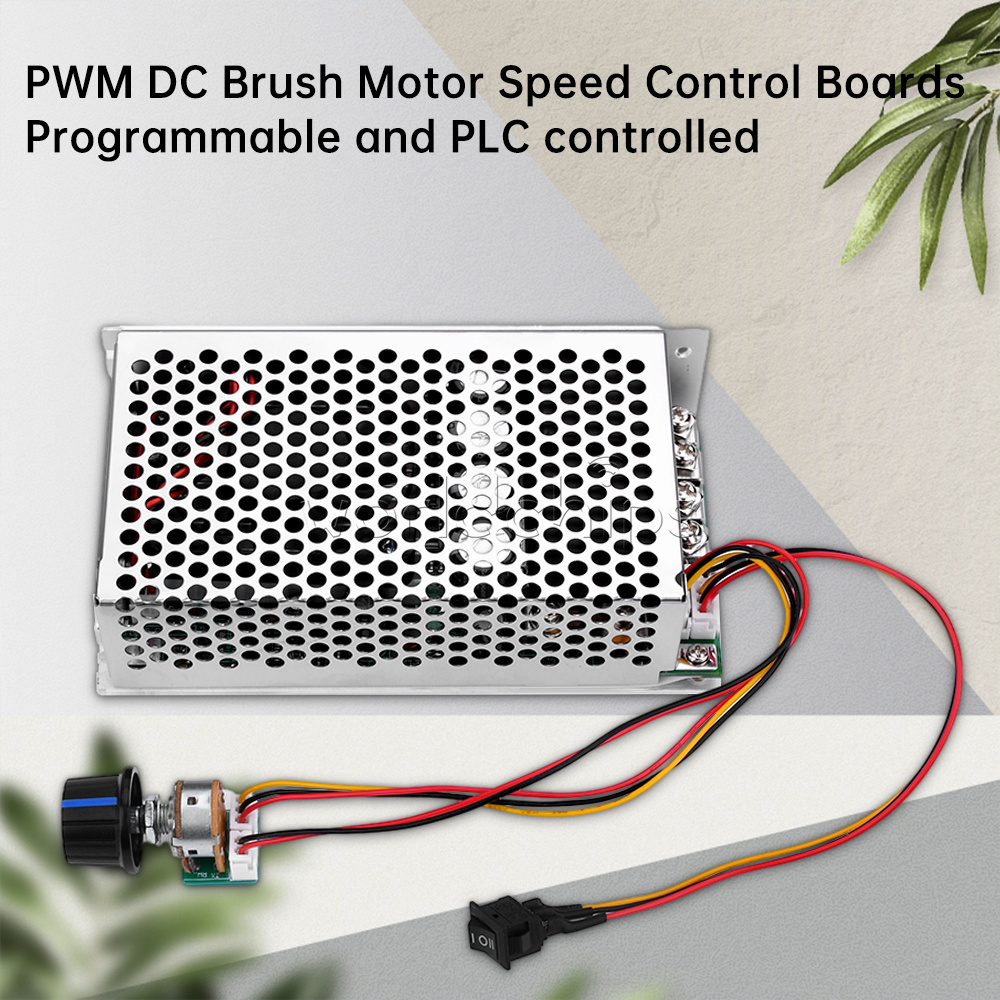

Product Description: The speed controller has the characteristics of wide working voltage, high current, fan, high efficiency, small torque, low heat, switchable output direction, braking, programmable, etc. The motor speed can be changed from 0-100%, and the motor speed can be changed from 0-100%, and the motor speed can be changed from 0-100%. Motor speed can be changed steplessly from 0-100%, and increase the 0-5V speed control function, you can use PLC to directly control the motor speed and motor steering main purpose: 1, all kinds of general-purpose DC brush motor speed control 2, all kinds of automotive motor speed control (automotive cooling fan speed control, automotive fan speed control, automotive wiper motor speed control, automotive air-conditioning fan speed control) 3, the production line conveyor belt speed control, pipeline exhaust fan speed control, treadmill speed control, and the speed of the motor. Fan speed control, treadmill speed control, multi-computer fan parallel speed control, electronic fan speed control, 4, all kinds of DC bulb dimming, all kinds of DC heater temperature control.
Parameter:
Working voltage: DC10V-DC50V
Control power: 0.01-3000W (maximum rated current 60A)
Different working voltage corresponds to different control power as follows:
12V*100Amps=1200W for 12V working voltage.
24V*100Amps=2400W when working voltage is 24V.
30V*100Amps=3000W when working voltage is 30V.
Static current: 0.04A (working voltage in DC10V to DC30V static current will not exceed 40ma)
PWM Duty Cycle: 0% - 100%
PWM frequency: 15khz
Operating temperature: -20-40℃

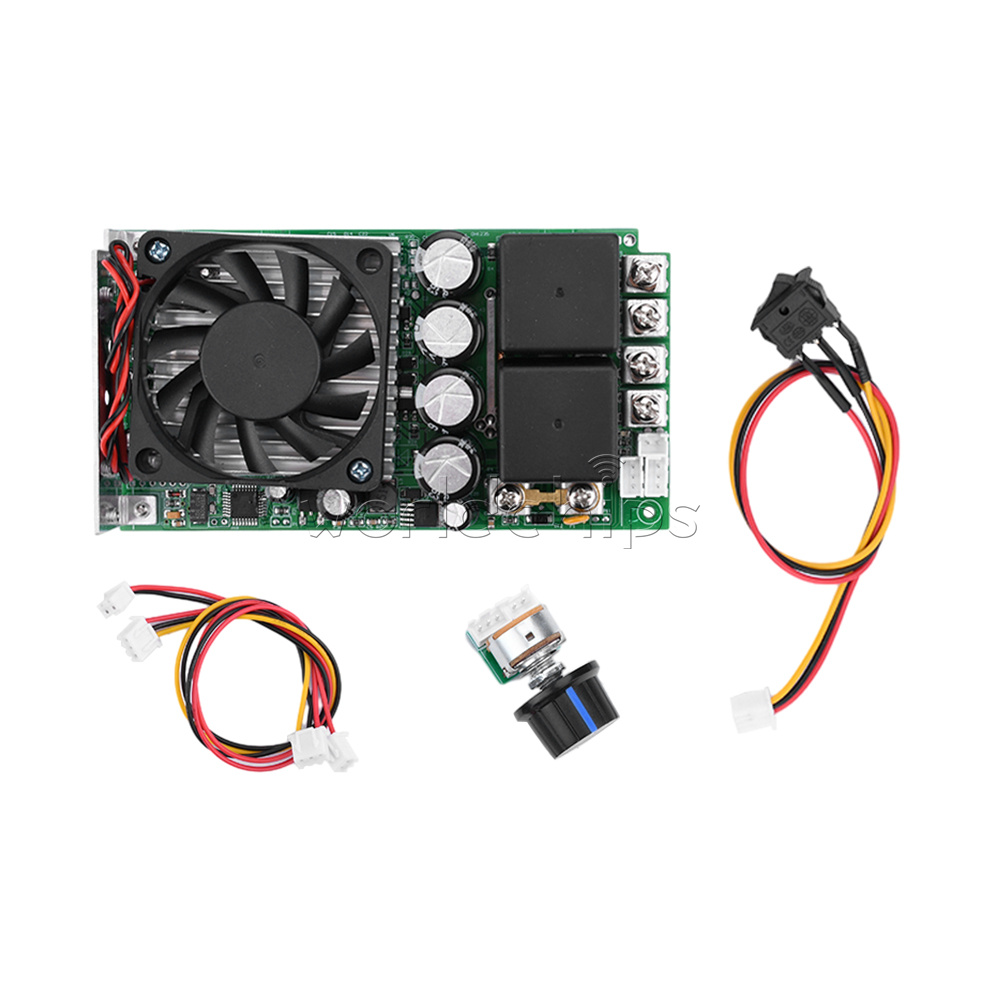

Package include:
Brush motor speed controller *1
-
