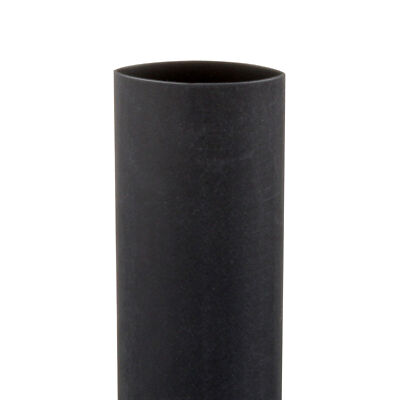

3M Heat Shrink Thin-Wall Tubing FP-301-3/4-Black-200`: 200 ft spoollength
- Manufacturer:3M
- Part Number:7100027324
3M Heat Shrink Tubing FP-301 is a general purpose, thin wall tubing that provides a balance of electrical, physical and chemical properties, making it ideal for industrial and military applications. This tubing has a 2:1 shrink ratio and provides flame retardant insulation for 600V rated applications. It has a flexible polyolefin construction that offers moisture seal protection.3M™ Heat Shrink Tubing FP-301 is color coded for quick and easy identification of the wire. This split resistant, flame retardant tubing is used as shrink fit, electrical insulation over cable splices or terminations. The high expansion ratio tubing is mechanically tough, easily markable and resists cold flow. It is ideal for lightweight wire harness covering, fire resistant covering, wire marking, wire bundling and component packaging. It withstands temperatures of 67 to 275 degrees F ( 55 to 135 degrees C). UL Listed, SAE AS23053/5, Class 1, CSA Certified and RoHS 2011/65/EU Compliant.Please allow 2 days for production. Sold as roll
- A VARIETY OF APPLICATIONS: Offers a 2:1 shrink-fit ratio and serves as protection in wire-harnessing, split-resistance covering, wire marking, wire bundling, and component packaging
- FLAME-RETARDANT TUBING: For applications up to 600V (clear is not flame retardant)
- HIGH-STRENGTH PROTECTION: Balances electrical, physical, and chemical properties for various industrial and military applications
- FOR DEMANDING CONDITIONS: Performs at an operating temperature up to 275 °F (135 °C)
- KEY SPECIFICATIONS: UL Listed, File E-39100, SAE AS23053/5, Class 1 (all colors), Class 2 (clear), CSA Certified, and RoHS 2011/65/EU Compliant
General Information | |
| Brand | 3M™ |
| Heat Shrink Type | Single-Wall Polyolefin Heat Shrink Tubing |
| Tubing Type | Single Wall (Thin) |
| Country Of Origin | United States |
| Sold As | roll |
| Lead Time | 2 days |
Dimensions and Specifications | |
| Expanded Inner Diameter | 0.75 in |
| Expanded Inner Diameter (Metric) | 19.05 mm |
| Inner Diameter After Shrink (Imperial) | 0.375 in |
| Inner Diameter After Shrink (Metric) | 9.53 mm |
| Inner Diameter Before Shrink (Imperial) | 0.75 in |
| Inner Diameter Before Shrink (Metric) | 19.05 mm |
| Maximum Operating Temperature (Celsius) | 135 Degree Celsius |
| Maximum Operating Temperature (Fahrenheit) | 275 Degree Fahrenheit |
| Minimum Shrink Temperature (Celsius) | 100 Degree Celsius |
| Operating Temperature (Celsius) | -55 to 135 Degrees Celsius |
| Operating Temperature Range (Celsius) | -55 °C to +135 °C |
| Operating Temperature Range (Fahrenheit) | -67 °F to 275 °F |
| Overall Length (Imperial) | 200 ft |
| Recovered Inner Diameter | 0.375 in |
| Recovered Inner Diameter (Metric) | 9.525 mm |
| Tensile Strength (Imperial) | 2400 Pound-Force Per Square Inch |
| Operating Temperature Celsius | -55 to 135 Degrees Celsius |
| Overall Length Imperial | 200.0 |
| Volume | 20.53 dm3 |
| Weight | 5.5 lb 2.5 kg |
Other Details | |
| Elongation | 400 Decibel |
| Flame Retardant | Yes |
| Mil Spec | AMS-DTL-23053/5, Class 1 |
| Minimum Expanded Tubing I. D. | 3 in |
| Non-Corrosive | Yes |
| Shrink Ratio | 2:1 |
| Solution For | Wireless Network: Infrastructure Accessories |
| UL File Number | E-39100 |
| Units Per Case | 3.0 |
| Tensile Strength Imperial | 2400 Pound-Force Per Square Inch |
Material and Composition | |
| Material | Flexible Polyolefin |
| Product Form | Tube |
| Shelf Life | 3600 |
Certifications and Standards | |
| Agency Approvals | CSA, UL Recognized |
| Flammability Rating | UL 224 All Tubing Flame Test |
| UL Approval | Yes |
