Morel Virtus Nano Carbon 63

Virtus Nano Carbon Series 6-1/2" 3-way component speaker system

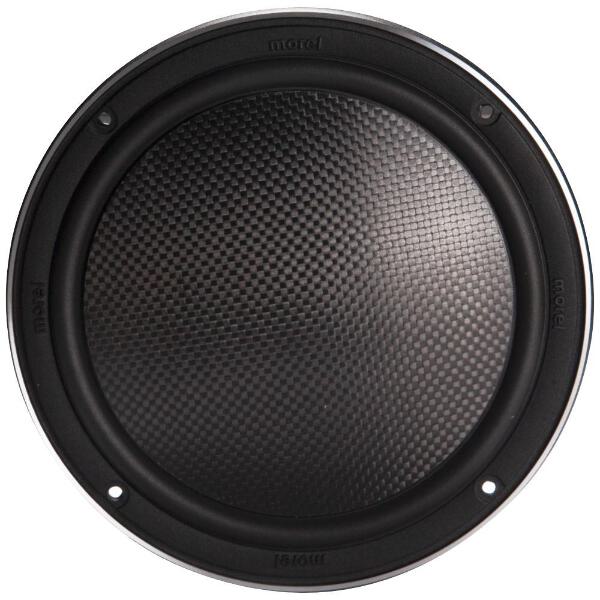

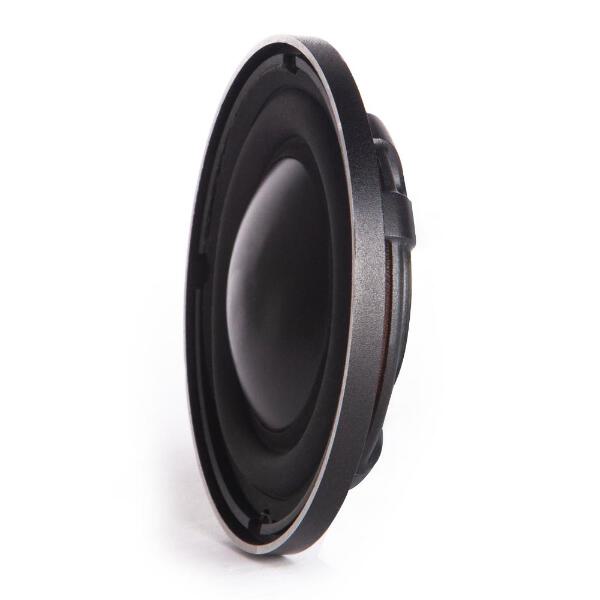

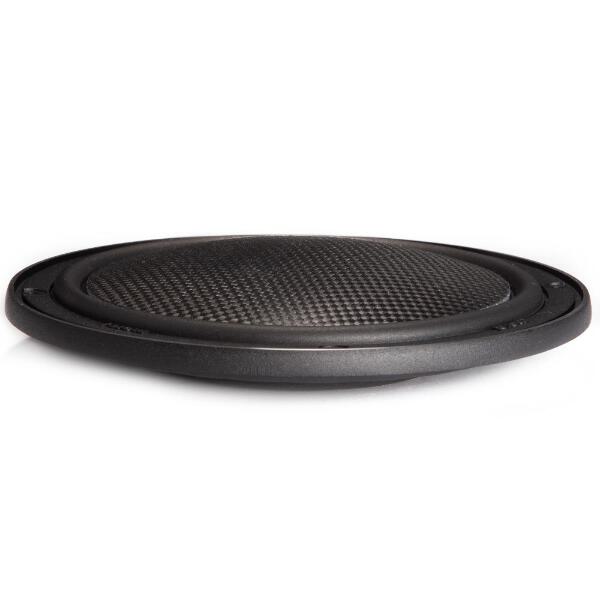

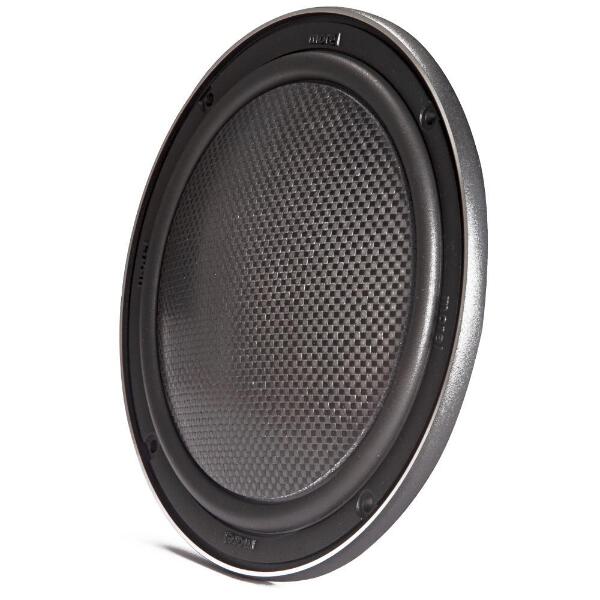

Morel’s cutting-edge design gives the Virtus Nano Carbon and Virtus Nano Integra Carbon systems an ultra-slim profile to fit where other speakers cannot. The 6.5-inch woofers measure only 0.7 inches (17mm) deep, making them the shallowest speakers in-car audio. It’s an engineering feat that uses an innovative suspension design, a highly powerful Neo magnet system, a 2.1” Hexatech aluminum voice coil and Grand Dome carbon fiber sandwich cone.

While the Virtus Nano Carbon may be shallow, it doesn’t trade off performance. The dynamic range and rich bass will get you engaged in your music while the detailed and natural sound will make you “see” the music.

C.A.R FILTER

Controlled Acoustic Resistance – In most automotive applications, speakers are installed in a virtual free-air environment, such as a door, which provides minimal acoustic loading. The C.A.R. Filter™ improves the acoustic loading by controlling airflow within the driver, mimicking the effects of a cabinet while improving power handling by 30%. This provides greater control over the cone movement for improved bass dynamics.

EVC MOTOR

Morel speakers with EVC™ technology utilize voice coils that are up to three times larger than those uséd in conventional loudspeakers. The EVC™ design moves the magnetic drive system within the voice coil, eliminating stray magnetic flux by effectively directing all the magnetic energy to the voice coil. The result is an ultra-efficient and powerful design, that is highly compact with efficient heat dissipation and reduced cone breakup for lower distortion.

GRAND DOME GEOMETRY

Grand Dome Geometry membrane technology is a stiff, convex cone design that provides excellent off-axis performance enabling multiple speaker mount locations in the car. The well-damped, stiff cone design allows the speaker to produce excellent mid-bass frequencies.

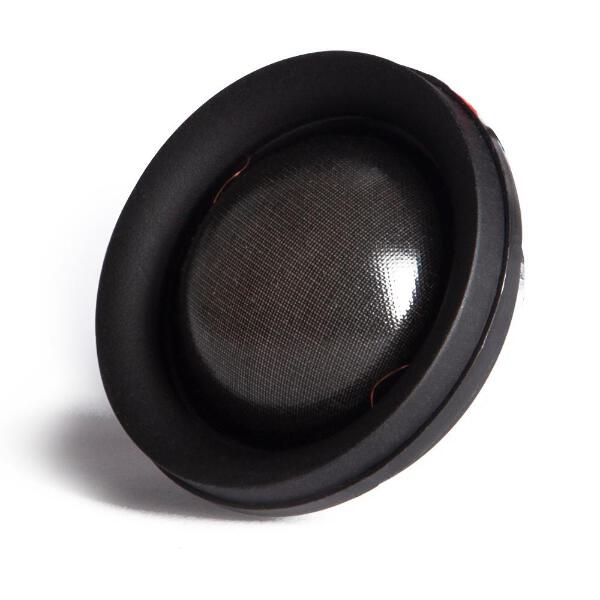

HANDCRAFTED ACUFLEX SOFT DOME

A specially engineered damping compound applied to the soft domes of specific Morel tweeters and midranges. The combination of these materials creates a diaphragm that exhibits controlled canceling break up (accurate–flexing), meaning each break-up mode is counteracted by another in the opposite direction. This cancellation of break-up modes leaves nothing but the pure, natural sound Morel tweeters and midrange are famous for.

NEODYMIUM MAGNET

The most powerful magnet available, neodymium enables Morel to create physically compact speakers, such as tweeters and midrange, that fit in very limited spaces without limiting the quality of sound.

Specification

Speaker Size 6 1/2
Design 3-way
Tweeter Design Dome
Impedance (Ohms) 4
Tweeter Composition Silk
Woofer Composition Carbon/Foam Core
Woofer Surround Rubber
Sensitivity (1W at 1 meter) N/A
Sensitivity at 2.83 volts 88
Frequency Response 50 - 22k Hz
Minimum RMS Wattage ---
Maximum RMS Wattage 100
Peak Power Handling (Watts) 300
Top-mount Depth (Inches) 0 11/16
Bottom-mount Depth (Inches) 0 15/16
Cutout Diameter or Length (inches) 5 3/8
Mounting Height (Inches) 0.7

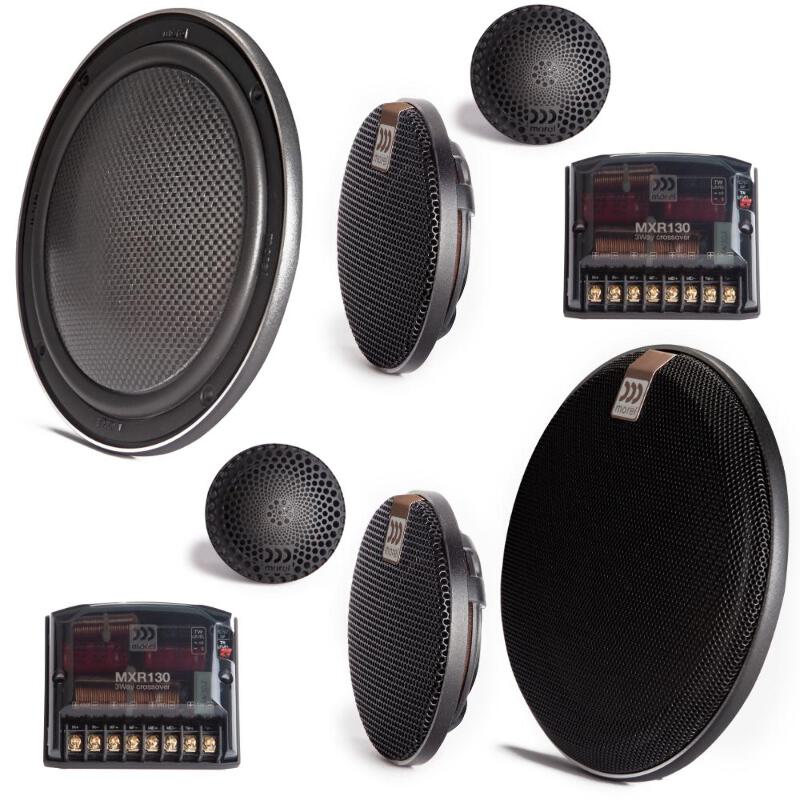

What's included

Two Nano MW6 Woofers

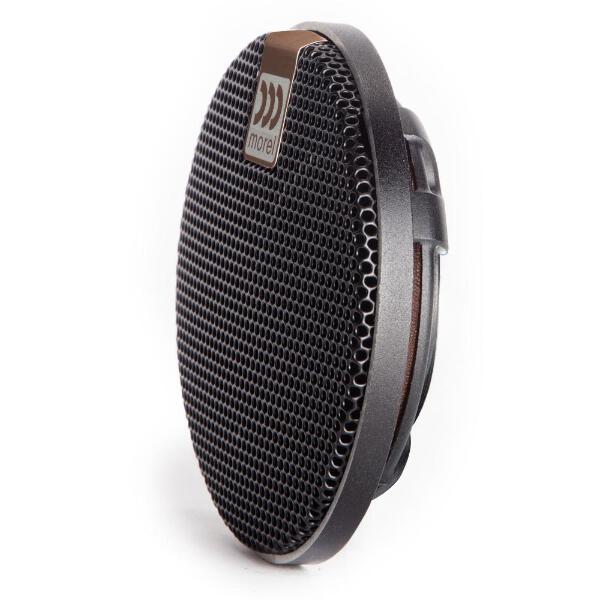

Two MM2 Midrange (with attached 9" length of speaker wire)

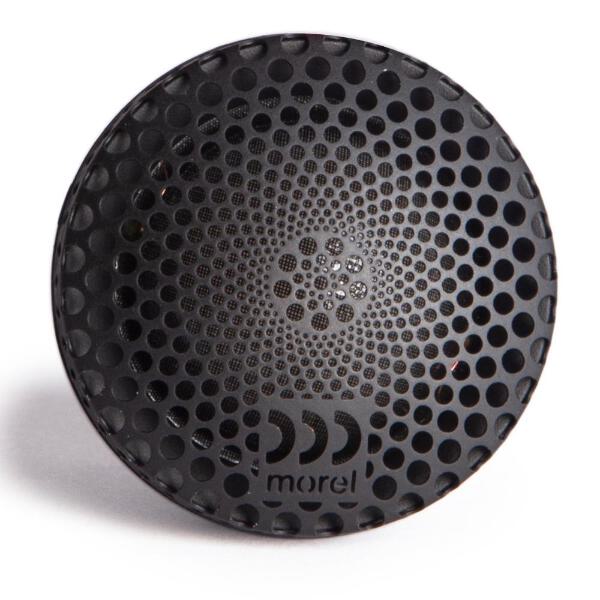

Two MT 120N Tweeters (with attached 7" length of speaker wire)

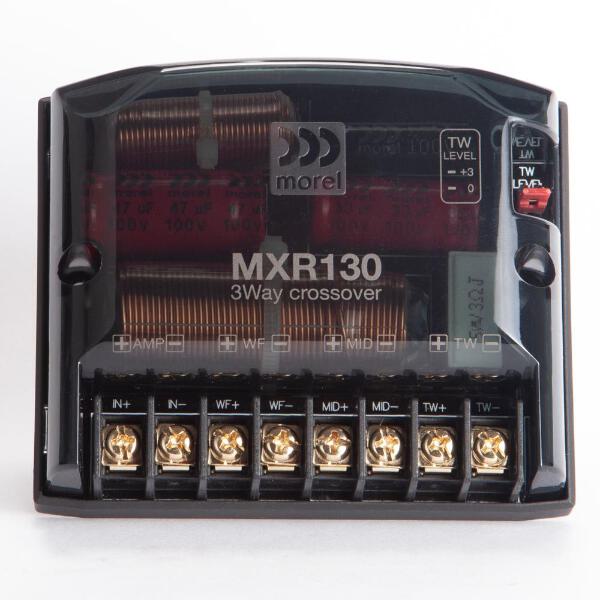

2 MXR130 Crossovers

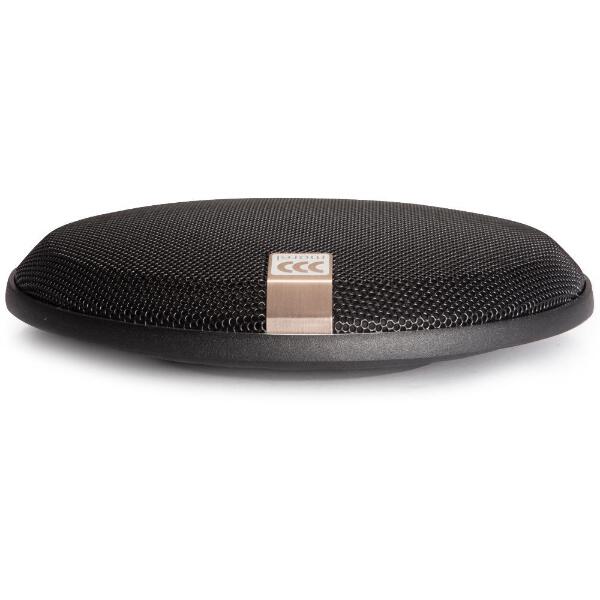

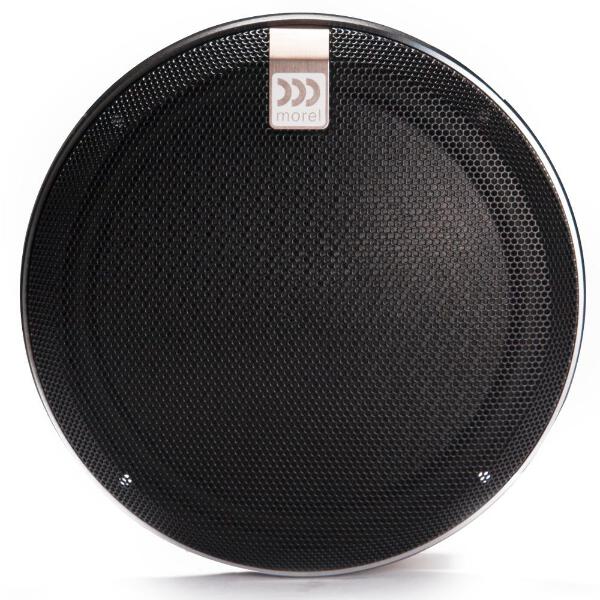

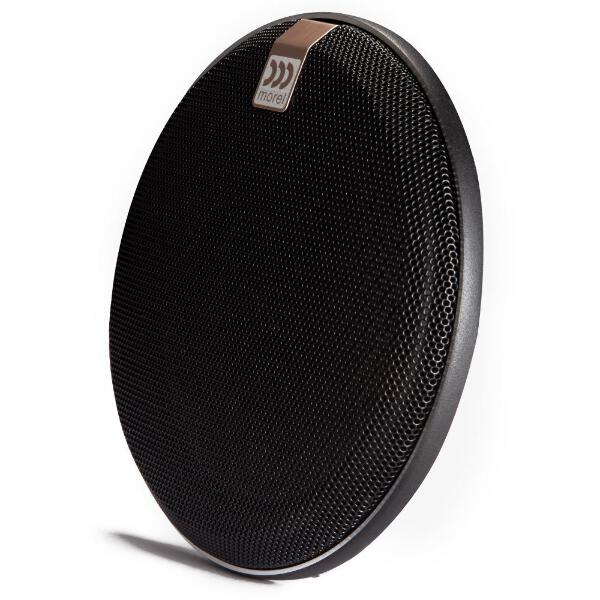

2 Woofer grilles
2 Midrange grilles (installed)
2 Tweeter grilles (installed)
2 Flush mount tweeter housings (tweeters installed)
2 Flush mount clamps
2 Angled surface mount tweeter housings
2 Rubber bases for surface mount housings
Eight 1-1/4" Screws
Four 1" Screws
Fourteen 3/4" Screws
16 Speed clips
Grille putty
Four 0.25" Crimp-on female quick slides
Two 0.187" Crimp-on female quick slides
Six 0.110" Crimp-on female quick slides
Two 0.187" Quick slide insulating covers
Two 0.110" Quick slide insulating covers
Installation guide
Warranty card
Genuine product verification instructions
